Glide的使用

Glide是Google開發用於android加載媒體的類庫,包括圖片,gif,video,已經在很多項目中使用,靈活快速。下面我們看如何使用它,如果有什麽不對的請不吝指教

  • 導入到項目中

    dependencies {
          compile fileTree(include: ['*.jar'], dir: 'libs')
          testCompile 'junit:junit:4.12'
          compile 'com.android.support:appcompat-v7:24.1.1'
          compile 'com.github.bumptech.glide:glide:3.7.0'
          compile 'com.android.support:support-v4:24.1.1'
          }

    Glide同樣需要 Android Support Library v4 ,請記得加上 support-v4 ,不過現在項目基本都包含 support-v4

  • 加載圖片

    Glide.with(this).load("http://inthecheesefactory.com/uploads/source/glidepicasso/cover.jpg")
                .asBitmap()
                .into(mImageView);
  • Glide的生命周期

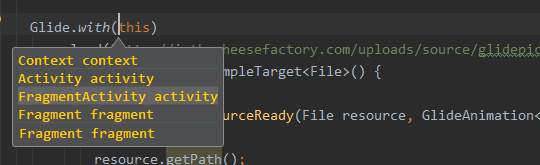

    glide-with

    Glide.with() 不僅僅只是 Context 還可以是 Activity , Fragment 等,傳入後自動適配,Glide加載圖片是會隨著 Activity , Fragment 的生命周期,具體可以參考 LifecycleListener ,所以推薦使用 Activity , Fragment .

  • 設置圖片大小

    .override(200,200) 可以設置加載圖片大小,但是實際大小不一定是200x200,通過源碼分析下:

    在 BitmapRequestBuilder 中默認的 private Downsampler downsampler = Downsampler.AT_LEAST;

    /**
       * Load and scale the image uniformly (maintaining the image's aspect ratio) so that the smallest edge of the
       * image will be between 1x and 2x the requested size. The larger edge has no maximum size.
       */
      public static final Downsampler AT_LEAST = new Downsampler() {
          @Override
          protected int getSampleSize(int inWidth, int inHeight, int outWidth, int outHeight) {
              return Math.min(inHeight / outHeight, inWidth / outWidth);
          }

          @Override
          public String getId() {
              return "AT_LEAST.com.bumptech.glide.load.data.bitmap";
          }
      };

    然後在 Downsampler 中的 decode 方法中,獲取的Bitmap大小變成1/sampleSize,倍數通過 getSampleSize 計算所得,

    options.inTempStorage = bytesForOptions;

          final int[] inDimens = getDimensions(invalidatingStream, bufferedStream, options);
          final int inWidth = inDimens[0];
          final int inHeight = inDimens[1];

          final int degreesToRotate = TransformationUtils.getExifOrientationDegrees(orientation);
          final int sampleSize = getRoundedSampleSize(degreesToRotate, inWidth, inHeight, outWidth, outHeight);

          final Bitmap downsampled =
                  downsampleWithSize(invalidatingStream, bufferedStream, options, pool, inWidth, inHeight, sampleSize,
                          decodeFormat);

          // BitmapFactory swallows exceptions during decodes and in some cases when inBitmap is non null, may catch
          // and log a stack trace but still return a non null bitmap. To avoid displaying partially decoded bitmaps,
          // we catch exceptions reading from the stream in our ExceptionCatchingInputStream and throw them here.
          final Exception streamException = exceptionStream.getException();
          if (streamException != null) {
              throw new RuntimeException(streamException);
          }

          Bitmap rotated = null;
          if (downsampled != null) {
              rotated = TransformationUtils.rotateImageExif(downsampled, pool, orientation);

              if (!downsampled.equals(rotated) && !pool.put(downsampled)) {
                  downsampled.recycle();
              }
          }

    inSampleSize 是 BitmapFactory.Options的屬性,應該大家都知道。然後再看看怎麽生成 .override(200,200) ,如果沒有設置Glide默認是 FitCenter ,查看 FitCenter 可以看到圖片截取方式。

    public class FitCenter extends BitmapTransformation {

          public FitCenter(Context context) {
              super(context);
          }

          public FitCenter(BitmapPool bitmapPool) {
              super(bitmapPool);
          }

          @Override
          protected Bitmap transform(BitmapPool pool, Bitmap toTransform, int outWidth, int outHeight) {
              return TransformationUtils.fitCenter(toTransform, pool, outWidth, outHeight);
          }

          @Override
          public String getId() {
              return "FitCenter.com.bumptech.glide.load.resource.bitmap";
          }
      }

    --

    public static Bitmap fitCenter(Bitmap toFit, BitmapPool pool, int width, int height) {
              if (toFit.getWidth() == width && toFit.getHeight() == height) {
                  if (Log.isLoggable(TAG, Log.VERBOSE)) {
                      Log.v(TAG, "requested target size matches input, returning input");
                  }
                  return toFit;
              }
              final float widthPercentage = width / (float) toFit.getWidth();
              final float heightPercentage = height / (float) toFit.getHeight();
              final float minPercentage = Math.min(widthPercentage, heightPercentage);

              // take the floor of the target width/height, not round. If the matrix
              // passed into drawBitmap rounds differently, we want to slightly
              // overdraw, not underdraw, to avoid artifacts from bitmap reuse.
              final int targetWidth = (int) (minPercentage * toFit.getWidth());
              final int targetHeight = (int) (minPercentage * toFit.getHeight());

              if (toFit.getWidth() == targetWidth && toFit.getHeight() == targetHeight) {
                  if (Log.isLoggable(TAG, Log.VERBOSE)) {
                      Log.v(TAG, "adjusted target size matches input, returning input");
                  }
                  return toFit;
              }

              Bitmap.Config config = getSafeConfig(toFit);
              Bitmap toReuse = pool.get(targetWidth, targetHeight, config);
              if (toReuse == null) {
                  toReuse = Bitmap.createBitmap(targetWidth, targetHeight, config);
              }
              // We don't add or remove alpha, so keep the alpha setting of the Bitmap we were given.
              TransformationUtils.setAlpha(toFit, toReuse);

              if (Log.isLoggable(TAG, Log.VERBOSE)) {
                  Log.v(TAG, "request: " + width + "x" + height);
                  Log.v(TAG, "toFit:   " + toFit.getWidth() + "x" + toFit.getHeight());
                  Log.v(TAG, "toReuse: " + toReuse.getWidth() + "x" + toReuse.getHeight());
                  Log.v(TAG, "minPct:   " + minPercentage);
              }

              Canvas canvas = new Canvas(toReuse);
              Matrix matrix = new Matrix();
              matrix.setScale(minPercentage, minPercentage);
              Paint paint = new Paint(PAINT_FLAGS);
              canvas.drawBitmap(toFit, matrix, paint);

              return toReuse;
          }

    這裏算出圖片的大小:

    final float widthPercentage = width / (float) toFit.getWidth();
              final float heightPercentage = height / (float) toFit.getHeight();
              final float minPercentage = Math.min(widthPercentage, heightPercentage);

    測試中我們使用的圖片是1080x540,最終生成了200x100.設置 approximate() 對應 Downsampler.AT_LEAST , asIs() 對應 Downsampler.NONE , atMost() 對應 Downsampler.AT_MOST ,具體情況可查看 Downsampler

  • 圖片緩存策略

    測試加載的圖片大小為1080x540,如果使用了 .override(200,200) 默認緩存一張200x100的圖片,也就是默認存儲結果 RESULT ,如果想要改變緩存的策略可以這樣設置:

    .diskCacheStrategy(DiskCacheStrategy.ALL)

    DiskCacheStrategy 分別有以下幾種選擇, ALL 緩存原圖和截取後的圖, NONE 不緩存, SOURCE 只緩存原圖, RESULT 緩存截取後的圖:

    public enum DiskCacheStrategy {
             /** Caches with both {@link #SOURCE} and {@link #RESULT}. */
             ALL(true, true),
             /** Saves no data to cache. */
             NONE(false, false),
             /** Saves just the original data to cache. */
             SOURCE(true, false),
             /** Saves the media item after all transformations to cache. */
             RESULT(false, true);

             private final boolean cacheSource;
             private final boolean cacheResult;

             DiskCacheStrategy(boolean cacheSource, boolean cacheResult) {
                 this.cacheSource = cacheSource;
                 this.cacheResult = cacheResult;
             }

             /**
              * Returns true if this request should cache the original unmodified data.
              */
             public boolean cacheSource() {
                 return cacheSource;
             }

             /**
              * Returns true if this request should cache the final transformed result.
              */
             public boolean cacheResult() {
                 return cacheResult;
             }
         }

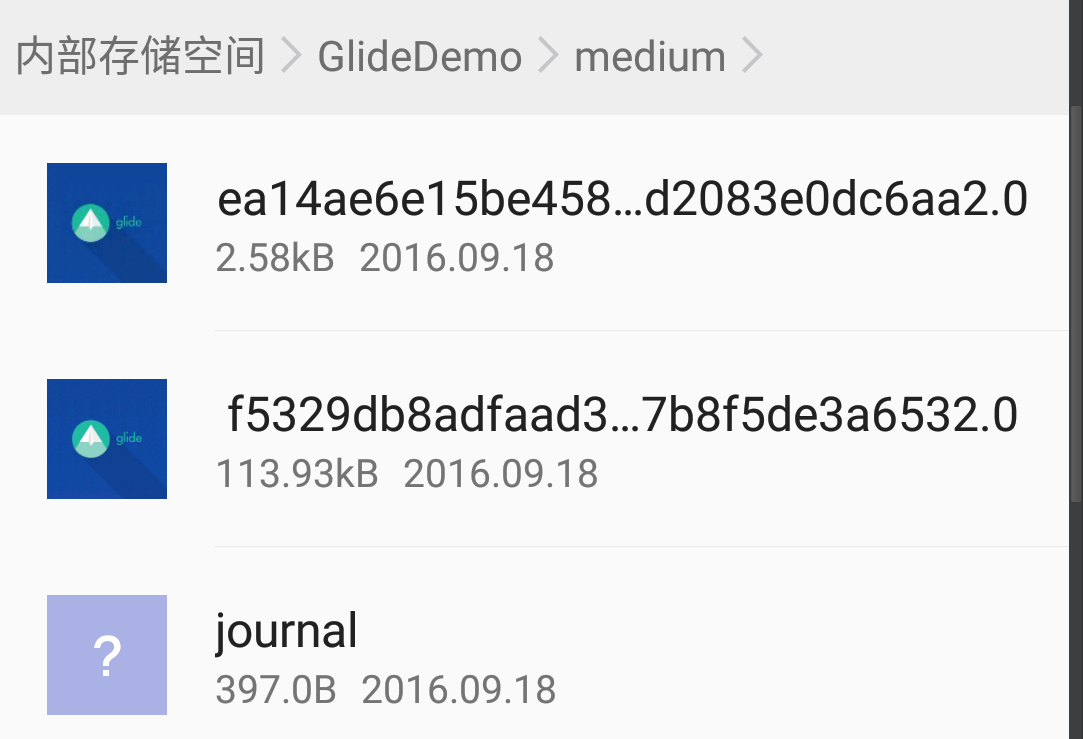

    查看本地緩存如下:

    DiskCacheStrategy

    如果圖片需要分享或需要原圖的建議緩存 ALL ,否則只緩存 RESULT 。

  • Glide全局配置

  • 創建 GlideModel

    public class GlideConfigModule implements GlideModule {
       @Override
       public void applyOptions(Context context, GlideBuilder builder) {

       }

       @Override
       public void registerComponents(Context context, Glide glide) {

       }
     }
  1. 在 AndroidManifest.xml 的 meta-data 配置 GlideModule

    <meta-data android:name="com.branch.www.glidedemo.GlideConfigModule"
                android:value="http://www.open-open.com/lib/view/GlideModule"/>
  2. 解決 GlideModel 沖突

    有可能加入的library中也同樣配置了 GlideModule ,如果配置了多個會出現沖突,無法編譯運行,解決方式可在 AndroidManifest.xml 移除

    <meta-data android:name=”com.mypackage.MyGlideModule” tools:node=”remove” />
  3. 默認Bitmap Format 是 RGB_565

    為了降低內存消耗,Glide默認配置的Bitmap Format 為 RGB_565,修改GlideBuilder's setDecodeFormat 設置

    builder.setDecodeFormat(DecodeFormat.PREFER_ARGB_8888);
  4. 配置Disk緩存

    使用GlideBuilder's setDiskCache() 方法設置緩存目錄和大小。

    默認Glide使用 InternalCacheDiskCacheFactory ,默認最大緩存250M,這是一個應用內部目錄的緩存,緩存的圖片只能本應用可以有權獲取。

    builder.setDiskCache(
       new InternalCacheDiskCacheFactory(context, yourSizeInBytes));

       builder.setDiskCache(
       new InternalCacheDiskCacheFactory(context, cacheDirectoryName, yourSizeInBytes));

    你也可以使用 ExternalCacheDiskCacheFactory 去設置SD卡緩存

    builder.setDiskCache(
       new ExternalCacheDiskCacheFactory(context, cacheDirectoryName, yourSizeInBytes));

    或者使用DiskLruCacheFactory配置自己管理的緩存目錄和大小

    // If you can figure out the folder without I/O:
         // Calling Context and Environment class methods usually do I/O.
         builder.setDiskCache(
           new DiskLruCacheFactory(getMyCacheLocationWithoutIO(), yourSizeInBytes));

         // In case you want to specify a cache folder ("glide"):
         builder.setDiskCache(
           new DiskLruCacheFactory(getMyCacheLocationWithoutIO(), "glide", yourSizeInBytes));

         // In case you need to query the file system while determining the folder:
         builder.setDiskCache(new DiskLruCacheFactory(new CacheDirectoryGetter() {
             @Override public File getCacheDirectory() {
                 return getMyCacheLocationBlockingIO();
             }
         }), yourSizeInBytes);

    或者你想完全控制緩存可以通過實現 DiskCache.Factory 然後用 DiskLruCacheWrapper 去創建你期望的目錄。

    builder.setDiskCache(new DiskCache.Factory() {
         @Override public DiskCache build() {
             File cacheLocation = getMyCacheLocationBlockingIO();
             cacheLocation.mkdirs();
             return DiskLruCacheWrapper.get(cacheLocation, yourSizeInBytes);
          }
         });

    如果你不需要任何緩存可以使用 DiskCacheAdapter 或者自己實現 DiskCache , DiskCacheAdapter 內部沒有任何實現。

  5. Bitmap Pool

    為了避免Bitmap頻繁解碼,我們通常會在系統內存中緩存一部分經常使用的圖片。GlideBuilder's setBitmapPool() 可以設置你想要的緩存策略,緩存大小。例如我們常用的LRU策略。

    builder.setBitmapPool(new LruBitmapPool(sizeInBytes));

    或實現 BitmapPool 自定義一個吧。

    Glide所有的基本配置都在 GlideModule 內,使用Glide提供的緩存方式如下:

    builder.setDiskCache(new DiskLruCacheFactory(dirPath, DiskCache.Factory.DEFAULT_DISK_CACHE_SIZE));

    如果需要自定義實現 DiskCache.Factory 。

    GlideModule 更多配置如下:

    GlideModule

  6. 自定義加載

    1. SimpleTarget

      如果單純的想獲得Bitmap,顯不顯示或者其他再定,則可以使用 SimpleTarget

      Glide.with(this).load("http://inthecheesefactory.com/uploads/source/glidepicasso/cover.jpg")
             .asBitmap()
             .diskCacheStrategy(DiskCacheStrategy.ALL)
             .into(new SimpleTarget<Bitmap>() {
               @Override
               public void onResourceReady(Bitmap resource, GlideAnimation<? super Bitmap> glideAnimation) {

               }
             });

      需要註意的是如果你想獲取Bitmap那麽一定不想因為 Activity , Fragment 的生命周期影響,因此 Glide.with(context) 使用Context,同時為了避免內存泄露建議 SimpleTarget 使用靜態內部類而不是內部類(靜態內部類不持有外部引用)。

    2. ViewTarget

      如果想要在圖片加載完成後設置一些動畫則可以使用 ViewTarget

      Glide.with(this).load("http://inthecheesefactory.com/uploads/source/glidepicasso/cover.jpg")
                 .asBitmap()
                 .override(500,500)
                 .diskCacheStrategy(DiskCacheStrategy.ALL)
                 .into(new ViewTarget<ImageView, Bitmap>(mImageView) {
                   @Override
                   public void onResourceReady(Bitmap resource, GlideAnimation<? super Bitmap> glideAnimation) {

                     this.view.setImageBitmap(resource);
                   }
                 });

      如果 .asGif() 使用 GlideDrawable 替換 Bitmap ,同時 ViewTarget 中包含 onStart() , onStop() , onDestroy() 生命周期回調。

      如果想要繼續保留默認的特性可以相應的使用 GlideDrawableImageViewTarget 在 asGif() 之後,使用 BitmapImageViewTarget 在 asBitmap() 之後。

  7. 自定義url

    通過 width x height 拼接url下載指定大小的圖片,或者根據屏幕大小選擇高,中,低三種分別率的圖片url。

    使用http或https加載圖片可以繼承 BaseGlideUrlLoader

    public interface MyDataModel {
          public String buildUrl(int width, int height);
          }

          public class MyUrlLoader extends BaseGlideUrlLoader<MyDataModel> {
          @Override
          protected String getUrl(MyDataModel model, int width, int height) {
              // Construct the url for the correct size here.
              return model.buildUrl(width, height);
          }
          }

    MyDataModel 就相當於我們的媒體model,裏面有當前媒體的類型(image/gif/video),url等屬性。

    然後你可以在加載是這樣使用:

    Glide.with(yourFragment)
          .using(new MyUrlLoader())
          .load(yourModel)
          .into(yourView);

    如果不想每次都使用 .using(new MyUrlLoader()) ,可以在前面我們的 GlideModule 中配置

    public class MyGlideModule implements GlideModule {
          ...
          @Override
          public void registerComponents(Context context, Glide glide) {
              glide.register(MyDataModel.class, InputStream.class,
                  new MyUrlLoader.Factory());
          }
          }

    配置後加載時跳過 .using()

  • <span id="getBitmap">在後臺線程下載</span>

    1. downloadOnly

      downloadOnly 有異步版和同步版,如果已經在後臺線程中執行必須同步版

      FutureTarget<File> future = Glide.with(applicationContext)
           .load(yourUrl)
           .downloadOnly(500, 500);
           File cacheFile = future.get();

      這種方式在主線程中會阻塞主線程。如果想要在主線程中執行可以使用前面講到的 SimpleTarget

      Glide.with(this)
             .load("http://inthecheesefactory.com/uploads/source/glidepicasso/cover.jpg")
             .downloadOnly(new SimpleTarget<File>() {
               @Override
               public void onResourceReady(File resource, GlideAnimation<? super File> glideAnimation) {

               }
             });
    2. into

      使用into可以用於下載,下面是在後臺線程中的使用:

      Bitmap myBitmap = Glide.with(applicationContext)
           .load(yourUrl)
           .asBitmap()
           .centerCrop()
           .into(500, 500)
           .get()

      如果想在主線程中使用同樣可以使用 SimpleTarget

  • 清除緩存

    Glide.get(getApplicationContext()).clearMemory();
      Glide.get(getApplicationContext()).clearDiskCache();
  • 怎麽使緩存失效

    有時我們並不是想要清理所有緩存,只是app版本變動則原來的緩存可能不需要了,或本地圖片庫中圖片變更但是文件名地址沒有變則可能就出現繼續使用原來的縮略圖或 .override(200,200) 使用的小圖,其實最好的情況是如果數據變更則相應的改變url,如果不改變可以使用 StringSignature 解決這個問題.

    1. 通過版本使緩存失效

      Glide.with(yourFragment)
           .load(yourFileDataModel)
           .signature(new StringSignature(yourversionMetadata))
           .into(yourImageView);
    2. MediaStore 中的數據

      Glide.with(fragment)
           .load(mediaStoreUri)
           .signature(new MediaStoreSignature(mimeType, dateModified, orientation))
           .into(view);
    3. 自定義

      實現 Key 接口,重寫 equals() , hashCode() 和 updateDiskCacheKey() 方法,可以參考 StringSignature 或 MediaStoreSignature 的實現。

  • Transformations

    1. 默認的Transformations

      Fit center

      相當於Android's ScaleType.FIT_CENTER.

      Glide.with(yourFragment)
           .load(yourUrl)
           .fitCenter()
           .into(yourView);

      Center crop

      相當於Android's ScaleType.CENTER_CROP

      Glide.with(yourFragment)
           .load(yourUrl)
           .centerCrop()
           .into(yourView);
    2. 自定義transformations

      最簡單的方式是集成 BitmapTransformation

      private static class MyTransformation extends BitmapTransformation {

           public MyTransformation(Context context) {
              super(context);
           }

           @Override
           protected Bitmap transform(BitmapPool pool, Bitmap toTransform,
                   int outWidth, int outHeight) {
              Bitmap myTransformedBitmap = ... // apply some transformation here.
              return myTransformedBitmap;
           }

           @Override
           public String getId() {
               // Return some id that uniquely identifies your transformation.
               return "com.example.myapp.MyTransformation";
           }
           }

      然後使用

      .transform(new MyTransformation(context))

      Transformations 有各種豐富的效果。

      BitmapTransformation 可以用於改變bitmap形狀,顏色,截取,放大,所有等操作。

  • 設置占位圖和加載錯誤圖

    .placeholder(R.drawable.placeholder)
      .error(R.drawable.imagenotfound)
  • ProGuard

    -keep public class * implements com.bumptech.glide.module.GlideModule
      -keep public enum com.bumptech.glide.load.resource.bitmap.ImageHeaderParser$** {
        **[] $VALUES;
        public *;
      }
      -keepresourcexmlelements manifest/application/meta-data@value=http://www.open-open.com/lib/view/GlideModule
  • 相關問題問答

    1. 通過url獲取已經下載的圖片

      使用 downloadOnly 或 into

    2. 是否支持Webp

      Android 4.0 以上能支持

    3. 在 AndroidManifest.xml 的 meta-data 配置 GlideModule 是如何獲取的

      查看源碼在 Glide.get(Context)

      public static Glide get(Context context) {
           if (glide == null) {
             synchronized (Glide.class) {
               if (glide == null) {
                 Context applicationContext = context.getApplicationContext();
                 List<GlideModule> modules = new ManifestParser(applicationContext).parse();

                 GlideBuilder builder = new GlideBuilder(applicationContext);
                 for (GlideModule module : modules) {
                   module.applyOptions(applicationContext, builder);
                 }
                 glide = builder.createGlide();
                 for (GlideModule module : modules) {
                   module.registerComponents(applicationContext, glide.registry);
                 }
               }
             }
           }

           return glide;
         }

      可以看到 GlideModule 的獲取在 ManifestParser 同時也發現可以設置多個,不過同樣的配置後面的會覆蓋前面的。那麽進入 ManifestParser 查看是怎麽實現的。

      public final class ManifestParser {
             private static final String GLIDE_MODULE_VALUE = "http://www.open-open.com/lib/view/GlideModule";

             private final Context context;

             public ManifestParser(Context context) {
               this.context = context;
             }

             public List<GlideModule> parse() {
               List<GlideModule> modules = new ArrayList<>();
               try {
                 ApplicationInfo appInfo = context.getPackageManager()
                     .getApplicationInfo(context.getPackageName(), PackageManager.GET_META_DATA);
                 if (appInfo.metaData != null) {
                   for (String key : appInfo.metaData.keySet()) {
                     if (GLIDE_MODULE_VALUE.equals(appInfo.metaData.get(key))) {
                       modules.add(parseModule(key));
                     }
                   }
                 }
               } catch (PackageManager.NameNotFoundException e) {
                 throw new RuntimeException("Unable to find metadata to parse GlideModules", e);
               }

               return modules;
             }

             private static GlideModule parseModule(String className) {
               Class<?> clazz;
               try {
                 clazz = Class.forName(className);
               } catch (ClassNotFoundException e) {
                 throw new IllegalArgumentException("Unable to find GlideModule implementation", e);
               }

               Object module;
               try {
                 module = clazz.newInstance();
               } catch (InstantiationException | IllegalAccessException e) {
                 throw new RuntimeException("Unable to instantiate GlideModule implementation for " + clazz,
                     e);
               }

               if (!(module instanceof GlideModule)) {
                 throw new RuntimeException("Expected instanceof GlideModule, but found: " + module);
               }
               return (GlideModule) module;
             }
           }



來自:http://www.jianshu.com/p/2b5ed7e02a78




Tags: Android google private include video

文章來源:


ads
ads

相關文章
ads

相關文章

ad
