Summary
AXAnimationChain是一個 鏈式動畫庫
,可以用來輕松的創建基于 CAAnimation
的鏈式動畫。 鏈 的組合方式有兩種,一種是 組合 ,另一種則是 鏈接 ,通過以上兩種方式創建的動畫,既可以同時進行,也可以按時間先后進行,可以使用較少的代碼創建出豐富復雜的動畫效果:

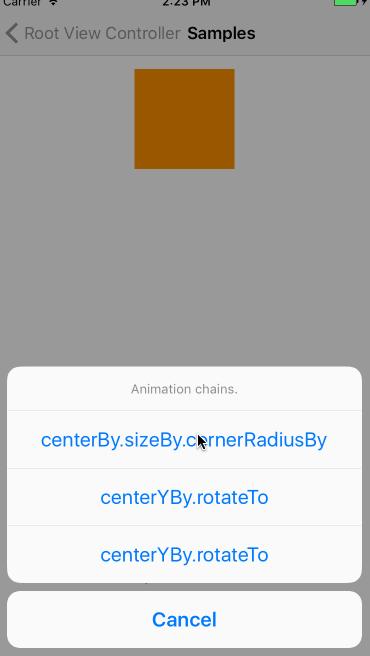

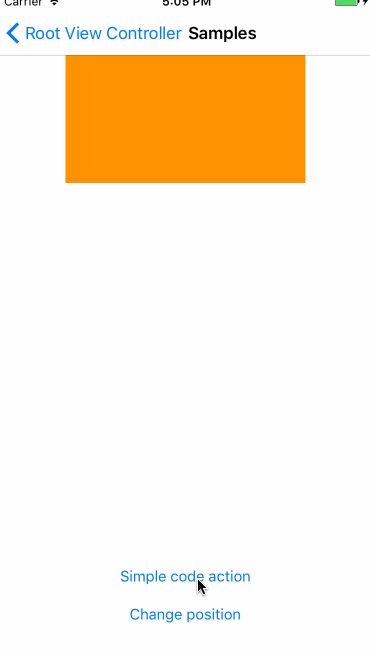

簡單使用:
_transitionView.spring.centerBy(CGPointMake(0, 100)).easeOut.spring.sizeBy(CGSizeMake(100, 100)).spring.cornerRadiusBy(4).animate();
高級使用(比較冗余):
_transitionView.chainAnimator.basic.target(self).complete(@selector(complete:)).property(@quot;positionquot;).toValue([NSValue valueWithCGPoint:CGPointMake(100, self.view.center.y)]).easeInBack.duration(0.5).combineSpring.target(self).complete(@selector(complete:)).property(@quot;boundsquot;).toValue([NSValue valueWithCGRect:CGRectMake(0, 0, 100, 100)]).duration(0.5).repeatCount(5).autoreverses.combineSpring.target(self).complete(@selector(complete:)).property(@quot;transform.rotationquot;).toValue(@(M_PI_4)).duration(0.5).repeatCount(3).beginTime(1.0).autoreverses.nextToBasic.property(@quot;positionquot;).toValue([NSValue valueWithCGPoint:self.view.center]).duration(0.5).combineSpring.property(@quot;boundsquot;).toValue([NSValue valueWithCGRect:CGRectMake(0, 0, 100, 100)]).duration(0.8).nextToBasic.property(@quot;transform.rotationquot;).toValue(@(M_PI_4)).duration(1.0).completeWithBlock(nil).animate(); self.view.spring.backgroundColorTo([UIColor colorWithRed:1.000 green:0.988 blue:0.922 alpha:1.00]).animate();
看起來比較冗余,但是細讀會發現,其實就只有 一行代碼 .
鏈接和 組合 在協議 AXAnimatorChainDelegate
中進行定義,分別是: nextTo:
和 combineWith:
,在使用的過程中應當予以區分.
AXAnimationChain
基于 CoreAnimation
定義了幾種 Animator
, AXChainAnimator
是基類,預定義了一系列 Animate
操作,可以 鏈接 、 組合 并且控制動畫完成的 回調 :
AXChainAnimator --AXBasicChainAnimator ==CABasicAnimation --AXSpringChainAnimator ==CASpringAnimation --AXKeyframeChainAnimator ==CAKeyframeAnimation --AXTransitionChainAnimator==CATransitionAnimation
Next-To
通過鏈接的方式處理兩個 animator
, 被鏈接 的 animator
將會在前者動畫(包含 組合
的動畫)完成之后進行動畫, 大概的示例如下:
[former nextTo:nexter];
Next-To
方法的原型如下:
- (instancetype)nextTo:(idlt;AXAnimatorChainDelegategt;)animator;
當向 former aniamtor
發送 nextTo:
消息之后,返回的是 nexter animator
作為下次 鏈接 或者 組合 操作的對象,因此 AXAnimationChain
定義了幾種常用的操作:
/// 鏈接到Basic動畫并且返回鏈接的Basic動畫. - (AXBasicChainAnimator *)nextToBasic; /// 鏈接到Spring動畫并且放回鏈接的Spring動畫. - (AXSpringChainAnimator *)nextToSpring; /// 鏈接到Keyframe動畫并且放回鏈接的Keyframe動畫. - (AXKeyframeChainAnimator *)nextToKeyframe; /// 鏈接到Transition動畫并且返回鏈接的Transition動畫. - (AXTransitionChainAnimator *)nextToTransition;
在發送消息之后分別返回對應類型的 可操作對象 .
Combine-With
通過組合的方式處理兩個 animator
,被組合的 animator
將會與前者動畫同時進行,完成的時間以時間最長的為準, 示例如下:
[former combineWith:combiner];
Combine-With
方法原型如下:
- (instancetype)combineWith:(nonnull AXChainAnimator *)animator;
當向 former animator
發送 combineWith:
消息之后,返回的是 combiner animator
作為下次 鏈接 或者 組合 操作的對象,在 AXAnimationChain
中,默認一下幾種組合方式:
/// 組合到Basic動畫并且返回組合的Basic動畫. - (AXBasicChainAnimator *)combineBasic; /// 組合到Spring動畫并且放回組合的Spring動畫. - (AXSpringChainAnimator *)combineSpring; /// 組合到Keyframe動畫并且放回組合的Keyframe動畫. - (AXKeyframeChainAnimator *)combineKeyframe; /// 組合到Transition動畫并且返回組合的Transition動畫. - (AXTransitionChainAnimator *)combineTransition;
同樣的,在向某一操作對象 animator
發送以上消息之后,將會分別返回對應類型的 可操作對象 .
Relationship
在 AXAnimationChain
中,關系的管理采用的是二叉樹的理論. 某一個 animator
對應的類結構中,包含了指向 父節點 的 superAnimator
用于表示 父animator
, 表示此 animator
為 superAnimator
所鏈接的 animator
, 此時, superAnimator
的 childAnimator
即指向此 animator
作為一個 閉環鏈 將兩者的關系鎖定起來; 同樣的,某一個 animator
還擁有一個指向 兄弟節點 的 NSArraylt;AXChainAnimator *gt;
結構: combinedAnimators
用于管理所組合的 animators
,并且,被組合的 animator
的父節點 superAnimator
則指向當前 animator
.
- (void)start { NSAssert(_animatedView, @quot;Animation chain cannot be created because animated view is null.quot;); AXChainAnimator *superAnimator = _superAnimator; AXChainAnimator *superSuperAnimator = _superAnimator; while (superAnimator) { superAnimator = superAnimator.superAnimator; if (superAnimator) { superSuperAnimator = superAnimator; } } if (superSuperAnimator) { [superSuperAnimator start]; } else { [self _beginAnimating]; if (!_childAnimator) [self _clear]; } }
AXAnimatioChain
就是通過這樣的關系把所有 鏈接 和 組合 的 animator
管理起來的,在完成關系的鏈接或組合之后,需要向最后一個 animator
發送 -start
消息動畫才能正常進行. animator
在接收到 -start
消息之后,會逐級遍歷 superAnimator
直至 superAnimator.superAnimator==nil
, 此時獲取到 superSuperAnimator
, 從 superSuperAnimator
自祖先往下逐級進行動畫, 組合 的動畫會 同時 進行, 鏈接 的動畫則按 順序 進行.
Features
輕量級解決方案
基于CoreAnimation的封裝,安全、高效!
一行代碼搞定復雜的動畫管理,提高代碼維護效
TimingControl

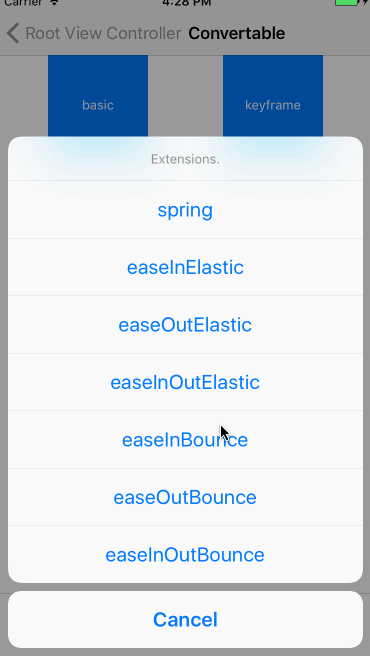

時間曲線,時間曲線用于描述動畫隨時間進行的速度, AXAnimationChain
除了包含系統默認的時間曲線之外,還提供了如下的曲線以呈現更漂亮的動畫:
AXSpringAnimation
CoreAnimation
自 iOS2.0
就為iOS平臺提供了核心動畫的支持,但是在iOS9.0之前,一直沒有 Spring
動畫,要使用 Spring
動畫要么使用第三方動畫庫,要么使用系統提供的方法:
(void)animateWithDuration:(NSTimeInterval)duration delay:(NSTimeInterval)delay usingSpringWithDamping:(CGFloat)dampingRatio initialSpringVelocity:(CGFloat)velocity options:(UIViewAnimationOptions)options animations:(void (^)(void))animations completion:(void (^ __nullable)(BOOL finished))completion NS_AVAILABLE_IOS(7_0);
但是系統提供的這個方法也是 iOS7.0
以后才能使用了,并且在控制上并非那么容易.
AXSpringAnimation
是基于 阻尼震動 運動模型的 Spring
動畫類,能夠完美與 CASpringAnimation
相通用:
動畫中,左邊正方形使用的是 CASpringAnimation
類,右邊的則使用的是 AXSpringAnimation
,兩者的動畫曲線是一致的.
AXSpringAnimation
的API和 CASpringAnimation
是一致的:
@interface AXSpringAnimation : CAKeyframeAnimation /* The mass of the object attached to the end of the spring. Must be greater than 0. Defaults to one. */ @property(assign, nonatomic) CGFloat mass; /* The spring stiffness coefficient. Must be greater than 0. * Defaults to 100. */ @property(assign, nonatomic) CGFloat stiffness; /* The damping coefficient. Must be greater than or equal to 0. * Defaults to 10. */ @property(assign, nonatomic) CGFloat damping; /* The initial velocity of the object attached to the spring. Defaults * to zero, which represents an unmoving object. Negative values * represent the object moving away from the spring attachment point, * positive values represent the object moving towards the spring * attachment point. */ @property(assign, nonatomic) CGFloat initialVelocity; /* Returns the estimated duration required for the spring system to be * considered at rest. The duration is evaluated for the current animation * parameters. */ @property(readonly, nonatomic) CFTimeInterval settlingDuration; /* The objects defining the property values being interpolated between. * All are optional, and no more than two should be non-nil. The object * type should match the type of the property being animated (using the * standard rules described in CALayer.h). The supported modes of * animation are: * * - both `fromValue' and `toValue' non-nil. Interpolates between * `fromValue' and `toValue'. * * - `fromValue' and `byValue' non-nil. Interpolates between * `fromValue' and `fromValue' plus `byValue'. * * - `byValue' and `toValue' non-nil. Interpolates between `toValue' * minus `byValue' and `toValue'. */ @property(nullable, strong, nonatomic) id fromValue; @property(nullable, strong, nonatomic) id toValue; @property(nullable, strong, nonatomic) id byValue; @end
Convertable
AXAnimationChain
框架還提供了將 CABasicAnimation
無縫轉換為 CAKeyframeAnimation
的功能:

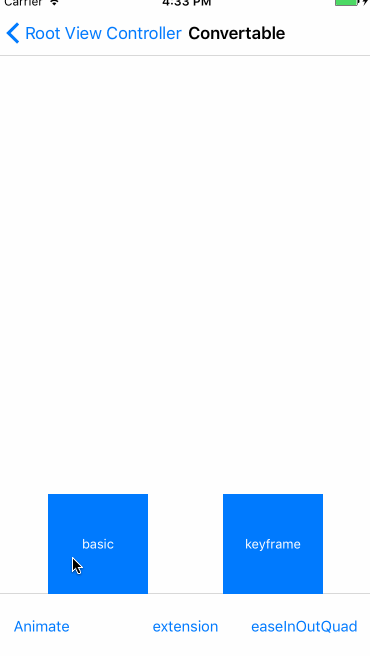

動畫中,左邊是 CABasicAnimation
,右邊是 CAKeyframeAnimation
,兩者對應的動畫曲線是一致的.
要使用動畫轉換,請參考:
#import lt;QuartzCore/QuartzCore.hgt; #import lt;UIKit/UIKit.hgt; #import quot;CAMediaTimingFunction Extends.hquot; @interface CAAnimation (Convertable) @end @interface CAKeyframeAnimation (Convertable) (instancetype)animationWithBasic:(CABasicAnimation *)basicAnimation; (instancetype)animationWithBasic:(CABasicAnimation *)basicAnimation usingValuesFunction:(double (^)(double t, double b, double c, double d))valuesFunction; @end
Requirements
AXAnimationChain
對系統版本支持到 iOS8.0
,需要使用到的框架:
-
Foundation.framework
-
UIKit.framework
- QuartzCore.framework
使用的時候最好使用最新版Xcode.
Adding AXAimationChain
To Your Project
CocoaPods
CocoaPods is the recommended way to add AXWebViewController to your project.
- Add a pod entry for AXPopoverView to your Podfile
pod 'AXAimationChain', '~gt; 0.1.0'
- Install the pod(s) by running
pod install
. - Include AXPopoverView wherever you need it with
#import quot;AXAimationChain.hquot;
. - 若需要單獨使用
AXSpringAnimation
或者Convertable
以及TimingControl
等特性的話,只需要將podfile里邊AXAnimationChain
替換為AXAnimationChain/CoreAnimation
即可,即:pod 'AXAimationChain/CoreAnimation', '~gt; 0.1.0'
.
Source files
Alternatively you can directly add all the source files to your project.
- Download the latest code version or add the repository as a git submodule to your git-tracked project.
- Open your project in Xcode, then drag and drop the source group onto your project (use the quot;Product Navigator viewquot;). Make sure to select Copy items when asked if you extracted the code archive outside of your project.
- Include AXPopoverView wherever you need it with
#import quot;AXAimationChain.hquot;
.
License
This code is distributed under the terms and conditions of the MIT license .
使用
請參考示例工程代碼以及API.
不足
此項目在開展的時候比較龐大,基礎的核心類已經構建好了,基本目標已經達成,但是還有很多需要完善的地方,后邊會逐步完善并發布Release版本.
聲明
