1 狀態管理伺服器端介面

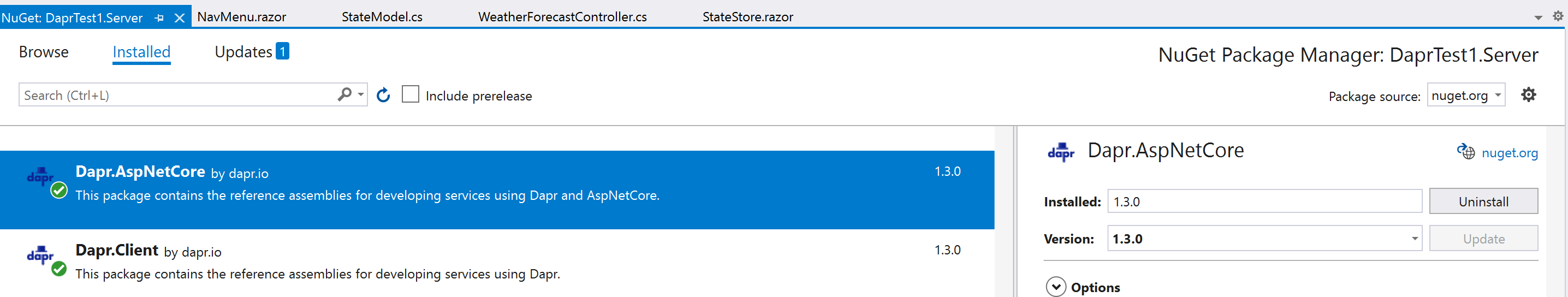

1.1 新增Dapr.AspNetCore包
在DaprTest1.Server專案中新增Dapr.AspNetCore包，該包實現了ASP.NET Core與Dapr的整合，例如自動依賴注入DaprClient物件，將狀態管理功能直接整合到 ASP.NET Core 模型繫結功能中等。
修改DaprTest1.Server專案的Startup.cs檔案，將Dapr物件依賴注入到ASP.NET Core。
public void ConfigureServices(IServiceCollection services)
{ services.AddControllersWithViews().AddDapr();
services.AddRazorPages();
services.AddScoped<InvocationHandler>(); // 注入httpClient
services.AddHttpClient("HttpClient").AddHttpMessageHandler<InvocationHandler>()
.AddTypedClient(client =>
{
client.BaseAddress = new Uri("http://serviceapi1");
return RestService.For<ICallServiceApi1>(client);
});
}
在DaprTest1.Server專案的WeatherForecastController.cs檔案中注入DaprClient物件
private readonly DaprClient _daprClient;
public WeatherForecastController(ILogger<WeatherForecastController> logger, ICallServiceApi1 callServiceApi1, DaprClient daprClient)
{
_logger = logger;
_callServiceApi1 = callServiceApi1;
_daprClient = daprClient;
}
1.2 狀態儲存介面
在DaprTest1.Server專案的WeatherForecastController.cs檔案中增加狀態儲存介面。
[HttpPost(nameof(SaveStateValue))]
public async Task SaveStateValue(StateModel stateModel)
{
await _daprClient.SaveStateAsync("statestore", stateModel.Key, stateModel.Value);
}
其中 StateModel 為自定義的狀態模型物件。
1.3 狀態刪除介面
在DaprTest1.Server專案的WeatherForecastController.cs檔案中增加狀態刪除介面。
[HttpDelete(nameof(DeleteStateValue) + "/{stateKey}")]
public async Task DeleteStateValue(string stateKey)
{
await _daprClient.DeleteStateAsync("statestore", stateKey);
}
1.4 狀態獲取介面
在DaprTest1.Server專案的WeatherForecastController.cs檔案中增加兩個狀態獲取介面。
[HttpGet("GetStateValue/{stateKey}")]
public async Task<string> GetStateValue(string stateKey)
{
return await _daprClient.GetStateAsync<string>("statestore", stateKey);
}
[HttpGet(nameof(GetStateValueFromState) + "/{stateKey}")]
public async Task<string> GetStateValueFromState([FromState("statestore", "stateKey")] StateEntry<string> stateEntry)
{
return await Task.FromResult(stateEntry.Value);
}
注意，第二個狀態獲取介面是通過ASP.NET Core 模型繫結實現的。
2 狀態管理選單和頁面
在DaprTest1.Server專案的NavMenu.razor檔案新增狀態管理選單。
<li class="nav-item px-3">
<NavLink class="nav-link" href="statemanage">
<span class="oi oi-list-rich" aria-hidden="true"></span> 狀態管理
</NavLink>
</li>
在DaprTest1.Server專案新增狀態管理頁面
@page "/statemanage"
@using DaprTest1.Shared
@using System.Text.Json
@inject HttpClient Http <h1>狀態儲存</h1> <p>This component demonstrates storing state.</p> <p>狀態鍵: TestStateKey, 狀態值：<input type="text" @bind="stateModel.Value" /></p> <button class="btn btn-primary" @onclick="SaveStateValue">儲存狀態</button>
<button class="btn btn-primary" @onclick="DeleteStateValue">刪除狀態</button>
<button class="btn btn-primary" @onclick="GetStateValue">獲取狀態</button>
<button class="btn btn-primary" @onclick="GetStateValueFromState">獲取狀態[FromState]</button> <p>獲取到的狀態值: @stateValue</p> @code {
private StateModel stateModel = new StateModel() { Key = "TestStateKey" };
private string stateValue = ""; private async Task SaveStateValue()
{
await Http.PostAsJsonAsync<StateModel>("WeatherForecast/SaveStateValue", stateModel);
}
private async Task DeleteStateValue()
{
await Http.DeleteAsync("WeatherForecast/DeleteStateValue/" + stateModel.Key);
}
private async Task GetStateValue()
{
stateValue = await Http.GetStringAsync("WeatherForecast/GetStateValue/" + stateModel.Key);
}
private async Task GetStateValueFromState()
{
stateValue = await Http.GetStringAsync("WeatherForecast/GetStateValueFromState/" + stateModel.Key);
}
}
3 狀態管理測試

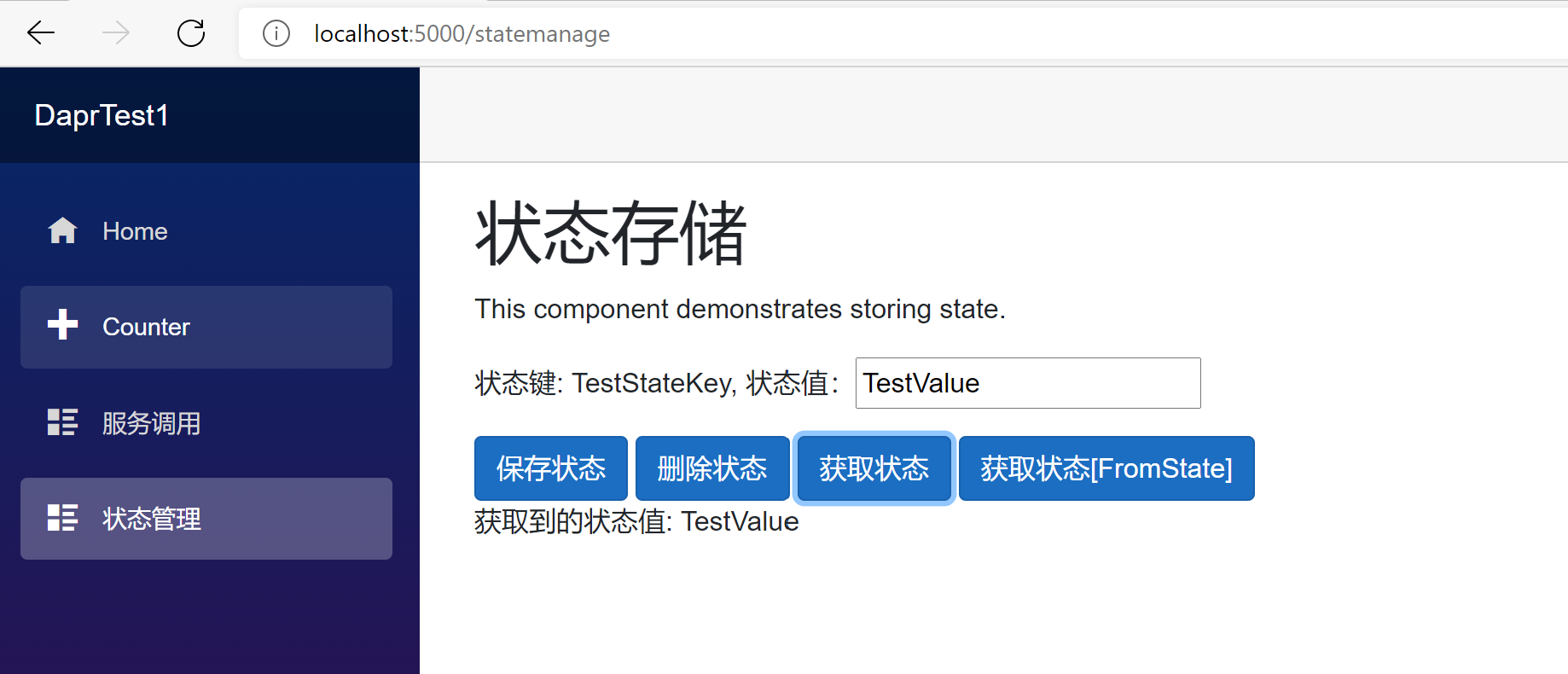

和上一節一樣，我們先開啟每個微服務的SideCar，然後啟動兩個微服務，訪問狀態管理頁面：
相關程式碼：iamxiaozhuang/dapr-test (github.com)
