本篇概覽

  • 作為《kubebuilder實戰》系列的第六篇，前面已完成了編碼，現在到了驗證功能的環節，請確保您的docker和kubernetes環境正常，然後咱們一起完成以下操作：
  1. 部署CRD
  2. 本地執行Controller
  3. 通過yaml檔案新建elasticweb資源物件
  4. 通過日誌和kubectl命令驗證elasticweb功能是否正常
  5. 瀏覽器訪問web，驗證業務服務是否正常
  6. 修改singlePodQPS，看elasticweb是否自動調整pod數量
  7. 修改totalQPS，看elasticweb是否自動調整pod數
  8. 刪除elasticweb，看相關的service和deployment被自動刪除
  9. 構建Controller映象，在kubernetes執行此Controller，驗證上述功能是否正常
  • 看似簡單的部署驗證操作，零零散散加起來居然有這麼多...好吧不感慨了，立即開始吧；

部署CRD

  • 從控制檯進入Makefile所在目錄，執行命令make install，即可將CRD部署到kubernetes：
  1. zhaoqin@zhaoqindeMBP-2 elasticweb % make install
  2. /Users/zhaoqin/go/bin/controller-gen "crd:trivialVersions=true" rbac:roleName=manager-role webhook paths="./..." output:crd:artifacts:config=config/crd/bases
  3. kustomize build config/crd | kubectl apply -f -
  4. Warning: apiextensions.k8s.io/v1beta1 CustomResourceDefinition is deprecated in v1.16+, unavailable in v1.22+; use apiextensions.k8s.io/v1 CustomResourceDefinition
  5. customresourcedefinition.apiextensions.k8s.io/elasticwebs.elasticweb.com.bolingcavalry configured

  • 從上述內容可見，實際上執行的操作是用kustomize將config/crd下的yaml資源合併後在kubernetes進行建立；

  • 可以用命令kubectl api-versions驗證CRD部署是否成功：

  1. zhaoqin@zhaoqindeMBP-2 elasticweb % kubectl api-versions|grep elasticweb
  2. elasticweb.com.bolingcavalry/v1

本地執行Controller

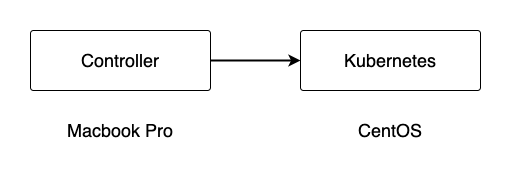

  • 先嚐試用最簡單的方式來驗證Controller的功能，如下圖，Macbook電腦是我的開發環境，直接用elasticweb工程中的Makefile，可以將Controller的程式碼在本地執行起來裡面：

  • 進入Makefile檔案所在目錄，執行命令make run即可編譯執行controller：
  1. zhaoqin@zhaoqindeMBP-2 elasticweb % pwd
  2. /Users/zhaoqin/github/blog_demos/kubebuilder/elasticweb
  3. zhaoqin@zhaoqindeMBP-2 elasticweb % make run
  4. /Users/zhaoqin/go/bin/controller-gen object:headerFile="hack/boilerplate.go.txt" paths="./..."
  5. go fmt ./...
  6. go vet ./...
  7. /Users/zhaoqin/go/bin/controller-gen "crd:trivialVersions=true" rbac:roleName=manager-role webhook paths="./..." output:crd:artifacts:config=config/crd/bases
  8. go run ./main.go
  9. 2021-02-20T20:46:16.774+0800    INFO    controller-runtime.metrics      metrics server is starting to listen    {"addr": ":8080"}
  10. 2021-02-20T20:46:16.774+0800    INFO    setup   starting manager
  11. 2021-02-20T20:46:16.775+0800    INFO    controller-runtime.controller   Starting EventSource    {"controller": "elasticweb", "source": "kind source: /, Kind="}
  12. 2021-02-20T20:46:16.776+0800    INFO    controller-runtime.manager      starting metrics server {"path": "/metrics"}
  13. 2021-02-20T20:46:16.881+0800    INFO    controller-runtime.controller   Starting Controller     {"controller": "elasticweb"}
  14. 2021-02-20T20:46:16.881+0800    INFO    controller-runtime.controller   Starting workers        {"controller": "elasticweb", "worker count": 1}

新建elasticweb資源物件

  • 負責處理elasticweb的Controller已經執行起來了，接下來就開始建立elasticweb資源物件吧，用yaml檔案來建立；

  • 在config/samples目錄下，kubebuilder為咱們建立了demo檔案elasticweb_v1_elasticweb.yaml，不過這裡面spec的內容不是咱們定義的那四個欄位，需要改成以下內容：

  1. apiVersion: v1
  2. kind: Namespace
  3. metadata:
  4.   name: dev
  5.   labels:
  6.     name: dev
  7. ---
  8. apiVersion: elasticweb.com.bolingcavalry/v1
  9. kind: ElasticWeb
  10. metadata:
  11.   namespace: dev
  12.   name: elasticweb-sample
  13. spec:
  14.   # Add fields here
  15.   image: tomcat:8.0.18-jre8
  16.   port: 30003
  17.   singlePodQPS: 500
  18.   totalQPS: 600
  • 對上述配置的幾個引數做如下說明：
  1. 使用的namespace為dev
  2. 本次測試部署的應用為tomcat
  3. service使用宿主機的30003埠暴露tomcat的服務
  4. 假設單個pod能支撐500QPS，外部請求的QPS為600
  • 執行命令kubectl apply -f config/samples/elasticweb_v1_elasticweb.yaml，即可在kubernetes建立elasticweb例項：
  1. zhaoqin@zhaoqindeMBP-2 elasticweb % kubectl apply -f config/samples/elasticweb_v1_elasticweb.yaml
  2. namespace/dev created
  3. elasticweb.elasticweb.com.bolingcavalry/elasticweb-sample created
  • 去controller的視窗發現列印了不少日誌，通過分析日誌發現Reconcile方法執行了兩次，第一執行時建立了deployment和service等資源：
  1. 2021-02-21T10:03:57.108+0800    INFO    controllers.ElasticWeb  1. start reconcile logic        {"elasticweb": "dev/elasticweb-sample"}
  2. 2021-02-21T10:03:57.108+0800    INFO    controllers.ElasticWeb  3. instance : Image [tomcat:8.0.18-jre8], Port [30003], SinglePodQPS [500], TotalQPS [600], RealQPS [nil]       {"elasticweb": "dev/elasticweb-sample"}
  3. 2021-02-21T10:03:57.210+0800    INFO    controllers.ElasticWeb  4. deployment not exists        {"elasticweb": "dev/elasticweb-sample"}
  4. 2021-02-21T10:03:57.313+0800    INFO    controllers.ElasticWeb  set reference   {"func": "createService"}
  5. 2021-02-21T10:03:57.313+0800    INFO    controllers.ElasticWeb  start create service    {"func": "createService"}
  6. 2021-02-21T10:03:57.364+0800    INFO    controllers.ElasticWeb  create service success  {"func": "createService"}
  7. 2021-02-21T10:03:57.365+0800    INFO    controllers.ElasticWeb  expectReplicas [2]      {"func": "createDeployment"}
  8. 2021-02-21T10:03:57.365+0800    INFO    controllers.ElasticWeb  set reference   {"func": "createDeployment"}
  9. 2021-02-21T10:03:57.365+0800    INFO    controllers.ElasticWeb  start create deployment {"func": "createDeployment"}
  10. 2021-02-21T10:03:57.382+0800    INFO    controllers.ElasticWeb  create deployment success       {"func": "createDeployment"}
  11. 2021-02-21T10:03:57.382+0800    INFO    controllers.ElasticWeb  singlePodQPS [500], replicas [2], realQPS[1000] {"func": "updateStatus"}
  12. 2021-02-21T10:03:57.407+0800    DEBUG   controller-runtime.controller   Successfully Reconciled {"controller": "elasticweb", "request": "dev/elasticweb-sample"}
  13. 2021-02-21T10:03:57.407+0800    INFO    controllers.ElasticWeb  1. start reconcile logic        {"elasticweb": "dev/elasticweb-sample"}
  14. 2021-02-21T10:03:57.407+0800    INFO    controllers.ElasticWeb  3. instance : Image [tomcat:8.0.18-jre8], Port [30003], SinglePodQPS [500], TotalQPS [600], RealQPS [1000]      {"elasticweb": "dev/elasticweb-sample"}
  15. 2021-02-21T10:03:57.407+0800    INFO    controllers.ElasticWeb  9. expectReplicas [2], realReplicas [2] {"elasticweb": "dev/elasticweb-sample"}
  16. 2021-02-21T10:03:57.407+0800    INFO    controllers.ElasticWeb  10. return now  {"elasticweb": "dev/elasticweb-sample"}
  17. 2021-02-21T10:03:57.407+0800    DEBUG   controller-runtime.controller   Successfully Reconciled {"controller": "elasticweb", "request": "dev/elasticweb-sample"}
  • 再用kubectl get命令詳細檢查資源物件，一切符合預期，elasticweb、service、deployment、pod都是正常的：
  1. zhaoqin@zhaoqindeMBP-2 elasticweb % kubectl apply -f config/samples/elasticweb_v1_elasticweb.yaml
  2. namespace/dev created
  3. elasticweb.elasticweb.com.bolingcavalry/elasticweb-sample created
  4. zhaoqin@zhaoqindeMBP-2 elasticweb % kubectl get elasticweb -n dev
  5. NAME                AGE
  6. elasticweb-sample   35s
  7. zhaoqin@zhaoqindeMBP-2 elasticweb % kubectl get service -n dev
  8. NAME                TYPE       CLUSTER-IP       EXTERNAL-IP   PORT(S)          AGE
  9. elasticweb-sample   NodePort   10.107.177.158   <none>        8080:30003/TCP   41s
  10. zhaoqin@zhaoqindeMBP-2 elasticweb % kubectl get deployment -n dev
  11. NAME                READY   UP-TO-DATE   AVAILABLE   AGE
  12. elasticweb-sample   2/2     2            2           46s
  13. zhaoqin@zhaoqindeMBP-2 elasticweb % kubectl get pod -n dev
  14. NAME                                 READY   STATUS    RESTARTS   AGE
  15. elasticweb-sample-56fc5848b7-l5thk   1/1     Running   0          50s
  16. elasticweb-sample-56fc5848b7-lqjk5   1/1     Running   0          50s

瀏覽器驗證業務功能

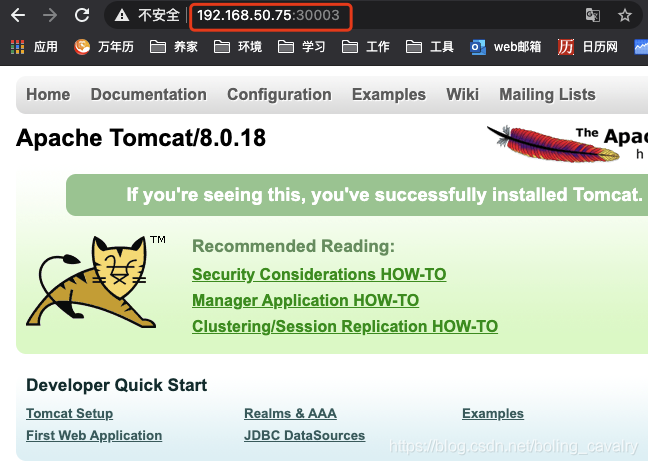

  • 本次部署操作使用的docker映象是tomcat，驗證起來非常簡單，開啟預設頁面能見到貓就證明tomcat啟動成功了，我這kubernetes宿主機的IP地址是192.168.50.75，於是用瀏覽器訪問http://192.168.50.75:30003，如下圖，業務功能正常：

修改單個Pod的QPS

  • 如果自身優化，或者外界依賴變化(如快取、資料庫擴容)，這些都可能導致當前服務的QPS提升，假設單個Pod的QPS從500提升到了800，看看咱們的Operator能不能自動做出調整（總QPS是600，因此pod數應該從2降到1）

  • 在config/samples/目錄下新增名為update_single_pod_qps.yaml的檔案，內容如下：

  1. spec:
  2.   singlePodQPS: 800
  • 執行以下命令，即可將單個Pod的QPS從500更新為800（注意，引數type很重要別漏了）：
  1. kubectl patch elasticweb elasticweb-sample \
  2. -n dev \
  3. --type merge \
  4. --patch "$(cat config/samples/update_single_pod_qps.yaml)"

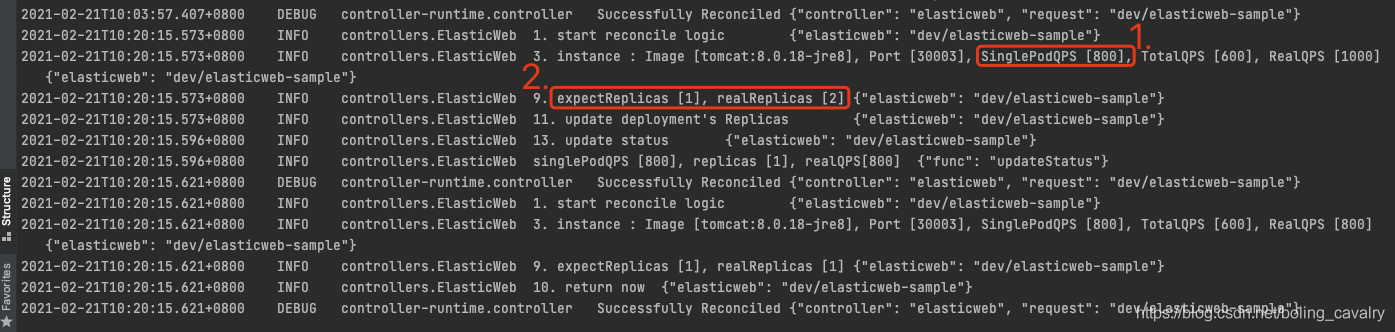

  • 此時去看controller日誌，如下圖，紅框1表示spec已經更新，紅框2則表示用最新的引數計算出來的pod數量，符合預期：

  • 用kubectl get命令檢查pod，可見已經降到1個了：
  1. zhaoqin@zhaoqindeMBP-2 elasticweb % kubectl get pod -n dev
  2. NAME                                 READY   STATUS    RESTARTS   AGE
  3. elasticweb-sample-56fc5848b7-l5thk   1/1     Running   0          30m
  • 記得用瀏覽器檢查tomcat是否正常；

修改總QPS

  • 外部QPS也在頻繁變化中，咱們的operator也需要根據總QPS及時調節pod例項，以確保整體服務質量，接下來咱們就修改總QPS，看operator是否生效：

  • 在config/samples/目錄下新增名為update_total_qps.yaml的檔案，內容如下：

  1. spec:
  2.   totalQPS: 2600
  • 執行以下命令，即可將總QPS從600更新為2600（注意，引數type很重要別漏了）：
  1. kubectl patch elasticweb elasticweb-sample \
  2. -n dev \
  3. --type merge \
  4. --patch "$(cat config/samples/update_total_qps.yaml)"

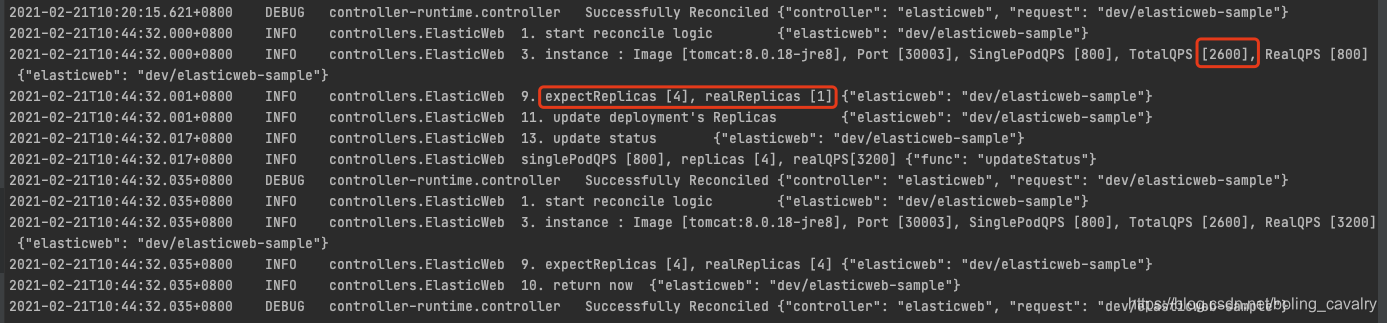

  • 此時去看controller日誌，如下圖，紅框1表示spec已經更新，紅框2則表示用最新的引數計算出來的pod數量，符合預期：

  • 用kubectl get命令檢查pod，可見已經增長到4個，4個pd的能支撐的QPS為3200，滿足了當前2600的要求：
  1. zhaoqin@zhaoqindeMBP-2 elasticweb % kubectl get pod -n dev
  2. NAME                                 READY   STATUS    RESTARTS   AGE
  3. elasticweb-sample-56fc5848b7-8n7tq   1/1     Running   0          8m22s
  4. elasticweb-sample-56fc5848b7-f2lpb   1/1     Running   0          8m22s
  5. elasticweb-sample-56fc5848b7-l5thk   1/1     Running   0          48m
  6. elasticweb-sample-56fc5848b7-q8p5f   1/1     Running   0          8m22s
  • 記得用瀏覽器檢查tomcat是否正常；
  • 聰明的您一定會覺得用這個方法來調節pod數太low了，呃...您說得沒錯確實low，但您可以自己開發一個應用，收到當前QPS後自動呼叫client-go去修改elasticweb的totalQPS，讓operator及時調整pod數，這也勉強算自動調節了......吧

刪除驗證

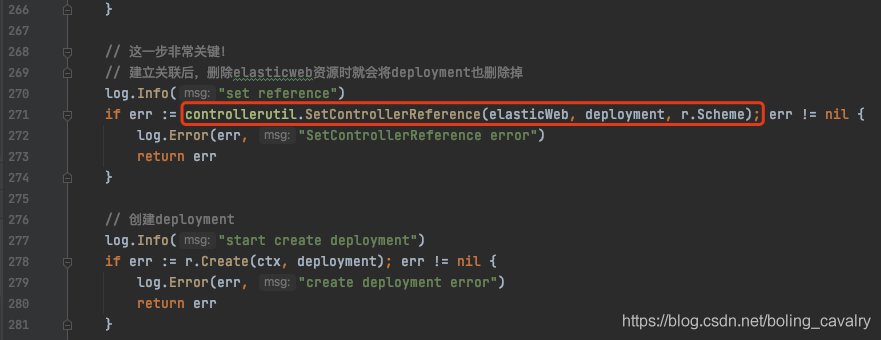

  • 目前整個dev這個namespace下有service、deployment、pod、elasticweb這些資源物件，如果要全部刪除，只需刪除elasticweb即可，因為service和deployment都和elasticweb建立的關聯關係，程式碼如下圖紅框：

  • 執行刪除elasticweb的命令：
  1. kubectl delete elasticweb elasticweb-sample -n dev
  • 再去檢視其他資源，都被自動刪除了：
  1. zhaoqin@zhaoqindeMBP-2 elasticweb % kubectl delete elasticweb elasticweb-sample -n dev
  2. elasticweb.elasticweb.com.bolingcavalry "elasticweb-sample" deleted
  3. zhaoqin@zhaoqindeMBP-2 elasticweb % kubectl get pod -n dev
  4. NAME                                 READY   STATUS        RESTARTS   AGE
  5. elasticweb-sample-56fc5848b7-9lcww   1/1     Terminating   0          45s
  6. elasticweb-sample-56fc5848b7-n7p7f   1/1     Terminating   0          45s
  7. zhaoqin@zhaoqindeMBP-2 elasticweb % kubectl get pod -n dev
  8. NAME                                 READY   STATUS        RESTARTS   AGE
  9. elasticweb-sample-56fc5848b7-n7p7f   0/1     Terminating   0          73s
  10. zhaoqin@zhaoqindeMBP-2 elasticweb % kubectl get pod -n dev
  11. No resources found in dev namespace.
  12. zhaoqin@zhaoqindeMBP-2 elasticweb % kubectl get deployment -n dev
  13. No resources found in dev namespace.
  14. zhaoqin@zhaoqindeMBP-2 elasticweb % kubectl get service -n dev
  15. No resources found in dev namespace.
  16. zhaoqin@zhaoqindeMBP-2 elasticweb % kubectl get namespace dev
  17. NAME   STATUS   AGE
  18. dev    Active   97s

構建映象

  1. 前面咱們在開發環境將controller執行起來嘗試了所有功能，在實際生產環境中，controller並非這樣獨立於kubernetes之外，而是以pod的狀態執行在kubernetes之中，接下來咱們嘗試將controller程式碼編譯構建成docker映象，再在kubernetes上執行起來；
  2. 要做的第一件事，就是在前面的controller控制檯上執行Ctrl+C，把那個controller停掉；
  3. 這裡有個要求，就是您要有個kubernetes可以訪問的映象倉庫，例如區域網內的Harbor，或者公共的hub.docker.com，我這為了操作方便選擇了hub.docker.com，使用它的前提是擁有hub.docker.com的註冊帳號；
  4. 在kubebuilder電腦上，開啟一個控制檯，執行docker login命令登入，根據提示輸入hub.docker.com的帳號和密碼，這樣就可以在當前控制檯上執行docker push命令將映象推送到hub.docker.com上了（這個網站的網路很差，可能要登入好幾次才能成功）；

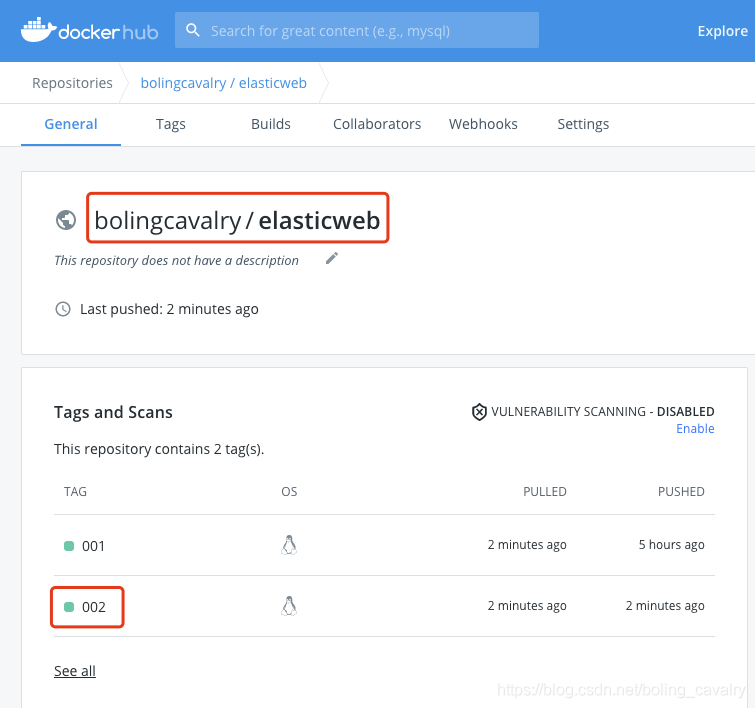

  5. 執行以下命令構建docker映象並推送到hub.docker.com，映象名為bolingcavalry/elasticweb:002：
  1. make docker-build docker-push IMG=bolingcavalry/elasticweb:002
  1. hub.docker.com的網路狀況不是一般的差，kubebuilder電腦上的docker一定要設定映象加速，上述命令如果遭遇超時失敗，請重試幾次，此外，構建過程中還會下載諸多go模組的依賴，也需要您耐心等待，也很容易遇到網路問題，需要多次重試，所以，最好是使用區域網內搭建的Habor服務；
  2. 最終，命令執行成功後輸出如下：
  1. zhaoqin@zhaoqindeMBP-2 elasticweb % make docker-build docker-push IMG=bolingcavalry/elasticweb:002
  2. /Users/zhaoqin/go/bin/controller-gen object:headerFile="hack/boilerplate.go.txt" paths="./..."
  3. go fmt ./...
  4. go vet ./...
  5. /Users/zhaoqin/go/bin/controller-gen "crd:trivialVersions=true" rbac:roleName=manager-role webhook paths="./..." output:crd:artifacts:config=config/crd/bases
  6. go test ./... -coverprofile cover.out
  7. ?       elasticweb      [no test files]
  8. ?       elasticweb/api/v1       [no test files]
  9. ok      elasticweb/controllers  8.287s  coverage: 0.0% of statements
  10. docker build . -t bolingcavalry/elasticweb:002
  11. [+] Building 146.8s (17/17) FINISHED
  12.  => [internal] load build definition from Dockerfile                                                                                                                                                                             0.1s
  13.  => => transferring dockerfile: 37B                                                                                                                                                                                              0.0s
  14.  => [internal] load .dockerignore                                                                                                                                                                                                0.0s
  15.  => => transferring context: 2B                                                                                                                                                                                                  0.0s
  16.  => [internal] load metadata for gcr.io/distroless/static:nonroot                                                                                                                                                                1.8s
  17.  => [internal] load metadata for docker.io/library/golang:1.13                                                                                                                                                                   0.7s
  18.  => [builder 1/9] FROM docker.io/library/golang:1.13@sha256:8ebb6d5a48deef738381b56b1d4cd33d99a5d608e0d03c5fe8dfa3f68d41a1f8                                                                                                     0.0s
  19.  => [stage-1 1/3] FROM gcr.io/distroless/static:nonroot@sha256:b89b98ea1f5bc6e0b48c8be6803a155b2a3532ac6f1e9508a8bcbf99885a9152                                                                                                  0.0s
  20.  => [internal] load build context                                                                                                                                                                                                0.0s
  21.  => => transferring context: 14.51kB                                                                                                                                                                                             0.0s
  22.  => CACHED [builder 2/9] WORKDIR /workspace                                                                                                                                                                                      0.0s
  23.  => CACHED [builder 3/9] COPY go.mod go.mod                                                                                                                                                                                      0.0s
  24.  => CACHED [builder 4/9] COPY go.sum go.sum                                                                                                                                                                                      0.0s
  25.  => CACHED [builder 5/9] RUN go mod download                                                                                                                                                                                     0.0s
  26.  => CACHED [builder 6/9] COPY main.go main.go                                                                                                                                                                                    0.0s
  27.  => CACHED [builder 7/9] COPY api/ api/                                                                                                                                                                                          0.0s
  28.  => [builder 8/9] COPY controllers/ controllers/                                                                                                                                                                                 0.1s
  29.  => [builder 9/9] RUN CGO_ENABLED=0 GOOS=linux GOARCH=amd64 GO111MODULE=on go build -a -o manager main.go                                                                                                                      144.5s
  30.  => CACHED [stage-1 2/3] COPY --from=builder /workspace/manager .                                                                                                                                                                0.0s
  31.  => exporting to image                                                                                                                                                                                                           0.0s
  32.  => => exporting layers                                                                                                                                                                                                          0.0s
  33.  => => writing image sha256:622d30aa44c77d93db4093b005fce86b39d5ba5c6cd29f1fb2accb7e7f9b23b8                                                                                                                                     0.0s
  34.  => => naming to docker.io/bolingcavalry/elasticweb:002                                                                                                                                                                          0.0s
  35. docker push bolingcavalry/elasticweb:002
  36. The push refers to repository [docker.io/bolingcavalry/elasticweb]
  37. eea77d209b68: Layer already exists
  38. 8651333b21e7: Layer already exists
  39. 002: digest: sha256:c09ab87f6fce3d85f1fda0ffe75ead9db302a47729aefd3ef07967f2b99273c5 size: 739
  1. 去hub.docker.com網站看看，如下圖，新映象已經上傳，這樣只要任何機器只要能上網就能pull此映象到本地使用了：

  1. 映象準備好之後，執行以下命令即可在kubernetes環境部署controller：
  1. make deploy IMG=bolingcavalry/elasticweb:002
  1. 接下來像之前那樣建立elasticweb資源物件，驗證所有資源是否建立成功：
  1. zhaoqin@zhaoqindeMBP-2 elasticweb % make deploy IMG=bolingcavalry/elasticweb:002
  2. /Users/zhaoqin/go/bin/controller-gen "crd:trivialVersions=true" rbac:roleName=manager-role webhook paths="./..." output:crd:artifacts:config=config/crd/bases
  3. cd config/manager && kustomize edit set image controller=bolingcavalry/elasticweb:002
  4. kustomize build config/default | kubectl apply -f -
  5. namespace/elasticweb-system created
  6. Warning: apiextensions.k8s.io/v1beta1 CustomResourceDefinition is deprecated in v1.16+, unavailable in v1.22+; use apiextensions.k8s.io/v1 CustomResourceDefinition
  7. customresourcedefinition.apiextensions.k8s.io/elasticwebs.elasticweb.com.bolingcavalry configured
  8. role.rbac.authorization.k8s.io/elasticweb-leader-election-role created
  9. clusterrole.rbac.authorization.k8s.io/elasticweb-manager-role created
  10. clusterrole.rbac.authorization.k8s.io/elasticweb-proxy-role created
  11. Warning: rbac.authorization.k8s.io/v1beta1 ClusterRole is deprecated in v1.17+, unavailable in v1.22+; use rbac.authorization.k8s.io/v1 ClusterRole
  12. clusterrole.rbac.authorization.k8s.io/elasticweb-metrics-reader created
  13. rolebinding.rbac.authorization.k8s.io/elasticweb-leader-election-rolebinding created
  14. clusterrolebinding.rbac.authorization.k8s.io/elasticweb-manager-rolebinding created
  15. clusterrolebinding.rbac.authorization.k8s.io/elasticweb-proxy-rolebinding created
  16. service/elasticweb-controller-manager-metrics-service created
  17. deployment.apps/elasticweb-controller-manager created
  18. zhaoqin@zhaoqindeMBP-2 elasticweb %
  19. zhaoqin@zhaoqindeMBP-2 elasticweb %
  20. zhaoqin@zhaoqindeMBP-2 elasticweb %
  21. zhaoqin@zhaoqindeMBP-2 elasticweb %
  22. zhaoqin@zhaoqindeMBP-2 elasticweb % kubectl apply -f config/samples/elasticweb_v1_elasticweb.yaml
  23. namespace/dev created
  24. elasticweb.elasticweb.com.bolingcavalry/elasticweb-sample created
  25. zhaoqin@zhaoqindeMBP-2 elasticweb % kubectl get service -n dev
  26. NAME                TYPE       CLUSTER-IP    EXTERNAL-IP   PORT(S)          AGE
  27. elasticweb-sample   NodePort   10.96.234.7   <none>        8080:30003/TCP   13s
  28. zhaoqin@zhaoqindeMBP-2 elasticweb % kubectl get deployment -n dev
  29. NAME                READY   UP-TO-DATE   AVAILABLE   AGE
  30. elasticweb-sample   2/2     2            2           18s
  31. zhaoqin@zhaoqindeMBP-2 elasticweb % kubectl get pod -n dev
  32. NAME                                 READY   STATUS    RESTARTS   AGE
  33. elasticweb-sample-56fc5848b7-559lw   1/1     Running   0          22s
  34. elasticweb-sample-56fc5848b7-hp4wv   1/1     Running   0          22s
  1. 這還不夠！還有個重要的資訊需要咱們檢查---controller的日誌，先看有哪些pod：
  1. zhaoqin@zhaoqindeMBP-2 elasticweb % kubectl get pods --all-namespaces
  2. NAMESPACE           NAME                                             READY   STATUS    RESTARTS   AGE
  3. dev                 elasticweb-sample-56fc5848b7-559lw               1/1     Running   0          68s
  4. dev                 elasticweb-sample-56fc5848b7-hp4wv               1/1     Running   0          68s
  5. elasticweb-system   elasticweb-controller-manager-5795d4d98d-t6jvc   2/2     Running   0          98s
  6. kube-system         coredns-7f89b7bc75-5pdwc                         1/1     Running   15         20d
  7. kube-system         coredns-7f89b7bc75-nvbvm                         1/1     Running   15         20d
  8. kube-system         etcd-hedy                                        1/1     Running   15         20d
  9. kube-system         kube-apiserver-hedy                              1/1     Running   15         20d
  10. kube-system         kube-controller-manager-hedy                     1/1     Running   16         20d
  11. kube-system         kube-flannel-ds-v84vc                            1/1     Running   22         20d
  12. kube-system         kube-proxy-hlppx                                 1/1     Running   15         20d
  13. kube-system         kube-scheduler-hedy                              1/1     Running   16         20d
  14. test-clientset      client-test-deployment-7677cc9669-kd7l7          1/1     Running   9          9d
  15. test-clientset      client-test-deployment-7677cc9669-kt5rv          1/1     Running   9          9d
  1. 可見controller的pod名稱為elasticweb-controller-manager-5795d4d98d-t6jvc，執行以下命令可以檢視日誌，多了-c manager引數是因為這個pod裡面有兩個容器，需要指定正確的容器才能看到日誌：
  1. kubectl logs -f \
  2. elasticweb-controller-manager-5795d4d98d-t6jvc \
  3. -c manager \
  4. -n elasticweb-system
  1. 再次看到了熟悉的業務日誌：
  1. 2021-02-21T08:52:27.064Z        INFO    controllers.ElasticWeb  1. start reconcile logic        {"elasticweb": "dev/elasticweb-sample"}
  2. 2021-02-21T08:52:27.064Z        INFO    controllers.ElasticWeb  3. instance : Image [tomcat:8.0.18-jre8], Port [30003], SinglePodQPS [500], TotalQPS [600], RealQPS [nil]       {"elasticweb": "dev/elasticweb-sample"}
  3. 2021-02-21T08:52:27.064Z        INFO    controllers.ElasticWeb  4. deployment not exists        {"elasticweb": "dev/elasticweb-sample"}
  4. 2021-02-21T08:52:27.064Z        INFO    controllers.ElasticWeb  set reference   {"func": "createService"}
  5. 2021-02-21T08:52:27.064Z        INFO    controllers.ElasticWeb  start create service    {"func": "createService"}
  6. 2021-02-21T08:52:27.107Z        INFO    controllers.ElasticWeb  create service success  {"func": "createService"}
  7. 2021-02-21T08:52:27.107Z        INFO    controllers.ElasticWeb  expectReplicas [2]      {"func": "createDeployment"}
  8. 2021-02-21T08:52:27.107Z        INFO    controllers.ElasticWeb  set reference   {"func": "createDeployment"}
  9. 2021-02-21T08:52:27.107Z        INFO    controllers.ElasticWeb  start create deployment {"func": "createDeployment"}
  10. 2021-02-21T08:52:27.119Z        INFO    controllers.ElasticWeb  create deployment success       {"func": "createDeployment"}
  11. 2021-02-21T08:52:27.119Z        INFO    controllers.ElasticWeb  singlePodQPS [500], replicas [2], realQPS[1000] {"func": "updateStatus"}
  12. 2021-02-21T08:52:27.198Z        DEBUG   controller-runtime.controller   Successfully Reconciled {"controller": "elasticweb", "request": "dev/elasticweb-sample"}
  13. 2021-02-21T08:52:27.198Z        INFO    controllers.ElasticWeb  1. start reconcile logic        {"elasticweb": "dev/elasticweb-sample"}
  14. 2021-02-21T08:52:27.198Z        INFO    controllers.ElasticWeb  3. instance : Image [tomcat:8.0.18-jre8], Port [30003], SinglePodQPS [500], TotalQPS [600], RealQPS [1000]      {"elasticweb": "dev/elasticweb-sample"}
  15. 2021-02-21T08:52:27.198Z        INFO    controllers.ElasticWeb  9. expectReplicas [2], realReplicas [2] {"elasticweb": "dev/elasticweb-sample"}
  16. 2021-02-21T08:52:27.198Z        INFO    controllers.ElasticWeb  10. return now  {"elasticweb": "dev/elasticweb-sample"}
  17. 2021-02-21T08:52:27.198Z        DEBUG   controller-runtime.controller   Successfully Reconciled {"controller": "elasticweb", "request": "dev/elasticweb-sample"}
  1. 再用瀏覽器驗證tomcat已經啟動成功；

解除安裝和清理

  • 體驗完畢後，如果想把前面建立的資源全部清理掉(注意，是清理資源，不是資源物件)，可以執行以下命令：
  1. make uninstall
  • 至此，整個operator的設計、開發、部署、驗證流程就全部完成了，在您的operator開發過程中，希望本文能給您帶來一些參考；

你不孤單，欣宸原創一路相伴

  1. Java系列
  2. Spring系列
  3. Docker系列
  4. kubernetes系列
  5. 資料庫+中介軟體系列
  6. DevOps系列

歡迎關注公眾號：程式設計師欣宸

微信搜尋「程式設計師欣宸」，我是欣宸，期待與您一同暢遊Java世界...

https://github.com/zq2599/blog_demos
