Kubernetes環境Traefik部署與應用

本作品由Galen Suen採用知識共享署名-非商業性使用-禁止演繹 4.0 國際許可協議進行許可。由原作者轉載自個人站點。

概述

本文用於整理基於Kubernetes環境的Traefik部署與應用，實現Ingress Controller、七層/四層反向代理等功能。

本次演練環境為Kubernetes叢集環境，環境配置可參考筆者另一篇筆記《Kubernetes叢集部署筆記》。

元件版本

• Traefik v2.5.1

• Traefik Helm Chart v10.3.2

配置過程

安裝Traefik

• 配置Helm Repo

  helm repo add traefik https://helm.traefik.io/traefik

  helm repo update



• 安裝Traefik

  本次演練中將traefik安裝至kube-system名稱空間，可根據需要替換。

  # deployment.replicas=3 設定Traefik部署副本數

  # pilot.dashboard=false 禁用Dashboard中Pilot連結。

  helm upgrade --install --namespace kube-system \

    --set deployment.replicas=3 \

    --set pilot.dashboard=false \

    traefik traefik/traefik



• 其他準備工作

  獲取traefik服務的負載均衡器地址。執行該命令，記錄返回的EXTERNAL-IP地址備用。本次演練環境中，已將local.choral.io和*.local.choral.io指向該地址。

  kubectl get svc traefik -n kube-system



  建立一個用於部署演練用物件的名稱空間。本次演練中使用apps-choral名稱空間，可根據需要替換。

  kubectl create namespace apps-choral

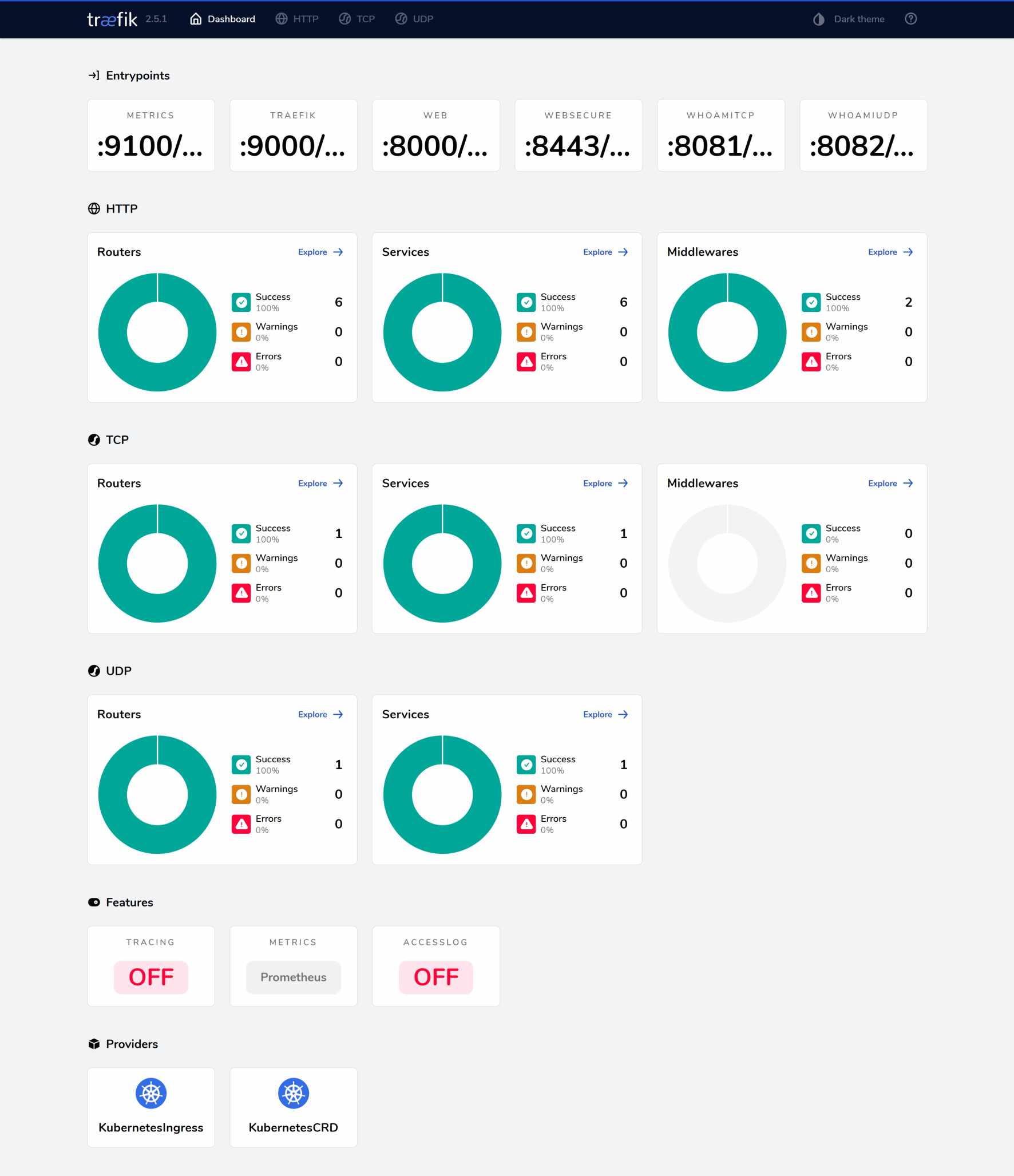

部署Dashboard

• 建立IngressRoute

  建立一個IngressRoute，用於配置api和dashboard的入口規則。

  本次演練中，使用traefik.local.choral.io域名訪問Dashboard，可根據需要替換。

  cat <<EOF | kubectl apply -f -

  apiVersion: traefik.containo.us/v1alpha1

  kind: IngressRoute

  metadata:

    name: traefik-dashboard

    namespace: apps-choral

  spec:

    entryPoints:

      - web

    routes:

      - match: Host(`traefik.local.choral.io`) && (PathPrefix(`/dashboard`) || PathPrefix(`/api`))

        kind: Rule

        services:

          - name: api@internal

            kind: TraefikService

  EOF



• 啟用BasicAuth認證

  首先，建立一個用於儲存使用者名稱和密碼的Secret，其中的users欄位內容可使用htpassword工具生成。本次演練中，認證username和password都是admin。

  cat <<EOF | kubectl apply -f -

  apiVersion: v1

  kind: Secret

  metadata:

    name: traefik-basicauth-secret

    namespace: apps-choral

  data:

    users: |2 # htpasswd -nb admin admin | openssl base64

      YWRtaW46e1NIQX0wRFBpS3VOSXJyVm1EOElVQ3V3MWhReE5xWmM9Cg==

  EOF



  建立一個Traefik中介軟體，用於對請求啟用BasicAuth認證。

  cat <<EOF | kubectl apply -f -

  apiVersion: traefik.containo.us/v1alpha1

  kind: Middleware

  metadata:

    name: traefik-basicauth

    namespace: apps-choral

  spec:

    basicAuth:

      realm: traefik.local.choral.io

      secret: traefik-basicauth-secret

  EOF



  更新Dashboard的IngressRoute，啟用BasicAuth中介軟體。

  cat <<EOF | kubectl apply -f -

  apiVersion: traefik.containo.us/v1alpha1

  kind: IngressRoute

  metadata:

    name: traefik-dashboard

    namespace: apps-choral

  spec:

    entryPoints:

      - web

    routes:

      - match: Host(`traefik.local.choral.io`) && (PathPrefix(`/dashboard`) || PathPrefix(`/api`))

        kind: Rule

        services:

          - name: api@internal

            kind: TraefikService

        middlewares:

          - name: traefik-basicauth

  EOF



七層反向代理

HTTP應用示例

• 部署whoami應用

  建立Deployment，部署whoami應用。

  cat <<EOF | kubectl apply -f -

  apiVersion: apps/v1

  kind: Deployment

  metadata:

    name: whoami

    namespace: apps-choral

  spec:

    replicas: 3

    selector:

      matchLabels:

        app: whoami

    template:

      metadata:

        labels:

          app: whoami

      spec:

        containers:

          - name: whoami

            image: traefik/whoami:latest

            imagePullPolicy: IfNotPresent

            ports:

              - containerPort: 80

  EOF



  建立一個用於訪問whoami應用的服務。

  cat <<EOF | kubectl apply -f -

  apiVersion: v1

  kind: Service

  metadata:

    name: whoami

    namespace: apps-choral

  spec:

    type: ClusterIP

    ports:

      - protocol: TCP

        port: 80

    selector:

      app: whoami

  EOF



  建立一個Ingress，用於配置whoami應用的入口規則。

  cat <<EOF | kubectl apply -f -

  apiVersion: networking.k8s.io/v1

  kind: Ingress

  metadata:

    name: whoami

    namespace: apps-choral

    annotations:

      traefik.ingress.kubernetes.io/router.entrypoints: web

  spec:

    rules:

      - host: local.choral.io

        http:

          paths:

            - path: /

              pathType: Prefix

              backend:

                service:

                  name: whoami

                  port:

                    number: 80

  EOF



啟用TLS（HTTPS）

本次演練使用靜態證書配置TLS，該證書被手動建立，應用於local.choral.io和*.local.choral.io域名。

有關自動證書管理，可參考Cert Manager專案文件。

• 更新Traefik執行引數

  # ports.web.redirectTo=websecure                          啟用Web跳轉至WebSecure

  # additionalArguments[0]=--entrypoints.websecure.http.tls Ingress預設啟用TLS

  helm upgrade --install --namespace kube-system \

    --set deployment.replicas=3 \

    --set pilot.dashboard=false \

    --set ports.web.redirectTo=websecure \

    --set additionalArguments[0]=--entrypoints.websecure.http.tls \

    traefik traefik/traefik



• 建立TLS證書Secret

  從已準備好的證書key檔案和crt檔案建立Secret。

  kubectl create secret tls local-choral-io-tls -n kube-system --key=local.choral.io.key --cert=local.choral.io.crt



• 更新Dashboard的IngressRoute

  更新Dashboard的IngressRoute，啟用TLS配置。

  cat <<EOF | kubectl apply -f -

  apiVersion: traefik.containo.us/v1alpha1

  kind: IngressRoute

  metadata:

    name: traefik-dashboard

    namespace: apps-choral

  spec:

    entryPoints:

      - websecure

    routes:

      - match: Host(`traefik.local.choral.io`) && (PathPrefix(`/dashboard`) || PathPrefix(`/api`))

        kind: Rule

        services:

          - name: api@internal

            kind: TraefikService

        middlewares:

          - name: traefik-basicauth

    tls:

      secretName: local-choral-io-tls

  EOF



• 更新whoami的Ingress

  更新whoami的Ingress，啟用TLS配置。

  cat <<EOF | kubectl apply -f -

  apiVersion: networking.k8s.io/v1

  kind: Ingress

  metadata:

    name: whoami

    namespace: apps-choral

    annotations:

      traefik.ingress.kubernetes.io/router.entrypoints: websecure

  spec:

    tls:

      - secretName: local-choral-io-tls

    rules:

      - host: local.choral.io

        http:

          paths:

            - path: /

              pathType: Prefix

              backend:

                service:

                  name: whoami

                  port:

                    number: 80

  EOF



四層反向代理

TCP應用示例

• 更新Traefik執行引數

  更新Traefik執行引數，建立新的EntryPoint。

  # ports.whoamitcp.protocol=TCP     網路協議

  # ports.whoamitcp.port=8081        監聽埠

  # ports.whoamitcp.exposedPort=8081 服務公開埠

  # ports.whoamitcp.expose=true      是否暴露埠

  helm upgrade --install --namespace kube-system \

    --set deployment.replicas=3 \

    --set pilot.dashboard=false \

    --set ports.web.redirectTo=websecure \

    --set additionalArguments[0]=--entrypoints.websecure.http.tls \

    --set ports.whoamitcp.protocol=TCP \

    --set ports.whoamitcp.port=8081 \

    --set ports.whoamitcp.exposedPort=8081 \

    --set ports.whoamitcp.expose=true \

    traefik traefik/traefik



• 部署whoamitcp應用

  建立Deployment，部署whoamitcp應用。

  cat <<EOF | kubectl apply -f -

  apiVersion: apps/v1

  kind: Deployment

  metadata:

    name: whoamitcp

    namespace: apps-choral

  spec:

    replicas: 3

    selector:

      matchLabels:

        app: whoamitcp

    template:

      metadata:

        labels:

          app: whoamitcp

      spec:

        containers:

          - name: whoamitcp

            image: traefik/whoamitcp:latest

            imagePullPolicy: IfNotPresent

            ports:

              - protocol: TCP

                containerPort: 8080

  EOF



  建立一個用於訪問whoamitcp應用的服務。

  cat <<EOF | kubectl apply -f -

  apiVersion: v1

  kind: Service

  metadata:

    name: whoamitcp

    namespace: apps-choral

  spec:

    type: ClusterIP

    ports:

      - protocol: TCP

        port: 8080

    selector:

      app: whoamitcp

  EOF



  建立一個IngressRouteTCP，用於配置whoamitcp應用的入口規則。

  cat <<EOF | kubectl apply -f -

  apiVersion: traefik.containo.us/v1alpha1

  kind: IngressRouteTCP

  metadata:

    name: whoamitcp

    namespace: apps-choral

  spec:

    entryPoints:

      - whoamitcp

    routes:

      - match: HostSNI(\`*\`)

        services:

          - name: whoamitcp

            port: 8080

  EOF



  驗證反向代理和服務執行狀態。

  # `10.0.0.201`是`traefik`服務的負載均衡器地址（kubectl get svc traefik -n kube-system）

  echo "Hello" | socat - tcp4:10.0.0.201:8081

  # 終端回顯如下內容

  Received: Hello



UDP應用示例

• 更新Traefik執行引數

  更新Traefik執行引數，建立新的EntryPoint。

  # ports.whoamiudp.protocol=UDP     網路協議

  # ports.whoamiudp.port=8082        監聽埠

  # ports.whoamiudp.exposedPort=8082 服務公開埠

  # ports.whoamiudp.expose=true      是否暴露埠

  helm upgrade --install --namespace kube-system \

    --set deployment.replicas=3 \

    --set pilot.dashboard=false \

    --set ports.web.redirectTo=websecure \

    --set additionalArguments[0]=--entrypoints.websecure.http.tls \

    --set ports.whoamitcp.protocol=TCP \

    --set ports.whoamitcp.port=8081 \

    --set ports.whoamitcp.exposedPort=8081 \

    --set ports.whoamitcp.expose=true \

    --set ports.whoamiudp.protocol=UDP \

    --set ports.whoamiudp.port=8082 \

    --set ports.whoamiudp.exposedPort=8082 \

    --set ports.whoamiudp.expose=true \

    traefik traefik/traefik



• 部署whoamiudp應用

  建立Deployment，部署whoamiudp應用。

  cat <<EOF | kubectl apply -f -

  apiVersion: apps/v1

  kind: Deployment

  metadata:

    name: whoamiudp

    namespace: apps-choral

  spec:

    replicas: 3

    selector:

      matchLabels:

        app: whoamiudp

    template:

      metadata:

        labels:

          app: whoamiudp

      spec:

        containers:

          - name: whoamiudp

            image: traefik/whoamiudp:latest

            imagePullPolicy: IfNotPresent

            ports:

              - protocol: UDP

                containerPort: 8080

  EOF



  建立一個用於訪問whoamiudp應用的服務。

  cat <<EOF | kubectl apply -f -

  apiVersion: v1

  kind: Service

  metadata:

    name: whoamiudp

    namespace: apps-choral

  spec:

    type: ClusterIP

    ports:

      - protocol: UDP

        port: 8080

    selector:

      app: whoamiudp

  EOF



  建立一個IngressRouteUDP，用於配置whoamiudp應用的入口規則。

  cat <<EOF | kubectl apply -f -

  apiVersion: traefik.containo.us/v1alpha1

  kind: IngressRouteUDP

  metadata:

    name: whoamiudp

    namespace: apps-choral

  spec:

    entryPoints:

      - whoamiudp

    routes:

      - services:

          - name: whoamiudp

            port: 8080

  EOF



  驗證反向代理和服務執行狀態。

  # `10.0.0.202`是`traefik-udp`服務的負載均衡器地址（kubectl get svc traefik-udp -n kube-system）

  echo "Hello" | socat - udp4:10.0.0.202:8082

  # 終端回顯如下內容

  Received: Hello



參考資料

• https://github.com/traefik/traefik-helm-chart

• https://doc.traefik.io/traefik/providers/kubernetes-crd/

• https://doc.traefik.io/traefik/providers/kubernetes-ingress/

• https://doc.traefik.io/traefik/middlewares/http/basicauth/
