Spring中使用@within與@target的一些區別

背景

專案裡有一個動態切換資料來源的功能，我們是用切面來實現的，是基於註解來實現的，但是父類的方法是可以切換資料來源的，如果有一個類直接繼承這個類，呼叫這個子類時，這個子類是不能夠切換資料來源的，除非這個子類重寫父類的方法。

模擬專案例子

註解定義：

@Target({ElementType.METHOD, ElementType.TYPE})

@Retention(RetentionPolicy.RUNTIME)

@Inherited

@Documented

public @interface MyAnnotation {

    String value() default "me";

}

切面定義：

@Order(-1)

@Aspect

@Component

public class MyAspect {

    @Before("@within(myAnnotation)")

    public void switchDataSource(JoinPoint point, MyAnnotation myAnnotation) {

        System.out.println("before, myAnnotation.value : " + myAnnotation.value());

    }

}

父類Bean：

@MyAnnotation("father")

public class Father {

    public void hello() {

        System.out.println("father.hello()");

    }

    public void hello2() {

        System.out.println("father.hello2()");

    }

}

子類Bean：

@MyAnnotation("son")

public class Son extends Father {

    @Override

    public void hello() {

        System.out.println("son.hello()");

    }

}

配置類：

@Configuration

@EnableAspectJAutoProxy(exposeProxy = true)

public class Config {

    @Bean

    public Father father() {

        return new Father();

    }

    @Bean

    public Son son() {

        return new Son();

    }

}

測試類：

public class Main {

    public static void main(String[] args) {

        AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext(Config.class,

                MyAspect.class);

        Father father = context.getBean("father", Father.class);

        father.hello();

        father.hello2();

        Son son = context.getBean(Son.class);

        son.hello();

        son.hello2();

    }

}

我們定義了一個@Before通知，方法引數有point, myAnnotation，方法裡輸出了myAnnotation.value的值

下面是輸出結果：

before, myAnnotation.value : father

father.hello()

before, myAnnotation.value : father

father.hello2()

before, myAnnotation.value : son

son.hello()

before, myAnnotation.value : father

father.hello2()

從上面的輸出結果看出：Son類重寫了hello方法，myAnnotation.value的輸出的值是son，hello2方法沒有重寫，myAnnotation.value的輸出的值是father

根據需求，我們肯定希望呼叫Son類的所有方法時，都希望myAnnotation.value的輸出的值是son，因此就需要重寫父類的所有public方法

那有沒有辦法不重寫這些方法也能達到相同的效果呢，答案是可以的。

看看使用@within和@target的區別

我們分別在父類和子類上加上註解和去掉註解，一起來看看對應的結果

@within

父類無註解，子類有註解：

father.hello()

father.hello2()

before, myAnnotation.value : son

son.hello()

father.hello2()

父類有註解，子類無註解：

before, myAnnotation.value : father

father.hello()

before, myAnnotation.value : father

father.hello2()

before, myAnnotation.value : father

son.hello()

before, myAnnotation.value : father

father.hello2()

父類有註解，子類有註解(其實就是上面那個例子的結果)：

before, myAnnotation.value : father

father.hello()

before, myAnnotation.value : father

father.hello2()

before, myAnnotation.value : son

son.hello()

before, myAnnotation.value : father

father.hello2()

@target

把切面程式碼改成如下：

@Order(-1)

@Aspect

@Component

public class MyAspect {

    @Before("@target(myAnnotation)")

    public void switchDataSource(JoinPoint point, MyAnnotation myAnnotation) {

        System.out.println("before, myAnnotation.value : " + myAnnotation.value());

    }

}

我們再一起來看看測試結果：

父類無註解，子類有註解：

father.hello()

father.hello2()

before, myAnnotation.value : son

son.hello()

before, myAnnotation.value : son

father.hello2()

父類有註解，子類無註解：

before, myAnnotation.value : father

father.hello()

before, myAnnotation.value : father

father.hello2()

son.hello()

father.hello2()

父類有註解，子類有註解

before, myAnnotation.value : father

father.hello()

before, myAnnotation.value : father

father.hello2()

before, myAnnotation.value : son

son.hello()

before, myAnnotation.value : son

father.hello2()

我們從上面總結出一套規律：

@within：@Before通知方法的myAnnotation引數指的是呼叫方法所在的類上面的註解，就是這個方法是在哪個類上定義的

@target：@Before通知方法的myAnnotation引數指的是呼叫方法執行時所屬於的類上面的註解

我們最後總結一下，如果父類和子類上都標有註解，@within和@target的所得到實際註解的區別

	@within	@target
父類方法	父類註解	父類註解
子類不重寫方法	父類註解	子類註解
子類重寫方法	子類註解	子類註解

@target 看起來跟合理一點

從上面的分析可以看出，其實用@target更符合我們想要的結果，在某個類上面加一個註解，攔截的時候就會獲取這個類上面的註解，跟父類完全沒有關係了

但這個時候會遇到一個問題，就是不相關的類都會生從代理類，

例子如下：

public class NormalBean {

    public void hello() {

    }

}

@Configuration

@EnableAspectJAutoProxy(exposeProxy = true)

public class Config {

    @Bean

    public Father father() {

        return new Father();

    }

    @Bean

    public Son son() {

        return new Son();

    }

    @Bean

    public NormalBean normalBean() {

        return new NormalBean();

    }

}

public class Main {

    public static void main(String[] args) {

        AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext(Config.class,

                MyAspect.class);

        Father father = context.getBean("father", Father.class);

        father.hello();

        father.hello2();

        Son son = context.getBean(Son.class);

        son.hello();

        son.hello2();

        NormalBean normalBean = context.getBean(NormalBean.class);

        System.out.println(normalBean.getClass());

    }

}

輸出：

class cn.eagleli.spring.aop.demo.NormalBean$$EnhancerBySpringCGLIB$$eebc2a39

可以看出NormalBean自己什麼都沒做，但卻被代理了

我們再把@target換成@within：

class cn.eagleli.spring.aop.demo.NormalBean

可以看出使用@within時，不相關的類沒有被代理

我們一起來看看為什麼

在AbstractAutoProxyCreator類中的wrapIfNecessary方法打斷點，看看什麼情況：

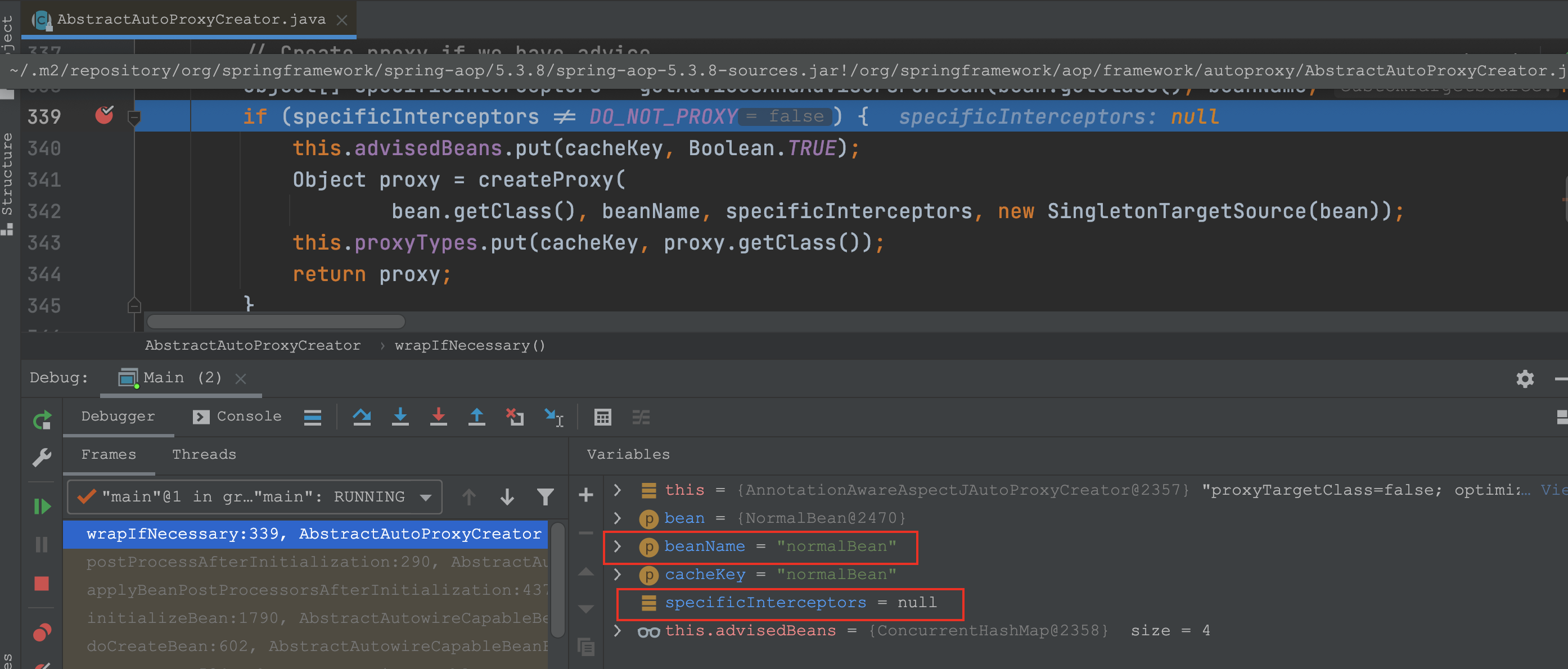

@within

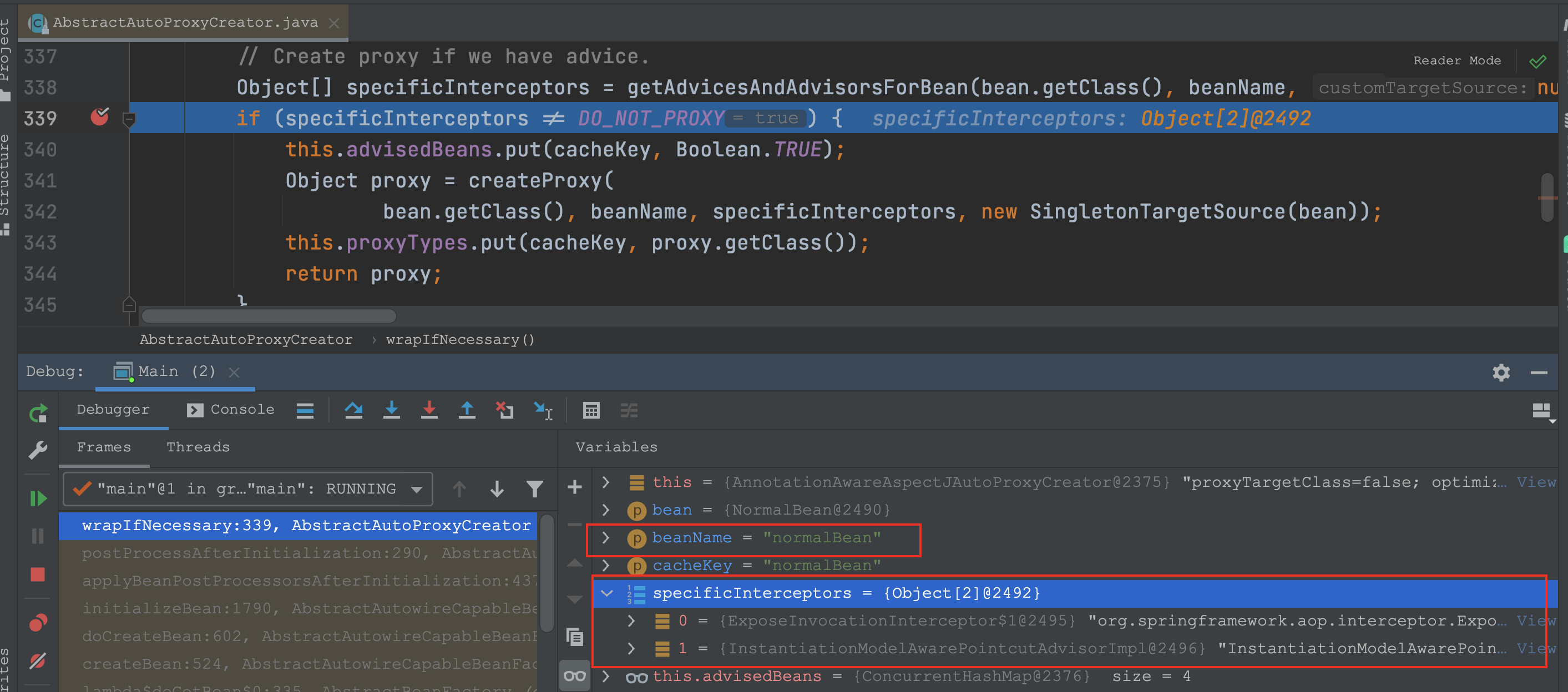

@target

我們從上面的圖片就可以理解為什麼@target會生成代理類

我們再深入看一下：

@within會走到如下：

public class ExactAnnotationTypePattern extends AnnotationTypePattern {

	@Override

	public FuzzyBoolean matches(AnnotatedElement annotated, ResolvedType[] parameterAnnotations) {

            // ......

        }

}

我沒深入研究，大致意思就是隻要這個類或者這個類的祖先們帶有這個註解，即匹配成功

@target會走到如下：

public class ThisOrTargetAnnotationPointcut extends NameBindingPointcut {

	@Override

	protected FuzzyBoolean matchInternal(Shadow shadow) {

		if (!couldMatch(shadow)) {

			return FuzzyBoolean.NO;

		}

		ResolvedType toMatchAgainst = (isThis ? shadow.getThisType() : shadow.getTargetType()).resolve(shadow.getIWorld());

		annotationTypePattern.resolve(shadow.getIWorld());

		if (annotationTypePattern.matchesRuntimeType(toMatchAgainst).alwaysTrue()) {

			return FuzzyBoolean.YES;

		} else {

			// a subtype may match at runtime

			return FuzzyBoolean.MAYBE;

		}

	}

}

public class AspectJExpressionPointcut extends AbstractExpressionPointcut

		implements ClassFilter, IntroductionAwareMethodMatcher, BeanFactoryAware {

	@Override

	public boolean matches(Method method, Class<?> targetClass, boolean hasIntroductions) {

		obtainPointcutExpression();

		ShadowMatch shadowMatch = getTargetShadowMatch(method, targetClass);

		// Special handling for this, target, @this, @target, @annotation

		// in Spring - we can optimize since we know we have exactly this class,

		// and there will never be matching subclass at runtime.

		if (shadowMatch.alwaysMatches()) {

			return true;

		}

		else if (shadowMatch.neverMatches()) {

			return false;

		}

		else {

			// the maybe case

			if (hasIntroductions) {

				return true;

			}

			// A match test returned maybe - if there are any subtype sensitive variables

			// involved in the test (this, target, at_this, at_target, at_annotation) then

			// we say this is not a match as in Spring there will never be a different

			// runtime subtype.

			RuntimeTestWalker walker = getRuntimeTestWalker(shadowMatch);

			return (!walker.testsSubtypeSensitiveVars() || walker.testTargetInstanceOfResidue(targetClass)); // 這裡會返回true

		}

	}

}

我沒深入研究，大致意思是匹配的話就返回YES，否則就返回MAYBE，匹配邏輯是和@within一樣的

因此所有不相關的類都會是一個MAYBE的結果，這個結果會讓不相關的類最後生成代理類

通知方法中註解引數的值為什麼是不一樣的

經過除錯，最終是在這裡獲取的：

public final class ReflectionVar extends Var {

	static final int THIS_VAR = 0;

	static final int TARGET_VAR = 1;

	static final int ARGS_VAR = 2;

	static final int AT_THIS_VAR = 3;

	static final int AT_TARGET_VAR = 4;

	static final int AT_ARGS_VAR = 5;

	static final int AT_WITHIN_VAR = 6;

	static final int AT_WITHINCODE_VAR = 7;

	static final int AT_ANNOTATION_VAR = 8;

	public Object getBindingAtJoinPoint(

			Object thisObject,

			Object targetObject,

			Object[] args,

			Member subject,

			Member withinCode,

			Class withinType) {

		switch( this.varType) {

		case THIS_VAR: return thisObject;

		case TARGET_VAR: return targetObject;

		case ARGS_VAR:

			if (this.argsIndex > (args.length - 1)) return null;

			return args[argsIndex];

		case AT_THIS_VAR:

			if (annotationFinder != null) {

				return annotationFinder.getAnnotation(getType(), thisObject);

			} else return null;

		case AT_TARGET_VAR:

			if (annotationFinder != null) {

				return annotationFinder.getAnnotation(getType(), targetObject);

			} else return null;

		case AT_ARGS_VAR:

			if (this.argsIndex > (args.length - 1)) return null;

			if (annotationFinder != null) {

				return annotationFinder.getAnnotation(getType(), args[argsIndex]);

			} else return null;

		case AT_WITHIN_VAR:

			if (annotationFinder != null) {

				return annotationFinder.getAnnotationFromClass(getType(), withinType);

			} else return null;

		case AT_WITHINCODE_VAR:

			if (annotationFinder != null) {

				return annotationFinder.getAnnotationFromMember(getType(), withinCode);

			} else return null;

		case AT_ANNOTATION_VAR:

			if (annotationFinder != null) {

				return annotationFinder.getAnnotationFromMember(getType(), subject);

			} else return null;

		}

		return null;

	}

}

@within：

case AT_WITHIN_VAR:

    if (annotationFinder != null) {

        return annotationFinder.getAnnotationFromClass(getType(), withinType);

    } else return null;

withinType追蹤到如下：

public class PointcutExpressionImpl implements PointcutExpression {

	private ShadowMatch matchesExecution(Member aMember) {

		Shadow s = ReflectionShadow.makeExecutionShadow(world, aMember, this.matchContext);

		ShadowMatchImpl sm = getShadowMatch(s);

		sm.setSubject(aMember);

		sm.setWithinCode(null);

		sm.setWithinType(aMember.getDeclaringClass()); // 這裡設定withinType

		return sm;

	}

}

public abstract class AopUtils {

	public static boolean canApply(Pointcut pc, Class<?> targetClass, boolean hasIntroductions) {

		Assert.notNull(pc, "Pointcut must not be null");

		if (!pc.getClassFilter().matches(targetClass)) {

			return false;

		}

		MethodMatcher methodMatcher = pc.getMethodMatcher();

		if (methodMatcher == MethodMatcher.TRUE) {

			// No need to iterate the methods if we're matching any method anyway...

			return true;

		}

		IntroductionAwareMethodMatcher introductionAwareMethodMatcher = null;

		if (methodMatcher instanceof IntroductionAwareMethodMatcher) {

			introductionAwareMethodMatcher = (IntroductionAwareMethodMatcher) methodMatcher;

		}

		Set<Class<?>> classes = new LinkedHashSet<>();

		if (!Proxy.isProxyClass(targetClass)) {

			classes.add(ClassUtils.getUserClass(targetClass));

		}

		classes.addAll(ClassUtils.getAllInterfacesForClassAsSet(targetClass));

		for (Class<?> clazz : classes) {

			Method[] methods = ReflectionUtils.getAllDeclaredMethods(clazz);

			for (Method method : methods) { // 這裡獲取所有method

				if (introductionAwareMethodMatcher != null ?

						introductionAwareMethodMatcher.matches(method, targetClass, hasIntroductions) :

						methodMatcher.matches(method, targetClass)) {

					return true;

				}

			}

		}

		return false;

	}

}

@target：

case AT_TARGET_VAR:

    if (annotationFinder != null) {

        return annotationFinder.getAnnotation(getType(), targetObject);

    } else return null;

targetObject 追蹤到如下：

public abstract class AbstractAutoProxyCreator extends ProxyProcessorSupport

		implements SmartInstantiationAwareBeanPostProcessor, BeanFactoryAware {

	protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {

		if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {

			return bean;

		}

		if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {

			return bean;

		}

		if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {

			this.advisedBeans.put(cacheKey, Boolean.FALSE);

			return bean;

		}

		// Create proxy if we have advice.

		Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);

		if (specificInterceptors != DO_NOT_PROXY) {

			this.advisedBeans.put(cacheKey, Boolean.TRUE);

			Object proxy = createProxy(

					bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean)); // 這裡，targetObject就是生成的bean

			this.proxyTypes.put(cacheKey, proxy.getClass());

			return proxy;

		}

		this.advisedBeans.put(cacheKey, Boolean.FALSE);

		return bean;

	}

	public SingletonTargetSource(Object target) {

		Assert.notNull(target, "Target object must not be null");

		this.target = target;

	}

}

想用@within，但又想得到想要的註解

@Order(-1)

@Aspect

@Component

public class MyAspect {

    @Before("@within(myAnnotation)")

    public void switchDataSource(JoinPoint point, MyAnnotation myAnnotation) {

        System.out.println(point.getTarget() + " " + point + " " + myAnnotation.value() + " " +

                point.getTarget().getClass().getAnnotation(MyAnnotation.class).value());

    }

}

很簡單，從JoinPoint中得到target，然後從這個類上得到對應的註解即可

此時，父類和子類都加有註解，一起來看看輸出結果：

cn.eagleli.spring.aop.demo.Father@194fad1 execution(void cn.eagleli.spring.aop.demo.Father.hello()) father father

cn.eagleli.spring.aop.demo.Father@194fad1 execution(void cn.eagleli.spring.aop.demo.Father.hello2()) father father

cn.eagleli.spring.aop.demo.Son@14fc5f04 execution(void cn.eagleli.spring.aop.demo.Son.hello()) son son

cn.eagleli.spring.aop.demo.Son@14fc5f04 execution(void cn.eagleli.spring.aop.demo.Father.hello2()) father son

能力有限，只能先探討這麼多了，不懂的或者有其他見解的，歡迎一起討論呀~
