簡介
學了上一節的WebApi之後，我們會發現一片新天地
本節跟大家聊一聊，如何把本地的Excel資料匯入到NCF中

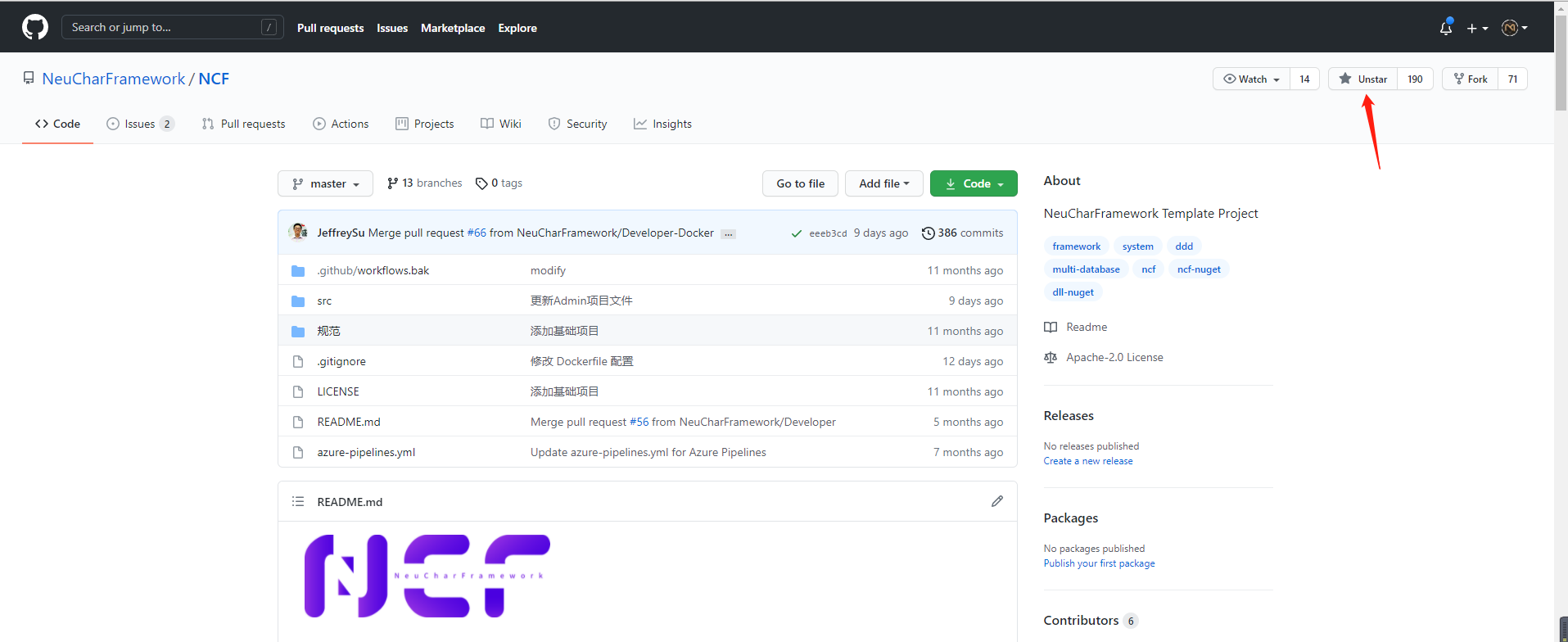

倉庫地址：https://github.com/NeuCharFramework/NCF
歡迎收藏，歡迎Star哦
步驟
1.首先在頁面上需要增加可以操作匯入的按鈕
2.在頁面上增加點選匯入按鈕後需要彈出的視窗
3.在視窗中增加下載匯入資料的模板
4.在視窗中增加點選上傳的資料的檔案進行上傳
5.在js中增加對應的視窗中需要處理的方法
6.引入NPOI
7.建立ExcelHelper類用來讀取Excel檔案內容
8.在api中增加上傳資料檔案的接收方法
9.在Service中處理上傳的檔案的資料
實施
1.首先在頁面上需要增加可以操作匯入的按鈕
1 <el-button class="filter-item" size="mini" type="primary" @@click="handleEdit('','','import')">匯入</el-button>
2.在頁面上增加點選匯入按鈕後需要彈出的視窗
1 @*匯入*@
2 <el-dialog :title="dialogImport.title"
3 :visible.sync="dialogImport.visible"
4 :close-on-click-modal="false"
5 width="700px">
6
7 <el-form ref="dataFormImport"
8 :rules="dialogImport.rules"
9 :model="dialogImport.data"
10 :disabled="dialogImport.disabled"
11 label-position="left"
12 label-width="100px"
13 style="max-width: 200px; margin-left:50px;">
14 <el-button @@click="downloadTemplate">下載匯入模板</el-button>
15 <el-form-item label="匯入的檔案">
16 <el-upload class="upload-demo"
17 action="@Model.UpFileUrl"
18 accept=".xls,.xlsx"
19 :on-success="uploadSuccess"
20 :on-preview="handlePreview"
21 :on-remove="handleRemove"
22 :before-remove="beforeRemove"
23 multiple
24 :limit="3"
25 :on-exceed="handleExceed"
26 :file-list="fileList"
27 ref="my-upload">
28 <el-button size="small" type="primary">點選上傳</el-button>
29 <div slot="tip" class="el-upload__tip">只能上傳excel檔案</div>
30 </el-upload>
31 <el-input class="hidden" v-model="dialogImport.data.file" clearable placeholder="檔案" />
32 </el-form-item>
33 </el-form>
34 <div slot="footer" class="dialog-footer">
35 <el-button @@click="dialogImport.visible=false">取消</el-button>
36 <el-button :loading="dialogImport.updateLoading" :disabled="dialogImport.disabled" type="primary" @@click="dialogImport.visible=false">確認</el-button>
37 </div>
38 </el-dialog>
js中的程式碼
1 dialogImport:
2 {
3 title: '匯入資料',
4 visible: false,
5 data:
6 {
7 file: ''
8 },
9 updateLoading: false,
10 disabled: false,
11 checkStrictly: true // 是否嚴格的遵守父子節點不互相關聯
12 }
3.在視窗中增加下載匯入資料的模板
這裡可以本地編輯一個Excel的檔案，欄位可以根據自己實際的隨便寫
4.在視窗中增加點選上傳的資料的檔案進行上傳
el-upload控制元件則是用來上傳檔案的
5.在js中增加對應的視窗中需要處理的方法
1 downloadTemplate() {
2 window.open("https://aaa.oss-cn-beijing.aliyuncs.com/ImportData.xls", '_blank')
3 }
6.引入NPOI
1 <PackageReference Include="NPOI" Version="2.5.3" />
7.建立ExcelHelper類用來讀取Excel檔案內容
1 using NPOI.SS.UserModel;
2 using System;
3 using System.Collections.Generic;
4 using System.Data;
5 using System.IO;
6 using System.Text;
7
8 namespace Senparc.Xncf.Admin.Utils
9 {
10 public class ExcelHeler
11 {
12 /// <summary>
13 /// 讀取Excel多Sheet資料
14 /// </summary>
15 /// <param name="filePath">檔案路徑</param>
16 /// <param name="sheetName">Sheet名</param>
17 /// <returns></returns>
18 public static DataSet ReadExcelToDataSet(string filePath, string sheetName = null)
19 {
20 if (!File.Exists(filePath))
21 {
22 //logger.LogError($"未找到檔案{filePath}");
23 return null;
24 }
25 //獲取檔案資訊
26 FileStream fs = new FileStream(filePath, FileMode.Open, FileAccess.Read);
27 IWorkbook workbook = WorkbookFactory.Create(fs);
28 //獲取sheet資訊
29 ISheet sheet = null;
30 DataSet ds = new DataSet();
31 if (!string.IsNullOrEmpty(sheetName))
32 {
33 sheet = workbook.GetSheet(sheetName);
34 if (sheet == null)
35 {
36 //logger.LogError($"{filePath}未找到sheet:{sheetName}");
37 return null;
38 }
39 DataTable dt = ReadExcelFunc(workbook, sheet);
40 ds.Tables.Add(dt);
41 }
42 else
43 {
44 //遍歷獲取所有資料
45 int sheetCount = workbook.NumberOfSheets;
46 for (int i = 0; i < sheetCount; i++)
47 {
48 sheet = workbook.GetSheetAt(i);
49 if (sheet != null)
50 {
51 DataTable dt = ReadExcelFunc(workbook, sheet);
52 if (dt != null) ds.Tables.Add(dt);
53 }
54 }
55 }
56 return ds;
57 }
58
59 /// <summary>
60 /// 讀取Excel多Sheet資料
61 /// </summary>
62 /// <param name="filePath">檔案路徑</param>
63 /// <param name="sheetName">Sheet名</param>
64 /// <returns></returns>
65 public static DataSet ReadExcelToDataSet(FileStream fs, string sheetName = null)
66 {
67 IWorkbook workbook = WorkbookFactory.Create(fs);
68 //獲取sheet資訊
69 ISheet sheet = null;
70 DataSet ds = new DataSet();
71 if (!string.IsNullOrEmpty(sheetName))
72 {
73 sheet = workbook.GetSheet(sheetName);
74 if (sheet == null)
75 {
76 //logger.LogError($"{filePath}未找到sheet:{sheetName}");
77 return null;
78 }
79 DataTable dt = ReadExcelFunc(workbook, sheet);
80 ds.Tables.Add(dt);
81 }
82 else
83 {
84 //遍歷獲取所有資料
85 int sheetCount = workbook.NumberOfSheets;
86 for (int i = 0; i < sheetCount; i++)
87 {
88 sheet = workbook.GetSheetAt(i);
89 if (sheet != null)
90 {
91 DataTable dt = ReadExcelFunc(workbook, sheet);
92 if (dt != null)
93 ds.Tables.Add(dt);
94 }
95 }
96 }
97 return ds;
98 }
99
100 /// <summary>
101 /// 讀取Excel資訊
102 /// </summary>
103 /// <param name="workbook">工作區</param>
104 /// <param name="sheet">sheet</param>
105 /// <returns></returns>
106 private static DataTable ReadExcelFunc(IWorkbook workbook, ISheet sheet)
107 {
108 DataTable dt = new DataTable();
109 //獲取列資訊
110 IRow cells = sheet.GetRow(sheet.FirstRowNum);
111 //空資料化返回
112 if (cells == null) return null;
113 int cellsCount = cells.PhysicalNumberOfCells;
114 //空列返回
115 if (cellsCount == 0) return null;
116 int emptyCount = 0;
117 int cellIndex = sheet.FirstRowNum;
118 List<string> listColumns = new List<string>();
119 bool isFindColumn = false;
120 while (!isFindColumn)
121 {
122 emptyCount = 0;
123 listColumns.Clear();
124 for (int i = 0; i < cellsCount; i++)
125 {
126 if (string.IsNullOrEmpty(cells.GetCell(i).StringCellValue))
127 {
128 emptyCount++;
129 }
130 listColumns.Add(cells.GetCell(i).StringCellValue);
131 }
132 //這裡根據邏輯需要，空列超過多少判斷
133 if (emptyCount == 0)
134 {
135 isFindColumn = true;
136 }
137 cellIndex++;
138 cells = sheet.GetRow(cellIndex);
139 }
140
141 foreach (string columnName in listColumns)
142 {
143 if (dt.Columns.Contains(columnName))
144 {
145 //如果允許有重複列名，自己做處理
146 continue;
147 }
148 dt.Columns.Add(columnName, typeof(string));
149 }
150 //開始獲取資料
151 int rowsCount = sheet.PhysicalNumberOfRows;
152 var rowIndex = 1;
153 DataRow dr = null;
154 //空資料化返回
155 if (rowsCount <= 1) { return null; }
156 for (int i = rowIndex; i < rowsCount; i++)
157 {
158 cells = sheet.GetRow(i);
159 dr = dt.NewRow();
160 for (int j = 0; j < dt.Columns.Count; j++)
161 {
162 //這裡可以判斷資料型別
163 switch (cells.GetCell(j).CellType)
164 {
165 case CellType.String:
166 dr[j] = cells.GetCell(j).StringCellValue;
167 break;
168 case CellType.Numeric:
169 dr[j] = cells.GetCell(j).NumericCellValue.ToString();
170 break;
171 case CellType.Unknown:
172 dr[j] = cells.GetCell(j).StringCellValue;
173 break;
174 }
175 }
176 dt.Rows.Add(dr);
177 }
178 return dt;
179 }
180 }
181 }
8.在api中增加上傳資料檔案的接收方法
1 /// <summary>
2 /// 上傳資料
3 /// </summary>
4 /// <param name="file">檔案資訊</param>
5 /// <returns></returns>
6 [HttpPost]
7 public IActionResult ImportExcelData([FromForm] IFormFile file)
8 {
9 string prefixPath = string.Empty;
10 try
11 {
12 var file_data = this.Request.Form.Files[0];
13 if (file_data == null)
14 {
15 return Fail("檔案引數無效，請提供name值為file_data的檔案");
16 }
17 //驗證副檔名
18 var extension = Path.GetExtension(file_data.FileName);
19 if (!AllowFileExtension.FileExtension.Contains(extension))
20 {
21 return Fail("不支援此副檔名檔案的上傳！");
22 }
23 //基礎儲存路徑
24 var basePath = "default"; // sysKeyModel.Name;
25 //驗證檔案字首路徑有效性
26 if (!string.IsNullOrWhiteSpace(prefixPath))
27 {
28 if (prefixPath.IndexOfAny(Path.GetInvalidPathChars()) > -1)//驗證路徑有效性
29 {
30 return Fail("無效路徑！");
31 }
32 //進一步規範路徑
33 var invalidPattern = new Regex(@"[\\\/\:\*\?\042\<\>\|]");
34 prefixPath = invalidPattern.Replace(prefixPath, "");
35
36 prefixPath = prefixPath.Replace("_", "\\");//使用下劃線“_”代替斜槓“\”
37 basePath = Path.Combine(basePath, prefixPath);
38 }
39 //物理檔案路徑
40 var pathMp = Path.Combine(_webHostEnvironment.ContentRootPath, staticResourceSetting.CurrentValue.RootDir, basePath);
41 if (!Directory.Exists(pathMp)) Directory.CreateDirectory(pathMp);
42
43 string strFileName = file_data.FileName.Split('\\').LastOrDefault();
44
45 var filename = $"{DateTime.Now:yyyyMMddHHmmss}-{UniqueHelper.LongId()}{extension}";
46 string strFileHash = string.Empty;
47 string strFilePath = string.Empty;
48 using (var fs = new FileStream(Path.Combine(pathMp, filename), FileMode.CreateNew))
49 {
50 file_data.CopyTo(fs);
51 strFileHash = HashHelper.SHA1File(fs);//賦值檔案Hash值
52 fs.Flush();
53 }
54 //開始解析Excel
55 //呼叫ExcelHelper方法
56 DataSet ds = ExcelHeler.ReadExcelToDataSet(Path.Combine(pathMp, filename));
57 SenparcTrace.Log($"{pathMp}----{filename}");
58 dataService.ImportDataAsync(ds);
59 return Success("匯入成功");
60 }
61 catch (Exception ex)
62 {
63 return Fail(ex.Message);
64 }
65 }
9.在Service中處理上傳的檔案的資料
1 public void ImportDataAsync(DataSet ds)
2 {
3 if (ds != null)
4 {
5 DataTable dt = ds.Tables[0];
6 if (dt.Rows.Count > 0)
7 {
8 List<DataEntity> lstData = new List<DataEntity>();
9 for (int i = 0; i < dt.Rows.Count; i++)
10 {
11 int iRows = GetCount(_ => _.Name.Equals(dt.Rows[i][0].ToString()));
12 if (iRows > 0)
13 {
14 continue;
15 }
16 DataEntity dataItem = new DataEntity()
17 {
18 Name = dt.Rows[i][0].ToString()
19 };
20 lstData.Add(dataItem);
21 }
22 SaveObjectListAsync(lstData);
23 }
24 }
25 }
有疑問隨時歡迎交流
