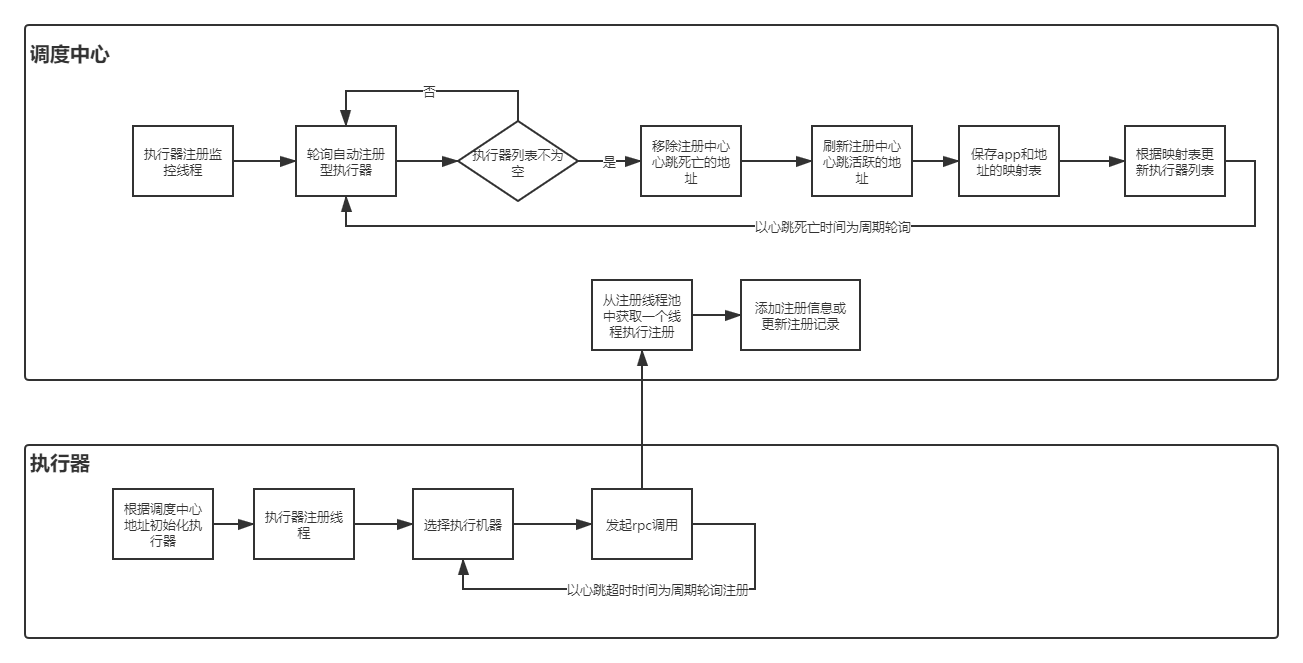

一、執行器註冊流程
二、具體流程
1.註冊監控執行緒
//類：JobRegistryHelper.java；方法：public void start()
registryMonitorThread = new Thread(new Runnable() {
@Override
public void run() {
while (!toStop) {
try {
//獲取自動註冊型執行器
List<XxlJobGroup> groupList = XxlJobAdminConfig.getAdminConfig().getXxlJobGroupDao().findByAddressType(0);
if (groupList!=null && !groupList.isEmpty()) {
//移除註冊中心死亡的地址
List<Integer> ids = XxlJobAdminConfig.getAdminConfig().getXxlJobRegistryDao().findDead(RegistryConfig.DEAD_TIMEOUT, new Date());
if (ids!=null && ids.size()>0) {
XxlJobAdminConfig.getAdminConfig().getXxlJobRegistryDao().removeDead(ids);
}
//重新整理註冊中心活躍的地址，並儲存為app和註冊地址列表的對映
HashMap<String, List<String>> appAddressMap = new HashMap<String, List<String>>();
List<XxlJobRegistry> list = XxlJobAdminConfig.getAdminConfig().getXxlJobRegistryDao().findAll(RegistryConfig.DEAD_TIMEOUT, new Date());
if (list != null) {
for (XxlJobRegistry item: list) {
if (RegistryConfig.RegistType.EXECUTOR.name().equals(item.getRegistryGroup())) {
String appname = item.getRegistryKey();
List<String> registryList = appAddressMap.get(appname);
if (registryList == null) {
registryList = new ArrayList<String>();
}
if (!registryList.contains(item.getRegistryValue())) {
registryList.add(item.getRegistryValue());
}
appAddressMap.put(appname, registryList);
}
}
}
//重新整理執行器地址
for (XxlJobGroup group: groupList) {
List<String> registryList = appAddressMap.get(group.getAppname());
String addressListStr = null;
//註冊中心存在活躍的地址則更新為活躍地址，否則更新為空地址
if (registryList!=null && !registryList.isEmpty()) {
Collections.sort(registryList);
StringBuilder addressListSB = new StringBuilder();
for (String item:registryList) {
addressListSB.append(item).append(",");
}
addressListStr = addressListSB.toString();
addressListStr = addressListStr.substring(0, addressListStr.length()-1);
}
group.setAddressList(addressListStr);
group.setUpdateTime(new Date());
XxlJobAdminConfig.getAdminConfig().getXxlJobGroupDao().update(group);
}
}
} catch (Exception e) {
if (!toStop) {
logger.error(">>>>>>>>>>> xxl-job, job registry monitor thread error:{}", e);
}
}
try {
//睡眠一個心跳超時時間，集訓監控自動註冊型執行器列表
TimeUnit.SECONDS.sleep(RegistryConfig.BEAT_TIMEOUT);
} catch (InterruptedException e) {
if (!toStop) {
logger.error(">>>>>>>>>>> xxl-job, job registry monitor thread error:{}", e);
}
}
}
logger.info(">>>>>>>>>>> xxl-job, job registry monitor thread stop");
}
});
registryMonitorThread.setDaemon(true);
registryMonitorThread.setName("xxl-job, admin JobRegistryMonitorHelper-registryMonitorThread");
registryMonitorThread.start();
2.註冊過程
1 初始化執行器
//XxlJobExecutor.java
private void initAdminBizList(String adminAddresses, String accessToken) throws Exception {
if (adminAddresses!=null && adminAddresses.trim().length()>0) {
for (String address: adminAddresses.trim().split(",")) {
if (address!=null && address.trim().length()>0) {
AdminBiz adminBiz = new AdminBizClient(address.trim(), accessToken);
if (adminBizList == null) {
adminBizList = new ArrayList<AdminBiz>();
}
adminBizList.add(adminBiz);
}
}
}
}
2 執行器端註冊
public void start(final String appname, final String address){
//省略部分
registryThread = new Thread(new Runnable() {
@Override
public void run() {
// registry
while (!toStop) {
try {
RegistryParam registryParam = new RegistryParam(RegistryConfig.RegistType.EXECUTOR.name(), appname, address);
for (AdminBiz adminBiz: XxlJobExecutor.getAdminBizList()) {
try {
//選擇一個執行器，發起rpc註冊請求
ReturnT<String> registryResult = adminBiz.registry(registryParam);
if (registryResult!=null && ReturnT.SUCCESS_CODE == registryResult.getCode()) {
registryResult = ReturnT.SUCCESS;
logger.debug(">>>>>>>>>>> xxl-job registry success, registryParam:{}, registryResult:{}", new Object[]{registryParam, registryResult});
//註冊成功則退出迴圈
break;
} else {
//註冊失敗則列印日誌，嘗試下一個執行器
logger.info(">>>>>>>>>>> xxl-job registry fail, registryParam:{}, registryResult:{}", new Object[]{registryParam, registryResult});
}
} catch (Exception e) {
logger.info(">>>>>>>>>>> xxl-job registry error, registryParam:{}", registryParam, e);
}
}
} catch (Exception e) {
if (!toStop) {
logger.error(e.getMessage(), e);
}
}
try {
if (!toStop) {
//睡眠一個心跳超時時間，繼續註冊
TimeUnit.SECONDS.sleep(RegistryConfig.BEAT_TIMEOUT);
}
} catch (InterruptedException e) {
if (!toStop) {
logger.warn(">>>>>>>>>>> xxl-job, executor registry thread interrupted, error msg:{}", e.getMessage());
}
}
}
//移除註冊部分省略
}
});
registryThread.setDaemon(true);
registryThread.setName("xxl-job, executor ExecutorRegistryThread");
registryThread.start();
}
3 排程中心執行註冊
//JobRegistryHelper.java
public ReturnT<String> registry(RegistryParam registryParam) {
// valid
if (!StringUtils.hasText(registryParam.getRegistryGroup())
|| !StringUtils.hasText(registryParam.getRegistryKey())
|| !StringUtils.hasText(registryParam.getRegistryValue())) {
return new ReturnT<String>(ReturnT.FAIL_CODE, "Illegal Argument.");
}
//從執行緒池中獲取註冊執行緒執行註冊
registryOrRemoveThreadPool.execute(new Runnable() {
@Override
public void run() {
//更新註冊結果
int ret = XxlJobAdminConfig.getAdminConfig().getXxlJobRegistryDao().registryUpdate(registryParam.getRegistryGroup(), registryParam.getRegistryKey(), registryParam.getRegistryValue(), new Date());
if (ret < 1) {
//更新失敗則添加註冊結果
XxlJobAdminConfig.getAdminConfig().getXxlJobRegistryDao().registrySave(registryParam.getRegistryGroup(), registryParam.getRegistryKey(), registryParam.getRegistryValue(), new Date());
// fresh
freshGroupRegistryInfo(registryParam);
}
}
});
return ReturnT.SUCCESS;
}
