mturoute 最大傳輸單元路由檢測Host

mturoute檢測mtu字元

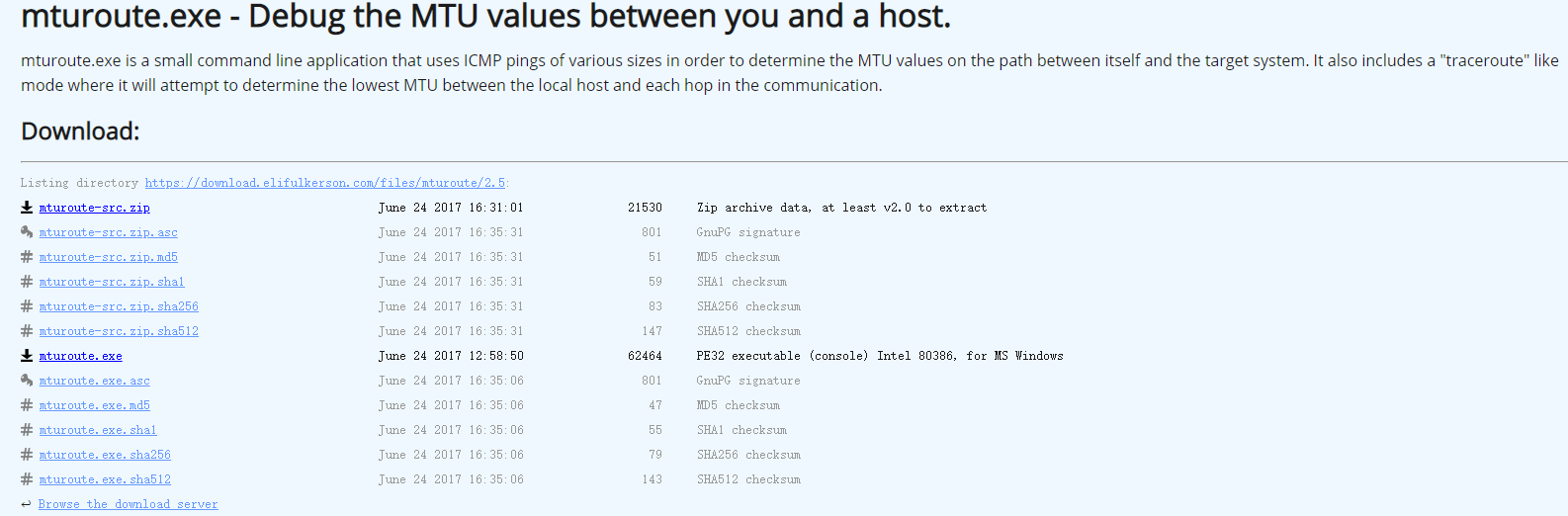

下載地址：https://www.elifulkerson.com/projects/mturoute.php

mturoute.exe                                     June 24 2017 12:58:50               62464     PE32 executable (console) Intel 80386, for MS Windows

mturoute-src.zip                                 June 24 2017 16:31:01               21530     Zip archive data, at least v2.0 to extract

如下圖：

使用命令詳解如下：

Behavior/Usage:

Usage: mturoute [-t] [-f] [-m MAX_PAYLOAD_SIZE] host

Flags:

   -t : Toggles 'traceroute' mode.  (Default is off)

   -f : Allow fragmentation.  This will return the max ping size that the

        target host will respond to, but not necessarily the MTU.

   -w : Set the number of milliseconds to wait for a response (default 3000).

   -r : Set the maximum number of probe retries on timeout (default = 3).

   -i : Set the interval between two echo requests.

   -d : Increases the debugging level. Reports ICMP status/failures.

   -m : Sets a maximum payload size to test. (Default is 10000)

   -v : Print version info and exit.

   -z : Fill ICMP packets with random data.

   -p : Fill ICMP packets with a specified pattern.

   -s : Skip speed optimizations.

   -x : Redact IP addresses in output.

-h,-? : Print usage information and exit.

1、 複製mturoute.exe到c:/windows/system32/

2、或cmd命令路徑到mturoute.exe所在檔案路徑執行

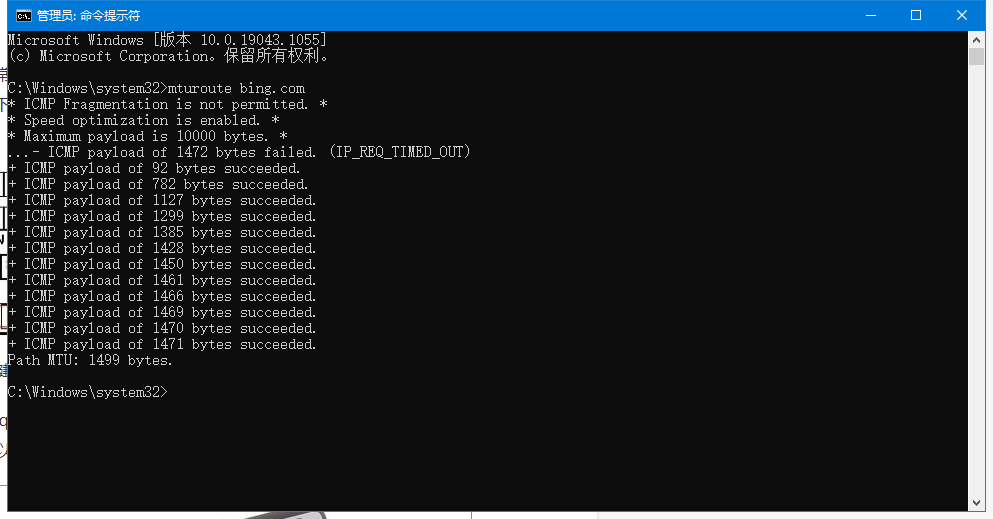

例子如下:測試必應host檢測最佳mtu為1499
