Feign Client 原理和使用
創作宣告：內容包含虛構創作
6 人贊同了該文章
最近一個新專案在做後端HTTP庫技術選型的時候對比了Spring WebClient,Spring RestTemplate,Retrofit,Feign,Okhttp。綜合考慮最終選擇了上層封裝比較好的Feign,儘管我們的App沒有加入微服務，但是時間下來Feign用著還是很香的。
我們的sytyale針對Feign的底層原理和原始碼進行了解析，最後用一個小例子總結怎麼快速上手。
本文作者：sytyale，另外一個聰明好學的同事
一、原理
Feign 是一個 Java 到 HTTP 的客戶端繫結器，靈感來自於 Retrofit 和 JAXRS-2.0 以及 WebSocket。Feign 的第一個目標是降低將 Denominator 無變化的繫結到 HTTP APIs 的複雜性，而不考慮 ReSTfulness。
Feign 使用 Jersey 和 CXF 等工具為 ReST 或 SOAP 服務編寫 java 客戶端。此外，Feign 允許您在 Apache HC 等http 庫之上編寫自己的程式碼。Feign 以最小的開銷將程式碼連線到 http APIs，並通過可定製的解碼器和錯誤處理（可以寫入任何基於文字的 http APIs）將程式碼連線到 http APIs。
Feign 通過將註解處理為模板化請求來工作。引數在輸出之前直接應用於這些模板。儘管 Feign 僅限於支援基於文字的 APIs，但它極大地簡化了系統方面，例如重放請求。此外，Feign 使得對轉換進行單元測試變得簡單。
Feign 10.x 及以上版本是在 Java 8上構建的，應該在 Java 9、10 和 11上工作。對於需要 JDK 6相容性的使用者，請使用 Feign 9.x

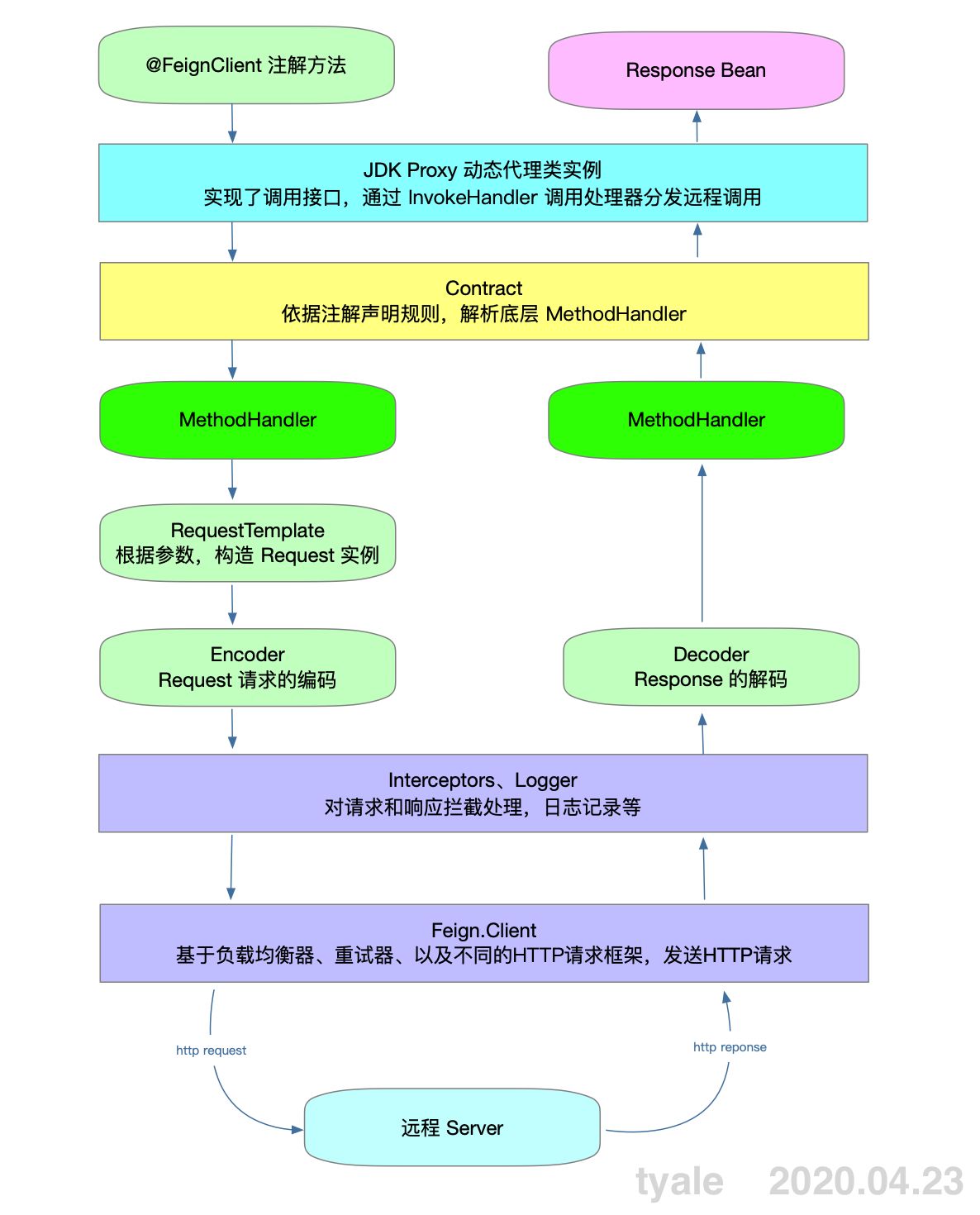

二、處理過程圖
三、Http Client 依賴
feign 在預設情況下使用 JDK 原生的 URLConnection 傳送HTTP請求。(沒有連線池，保持長連線) 。
可以通過修改 client 依賴換用底層的 client，不同的 http client 對請求的支援可能有差異。具體使用示例如下:
feign:
httpclient:
enable: false
okhttp:
enable: true
AND
<!-- Support PATCH Method-->
<dependency>
<groupId>org.apache.httpcomponents</groupId>
<artifactId>httpclient</artifactId>
</dependency>
<!-- Do not support PATCH Method -->
<dependency>
<groupId>io.github.openfeign</groupId>
<artifactId>feign-okhttp</artifactId>
</dependency>
四、Http Client 配置
- okhttp 配置原始碼
@Configuration(proxyBeanMethods = false)
@ConditionalOnMissingBean(okhttp3.OkHttpClient.class)
public class OkHttpFeignConfiguration {
private okhttp3.OkHttpClient okHttpClient;
@Bean
@ConditionalOnMissingBean(ConnectionPool.class)
public ConnectionPool httpClientConnectionPool(
FeignHttpClientProperties httpClientProperties,
OkHttpClientConnectionPoolFactory connectionPoolFactory) {
Integer maxTotalConnections = httpClientProperties.getMaxConnections();
Long timeToLive = httpClientProperties.getTimeToLive();
TimeUnit ttlUnit = httpClientProperties.getTimeToLiveUnit();
return connectionPoolFactory.create(maxTotalConnections, timeToLive, ttlUnit);
}
@Bean
public okhttp3.OkHttpClient client(OkHttpClientFactory httpClientFactory,
ConnectionPool connectionPool,
FeignHttpClientProperties httpClientProperties) {
Boolean followRedirects = httpClientProperties.isFollowRedirects();
Integer connectTimeout = httpClientProperties.getConnectionTimeout();
this.okHttpClient = httpClientFactory
.createBuilder(httpClientProperties.isDisableSslValidation())
.connectTimeout(connectTimeout, TimeUnit.MILLISECONDS)
.followRedirects(followRedirects).connectionPool(connectionPool).build();
return this.okHttpClient;
}
@PreDestroy
public void destroy() {
if (this.okHttpClient != null) {
this.okHttpClient.dispatcher().executorService().shutdown();
this.okHttpClient.connectionPool().evictAll();
}
}
}
- HttpClient 配置原始碼
@Configuration(proxyBeanMethods = false)
@ConditionalOnMissingBean(CloseableHttpClient.class)
public class HttpClientFeignConfiguration {
private final Timer connectionManagerTimer = new Timer(
"FeignApacheHttpClientConfiguration.connectionManagerTimer", true);
private CloseableHttpClient httpClient;
@Autowired(required = false)
private RegistryBuilder registryBuilder;
@Bean
@ConditionalOnMissingBean(HttpClientConnectionManager.class)
public HttpClientConnectionManager connectionManager(
ApacheHttpClientConnectionManagerFactory connectionManagerFactory,
FeignHttpClientProperties httpClientProperties) {
final HttpClientConnectionManager connectionManager = connectionManagerFactory
.newConnectionManager(httpClientProperties.isDisableSslValidation(),
httpClientProperties.getMaxConnections(),
httpClientProperties.getMaxConnectionsPerRoute(),
httpClientProperties.getTimeToLive(),
httpClientProperties.getTimeToLiveUnit(), this.registryBuilder);
this.connectionManagerTimer.schedule(new TimerTask() {
@Override
public void run() {
connectionManager.closeExpiredConnections();
}
}, 30000, httpClientProperties.getConnectionTimerRepeat());
return connectionManager;
}
@Bean
@ConditionalOnProperty(value = "feign.compression.response.enabled",
havingValue = "true")
public CloseableHttpClient customHttpClient(
HttpClientConnectionManager httpClientConnectionManager,
FeignHttpClientProperties httpClientProperties) {
HttpClientBuilder builder = HttpClientBuilder.create().disableCookieManagement()
.useSystemProperties();
this.httpClient = createClient(builder, httpClientConnectionManager,
httpClientProperties);
return this.httpClient;
}
@Bean
@ConditionalOnProperty(value = "feign.compression.response.enabled",
havingValue = "false", matchIfMissing = true)
public CloseableHttpClient httpClient(ApacheHttpClientFactory httpClientFactory,
HttpClientConnectionManager httpClientConnectionManager,
FeignHttpClientProperties httpClientProperties) {
this.httpClient = createClient(httpClientFactory.createBuilder(),
httpClientConnectionManager, httpClientProperties);
return this.httpClient;
}
private CloseableHttpClient createClient(HttpClientBuilder builder,
HttpClientConnectionManager httpClientConnectionManager,
FeignHttpClientProperties httpClientProperties) {
RequestConfig defaultRequestConfig = RequestConfig.custom()
.setConnectTimeout(httpClientProperties.getConnectionTimeout())
.setRedirectsEnabled(httpClientProperties.isFollowRedirects()).build();
CloseableHttpClient httpClient = builder
.setDefaultRequestConfig(defaultRequestConfig)
.setConnectionManager(httpClientConnectionManager).build();
return httpClient;
}
@PreDestroy
public void destroy() throws Exception {
this.connectionManagerTimer.cancel();
if (this.httpClient != null) {
this.httpClient.close();
}
}
}
- HttpClient 配置屬性
@ConfigurationProperties(prefix = "feign.httpclient")
public class FeignHttpClientProperties {
/**
* Default value for disabling SSL validation.
*/
public static final boolean DEFAULT_DISABLE_SSL_VALIDATION = false;
/**
* Default value for max number od connections.
*/
public static final int DEFAULT_MAX_CONNECTIONS = 200;
/**
* Default value for max number od connections per route.
*/
public static final int DEFAULT_MAX_CONNECTIONS_PER_ROUTE = 50;
/**
* Default value for time to live.
*/
public static final long DEFAULT_TIME_TO_LIVE = 900L;
/**
* Default time to live unit.
*/
public static final TimeUnit DEFAULT_TIME_TO_LIVE_UNIT = TimeUnit.SECONDS;
/**
* Default value for following redirects.
*/
public static final boolean DEFAULT_FOLLOW_REDIRECTS = true;
/**
* Default value for connection timeout.
*/
public static final int DEFAULT_CONNECTION_TIMEOUT = 2000;
/**
* Default value for connection timer repeat.
*/
public static final int DEFAULT_CONNECTION_TIMER_REPEAT = 3000;
private boolean disableSslValidation = DEFAULT_DISABLE_SSL_VALIDATION;
private int maxConnections = DEFAULT_MAX_CONNECTIONS;
private int maxConnectionsPerRoute = DEFAULT_MAX_CONNECTIONS_PER_ROUTE;
private long timeToLive = DEFAULT_TIME_TO_LIVE;
private TimeUnit timeToLiveUnit = DEFAULT_TIME_TO_LIVE_UNIT;
private boolean followRedirects = DEFAULT_FOLLOW_REDIRECTS;
private int connectionTimeout = DEFAULT_CONNECTION_TIMEOUT;
private int connectionTimerRepeat = DEFAULT_CONNECTION_TIMER_REPEAT;
//省略 setter 和 getter 方法
}
五、部分註解
- FeignClient 註解原始碼
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface FeignClient {
// 忽略了過時的屬性
/**
* The name of the service with optional protocol prefix. Synonym for {@link #name()
* name}. A name must be specified for all clients, whether or not a url is provided.
* Can be specified as property key, eg: ${propertyKey}.
* @return the name of the service with optional protocol prefix
*/
@AliasFor("name")
String value() default "";
/**
* This will be used as the bean name instead of name if present, but will not be used
* as a service id.
* @return bean name instead of name if present
*/
String contextId() default "";
/**
* @return The service id with optional protocol prefix. Synonym for {@link #value()
* value}.
*/
@AliasFor("value")
String name() default "";
/**
* @return the <code>@Qualifier</code> value for the feign client.
*/
String qualifier() default "";
/**
* @return an absolute URL or resolvable hostname (the protocol is optional).
*/
String url() default "";
/**
* @return whether 404s should be decoded instead of throwing FeignExceptions
*/
boolean decode404() default false;
/**
* A custom configuration class for the feign client. Can contain override
* <code>@Bean</code> definition for the pieces that make up the client, for instance
* {@link feign.codec.Decoder}, {@link feign.codec.Encoder}, {@link feign.Contract}.
*
* @see FeignClientsConfiguration for the defaults
* @return list of configurations for feign client
*/
Class<?>[] configuration() default {};
/**
* Fallback class for the specified Feign client interface. The fallback class must
* implement the interface annotated by this annotation and be a valid spring bean.
* @return fallback class for the specified Feign client interface
*/
Class<?> fallback() default void.class;
/**
* Define a fallback factory for the specified Feign client interface. The fallback
* factory must produce instances of fallback classes that implement the interface
* annotated by {@link FeignClient}. The fallback factory must be a valid spring bean.
*
* @see feign.hystrix.FallbackFactory for details.
* @return fallback factory for the specified Feign client interface
*/
Class<?> fallbackFactory() default void.class;
/**
* @return path prefix to be used by all method-level mappings. Can be used with or
* without <code>@RibbonClient</code>.
*/
String path() default "";
/**
* @return whether to mark the feign proxy as a primary bean. Defaults to true.
*/
boolean primary() default true;
}
六、Feign Client 配置
- FeignClient 配置原始碼
/**
* Feign client configuration.
*/
public static class FeignClientConfiguration {
private Logger.Level loggerLevel;
private Integer connectTimeout;
private Integer readTimeout;
private Class<Retryer> retryer;
private Class<ErrorDecoder> errorDecoder;
private List<Class<RequestInterceptor>> requestInterceptors;
private Boolean decode404;
private Class<Decoder> decoder;
private Class<Encoder> encoder;
private Class<Contract> contract;
private ExceptionPropagationPolicy exceptionPropagationPolicy;
//省略setter 和 getter
}
七、Spring boot 服務下使用示例
- pom.xml 中引入依賴，部分特性需要額外的依賴擴充套件(諸如表單提交等)
<dependencies>
<!-- spring-cloud-starter-openfeign 支援負載均衡、重試、斷路器等 -->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-openfeign</artifactId>
<version>2.2.2.RELEASE</version>
</dependency>
<!-- Required to use PATCH. feign-okhttp not support PATCH Method -->
<dependency>
<groupId>io.github.openfeign</groupId>
<artifactId>feign-httpclient</artifactId>
<version>11.0</version>
</dependency>
</dependencies> - 開啟支援-使用
EnableFeignClients註解
@SpringBootApplication
@EnableFeignClients
public class TyaleApplication {
public static void main(String[] args) {
SpringApplication.run(TyaleApplication.class, args);
}
} - 介面註解-標記請求地址、請求header、請求方式、引數(是否必填)等
//如果是微服務內部呼叫則 value 可以直接指定對方服務在服務發現中的服務名，不需要 url
@FeignClient(value = "tyale", url = "${base.uri}")
public interface TyaleFeignClient {
@PostMapping(value = "/token", consumes ="application/x-www-form-urlencoded")
Map<String, Object> obtainToken(Map<String, ?> queryParam);
@GetMapping(value = Constants.STATION_URI)
StationPage stations(@RequestHeader("Accept-Language") String acceptLanguage,
@RequestParam(name = "country") String country,
@RequestParam(name = "order") String order,
@RequestParam(name = "page", required = false) Integer page,
@RequestParam(name = "pageSize") Integer pageSize);
@PostMapping(value = Constants.PAYMENT_URI)
PaymentDTO payment(@RequestHeader("Accept-Language") String acceptLanguage,
@RequestBody PaymentRQ paymentRq);
} - FormEncoder 支援
@Configuration
public class FeignFormConfiguration {
@Autowired
private ObjectFactory<HttpMessageConverters> messageConverters;
@Bean
@Primary
public Encoder feignFormEncoder() {
return new FormEncoder(new SpringEncoder(this.messageConverters));
}
} - 攔截器-自動新增
header或者token等
@Configuration
public class FeignInterceptor implements RequestInterceptor {
@Override
public void apply(RequestTemplate requestTemplate) {
requestTemplate.header(Constants.TOKEN_STR, "Bearer xxx");
}
} - ErrorCode-可以自定義錯誤響應碼的處理
@Configuration
public class TyaleErrorDecoder implements ErrorDecoder {
@Override
public Exception decode(String methodKey, Response response) {
TyaleErrorException errorException = null;
try {
if (response.body() != null) {
Charset utf8 = StandardCharsets.UTF_8;
var body = Util.toString(response.body().asReader(utf8));
errorException = GsonUtils.fromJson(body, TyaleErrorException.class);
} else {
errorException = new TyaleErrorException();
}
} catch (IOException ignored) {
}
return errorException;
}
} - TyaleErrorException 類示例-處理返回失敗響應碼時的資料，不同的服務端可能需要不同的處理
@EqualsAndHashCode(callSuper = true)
@Data
@AllArgsConstructor
@NoArgsConstructor
public class TyaleErrorException extends Exception {
/**
* example: "./api/{service-name}/{problem-id}"
*/
private String type;
/**
* example: {title}
*/
private String title;
/**
* example: https://api/docs/index.html#error-handling
*/
private String documentation;
/**
* example: {code}
*/
private String status;
} - FeignClient 使用示例
@RestController
@RequestMapping(value = "/rest/tyale")
public class TyaleController {
@Autowired
private TyaleFeignClient feignClient;
@GetMapping(value="/stations")
public BaseResponseDTO<StationPage> stations() {
try {
String acceptLanguage = "en";
String country = "DE";
String order = "NAME";
Integer page = 0;
Integer pageSize = 20;
StationPage stationPage = feignClient.stations(acceptLanguage,
country, order, page, pageSize);
return ResponseBuilder.buildSuccessRS(stationPage);
} catch (TyaleErrorException tyaleError) {
System.out.println(tyaleError);
//todo 處理異常返回時的響應
}
return ResponseBuilder.buildSuccessRS();
}
}
