springboot bean的迴圈依賴實現 原始碼分析
本文基於springboot版本2.5.1
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.5.1</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
本文主要聚焦在迴圈依賴部分，主要用單例bean來進行講解，其他bean實現的流程不會過多涉及。
1、什麼叫迴圈依賴呢
簡單來說就是springboot容器中的多個bean，如A、B兩個bean，A有屬性B需要注入，B有屬性A需要注入，形成相互依賴的情況。
看下程式碼，就是類似下面這種情況
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
@Component
public class ServiceA {
@Autowired
private ServiceB serviceB;
}
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
@Component
public class ServiceB {
@Autowired
private ServiceA serviceA;
}
上面有兩個bean，分別是ServiceA,ServiceB。ServiceA中需要注入ServiceB的例項，ServiceB中需要注入ServiceA的例項，這就是一種典型的迴圈依賴，其他還有方法引數迴圈依賴的場景等等，但是它們的內部實現基本是一樣的。
2、具體出現迴圈依賴的程式碼邏輯
獲取bean的方法
在springboot中預設的beanFactory是DefaultListableBeanFactory，在我們獲取bean物件的時候，如果bean物件存在就直接返回，如果不存在，就先建立bean物件再返回。
我們先看下我們獲取bean的常用方法都有哪些
public <T> T getBean(Class<T> requiredType) throws BeansException
public Object getBean(String name) throws BeansException
public <T> Map<String, T> getBeansOfType(@Nullable Class<T> type) throws BeansException
public Map<String, Object> getBeansWithAnnotation(Class<? extends Annotation> annotationType)
public void preInstantiateSingletons() throws BeansException
常用的獲取bean的方法主要有上面幾個和它們的過載版本，對於第3行、第4行、第5行最終都會呼叫到第2行的方法來獲取bean。而它也會通過呼叫doGetBean(在AbstractBeanFactory這個類中)來獲取bean
public Object getBean(String name) throws BeansException {
return doGetBean(name, null, null, false);
}
第1行的方法也會呼叫doGetBean來獲取bean
public <T> T getBean(String name, @Nullable Class<T> requiredType, @Nullable Object... args)
throws BeansException { return doGetBean(name, requiredType, args, false);
}
所有最終獲取bean的方法都是
protected <T> T doGetBean(
String name, @Nullable Class<T> requiredType, @Nullable Object[] args, boolean typeCheckOnly)
throws BeansException {
這個方法，這個方法是protected的，是不對外提供的。所以我們不能直接呼叫它，只能通過上面提供的5個方法來獲取bean物件。
下面我們從doGetBean這裡來看下serviceA建立的過程
protected <T> T doGetBean(
String name, @Nullable Class<T> requiredType, @Nullable Object[] args, boolean typeCheckOnly)
throws BeansException {
//如果bean之前存在，這裡返回的shareInstance就是非空，就會從後面的if分支中返回，如果bean之前不存在，就會執行後面的bean建立及注入屬性的過程
Object sharedInstance = getSingleton(beanName);
if (sharedInstance != null && args == null) {
......
//如果當前不只是檢查，而且是建立bean，這個引數就是false，在這裡就會做個bean建立的標記，把beanName 加到alreadyCreated裡面去
if (!typeCheckOnly) {
markBeanAsCreated(beanName);
}
//我們當前要建立的bean是單例的，就會走到這裡去，下面我們走到裡面的呼叫去看看
// Create bean instance.
if (mbd.isSingleton()) {
sharedInstance = getSingleton(beanName, () -> {
try {
return createBean(beanName, mbd, args);
}
catch (BeansException ex) {
// Explicitly remove instance from singleton cache: It might have been put there
// eagerly by the creation process, to allow for circular reference resolution.
// Also remove any beans that received a temporary reference to the bean.
destroySingleton(beanName);
throw ex;
}
});
beanInstance = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
} }
public Object getSingleton(String beanName, ObjectFactory<?> singletonFactory) {
Assert.notNull(beanName, "Bean name must not be null");
synchronized (this.singletonObjects) {
......
//這裡會把當前bean的名字加入到當前正在建立的單例物件集合singletonsCurrentlyInCreation中
beforeSingletonCreation(beanName);
......
try {
//這裡就是呼叫上面的return createBean(beanName, mbd, args);這個方法，我們進這裡面去看看
singletonObject = singletonFactory.getObject();
newSingleton = true;
}
......
}
return singletonObject;
}
}@Override
protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
throws BeanCreationException {
......
// Make sure bean class is actually resolved at this point, and
// clone the bean definition in case of a dynamically resolved Class
// which cannot be stored in the shared merged bean definition.
//在這裡獲取要建立的bean的class物件
Class<?> resolvedClass = resolveBeanClass(mbd, beanName);
......
try {
//呼叫這裡來建立，我們再走到這裡面去看看
//3個引數分別為
//1、beanName bean物件的名字
//2、mbdToUseRootBeanDefinition物件，可以認為就是bean的元資料資訊，包含bean的類物件，bean的類上註解，bean實際位置路徑等等
//3、args bean物件的構造方法的實參，這裡一般是空的
Object beanInstance = doCreateBean(beanName, mbdToUse, args);
if (logger.isTraceEnabled()) {
logger.trace("Finished creating instance of bean '" + beanName + "'");
}
return beanInstance;
}
......
}protected Object doCreateBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
throws BeanCreationException { ......
//真正建立bean物件是在這裡，這裡返回的instanceWrapper是bean物件的類例項的包裝物件BeanWrapper
if (instanceWrapper == null) {
instanceWrapper = createBeanInstance(beanName, mbd, args);
}
//這裡的bean就是實際建立的bean物件的類例項
Object bean = instanceWrapper.getWrappedInstance();
Class<?> beanType = instanceWrapper.getWrappedClass();
if (beanType != NullBean.class) {
mbd.resolvedTargetType = beanType;
}
......
// Eagerly cache singletons to be able to resolve circular references
// even when triggered by lifecycle interfaces like BeanFactoryAware.
//看上面的註釋大概也能明白， 大概意思就是早期的單例快取，為了解決由 BeanFactoryAware等等觸發的迴圈依賴
//mbd.isSingleton() 表示bean是單例的(這個是bean對應的類上的，預設就是單例)，
//this.allowCircularReferences 允許迴圈引用,這個是beanFactory的成員屬性，預設也是true
//isSingletonCurrentlyInCreation(beanName) 表示是否在當前正在建立的bean集合中。beforeSingletonCreation(beanName);我們在前面執行過這句就加到正在建立的bean集合中了
//這裡earlySingletonExposure 就是true了，會進到if分支中
boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
isSingletonCurrentlyInCreation(beanName));
if (earlySingletonExposure) {
if (logger.isTraceEnabled()) {
logger.trace("Eagerly caching bean '" + beanName +
"' to allow for resolving potential circular references");
}
//這句主要是將將() -> getEarlyBeanReference(beanName, mbd, bean) 這個lambda表示式儲存到this.singletonFactories集合中
addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean));
} // Initialize the bean instance.
Object exposedObject = bean;
try {
//在這裡就會進行屬性填充，完成成員注入等等，也就是在這裡serviceA這個bean會注入serviceB這個成員屬性,我們走進這個方法去看看
populateBean(beanName, mbd, instanceWrapper);
......
}
...... return exposedObject;
}
protected void populateBean(String beanName, RootBeanDefinition mbd, @Nullable BeanWrapper bw) {
......
if (hasInstAwareBpps) {
if (pvs == null) {
pvs = mbd.getPropertyValues();
}
//真正的屬性注入是在這裡完成的，aop也是在這裡來完成的。這裡是獲取beanFactory中的InstantiationAwareBeanPostProcessor對bean物件進行增強
//如果屬性注入用的是@Resource，就會用CommonAnnotationBeanPostProcessor來完成
//如果屬性注入用的是@Autowired,就會用AutowiredAnnotationBeanPostProcessor來完成
//如果是AOP 就會使用InfrastructureAdvisorAutoProxyCreator來生成對應的代理物件
//我們這裡使用的是@Autowired,所以會用AutowiredAnnotationBeanPostProcessor來完成注入。我們走到它的postProcessProperties的去看看
for (InstantiationAwareBeanPostProcessor bp : getBeanPostProcessorCache().instantiationAware) {
PropertyValues pvsToUse = bp.postProcessProperties(pvs, bw.getWrappedInstance(), beanName);
......
}
@Override
public PropertyValues postProcessProperties(PropertyValues pvs, Object bean, String beanName) {
//這裡主要是獲取bean的類屬性和方法上的org.springframework.beans.factory.annotation.Autowired,org.springframework.beans.factory.annotation.Value註解來進行注入
InjectionMetadata metadata = findAutowiringMetadata(beanName, bean.getClass(), pvs);
try {
//繼續進去看看
metadata.inject(bean, beanName, pvs);
}
......
}
public void inject(Object target, @Nullable String beanName, @Nullable PropertyValues pvs) throws Throwable {
......
//對每一個屬性分別進行注入，繼續進去
element.inject(target, beanName, pvs);
}
}
}
@Override
protected void inject(Object bean, @Nullable String beanName, @Nullable PropertyValues pvs) throws Throwable {
Field field = (Field) this.member;
Object value;
//如果之前快取過就從快取取，我們是第一次注入，所以之前沒有快取，不會走這個分支
if (this.cached) {
try {
value = resolvedCachedArgument(beanName, this.cachedFieldValue);
}
catch (NoSuchBeanDefinitionException ex) {
// Unexpected removal of target bean for cached argument -> re-resolve
value = resolveFieldValue(field, bean, beanName);
}
}
else {
//會走這裡來解析欄位的值，再進去
value = resolveFieldValue(field, bean, beanName);
}
if (value != null) {
ReflectionUtils.makeAccessible(field);
field.set(bean, value);
}
}
@Nullable
private Object resolveFieldValue(Field field, Object bean, @Nullable String beanName) {
//建立欄位的包裝類DependencyDescriptor
DependencyDescriptor desc = new DependencyDescriptor(field, this.required); try {
//呼叫這裡完成對應欄位值的查詢,再進去
value = beanFactory.resolveDependency(desc, beanName, autowiredBeanNames, typeConverter);
}
catch (BeansException ex) {
throw new UnsatisfiedDependencyException(null, beanName, new InjectionPoint(field), ex);
}
synchronized (this) {
//獲取到值之後，進行快取
if (!this.cached) {
......
}
this.cachedFieldValue = cachedFieldValue;
this.cached = true;
}
}
return value;
}
}
public Object resolveDependency(DependencyDescriptor descriptor, @Nullable String requestingBeanName,
@Nullable Set<String> autowiredBeanNames, @Nullable TypeConverter typeConverter) throws BeansException { descriptor.initParameterNameDiscovery(getParameterNameDiscoverer());
if (Optional.class == descriptor.getDependencyType()) {
return createOptionalDependency(descriptor, requestingBeanName);
}
else if (ObjectFactory.class == descriptor.getDependencyType() ||
ObjectProvider.class == descriptor.getDependencyType()) {
return new DependencyObjectProvider(descriptor, requestingBeanName);
}
else if (javaxInjectProviderClass == descriptor.getDependencyType()) {
return new Jsr330Factory().createDependencyProvider(descriptor, requestingBeanName);
}
else {
//當前的類是一個普通的class，會走到這裡面，由於我們的bean沒有Lazy註解，所以這裡返回時null,走到下面的if分支
Object result = getAutowireCandidateResolver().getLazyResolutionProxyIfNecessary(
descriptor, requestingBeanName);
if (result == null) {
//在這裡我們看下這裡的入參。
//descriptor是包含了需要注入的欄位的資訊。
//requestingBeanName是當前正在建立的bean的名字serviceA,
//autowiredBeanNames是當前需要注入的欄位的對應的bean的名字的集合，這裡只有serviceB
//typeConverter這個是進行注入時做型別轉換的，這裡我們可以不用關注這個
result = doResolveDependency(descriptor, requestingBeanName, autowiredBeanNames, typeConverter);
}
return result;
}
}
@Nullable
public Object doResolveDependency(DependencyDescriptor descriptor, @Nullable String beanName,
@Nullable Set<String> autowiredBeanNames, @Nullable TypeConverter typeConverter) throws BeansException {
......
if (instanceCandidate instanceof Class) {
//又會呼叫到這裡,我們再進入到DependencyDescriptor的resolveCandidate去看看
//注意：這裡的autowiredBeanName是我們需要注入的屬性名這裡是serviceB
instanceCandidate = descriptor.resolveCandidate(autowiredBeanName, type, this);
}
......
}public Object resolveCandidate(String beanName, Class<?> requiredType, BeanFactory beanFactory)
throws BeansException {
//看到沒，到這裡就出現迴圈呼叫了，到這裡又會重新呼叫beanFactory.getBean("serviceB")去建立serviceB的bean物件，完成後注入到serivceA對應的Bean上的屬性上來，這時程式碼又會從本節開頭的位置開始執行，先建立serviceB物件例項，再去注入serviceB物件的serviceA屬性。
//最終會執行到beanFactory.getBean("serviceA")這裡
return beanFactory.getBean(beanName);
}

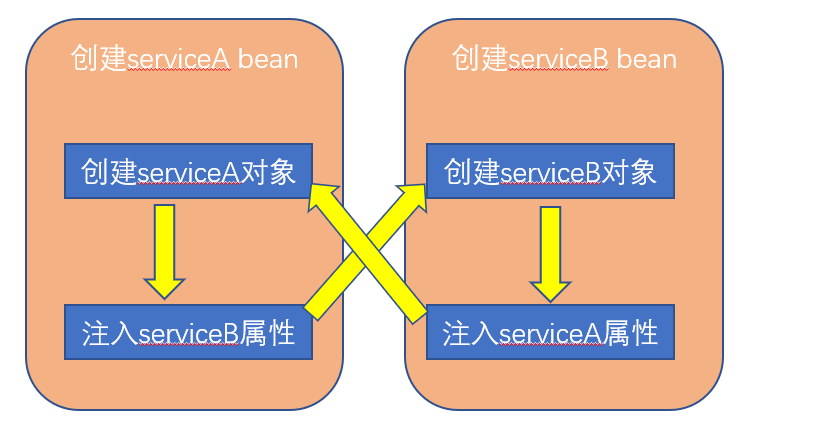

就是下面圖的樣子
3、解決迴圈依賴的程式碼實現
接著上面的beanFactory.getBean("serviceA")這行程式碼我們繼續往下看
這次又會走到這裡
protected <T> T doGetBean(
String name, @Nullable Class<T> requiredType, @Nullable Object[] args, boolean typeCheckOnly)
throws BeansException {
//我們第二部分就是從這裡開始的，又走回來了，但這次又會有所不同
String beanName = transformedBeanName(name);
Object beanInstance;
// Eagerly check singleton cache for manually registered singletons.
//這次我們這裡返回的就不是空了，sharedInstance物件的值就是對應serviceA的bean物件了，這次就會從if分支中返回，而之前我們不會進這裡的if分支而是進入else分支導致後面出現了迴圈依賴的問題，這次我們進到這個方法看看
Object sharedInstance = getSingleton(beanName);
if (sharedInstance != null && args == null) {
if (logger.isTraceEnabled()) {
if (isSingletonCurrentlyInCreation(beanName)) {
logger.trace("Returning eagerly cached instance of singleton bean '" + beanName +
"' that is not fully initialized yet - a consequence of a circular reference");
}
else {
logger.trace("Returning cached instance of singleton bean '" + beanName + "'");
}
}
beanInstance = getObjectForBeanInstance(sharedInstance, name, beanName, null);
}
@Nullable
public Object getSingleton(String beanName) {
//再點進去
return getSingleton(beanName, true);
}
protected Object getSingleton(String beanName, boolean allowEarlyReference) {
// Quick check for existing instance without full singleton lock
Object singletonObject = this.singletonObjects.get(beanName);
//這裡由於當前的serviceA bean還沒完成建立，所以這裡singletonObject返回的是空，
//再看看 isSingletonCurrentlyInCreation(beanName)這裡，由於我們在建立serviceA過程中有這麼一句beforeSingletonCreation(beanName)(不清楚這句的搜尋下本文，上面就有講到)，所有這個條件是true。這時我們就會進入if分支中
if (singletonObject == null && isSingletonCurrentlyInCreation(beanName)) {
singletonObject = this.earlySingletonObjects.get(beanName);
//由於我們是第一次進入這裡，所以this.earlySingletonObjects.get(beanName)返回的也是null
//我們的入參 allowEarlyReference是true,會繼續進到這個if分支中
if (singletonObject == null && allowEarlyReference) {
synchronized (this.singletonObjects) {
// Consistent creation of early reference within full singleton lock
singletonObject = this.singletonObjects.get(beanName);
//這裡的singletonObject還是null,繼續進到if分支
if (singletonObject == null) {
singletonObject = this.earlySingletonObjects.get(beanName);
if (singletonObject == null) {
//最終會走到這裡，在建立serviceA物件之後，屬性注入之前，執行了這句 addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean))(不清楚的搜尋下本文，上面有說到)，所以這裡返回的singletonFactory是個lamdba表示式，getEarlyBeanReference(beanName, mbd, bean))附帶了3個引數，第一個beanName是serivceA,mdb是對應serviceA的附帶serviceA元資料資訊的RootBeanDefinition物件，bean就是創建出來的serviceA物件
ObjectFactory<?> singletonFactory = this.singletonFactories.get(beanName);
if (singletonFactory != null) {
//這裡就會呼叫getEarlyBeanReference(beanName, mbd, bean)對serviceA物件進行一個getEarlyBeanReference增強後返回，返回後放置到earlySingletonObjects中，並從singletonFactories中刪除
singletonObject = singletonFactory.getObject();
this.earlySingletonObjects中，並從.put(beanName, singletonObject);
this.singletonFactories.remove(beanName);
}
}
}
}
}
}
return singletonObject;
}
最終在serviceA 這個bean建立完成後，就會從singletonsCurrentlyInCreation移除掉
public Object getSingleton(String beanName, ObjectFactory<?> singletonFactory) {
......
finally {
//在這裡從singletonsCurrentlyInCreation中移除掉
afterSingletonCreation(beanName);
}
if (newSingleton) {
//將serviceA bean物件新增到singletonObjects，registeredSingletons中
//從singletonFactories,earlySingletonObjects中移除掉
addSingleton(beanName, singletonObject);
}
}
return singletonObject;
}
}
所以整個獲取serviceA的流程就是這樣了，
1、首先去建立serviceA這個bean，
由於它有個屬性serviceB,在建立完serviceA物件後，就會去進行serviceB的屬性注入，
這時由於serviceB之前沒有生成，這時又會去建立serviceB這個bean，
先建立serviceB物件，然後再進行serviceA這個屬性的注入，
繼續去獲取serviceA這個bean，第二次進入獲取serviceA的流程，這時從之前快取的lambda表示式中獲取到之前建立的serviceA的引用返回。
2、總結下關鍵的程式碼點
- 建立bean物件之前呼叫beforeSingletonCreation(beanName)將bean物件名字新增到singletonsCurrentlyInCreation集合中
- 建立bean物件對應的類例項後呼叫addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean));新增到singletonFactories中
- 在迴圈依賴中第二次呼叫到建立bean物件時，呼叫getSingleton(beanName, true)時，從singletonFactories中返回對應的早期bean物件的引用
