1 簡介
Spring Security作為成熟且強大的安全框架，得到許多大廠的青睞。而作為前後端分離的SSO方案，JWT也在許多專案中應用。本文將介紹如何通過Spring Security實現JWT認證。

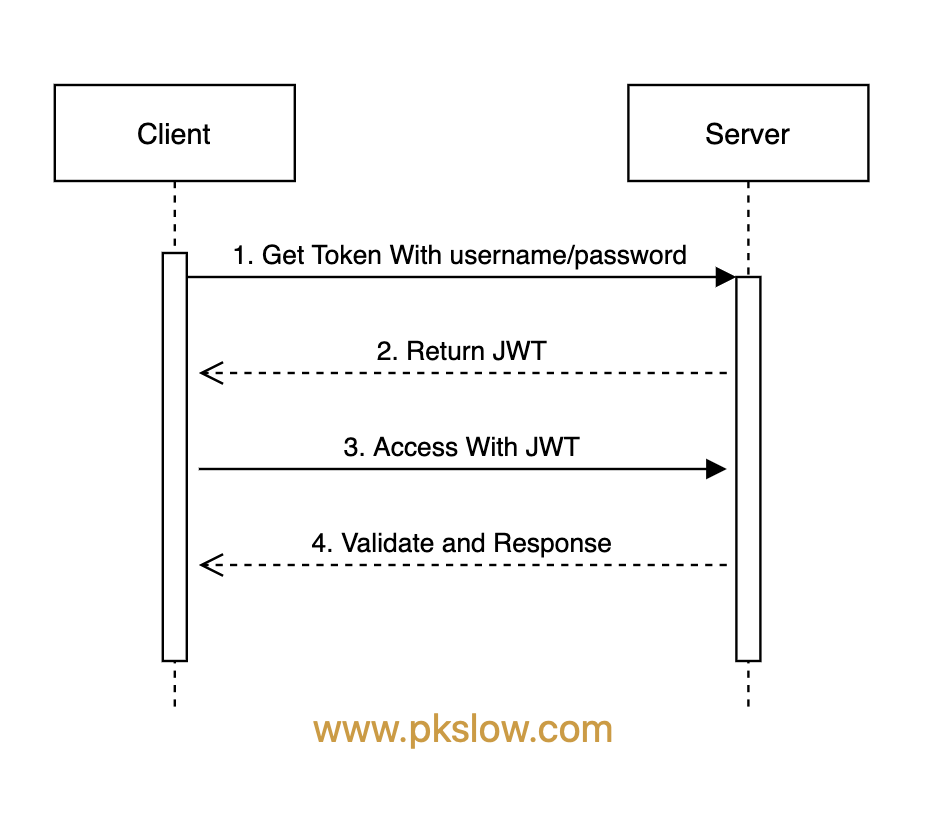

使用者與伺服器互動大概如下：
- 客戶端獲取
JWT，一般通過POST方法把使用者名稱/密碼傳給server； - 服務端接收到客戶端的請求後，會檢驗使用者名稱/密碼是否正確，如果正確則生成
JWT並返回；不正確則返回錯誤； - 客戶端拿到
JWT後，在有效期內都可以通過JWT來訪問資源了，一般把JWT放在請求頭；一次獲取，多次使用； - 服務端校驗
JWT是否合法，合法則允許客戶端正常訪問，不合法則返回401。
2 專案整合
我們把要整合的Spring Security和JWT加入到專案的依賴中去：
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-security</artifactId>
</dependency>
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt</artifactId>
<version>0.9.1</version>
</dependency>
2.1 JWT整合
2.1.1 JWT工具類
JWT工具類起碼要具有以下功能：
- 根據使用者資訊生成JWT；
- 校驗JWT是否合法，如是否被篡改、是否過期等；
- 從JWT中解析使用者資訊，如使用者名稱、許可權等；
具體程式碼如下：
@Component
public class JwtTokenProvider {
@Autowired JwtProperties jwtProperties;
@Autowired
private CustomUserDetailsService userDetailsService;
private String secretKey;
@PostConstruct
protected void init() {
secretKey = Base64.getEncoder().encodeToString(jwtProperties.getSecretKey().getBytes());
}
public String createToken(String username, List<String> roles) {
Claims claims = Jwts.claims().setSubject(username);
claims.put("roles", roles);
Date now = new Date();
Date validity = new Date(now.getTime() + jwtProperties.getValidityInMs());
return Jwts.builder()//
.setClaims(claims)//
.setIssuedAt(now)//
.setExpiration(validity)//
.signWith(SignatureAlgorithm.HS256, secretKey)//
.compact();
}
public Authentication getAuthentication(String token) {
UserDetails userDetails = this.userDetailsService.loadUserByUsername(getUsername(token));
return new UsernamePasswordAuthenticationToken(userDetails, "", userDetails.getAuthorities());
}
public String getUsername(String token) {
return Jwts.parser().setSigningKey(secretKey).parseClaimsJws(token).getBody().getSubject();
}
public String resolveToken(HttpServletRequest req) {
String bearerToken = req.getHeader("Authorization");
if (bearerToken != null && bearerToken.startsWith("Bearer ")) {
return bearerToken.substring(7);
}
return null;
}
public boolean validateToken(String token) {
try {
Jws<Claims> claims = Jwts.parser().setSigningKey(secretKey).parseClaimsJws(token);
if (claims.getBody().getExpiration().before(new Date())) {
return false;
}
return true;
} catch (JwtException | IllegalArgumentException e) {
throw new InvalidJwtAuthenticationException("Expired or invalid JWT token");
}
}
}
工具類還實現了另一個功能：從HTTP請求頭中獲取JWT。
2.1.2 Token處理的Filter
Filter是Security處理的關鍵，基本上都是通過Filter來攔截請求的。首先從請求頭取出JWT，然後校驗JWT是否合法，如果合法則取出Authentication儲存在SecurityContextHolder裡。如果不合法，則做異常處理。
public class JwtTokenAuthenticationFilter extends GenericFilterBean {
private JwtTokenProvider jwtTokenProvider;
public JwtTokenAuthenticationFilter(JwtTokenProvider jwtTokenProvider) {
this.jwtTokenProvider = jwtTokenProvider;
}
@Override
public void doFilter(ServletRequest req, ServletResponse res, FilterChain filterChain)
throws IOException, ServletException {
HttpServletRequest request = (HttpServletRequest) req;
HttpServletResponse response = (HttpServletResponse) res;
try {
String token = jwtTokenProvider.resolveToken(request);
if (token != null && jwtTokenProvider.validateToken(token)) {
Authentication auth = jwtTokenProvider.getAuthentication(token);
if (auth != null) {
SecurityContextHolder.getContext().setAuthentication(auth);
}
}
} catch (InvalidJwtAuthenticationException e) {
response.setStatus(HttpStatus.UNAUTHORIZED.value());
response.getWriter().write("Invalid token");
response.getWriter().flush();
return;
}
filterChain.doFilter(req, res);
}
}
對於異常處理，使用@ControllerAdvice是不行的，應該這個是Filter，在這裡拋的異常還沒有到DispatcherServlet，無法處理。所以Filter要自己做異常處理：
catch (InvalidJwtAuthenticationException e) {
response.setStatus(HttpStatus.UNAUTHORIZED.value());
response.getWriter().write("Invalid token");
response.getWriter().flush();
return;
}
最後的return;不能省略，因為已經把要輸出的內容給Response了，沒有必要再往後傳遞，否則會報錯：
java.lang.IllegalStateException: getWriter() has already been called
2.1.3 JWT屬性
JWT需要配置一個金鑰來加密，同時還要配置JWT令牌的有效期。
@Configuration
@ConfigurationProperties(prefix = "pkslow.jwt")
public class JwtProperties {
private String secretKey = "pkslow.key";
private long validityInMs = 3600_000;
//getter and setter
}
2.2 Spring Security整合

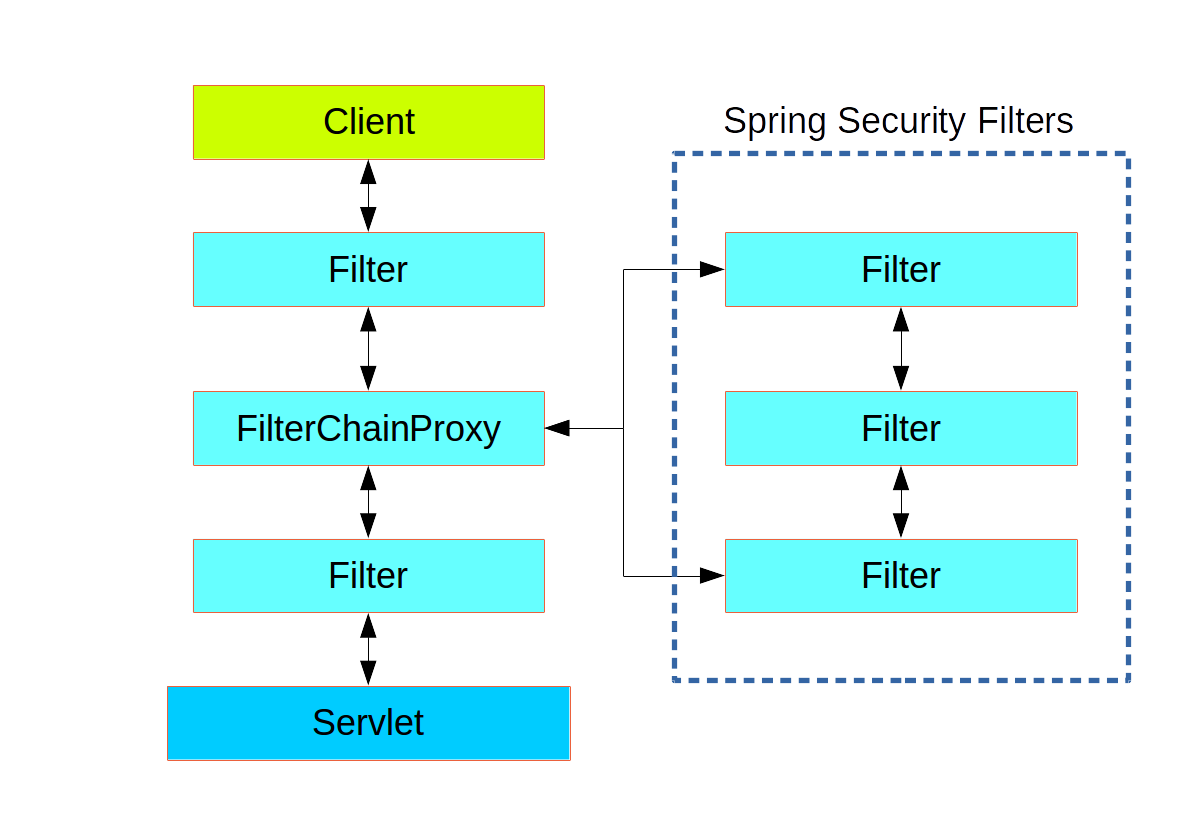

Spring Security的整個框架還是比較複雜的，簡化後大概如下圖所示：
它是通過一連串的Filter來進行安全管理。細節這裡先不展開講。
2.2.1 WebSecurityConfigurerAdapter配置
這個配置也可以理解為是FilterChain的配置，可以不用理解，程式碼很好懂它做了什麼：
@Configuration
public class SecurityConfig extends WebSecurityConfigurerAdapter {
@Autowired
JwtTokenProvider jwtTokenProvider;
@Bean
@Override
public AuthenticationManager authenticationManagerBean() throws Exception {
return super.authenticationManagerBean();
}
@Bean
public PasswordEncoder passwordEncoder() {
return NoOpPasswordEncoder.getInstance();
}
@Override
protected void configure(HttpSecurity http) throws Exception {
http
.httpBasic().disable()
.csrf().disable()
.sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS)
.and()
.authorizeRequests()
.antMatchers("/auth/login").permitAll()
.antMatchers(HttpMethod.GET, "/admin").hasRole("ADMIN")
.antMatchers(HttpMethod.GET, "/user").hasRole("USER")
.anyRequest().authenticated()
.and()
.apply(new JwtSecurityConfigurer(jwtTokenProvider));
}
}
這裡通過HttpSecurity配置了哪些請求需要什麼許可權才可以訪問。
/auth/login用於登陸獲取JWT，所以都能訪問；/admin只有ADMIN使用者才可以訪問；/user只有USER使用者才可以訪問。
而之前實現的Filter則在下面配置使用：
public class JwtSecurityConfigurer extends SecurityConfigurerAdapter<DefaultSecurityFilterChain, HttpSecurity> {
private JwtTokenProvider jwtTokenProvider;
public JwtSecurityConfigurer(JwtTokenProvider jwtTokenProvider) {
this.jwtTokenProvider = jwtTokenProvider;
}
@Override
public void configure(HttpSecurity http) throws Exception {
JwtTokenAuthenticationFilter customFilter = new JwtTokenAuthenticationFilter(jwtTokenProvider);
http.exceptionHandling()
.authenticationEntryPoint(new JwtAuthenticationEntryPoint())
.and()
.addFilterBefore(customFilter, UsernamePasswordAuthenticationFilter.class);
}
}
2.2.2 使用者從哪來
通常在Spring Security的世界裡，都是通過實現UserDetailsService來獲取UserDetails的。
@Component
public class CustomUserDetailsService implements UserDetailsService {
private UserRepository users;
public CustomUserDetailsService(UserRepository users) {
this.users = users;
}
@Override
public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
return this.users.findByUsername(username)
.orElseThrow(() -> new UsernameNotFoundException("Username: " + username + " not found"));
}
}
對於UserRepository，可以從資料庫中讀取，或者其它使用者管理中心。為了方便，我使用Map放了兩個使用者：
@Repository
public class UserRepository {
private static final Map<String, User> allUsers = new HashMap<>();
@Autowired
private PasswordEncoder passwordEncoder;
@PostConstruct
protected void init() {
allUsers.put("pkslow", new User("pkslow", passwordEncoder.encode("123456"), Collections.singletonList("ROLE_ADMIN")));
allUsers.put("user", new User("user", passwordEncoder.encode("123456"), Collections.singletonList("ROLE_USER")));
}
public Optional<User> findByUsername(String username) {
return Optional.ofNullable(allUsers.get(username));
}
}
3 測試
完成程式碼編寫後，我們來測試一下：
（1）無JWT訪問，失敗
curl http://localhost:8080/admin
{"timestamp":"2021-02-06T05:45:06.385+0000","status":403,"error":"Forbidden","message":"Access Denied","path":"/admin"}
$ curl http://localhost:8080/user
{"timestamp":"2021-02-06T05:45:16.438+0000","status":403,"error":"Forbidden","message":"Access Denied","path":"/user"}
（2）admin獲取JWT，密碼錯誤則失敗，密碼正確則成功
$ curl http://localhost:8080/auth/login -X POST -d '{"username":"pkslow","password":"xxxxxx"}' -H 'Content-Type: application/json'
{"timestamp":"2021-02-06T05:47:16.254+0000","status":403,"error":"Forbidden","message":"Access Denied","path":"/auth/login"}
$ curl http://localhost:8080/auth/login -X POST -d '{"username":"pkslow","password":"123456"}' -H 'Content-Type: application/json'
eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJwa3Nsb3ciLCJyb2xlcyI6WyJST0xFX0FETUlOIl0sImlhdCI6MTYxMjU5MDYxNCwiZXhwIjoxNjEyNTkxMjE0fQ.d4Gi50aaOsHHqpM0d8Mh1960otnZf7rlE3x6xSfakVo
（3）admin帶JWT訪問/admin，成功；訪問/user失敗
$ curl http://localhost:8080/admin -H 'Authorization: Bearer eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJwa3Nsb3ciLCJyb2xlcyI6WyJST0xFX0FETUlOIl0sImlhdCI6MTYxMjU5MDYxNCwiZXhwIjoxNjEyNTkxMjE0fQ.d4Gi50aaOsHHqpM0d8Mh1960otnZf7rlE3x6xSfakVo'
you are admin
$ curl http://localhost:8080/user -H 'Authorization: Bearer eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJwa3Nsb3ciLCJyb2xlcyI6WyJST0xFX0FETUlOIl0sImlhdCI6MTYxMjU5MDYxNCwiZXhwIjoxNjEyNTkxMjE0fQ.d4Gi50aaOsHHqpM0d8Mh1960otnZf7rlE3x6xSfakVo'
{"timestamp":"2021-02-06T05:51:23.099+0000","status":403,"error":"Forbidden","message":"Forbidden","path":"/user"}
（4）使用過期的JWT訪問，失敗
$ curl http://localhost:8080/admin -H 'Authorization: Bearer eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJwa3Nsb3ciLCJyb2xlcyI6WyJST0xFX0FETUlOIl0sImlhdCI6MTYxMjU5MDQ0OSwiZXhwIjoxNjEyNTkwNTA5fQ.CSaubE4iJcYATbLmbb59aNFU1jNCwDFHUV3zIakPU64'
Invalid token
對於使用者user同樣可以測試，這裡不列出來了。
4 總結
程式碼請檢視：https://github.com/LarryDpk/pkslow-samples
