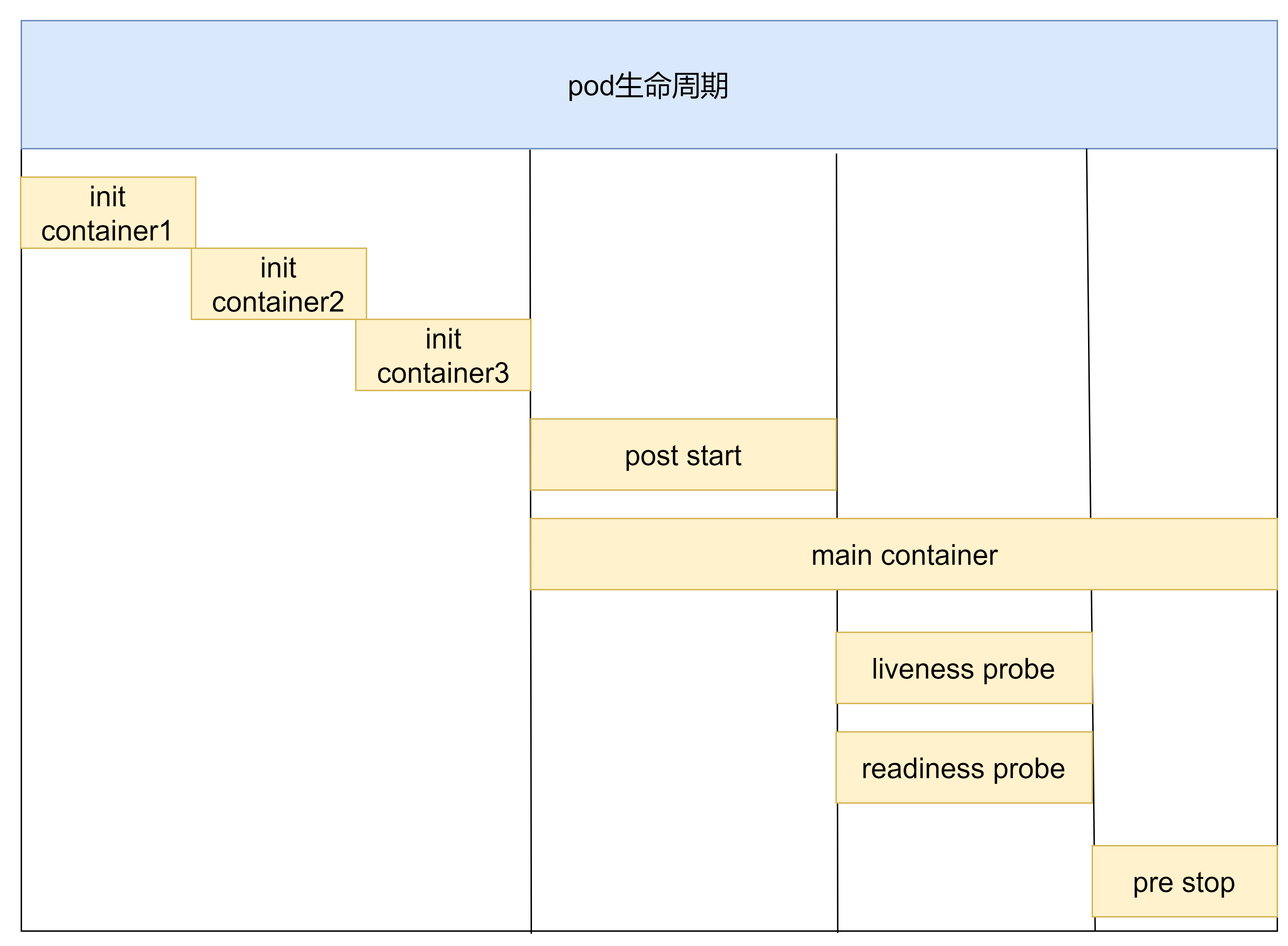

Pod生命週期

我們一般將pod物件從建立至終這段時間範圍成為pod的生命週期，它主要包含以下的過程：

pod建立過程
執行初始化容器（init container）過程
執行主容器（main container）
- 容器啟動後鉤子（post start）、容器終止前鉤子（pre stop）
- 容器的存活性檢測（liveness probe）、就緒性檢測（readiness probe）
pod終止過程

pod的建立和終止

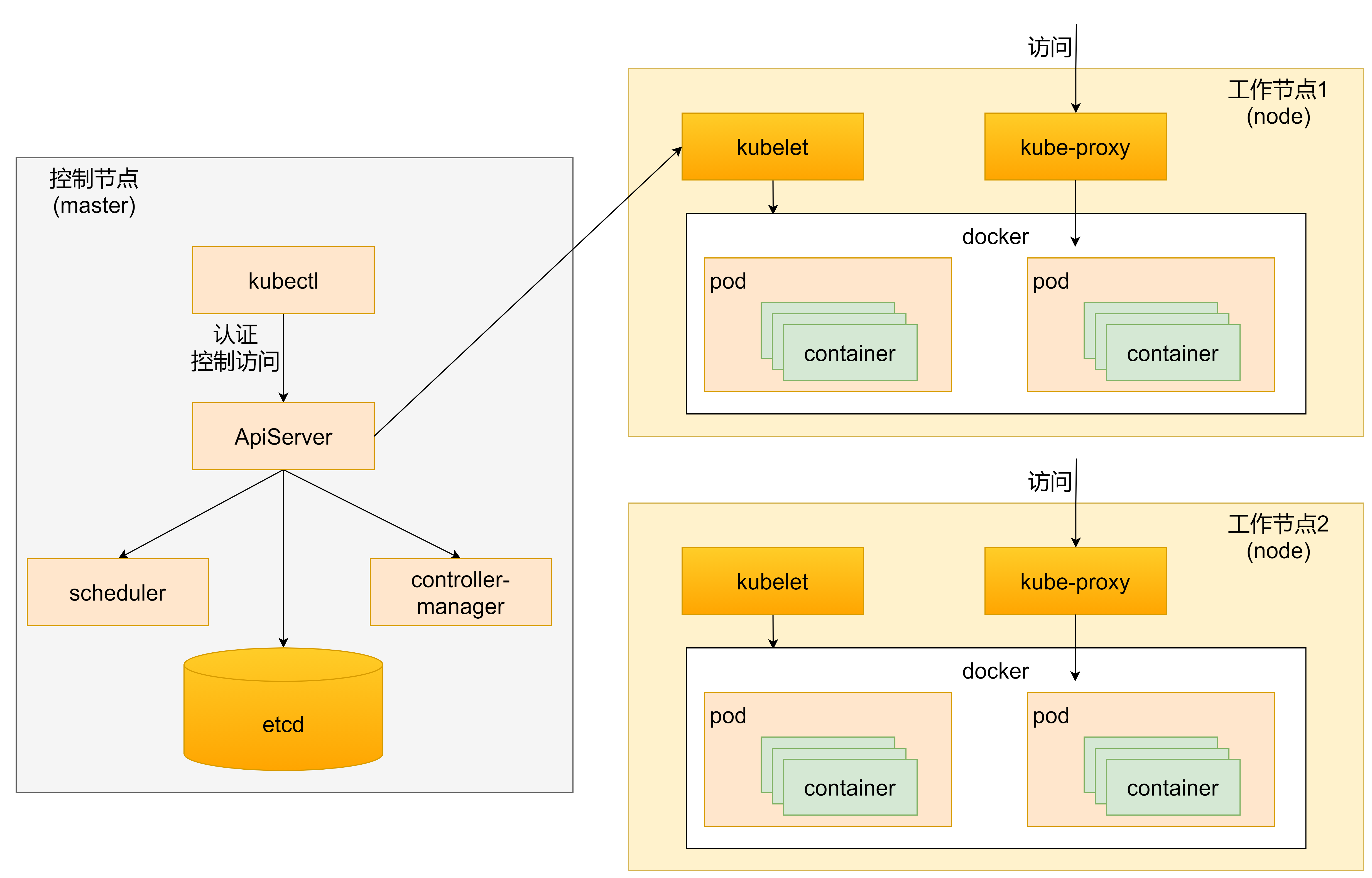

pod的建立過程

使用者通過kubectl或其他api客戶端提交需要建立的pod資訊給apiserver
apiserver開始生成pod物件的資訊，並將資訊存入etcd，然後返回確認資訊至客戶端
apiserver開始反映etcd中pod物件的變化，其他元件使用watch機制來跟蹤檢查apiserver上的變動
scheduler發現有新的pod物件要建立，開始為pod分配主機並將結果資訊更新至apiserver
node節點上的kubectl發現有pod排程過來，嘗試呼叫docker啟動容器，並將結果返回送至apiserver
apiserver將接收到的pod狀態資訊存入etcd中

pod的終止過程

使用者向apiserver傳送刪除pod物件的命令
apiserver中的pod物件資訊會隨著時間的推移而更新，在寬限期內（預設30s），pod被視為dead
將pod標記為terminating狀態
kubelet在監控到pod物件轉為terminating狀態的同時啟動pod關閉程序
端點控制器監控到pod物件的關閉行為時將其從所有匹配到此端點的service資源的端點列表移除
如果當前pod物件定義了prestop鉤子處理器，則在其標記為terminating後即會以同步的方式啟動執行
pod物件中的容器程序收到停止訊號
寬限期結束後，若pod中還存在仍在執行的程序，那麼pod物件會收到立即終止的訊號
kubelet請求apiserver將此pod資源的寬限期設定為0從而完成刪除操作，此時pod對於使用者已不可見

初始化容器

初始化容器是在pod的主容器啟動之前要執行的容器，主要是做一些主容器的前置工作，它具有兩大特徵

初始化容器必須執行完成直至結束，若某初始化容器執行失敗，那麼k8s需要重啟它直到成功完成
初始化容器必須按照定義的順序執行，當僅當前一個執行成功之後，後面的一個才能執行

初始化容器有很多的應用場景，下面列出的是最常見的幾個

提供主容器映象中不具備的工具程式或自定義程式碼
初始化容器要先於應用容器序列啟動並執行完成，因此可用於延後應用容器的啟動直至其依賴的條件得到滿足

接下來做一個案例，模擬下面這個需求

假設要以主容器來執行nginx，但是要求在執行nginx之前要能夠連線上mysql和redis所在伺服器

為了簡化測試，事先規定好mysql和redis伺服器的地址

建立pod-initcontainer.yaml，內容如下：

apiVersion: v1

kind: Pod

metadata:

  name: pod-initcontainer

  namespace: dev

  labels:

    user: ayanami

spec:

  containers:

  - name: main-container

    image: nginx:1.17.1

    ports:

    - name: nginx-port

      containerPort: 80

  initContainers:

  - name: test-mysql

    image: busybox:1.30

    command: ['sh','-c','until ping 192.168.145.231 -c 1; do echo waiting for mysql...;sleep 2; done']

  - name: test-redis

    image: busybox:1.30

    command: ['sh','-c','until ping 192.168.145.232 -c 1; do echo waiting for redis...;sleep 2; done']

執行配置檔案

[root@master ~]# vim pod-initcontainer.yaml

[root@master ~]# kubectl create -f pod-initcontainer.yaml

pod/pod-initcontainer created

[root@master ~]# kubectl get pod pod-initcontainer -n dev

NAME                READY   STATUS     RESTARTS   AGE

pod-initcontainer   0/1     Init:0/2   0          20s

發現container一直處於初始化狀態

此時新增ip地址（注：ens32是你的網絡卡的名字，不同機器可能不同，可以用ifconfig檢視）

[root@master ~]# ifconfig ens32:1 192.168.145.231 netmask 255.255.255.0 up

[root@master ~]# ifconfig ens32:2 192.168.145.232 netmask 255.255.255.0 up

[root@master ~]# kubectl get pod pod-initcontainer -n dev

NAME                READY   STATUS    RESTARTS   AGE

pod-initcontainer   1/1     Running   0          19m

發現pod跑起來了

鉤子函式

鉤子函式能夠感知自身生命週期中的事件，並在相應的時刻到來時執行使用者指定的程式程式碼

k8s在主容器的啟動之後和停止之前提供了兩個鉤子函式

post start：容器建立之後執行，如果失敗了會重啟容器
pre stop：容器終止之前執行，執行完成之後容器將成功終止，在其完成之前會阻塞刪除容器的操作

鉤子處理器支援使用下面三種方式定義動作：

Exec命令：在容器內執行一次命令

......

  lifecycle:

    postStart:

      exec:

        command:

        - cat

        - /tmp/healthy

......

TCPSocket：在當前容器嘗試訪問指定的socket

......

  lifecycle:

    postStart:

      tcpSocket:

        port: 8080

......

HttpGet：在當前容器中向某url發起http請求

......

  lifecycle:

    postStart:

      httpGet:

        path: #uri地址

        port:

        host:

        scheme: HTTP  #支援的協議，http或者https

......

下面演示鉤子函式的使用

建立pod-hook-exec.yaml檔案，內容如下：

apiVersion: v1

kind: Pod

metadata:

  name: pod-hook-exec

  namespace: dev

spec:

  containers:

  - name: main-container

    image: nginx:1.17.1

    ports:

    - name: nginx-port

      containerPort: 80

    lifecycle:

      postStart:

        exec: #在容器啟動的時候執行一個命令，修改掉nginx的預設首頁內容

          command: ["/bin/sh","-c","echo postStart... > /usr/share/nginx/html/index.html"]

      preStop: #在容器停止之前停止nginx服務

        exec:

          command: ["/usr/sbin/nginx","-s","quit"]

使用配置檔案

[root@master ~]# vim pod-hook-exec.yaml

[root@master ~]# kubectl create -f pod-hook-exec.yaml

pod/pod-hook-exec created

[root@master ~]# kubectl get pod pod-hook-exec -n dev -o wide

NAME            READY   STATUS    RESTARTS   AGE   IP            NODE    NOMINATED NODE   READINESS GATES

pod-hook-exec   1/1     Running   0          43s   10.244.2.22   node1   <none>           <none>

[root@master ~]# curl 10.244.2.22:80

postStart...

容器探測

容器探測用於檢測容器中的應用例項是否能正常工作，是保障業務可用性的一種傳統機制。如果經過探測，例項的狀態不符合預期

，那麼K8S就會把該問題例項“摘除”，不承擔業務流量，k8s提供了兩種探針來實現容器探測，分別是：

liveness probes：存活性探針，用於檢測應用例項當前是否處於正常執行狀態，如果不是，k8s會重啟容器
readiness probes：就緒性探針，用於檢測應用例項當前是否可以接受請求，如果不能，k8s不會轉發流量

即livenessProbe決定是否重啟容器，readinesProbe決定是否將請求轉發給容器

上面兩種探針目前均支援三種探測方式：

Exec命令：在容器內執行一次命令，如果命令執行的退出碼為0，則認為程式正常，否則不正常

......

  livenessProbe:

      exec:

        command:

        - cat

        - /tmp/healthy

......

TCPSocket：將會嘗試訪問同一個使用者容器的埠，如果能夠建立這條連線，則認為程式正常，否則不正常

......

  livenessProbe:

      tcpSocket:

        port: 8080

......

HTTPGet：呼叫容器內Web應用的URL，如果返回的狀態碼在200和399之間，則認為程式正常，否則不正常

......

  lifecycle:

    postStart:

      httpGet:

        path: #uri地址

        port:

        host:

        scheme: HTTP  #支援的協議，http或者https

......

下面以liveness probes為例，做幾個演示：

方式一：EXEC

建立pod-liveness-exec.yaml

apiVersion: v1

kind: Pod

metadata:

  name: pod-liveness-exec

  namespace: dev

spec:

  containers:

  - name: main-container

    image: nginx:1.17.1

    ports:

    - name: nginx-port

      containerPort: 80

    livenessProbe:

      exec:

        command: ["/bin/cat","/tmp/hello.txt"] #執行一個檢視檔案的命令

使用配置檔案

[root@master ~]# vim pod-liveness-exec.yaml

[root@master ~]# kubectl create -f pod-liveness-exec.yaml

pod/pod-liveness-exec created

[root@master ~]# kubectl get pod pod-liveness-exec -n dev

NAME                READY   STATUS    RESTARTS   AGE

pod-liveness-exec   1/1     Running   1          102s

發現pod重啟了一次，檢視錯誤資訊

[root@master ~]# kubectl describe pod pod-liveness-exec -n dev

  Type     Reason     Age                  From               Message

  ----     ------     ----                 ----               -------

  Normal   Scheduled  <unknown>            default-scheduler  Successfully assigned dev/pod-liveness-exec to node1

  Normal   Pulled     49s (x4 over 2m20s)  kubelet, node1     Container image "nginx:1.17.1" already present on machine

  Normal   Created    49s (x4 over 2m20s)  kubelet, node1     Created container main-container

  Normal   Started    49s (x4 over 2m20s)  kubelet, node1     Started container main-container

  Normal   Killing    49s (x3 over 109s)   kubelet, node1     Container main-container failed liveness probe, will be restarted

  Warning  Unhealthy  39s (x10 over 2m9s)  kubelet, node1     Liveness probe failed: /bin/cat: /tmp/hello.txt: No such file or directory

修改檔案內容

apiVersion: v1

kind: Pod

metadata:

  name: pod-liveness-exec

  namespace: dev

spec:

  containers:

  - name: main-container

    image: nginx:1.17.1

    ports:

    - name: nginx-port

      containerPort: 80

    livenessProbe:

      exec:

        command: ["/bin/ls","/tmp/"] #執行一個檢視檔案的命令

使用配置檔案

[root@master ~]# vim pod-liveness-exec.yaml

[root@master ~]# kubectl delete -f pod-liveness-exec.yaml

[root@master ~]# kubectl create -f pod-liveness-exec.yaml

pod/pod-liveness-exec created

[root@master ~]# kubectl get pod pod-liveness-exec -n dev

NAME                READY   STATUS    RESTARTS   AGE

pod-liveness-exec   1/1     Running   0          84s

說明沒有重啟

方式二：TCPSocket

建立pod-liveness-tcpsocket.yaml

apiVersion: v1

kind: Pod

metadata:

  name: pod-liveness-tcpsocket

  namespace: dev

spec:

  containers:

  - name: main-container

    image: nginx:1.17.1

    ports:

    - name: nginx-port

      containerPort: 80

    livenessProbe:

      tcpSocket:

        port: 8080  #嘗試訪問8080埠

使用配置檔案

[root@master ~]# vim pod-liveness-tcpsocket.yaml

[root@master ~]# kubectl create -f pod-liveness-tcpsocket.yaml

pod/pod-liveness-tcpsocket created

[root@master ~]# kubectl get pod pod-liveness-tcpsocket -n dev

NAME                     READY   STATUS    RESTARTS   AGE

pod-liveness-tcpsocket   1/1     Running   1          29s

[root@master ~]# kubectl describe pod pod-liveness-tcpsocket -n dev

Events:

  Type     Reason     Age                  From               Message

  ----     ------     ----                 ----               -------

  Normal   Scheduled  <unknown>            default-scheduler  Successfully assigned dev/pod-liveness-tcpsocket to node1

  Normal   Pulled     43s (x4 over 2m10s)  kubelet, node1     Container image "nginx:1.17.1" already present on machine

  Normal   Created    43s (x4 over 2m10s)  kubelet, node1     Created container main-container

  Normal   Started    43s (x4 over 2m10s)  kubelet, node1     Started container main-container

  Normal   Killing    43s (x3 over 103s)   kubelet, node1     Container main-container failed liveness probe, will be restarted

  Warning  Unhealthy  33s (x10 over 2m3s)  kubelet, node1     Liveness probe failed: dial tcp 10.244.2.25:8080: connect: connection refused

更改檔案內容

apiVersion: v1

kind: Pod

metadata:

  name: pod-liveness-tcpsocket

  namespace: dev

spec:

  containers:

  - name: main-container

    image: nginx:1.17.1

    ports:

    - name: nginx-port

      containerPort: 80

    livenessProbe:

      tcpSocket:

        port: 80  #嘗試訪問80埠

重新使用配置檔案

[root@master ~]# vim pod-liveness-tcpsocket.yaml

[root@master ~]# kubectl delete -f pod-liveness-tcpsocket.yaml

pod "pod-liveness-tcpsocket" deleted

[root@master ~]# kubectl create -f pod-liveness-tcpsocket.yaml

pod/pod-liveness-tcpsocket created

[root@master ~]# kubectl get pod pod-liveness-tcpsocket -n dev

NAME                     READY   STATUS    RESTARTS   AGE

pod-liveness-tcpsocket   1/1     Running   0          18s

表明沒有問題

方式三：HTTPGet

建立pod-liveness-httpget.yaml

apiVersion: v1

kind: Pod

metadata:

  name: pod-liveness-httpget

  namespace: dev

spec:

  containers:

  - name: main-container

    image: nginx:1.17.1

    ports:

    - name: nginx-port

      containerPort: 80

    livenessProbe:

      httpGet: #其實就是訪問http://127.0.0.1:80/hello

        scheme: HTTP #支援的協議，http或https

        port: 80

        path: /hello #uri地址

使用配置檔案

[root@master ~]# vim pod-liveness-httpget.yaml

[root@master ~]# kubectl create -f pod-liveness-httpget.yaml

pod/pod-liveness-httpget created

[root@master ~]# kubectl get pod pod-liveness-httpget -n dev

NAME                   READY   STATUS    RESTARTS   AGE

pod-liveness-httpget   1/1     Running   1          75s

[root@master ~]# kubectl describe pod pod-liveness-httpget -n dev

Events:

  Type     Reason     Age                From               Message

  ----     ------     ----               ----               -------

  Normal   Scheduled  <unknown>          default-scheduler  Successfully assigned dev/pod-liveness-httpget to node2

  Normal   Pulled     18s (x3 over 74s)  kubelet, node2     Container image "nginx:1.17.1" already present on machine

  Normal   Created    18s (x3 over 74s)  kubelet, node2     Created container main-container

  Normal   Killing    18s (x2 over 48s)  kubelet, node2     Container main-container failed liveness probe, will be restarted

  Normal   Started    17s (x3 over 73s)  kubelet, node2     Started container main-container

  Warning  Unhealthy  8s (x7 over 68s)   kubelet, node2     Liveness probe failed: HTTP probe failed with statuscode: 404

可以看見pod在重啟，詳細描述說明沒找到這個網址

修改配置檔案

apiVersion: v1

kind: Pod

metadata:

  name: pod-liveness-httpget

  namespace: dev

spec:

  containers:

  - name: main-container

    image: nginx:1.17.1

    ports:

    - name: nginx-port

      containerPort: 80

    livenessProbe:

      httpGet: #其實就是訪問http://127.0.0.1:80/

        scheme: HTTP #支援的協議，http或https

        port: 80

        path: / #uri地址

重新使用配置檔案

[root@master ~]# kubectl delete -f pod-liveness-httpget.yaml

pod "pod-liveness-httpget" deleted

[root@master ~]# kubectl create -f pod-liveness-httpget.yaml

pod/pod-liveness-httpget created

[root@master ~]# kubectl get pod pod-liveness-httpget -n dev

NAME                   READY   STATUS    RESTARTS   AGE

pod-liveness-httpget   1/1     Running   0          24s

Events:

  Type    Reason     Age        From               Message

  ----    ------     ----       ----               -------

  Normal  Scheduled  <unknown>  default-scheduler  Successfully assigned dev/pod-liveness-httpget to node2

  Normal  Pulled     27s        kubelet, node2     Container image "nginx:1.17.1" already present on machine

  Normal  Created    27s        kubelet, node2     Created container main-container

  Normal  Started    27s        kubelet, node2     Started container main-container

表明配置沒有問題

其他配置

至此，已經使用liveness probe演示了三種探測方式，但是檢視livenessProbe的子屬性，會發現除了這三種方式，還有一些其他的配置，在這裡一併解釋下

[root@master ~]# kubectl explain pod.spec.containers.livenessProbe

KIND:     Pod

VERSION:  v1

RESOURCE: livenessProbe <Object>

DESCRIPTION:

     Periodic probe of container liveness. Container will be restarted if the

     probe fails. Cannot be updated. More info:

     https://kubernetes.io/docs/concepts/workloads/pods/pod-lifecycle#container-probes

     Probe describes a health check to be performed against a container to

     determine whether it is alive or ready to receive traffic.

FIELDS:

   exec    <Object>

     One and only one of the following should be specified. Exec specifies the

     action to take.

   failureThreshold    <integer>

     Minimum consecutive failures for the probe to be considered failed after

     having succeeded. Defaults to 3. Minimum value is 1.

   httpGet    <Object>

     HTTPGet specifies the http request to perform.

   initialDelaySeconds    <integer>

     Number of seconds after the container has started before liveness probes

     are initiated. More info:

     https://kubernetes.io/docs/concepts/workloads/pods/pod-lifecycle#container-probes

   periodSeconds    <integer>

     How often (in seconds) to perform the probe. Default to 10 seconds. Minimum

     value is 1.

   successThreshold    <integer>

     Minimum consecutive successes for the probe to be considered successful

     after having failed. Defaults to 1. Must be 1 for liveness and startup.

     Minimum value is 1.

   tcpSocket    <Object>

     TCPSocket specifies an action involving a TCP port. TCP hooks not yet

     supported

   timeoutSeconds    <integer>

     Number of seconds after which the probe times out. Defaults to 1 second.

     Minimum value is 1. More info:

     https://kubernetes.io/docs/concepts/workloads/pods/pod-lifecycle#container-probes

pod生命週期
