pipeline 分散式任務排程器
目標： 基於docker的布式任務排程器, 比quartzs,xxl-job 更強大的分散式任務排程器。
可以將要執行的任務打包為docker映象，或者選擇已有映象，自定義指令碼程式，通過pipeline框架來實現排程。
開源地址： https://github.com/jadepeng/docker-pipeline

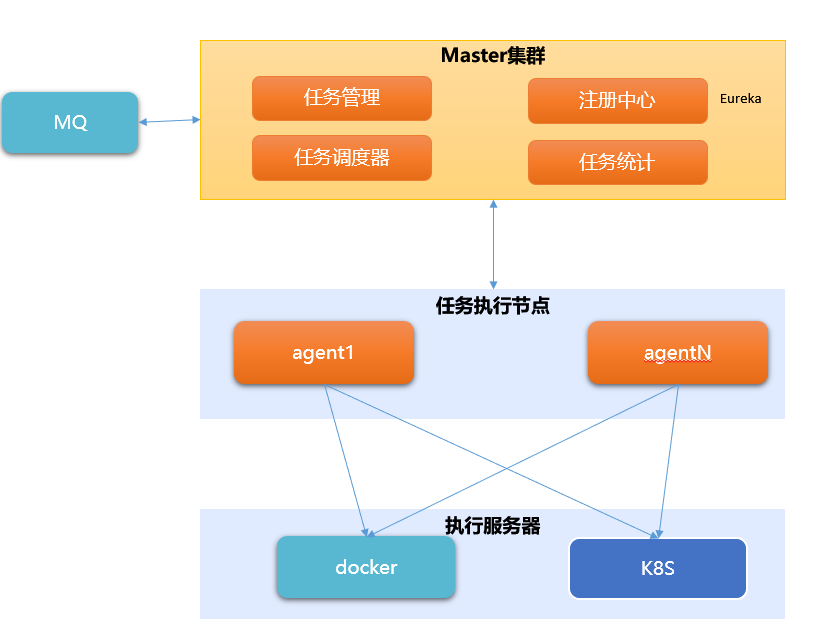

架構
- pipeline master 中心節點，管理和排程任務
- pipeline agent 執行任務的節點，接收到任務後，呼叫docker執行pipeline任務
功能特性 && TODO List
- [x] 分散式框架，高可用，服務註冊與狀態維護
- [x] Agent執行任務
- [x] rolling日誌介面
- [x] 執行老版本pipeline任務
- [x] 支援定時執行任務(固定週期和cron表示式)
- [ ] 快速建立任務，支援python、node等指令碼程式直接執行
- [x] python、java等基礎映象
- [x] 快速docker映象任務API
- [ ] 快速建立指令碼任務
- [ ] 根據資源配額（記憶體、CPU）排程任務, 執行任務需要指定資源配額
- [ ] agent 增加label標識，排程時可以排程到指定label的agent，比如gpu=true
- [ ] 增加任務管理web, 管理提交任務、查詢執行日誌等
- [x] 複用騰訊bk-job 網頁
- [ ] 修改bk-job前端，適配pipeline
進展
2021.07.31
- 支援定時執行任務(固定週期和cron表示式)
- 增加分散式mongodb鎖，多master時，同時只能有一個master schedule任務
2021.07.28
- 新增執行老版本pipeline任務能力
- 增加日誌介面
2021.07.27
- 引入bk-job的ui，待修改
2021.07.21
- Master 呼叫 agent執行任務
- agnet 啟動docker執行任務
2021.07.19
- 基於jhipster搭建框架
- 分散式實現
資料結構
一個pipeline 任務：
- 支援多個pipelineTask
- 一個pipelineTask 包含多個Step
@Data
public class Pipeline {
@Id
private String id;
private String name;
@JSONField(name = "pipeline")
private List<PipelineTask> pipelineTasks = new ArrayList<>();
private List<Network> networks = Lists.newArrayList(new Network());
private List<Volume> volumes = Lists.newArrayList(new Volume());
private String startNode;
/**
* 排程型別：
* 1） CRON， 設定cronExpression
* 2） FIX_RATE， 設定fixRateInSeconds
*/
private ScheduleType scheduleType = ScheduleType.NONE;
/**
* CRON表示式，在scheduleType=CRON 時生效
*/
private String cronExpression;
/**
* 固定週期執行，比如每隔多少s,在scheduleType=FIX_RATE 時生效
*/
private int fixRateInSeconds;
/**
* 是否需要排程,為true時，才排程
*/
@Indexed
private boolean enableTrigger;
private long lastTriggerTime;
@Indexed
private long nextTriggerTime;
/**
* 執行超時時間
*/
private int executorTimeout;
/**
* 重試次數
*/
private int executorFailRetryCount;
/**
* 記憶體限制
*/
private String memory;
/**
* CPU 限制
*/
private String cpu;
@Data
@Builder
public static class PipelineTask {
/**
* 名稱
*/
String name;
/**
* 別名
*/
String alias;
/**
* 依賴的pipelines，必須依賴的執行完成才能執行該PipelineTask
*/
List<String> dependencies;
/**
* 任務步驟，順序執行
*/
List<Step> steps;
}
@Data
public static class Network {
String name = "pipeline_default";
String driver = "bridge";
}
@Data
public static class Volume {
String name = "pipeline_default";
String driver = "local";
}
@Data
public static class StepNetwork {
private String name;
private List<String> aliases = Lists.newArrayList("default");
public StepNetwork(String name) {
this.name = name;
}
}
}
舉例：
{
"_id" : "29103d5e4a77409b9f6050eea8110bb3",
"name" : "docker image pipeline",
"pipelineTasks" : [
{
"name" : "docker image pipeline",
"steps" : [
{
"name" : "defaultJob",
"image" : "java-pipeline:1.0.1",
"workingDir" : "/workspace",
"environment" : {},
"networks" : [
{
"name" : "pipeline_default",
"aliases" : [
"default"
]
}
],
"onSuccess" : false,
"authConfig" : {}
}
]
}
],
"networks" : [
{
"name" : "pipeline_default",
"driver" : "bridge"
}
],
"volumes" : [
{
"name" : "pipeline_default",
"driver" : "local"
}
],
"cronExpression" : "0 0 * * * ?",
"fixRateInSeconds" : 0,
"scheduleType" : "CRON",
"enableTrigger" : true,
"lastTriggerTime" : 1627744509047,
"nextTriggerTime" : 1627747200000,
"executorTimeout" : 0,
"executorFailRetryCount" : 0,
"isAvailable" : 1,
"runningPipelines" : [],
"finishedPipeliens" : [],
"created_by" : "admin",
"created_date" : "2021-07-20T04:33:16.477Z",
"last_modified_by" : "system",
"last_modified_date" : "2021-07-31T15:15:09.048Z"
}
使用說明
安裝部署
編譯
使用mvn編譯
mvn package -DskipTests
部署master
根據需要，修改master的prod配置檔案application-prod.yml。
包含kafka配置，server埠，mongodb地址,jwt secret配置。
mongodb 會自動新建collection和初始化資料，無需手動匯入資料。
kafka:
producer:
bootstrap-servers: 127.0.0.1:9092
retries: 3
batch-size: 2000
buffer-memory: 33554432
consumer:
group-id: consumer-pipeline
auto-offset-reset: earliest
enable-auto-commit: true
bootstrap-servers: 172.31.161.38:9092
server:
port: 8080
spring:
data:
mongodb:
uri: mongodb://127.0.0.1:28017
database: pipeline
jhipster:
security:
authentication:
jwt:
base64-secret:
注意master的jwt secret需要和agent的保持一致。
配置好後，啟動：
nohup java -jar pipeline-master-$version.jar --spring.profiles.active=prod &
可以將application-prod.yml放在和jar包同一目錄。
部署agent
根據需要，修改master的prod配置檔案application-prod.yml。
包含：
- eureka的defaultZone，配置master的地址
- 埠
- docker地址
- docker-tls-verify: 是否啟動tls驗證
- docker-cert-path：啟動tls驗證的ca證書
- pipeline-log-path: 執行日誌儲存路徑
eureka:
instance:
prefer-ip-address: true
client:
service-url:
defaultZone: http://admin:${jhipster.registry.password}@127.0.0.1:8080/eureka/
server:
port: 8081
application:
docker-server:
docker-tls-verify: true
docker-cert-path: /mnt/parastor/pipeline/ca/
pipeline-log-path: /mnt/parastor/pipeline/logs/
jhipster:
security:
authentication:
jwt:
base64-secret:
執行老版本任務
POST /api/pipelines/exec-old
Body：
{
"networks":[
{
"driver":"bridge",
"name":"pipeline_network_3eac4b36209a41e58a5f22dd403fee50"
}
],
"pipeline":[
{
"alias":"Word",
"dependencies":[],
"name":"pipeline_task_3eac4b36209a41e58a5f22dd403fee50_1",
"nextPipelines":[],
"steps":[
{
"alias":"Word",
"auth_config":{},
"command":[
"echo $CI_SCRIPT | base64 -d | /bin/bash -e"
],
"entrypoint":[
"/bin/bash",
"-c"
],
"environment":{
"CI_SCRIPT":"CmlmIFsgLW4gIiRDSV9ORVRSQ19NQUNISU5FIiBdOyB0aGVuCmNhdCA8PEVPRiA+ICRIT01FLy5uZXRyYwptYWNoaW5lICRDSV9ORVRSQ19NQUNISU5FCmxvZ2luICRDSV9ORVRSQ19VU0VSTkFNRQpwYXNzd29yZCAkQ0lfTkVUUkNfUEFTU1dPUkQKRU9GCmNobW9kIDA2MDAgJEhPTUUvLm5ldHJjCmZpCnVuc2V0IENJX05FVFJDX1VTRVJOQU1FCnVuc2V0IENJX05FVFJDX1BBU1NXT1JECnVuc2V0IENJX1NDUklQVAplY2hvICsgamF2YSAtY3AgL2RhdGF2b2x1bWUvcGRmX3RvX3dvcmQvcGRmYm94X3V0aWwtMS4wLVNOQVBTSE9ULmphciBjb20uaWZseXRlay5pbmRleGVyLlJ1bm5lciAtLWlucHV0UERGIC9kYXRhdm9sdW1lL2V4dHJhY3QvZjkyYzJhNzViYWU4NGJiMDg4MzIwNWRiM2YyZGFlNzkvcGRmL2VjNWMwYjk0M2QwYjRmNDI5MzcyMmE1ZGRjNjFlNjZkL0hTNy5wZGYgLS1vdXRwdXRXb3JkIC9kYXRhdm9sdW1lL2V4dHJhY3QvZjkyYzJhNzViYWU4NGJiMDg4MzIwNWRiM2YyZGFlNzkvcGRmVG9Xb3JkL2VjNWMwYjk0M2QwYjRmNDI5MzcyMmE1ZGRjNjFlNjZkLyAtLXNjaGVtYUlucHV0UGF0aCAvZGF0YXZvbHVtZS9leHRyYWN0L2ticWEvZjkyYzJhNzViYWU4NGJiMDg4MzIwNWRiM2YyZGFlNzkgLS1lbnRpdHlJbmRleFBhdGggL2RhdGF2b2x1bWUvZXh0cmFjdC9mOTJjMmE3NWJhZTg0YmIwODgzMjA1ZGIzZjJkYWU3OS9wZGZUb1dvcmQvZW50aXR5IC0tZmllbGRJbmRleFBhdGggL2RhdGF2b2x1bWUvZXh0cmFjdC9mOTJjMmE3NWJhZTg0YmIwODgzMjA1ZGIzZjJkYWU3OS9wZGZUb1dvcmQvZmllbGQgLS10eXBlIGx1Y2VuZSAtLW91dHB1dCAvZGF0YXZvbHVtZS9leHRyYWN0L2Y5MmMyYTc1YmFlODRiYjA4ODMyMDVkYjNmMmRhZTc5L3BkZlRvV29yZC9lYzVjMGI5NDNkMGI0ZjQyOTM3MjJhNWRkYzYxZTY2ZC9lbnRpdHlJbmZvLnR4dApqYXZhIC1jcCAvZGF0YXZvbHVtZS9wZGZfdG9fd29yZC9wZGZib3hfdXRpbC0xLjAtU05BUFNIT1QuamFyIGNvbS5pZmx5dGVrLmluZGV4ZXIuUnVubmVyIC0taW5wdXRQREYgL2RhdGF2b2x1bWUvZXh0cmFjdC9mOTJjMmE3NWJhZTg0YmIwODgzMjA1ZGIzZjJkYWU3OS9wZGYvZWM1YzBiOTQzZDBiNGY0MjkzNzIyYTVkZGM2MWU2NmQvSFM3LnBkZiAtLW91dHB1dFdvcmQgL2RhdGF2b2x1bWUvZXh0cmFjdC9mOTJjMmE3NWJhZTg0YmIwODgzMjA1ZGIzZjJkYWU3OS9wZGZUb1dvcmQvZWM1YzBiOTQzZDBiNGY0MjkzNzIyYTVkZGM2MWU2NmQvIC0tc2NoZW1hSW5wdXRQYXRoIC9kYXRhdm9sdW1lL2V4dHJhY3Qva2JxYS9mOTJjMmE3NWJhZTg0YmIwODgzMjA1ZGIzZjJkYWU3OSAtLWVudGl0eUluZGV4UGF0aCAvZGF0YXZvbHVtZS9leHRyYWN0L2Y5MmMyYTc1YmFlODRiYjA4ODMyMDVkYjNmMmRhZTc5L3BkZlRvV29yZC9lbnRpdHkgLS1maWVsZEluZGV4UGF0aCAvZGF0YXZvbHVtZS9leHRyYWN0L2Y5MmMyYTc1YmFlODRiYjA4ODMyMDVkYjNmMmRhZTc5L3BkZlRvV29yZC9maWVsZCAtLXR5cGUgbHVjZW5lIC0tb3V0cHV0IC9kYXRhdm9sdW1lL2V4dHJhY3QvZjkyYzJhNzViYWU4NGJiMDg4MzIwNWRiM2YyZGFlNzkvcGRmVG9Xb3JkL2VjNWMwYjk0M2QwYjRmNDI5MzcyMmE1ZGRjNjFlNjZkL2VudGl0eUluZm8udHh0Cg=="
},
"image":"registry.iflyresearch.com/aimind/java:v1.0.0",
"name":"pipeline_task_3eac4b36209a41e58a5f22dd403fee50_1",
"networks":[
{
"aliases":[
"default"
],
"name":"pipeline_network_3eac4b36209a41e58a5f22dd403fee50"
}
],
"on_success":true,
"volumes":[
"pipeline_default:/aimind",
"/mnt/parastor/aimind/shared/:/share",
"/mnt/parastor/aimind/pipeline-jobs/2021/07/26/3eac4b36209a41e58a5f22dd403fee50:/workspace",
"/mnt/parastor/aimind/datavolumes/carmaster:/datavolume"
],
"working_dir":"/workspace"
}
]
}
],
"volumes":[
{
"driver":"local",
"name":"pipeline_default"
}
]
}
成功返回：
{
"retcode": "000000",
"desc": "成功",
"data": {
"id": "8137f344-f52d-4595-bdbb-425363847b61",
}
}
可根據id獲取日誌。
獲取job執行日誌
GET /api/pipelines/jobLog/{jobid}/
結果：
{
"retcode": "000000",
"desc": "成功",
"data": {
"currentTask": null,
"logs": [
{
"id": "e76a686f68b64c0783b7721b058be137",
"jobId": "8137f344-f52d-4595-bdbb-425363847b61",
"status": "FINISHED",
"taskName": "pipeline_task_3eac4b36209a41e58a5f22dd403fee50_1",
"exitedValue": 0,
"logs": [
"proc \"pipeline_task_3eac4b36209a41e58a5f22dd403fee50_1\" started",
"pipeline_task_3eac4b36209a41e58a5f22dd403fee50_1:+ java -cp /datavolume/pdf_to_word/pdfbox_util-1.0-SNAPSHOT.jar com.iflytek.indexer.Runner --inputPDF /datavolume/extract/f92c2a75bae84bb0883205db3f2dae79/pdf/ec5c0b943d0b4f4293722a5ddc61e66d/HS7.pdf --outputWord /datavolume/extract/f92c2a75bae84bb0883205db3f2dae79/pdfToWord/ec5c0b943d0b4f4293722a5ddc61e66d/ --schemaInputPath /datavolume/extract/kbqa/f92c2a75bae84bb0883205db3f2dae79 --entityIndexPath /datavolume/extract/f92c2a75bae84bb0883205db3f2dae79/pdfToWord/entity --fieldIndexPath /datavolume/extract/f92c2a75bae84bb0883205db3f2dae79/pdfToWord/field --type lucene --output /datavolume/extract/f92c2a75bae84bb0883205db3f2dae79/pdfToWord/ec5c0b943d0b4f4293722a5ddc61e66d/entityInfo.txt",
"proc \"pipeline_task_3eac4b36209a41e58a5f22dd403fee50_1\" exited with status 0"
]
}
],
"exitedValue": 0,
"status": "FINISHED",
"pipelineJobSt": 1627477250599,
"pipelineJobFt": 1627477274299
}
}
週期任務
如果pipelien需要週期執行,需要配置enableTrigger為true，同時設定按照CRON或者’FIX_RATE` 執行:
- FIX_RATE: 固定週期，通過
fixRateInSeconds配置週期執行時間
示例：每360秒執行一次：
{
// pipeline ...
"pipelineTasks" : [ ],
"fixRateInSeconds" : 360,
"scheduleType" : "FIX_RATE",
"enableTrigger" : true
}
- CRON: 按照CRON表示式週期執行，通過
cronExpression配置.
示例：每小時開始的時候執行一次：
{
// pipeline ...
"pipelineTasks" : [ ],
"cronExpression" : "0 0 * * * ?",
"scheduleType" : "CRON",
"enableTrigger" : true
}
