一、叢集可用性驗證

k8s安裝完成後需要進行可用性驗證，因為k8s中有pod通訊 server通訊 node通訊要保證通訊正常

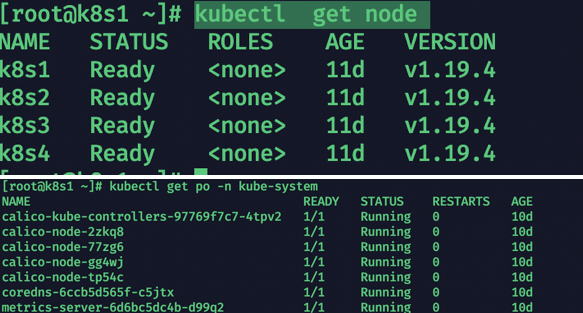

1、1檢視基本元件情況

kubectl get node

kubectl get po -n kube-system

1、2建立測試pod

cat<<EOF | kubectl apply -f -

apiVersion: v1

kind: Pod

metadata:

  name: busybox

  namespace: default

spec:

  containers:

  - name: busybox

    image: busybox:1.28

    command:

      - sleep

      - "3600"

    imagePullPolicy: IfNotPresent

  restartPolicy: Always

EOF

1.3 測試連通性

1、測試pod能否解析同namespace的kubernetes的 svc

kubectl  get svc （檢視kubernetes的svc）

kubectl exec busybox -n default -- nslookup kubernetes (解析)

結果:

Server:    10.96.0.10

Address 1: 10.96.0.10 kube-dns.kube-system.svc.cluster.local

Name:      kubernetes

Address 1: 10.96.0.1 kubernetes.default.svc.cluster.local

2、測試pod能否解析跨namespace的 svc

kubectl  get svc -n kube-system

kubectl exec busybox -n default -- nslookup kube-dns.kube-system

結果:

Server:    10.96.0.10

Address 1: 10.96.0.10 kube-dns.kube-system.svc.cluster.local

Name:      kube-dns.kube-system

Address 1: 10.96.0.10 kube-dns.kube-system.svc.cluster.local

3、測試每個節點能否訪問kubernetes svc的443埠 與kube-dns service的53埠

kubectl  get svc  獲取 cluster ip

NAME         TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)   AGE

kubernetes   ClusterIP   10.96.0.1    <none>        443/TCP   24d

在每個節點執行

telnet 10.96.0.1 443

測試kube-dns的聯通

kubectl  get svc -n kube-system

NAME             TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                  AGE

kube-dns         ClusterIP   10.96.0.10      <none>        53/UDP,53/TCP,9153/TCP   21d

metrics-server   ClusterIP   10.111.181.43   <none>        443/TCP                  21d

在每個節點執行

telnet 10.96.0.10  53

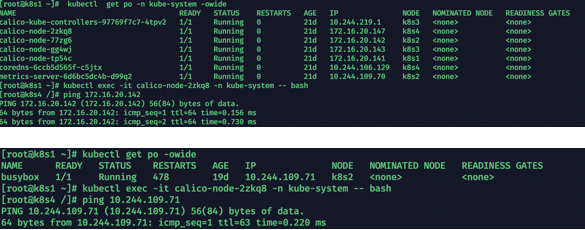

4、測試pod之間能否通訊

kubectl  get po -n kube-system -owide 獲取pod

進入到calico-node的某臺容器中

kubectl exec -it calico-node-2zkq8 -n kube-system -- bash

然後找一個其他節點的 calico-node pod的一個ip ping測試連通性

測試與busybox 測試容器的連通性

kubectl get po -owide

5、清除測試pod

kubectl delete po busybox

檢視是否刪除

kubectl  get po

二、引數優化

2.1 容器配置引數優化

每臺機器執行

cat > /etc/docker/daemon.json <<EOF

{

        "exec-opts": ["native.cgroupdriver=systemd"],

        "log-driver": "json-file",

        "log-opts": {

                "max-size": "50m",

                "max-file": "3"

        },

        "registry-mirrors": ["https://ufkb7xyg.mirror.aliyuncs.com"],

        "max-concurrent-downloads": 10,

        "max-concurrent-uploads": 5,

        "live-restore": true

}

EOF

systemctl daemon-reload

systemctl restart docker

#刪除狀態是exited的容器

docker rm $(docker ps -q -f status=exited)

引數解析:

exec-opts：docker的CgroupDriver改成systemd

log-driver：日誌格式

log-opts：日誌儲存大小與份數

registry-mirrors：映象下載代理地址

max-concurrent-downloads：映象下載啟動的程序

max-concurrent-uploads：映象上傳啟動的程序

live-restore：配置守護程序，讓重啟docker服務不重啟容器

2.2 controller-manager配置引數優化

master節點配置

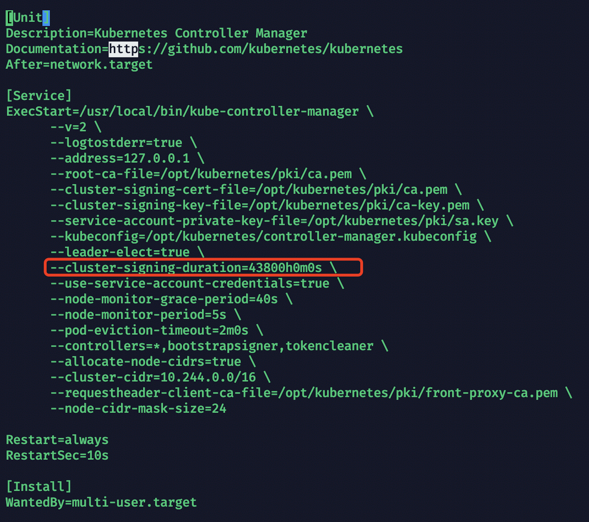

vim /usr/lib/systemd/system/kube-controller-manager.service

--cluster-signing-duration=43800h0m0s \

systemctl daemon-reload

systemctl restart kube-controller-manager

設定自動辦法證書週期：

最大支援5年

--cluster-signing-duration

2.3 kubelet配置引數優化

每臺機器執行

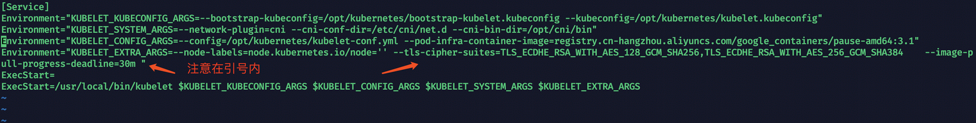

vim  /etc/systemd/system/kubelet.service.d/10-kubelet.conf

Environment="KUBELET_EXTRA_ARGS=--node-labels=node.kubernetes.io/node='' --tls-cipher-suites=TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384    --image-pull-progress-deadline=30m "

解析

-tls-cipher-suites= 加密方式因為預設的加密方式不安全

--image-pull-progress-deadline 設定下載映象的 deadline避免重複嘗試

vim /opt/kubernetes/kubelet-conf.yml

rotateServerCertificates: true

allowedUnsafeSysctls:

 - "net.core*"

 - "net.ipv4.*"

kubeReserved:

  cpu: "100m"

  memory: 300Mi

  ephemeral-storage: 10Gi

systemReserved:

  cpu: "100m"

  memory: 300Mi

  ephemeral-storage: 10Gi

解析：

rotateServerCertificates 自動配置證書

allowedUnsafeSysctls 允許就該核心引數

kubeReserved    預留系統資源給k8s 根據機器資源分配

systemReserved

systemctl daemon-reload

systemctl restart kubelet

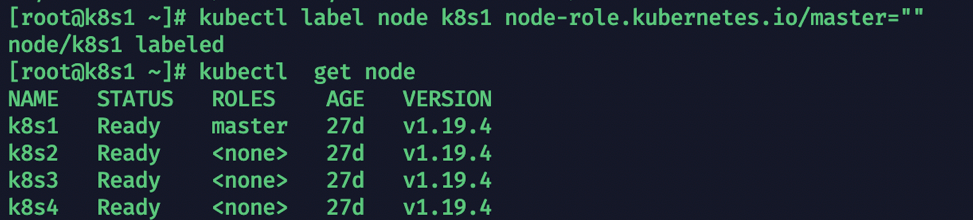

2.4 更改master節點的ROLES

設定所有master節點的角色

kubectl label node k8s1 node-role.kubernetes.io/master=""

三、設定coredns為自動擴容(可以不做)

官方文件

git專案地址

官方資源配置檔案

1、資源配置檔案

cat > dns-horizontal-autoscaler_v1.9.yaml << EOF

kind: ServiceAccount

apiVersion: v1

metadata:

  name: kube-dns-autoscaler

  namespace: kube-system

  labels:

    addonmanager.kubernetes.io/mode: Reconcile

---

kind: ClusterRole

apiVersion: rbac.authorization.k8s.io/v1

metadata:

  name: system:kube-dns-autoscaler

  labels:

    addonmanager.kubernetes.io/mode: Reconcile

rules:

  - apiGroups: [""]

    resources: ["nodes"]

    verbs: ["list", "watch"]

  - apiGroups: [""]

    resources: ["replicationcontrollers/scale"]

    verbs: ["get", "update"]

  - apiGroups: ["apps"]

    resources: ["deployments/scale", "replicasets/scale"]

    verbs: ["get", "update"]

# Remove the configmaps rule once below issue is fixed:

# kubernetes-incubator/cluster-proportional-autoscaler#16

  - apiGroups: [""]

    resources: ["configmaps"]

    verbs: ["get", "create"]

---

kind: ClusterRoleBinding

apiVersion: rbac.authorization.k8s.io/v1

metadata:

  name: system:kube-dns-autoscaler

  labels:

    addonmanager.kubernetes.io/mode: Reconcile

subjects:

  - kind: ServiceAccount

    name: kube-dns-autoscaler

    namespace: kube-system

roleRef:

  kind: ClusterRole

  name: system:kube-dns-autoscaler

  apiGroup: rbac.authorization.k8s.io

---

apiVersion: apps/v1

kind: Deployment

metadata:

  name: kube-dns-autoscaler

  namespace: kube-system

  labels:

    k8s-app: kube-dns-autoscaler

    kubernetes.io/cluster-service: "true"

    addonmanager.kubernetes.io/mode: Reconcile

spec:

  selector:

    matchLabels:

      k8s-app: kube-dns-autoscaler

  template:

    metadata:

      labels:

        k8s-app: kube-dns-autoscaler

      annotations:

        seccomp.security.alpha.kubernetes.io/pod: 'docker/default'

    spec:

      priorityClassName: system-cluster-critical

      securityContext:

        supplementalGroups: [ 65534 ]

        fsGroup: 65534

      nodeSelector:

        kubernetes.io/os: linux

      containers:

      - name: autoscaler

        image: registry.cn-beijing.aliyuncs.com/yuan-k8s/cluster-proportional-autoscaler-amd64:1.8.1

        resources:

            requests:

                cpu: "20m"

                memory: "10Mi"

        command:

          - /cluster-proportional-autoscaler

          - --namespace=kube-system

          - --configmap=kube-dns-autoscaler

          - --target=deployment/coredns

          - --default-params={"linear":{"coresPerReplica":16,"nodesPerReplica":4,"min":2,"max":4,"preventSinglePointFailure":true,"includeUnschedulableNodes":true}}

          - --logtostderr=true

          - --v=2

      tolerations:

      - key: "CriticalAddonsOnly"

        operator: "Exists"

      serviceAccountName: kube-dns-autoscaler

EOF

2、解析

-default-params中的引數

min:coredns最小數

max:coredns最打數

coresPerReplica:叢集CPU核心數

nodesPerReplica:叢集節點數

preventSinglePointFailure:設定為 時true，如果有多個節點，控制器確保至少有 2 個副本

includeUnschedulableNodes被設定為true，副本將刻度基於節點的總數。否則副本將僅根據可排程節點的數量進行擴充套件

注意:

- --target= 這裡與kube-dns.yaml中定義的name一致

如果報錯沒有ConfigMap則建立下面的資源

cat > dns-autoscaler-ConfigMap.yaml << EOF

kind: ConfigMap

apiVersion: v1

metadata:

  name: dns-autoscaler

  namespace: kube-system

data:

  linear: |-

    {

      "coresPerReplica": 16,

      "nodesPerReplica": 4,

      "min": 2,

      "preventSinglePointFailure": true

    }

EOF

3、建立

dns-horizontal-autoscaler_v1.9.yaml

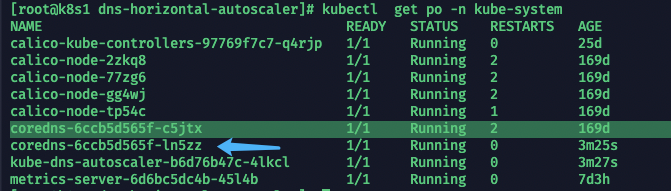

4、檢視

kubectl  get po -n kube-system
