jumpserver堡壘機(2.4)部署

jumpserver 2.4.0 部署

• jumpserver 官網： https://www.jumpserver.org/

Jumpserver介紹

JumpServer 是全球首款完全開源的堡壘機, 使用 GNU GPL v2.0 開源協議, 是符合 4A 的專業運維審計系統，使用 Python / Django 進行開發, 遵循 Web 2.0 規範, 配備了業界領先的 Web Terminal 解決方案, 互動介面美觀、使用者體驗好，支援管理 SSH、 Telnet、 RDP、 VNC 協議資產

Jumpserver 的優勢

• 開源: 零門檻，線上快速獲取和安裝
• 分散式: 輕鬆支援大規模併發訪問
• 無外掛: 僅需瀏覽器，極致的 Web Terminal 使用體驗
• 多雲支援: 一套系統，同時管理不同雲上面的資產
• 雲端儲存: 審計錄影雲端儲存，永不丟失
• 多租戶: 一套系統，多個子公司和部門同時使用； 多應用支援: 資料庫，Windows遠端應用，Kubernetes

系統硬體需求

• Centos7.6 系統
• 硬體配置 : 2個CPU核心, 4G 記憶體, 50G 硬碟（最低）
• 作業系統: Linux 發行版 x86_64

基礎環境部署

• yum 源配置

# 下載aliyun源

cp /etc/yum.repos.d/CentOS-Base.repo /etc/yum.repos.d/CentOS-Base.repo.bak

wget -O /etc/yum.repos.d/CentOS-Base.repo http://mirrors.aliyun.com/repo/Centos-7.repo

wget -O /etc/yum.repos.d/epel.repo http://mirrors.aliyun.com/repo/epel-7.repo

# 清理原來快取,重新快取

yum clean all

yum makecache

# 系統更新

yum -y update

• 系統設定

# 關閉防火牆

systemctl stop firewalld.service

systemctl disable firewalld.service

# 設定selinux

setenforce 0

sed -i 's/SELINUX=enforcing/SELINUX=disabled/' /etc/selinux/config

安裝 python3.6 mysql redis nginx元件

yum -y install python3.6 python36-devel mariadb mariadb-server.x86_64 redis nginx

啟動redis並配置

systemctl enable redis

systemctl start redis

# 配置redis  vim /etc/redis.conf

# bind 127.0.0.1   註釋，否則只有本機才能訪問

protected-mode no  # 保護模式修改為no

port 6379  # redis 預設埠

requirepass redis123  # 設定redis密碼

aof-rewrite-incremental-fsync yes

# 重啟redis

systemctl restart redis

# 進入redis

redis-cli -h 127.0.0.1 -p 6379

# 輸入info，提示驗證

auth redis123

# 再次輸入：info

# 通過 key * 檢視所有鍵

啟動mysql並授權

systemctl enable mariadb

systemctl start mariadb

# 設定mysql登入root密碼

mysqladmin -uroot -p password admin123  # 回車即可

# 登入mysql

mysql -uroot -padmin123

# 建立jumpserver庫

create database jumpserver default charset 'utf8' collate 'utf8_bin';

# 授權jumpserver使用者

grant all on jumpserver.* to 'jumpserver'@'127.0.0.1' identified by 'jumpserver123';

flush privileges;

Python 虛擬環境配置

cd /opt

python3.6 -m venv py3

source /opt/py3/bin/activate

以下操作均在Python虛擬環境

jumpserver 程式碼包下載並安裝依賴

# 進入opt目錄

cd /opt

# 獲取tar包

wget https://github.com/jumpserver/jumpserver/releases/download/v2.4.0/jumpserver-v2.4.0.tar.gz

# 解壓

tar xf jumpserver-v2.4.0.tar.gz

mv jumpserver-v2.4.0 jumpserver

# 安裝編譯環境依賴

cd /opt/jumpserver/requirements

yum install -y $(cat rpm_requirements.txt)

pip install wheel -i https://mirrors.aliyun.com/pypi/simple/

pip install --upgrade pip setuptools -i https://mirrors.aliyun.com/pypi/simple/

pip install -r requirements.txt -i https://mirrors.aliyun.com/pypi/simple/

# 如果報錯：找不到對應版本可用如何命令安裝報錯的包

pip install six --upgrade --ignore-installed six

• 修改配置檔案

cd /opt/jumpserver && cp config_example.yml config.yml && vi config.yml

# 生成key： cat /dev/urandom | tr -dc A-Za-z0-9 | head -c 50

SECRET_KEY: W5Ic3fMXNZ0p5RIy5DhJYJllppTfcfkW8Yuf94VBMfpcssbfu

# 生成token：cat /dev/urandom | tr -dc A-Za-z0-9 | head -c 16

BOOTSTRAP_TOKEN: zxffNymGjP79j6BN

# DEBUG 模式 開啟DEBUG後遇到錯誤時可以看到更多日誌

DEBUG: false

# 日誌級別

LOG_LEVEL: ERROR

# 瀏覽器Session過期時間，預設24小時, 也可以設定瀏覽器關閉則過期

SESSION_EXPIRE_AT_BROWSER_CLOSE: true

# 使用Mysql作為資料庫

DB_ENGINE: mysql

DB_HOST: 127.0.0.1

DB_PORT: 3306

DB_USER: jumpserver

DB_PASSWORD: jumpserver123

DB_NAME: jumpserver

# 執行時繫結埠

HTTP_BIND_HOST: 0.0.0.0

HTTP_LISTEN_PORT: 8080

WS_LISTEN_PORT: 8070

# Redis配置

REDIS_HOST: 127.0.0.1

REDIS_PORT: 6379

REDIS_PASSWORD: redis123

# Windows 登入跳過手動輸入密碼

WINDOWS_SKIP_ALL_MANUAL_PASSWORD: True

• 啟動jumpserver

# 注意必須在py3虛擬環境: source /opt/py3/bin/activate

cd /opt/jumpserver

./jms start -d

部署koko元件

# 下載tar包

cd /opt && wget https://github.com/jumpserver/koko/releases/download/v2.4.0/koko-v2.4.0-linux-amd64.tar.gz

# 解壓

tar -xf koko-v2.4.0-linux-amd64.tar.gz

mv koko-v2.4.0-linux-amd64 koko

# 修改屬組，屬主

chown -R root:root koko

# kubectl配置

cd koko && mv kubectl /usr/local/bin/

wget https://download.jumpserver.org/public/kubectl.tar.gz

tar -xf kubectl.tar.gz

chmod 755 kubectl

mv kubectl /usr/local/bin/rawkubectl

rm -rf kubectl.tar.gz

• 修改配置檔案

cd /opt/koko && cp config_example.yml config.yml && vi config.yml

# Jumpserver專案的url, api請求註冊會使用

CORE_HOST: http://127.0.0.1:8080

# 請和jumpserver 配置檔案中保持一致，註冊完成後可以刪除

BOOTSTRAP_TOKEN: zxffNymGjP79j6BN

# 設定日誌級別 [DEBUG, INFO, WARN, ERROR, FATAL, CRITICAL]

LOG_LEVEL: ERROR

# 會話共享使用的型別 [local, redis], 預設local

SHARE_ROOM_TYPE: redis

# Redis配置

REDIS_HOST: 127.0.0.1

REDIS_PORT: 6379

REDIS_PASSWORD: redis123

REDIS_DB_ROOM: 6

• 啟動 koko

cd /opt/koko && ./koko -d

部署Guacamole 元件

# 下載tar包

cd /opt && wget -O docker-guacamole-v2.4.0.tar.gz https://github.com/jumpserver/docker-guacamole/archive/master.tar.gz

# 建立對應目錄並和依賴包

mkdir /opt/docker-guacamole

tar -xf docker-guacamole-v2.4.0.tar.gz -C /opt/docker-guacamole --strip-components 1

rm -rf /opt/docker-guacamole-v2.4.0.tar.gz && cd /opt/docker-guacamole

wget http://download.jumpserver.org/public/guacamole-server-1.2.0.tar.gz

tar -xf guacamole-server-1.2.0.tar.gz

wget http://download.jumpserver.org/public/ssh-forward.tar.gz

tar -xf ssh-forward.tar.gz -C /bin/ &&  chmod +x /bin/ssh-forward

# 安裝依賴包

yum -y install cairo-devel libjpeg-turbo-devel libpng-devel libtool uuid-devel ffmpeg-devel freerdp-devel pango-devel libssh2-devel libtelnet-devel libvncserver-devel libwebsockets-devel pulseaudio-libs-devel openssl-devel libvorbis-devel libwebp-devel

# 安裝

cd /opt/docker-guacamole/guacamole-server-1.2.0

# 預編譯

./configure --with-init-dir=/etc/init.d

# 二進位制編譯及安裝

make  && make install

• 配置java環境

yum install -y java-1.8.0-openjdk

# 建立對應目錄

mkdir -p /config/guacamole /config/guacamole/extensions /config/guacamole/record /config/guacamole/drive && chown daemon:daemon /config/guacamole/record /config/guacamole/drive && cd /config

# 下載tomcat

wget http://mirrors.tuna.tsinghua.edu.cn/apache/tomcat/tomcat-9/v9.0.38/bin/apache-tomcat-9.0.38.tar.gz

# 解壓

tar -xf apache-tomcat-9.0.36.tar.gz

mv apache-tomcat-9.0.36 tomcat9

rm -rf /config/tomcat9/webapps/*

# 修改配置檔案

sed -i 's/Connector port="8080"/Connector port="8081"/g' /config/tomcat9/conf/server.xml && \

echo "java.util.logging.ConsoleHandler.encoding = UTF-8" >> /config/tomcat9/conf/logging.properties

# 其他設定

wget http://download.jumpserver.org/release/v2.4.0/guacamole-client-v2.4.0.tar.gz && \

tar -xf guacamole-client-v2.4.0.tar.gz && \

rm -rf guacamole-client-v2.4.0.tar.gz && \

cp guacamole-client-v2.4.0/guacamole-*.war /config/tomcat9/webapps/ROOT.war && \

cp guacamole-client-v2.4.0/guacamole-*.jar /config/guacamole/extensions/ && \

mv /opt/docker-guacamole/guacamole.properties /config/guacamole/ && \

rm -rf /opt/docker-guacamole

• 設定Guacamole 環境

export JUMPSERVER_SERVER=http://127.0.0.1:8080

echo "export JUMPSERVER_SERVER=http://127.0.0.1:8080" >> ~/.bashrc

export BOOTSTRAP_TOKEN=zxffNymGjP79j6BN

echo "export BOOTSTRAP_TOKEN=zxffNymGjP79j6BN" >> ~/.bashrc

export JUMPSERVER_KEY_DIR=/config/guacamole/data/keys

echo "export JUMPSERVER_KEY_DIR=/config/guacamole/data/keys" >> ~/.bashrc

export GUACAMOLE_HOME=/config/guacamole

echo "export GUACAMOLE_HOME=/config/guacamole" >> ~/.bashrc

export GUACAMOLE_LOG_LEVEL=ERROR

echo "export GUACAMOLE_LOG_LEVEL=ERROR" >> ~/.bashrc

export JUMPSERVER_ENABLE_DRIVE=true

echo "export JUMPSERVER_ENABLE_DRIVE=true" >> ~/.bashrc

# 環境變數說明

JUMPSERVER_SERVER 指 core 訪問地址

BOOTSTRAP_TOKEN 為 Jumpserver/config.yml 裡面的 BOOTSTRAP_TOKEN 值

JUMPSERVER_KEY_DIR 認證成功後 key 存放目錄

GUACAMOLE_HOME 為 guacamole.properties 配置檔案所在目錄

GUACAMOLE_LOG_LEVEL 為生成日誌的等級

JUMPSERVER_ENABLE_DRIVE 為 rdp 協議掛載共享盤

# 啟動

/etc/init.d/guacd start

sh /config/tomcat9/bin/startup.sh

下載lina元件

cd /opt

# 下載tar包

wget https://github.com/jumpserver/lina/releases/download/v2.4.0/lina-v2.4.0.tar.gz

# 解壓

tar -xf lina-v2.4.0.tar.gz

mv lina-v2.4.0 lina

# 修改屬組屬主

chown -R nginx:nginx lina

下載luna元件

cd /opt

# 下載tar包

wget https://github.com/jumpserver/luna/releases/download/v2.4.0/luna-v2.4.0.tar.gz

# 解壓

tar -xf luna-v2.4.0.tar.gz

mv luna-v2.4.0 luna

# 修改屬組屬主

chown -R nginx:nginx luna

配置nginx整合各元件

• vim /etc/nginx/nginx.conf

user nginx;

worker_processes auto;

error_log /var/log/nginx/error.log;

pid /run/nginx.pid;

include /usr/share/nginx/modules/*.conf;

events {

    worker_connections 65535;

}

http {

    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '

                      '$status $body_bytes_sent "$http_referer" '

                      '"$http_user_agent" "$http_x_forwarded_for"';

    access_log  /var/log/nginx/access.log  main;

    sendfile            on;

    tcp_nopush          on;

    tcp_nodelay         on;

    keepalive_timeout   120;

    types_hash_max_size 2048;

    include             /etc/nginx/mime.types;

    default_type        application/octet-stream;

    include /etc/nginx/conf.d/*.conf;

}

• vim /etc/nginx/conf.d/jumpserver.conf

server {

    listen 80;

    client_max_body_size 100m;  # 錄影及檔案上傳大小限制

    location /ui/ {

        try_files $uri / /index.html;

        alias /opt/lina/;

    }

    location /luna/ {

        try_files $uri / /index.html;

        alias /opt/luna/;  # luna 路徑, 如果修改安裝目錄, 此處需要修改

    }

    location /media/ {

        add_header Content-Encoding gzip;

        root /opt/jumpserver/data/;  # 錄影位置, 如果修改安裝目錄, 此處需要修改

    }

    location /static/ {

        root /opt/jumpserver/data/;  # 靜態資源, 如果修改安裝目錄, 此處需要修改

    }

    location /koko/ {

        proxy_pass       http://localhost:5000;

        proxy_buffering off;

        proxy_http_version 1.1;

        proxy_set_header Upgrade $http_upgrade;

        proxy_set_header Connection "upgrade";

        proxy_set_header X-Real-IP $remote_addr;

        proxy_set_header Host $host;

        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;

        access_log off;

    }

    location /guacamole/ {

        proxy_pass       http://localhost:8081/;

        proxy_buffering off;

        proxy_http_version 1.1;

        proxy_set_header Upgrade $http_upgrade;

        proxy_set_header Connection $http_connection;

        proxy_set_header X-Real-IP $remote_addr;

        proxy_set_header Host $host;

        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;

        access_log off;

    }

    location /ws/ {

        proxy_set_header X-Real-IP $remote_addr;

        proxy_set_header Host $host;

        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;

        proxy_pass http://localhost:8070;

        proxy_http_version 1.1;

        proxy_buffering off;

        proxy_set_header Upgrade $http_upgrade;

        proxy_set_header Connection "upgrade";

    }

    location /api/ {

        proxy_pass http://localhost:8080;

        proxy_set_header X-Real-IP $remote_addr;

        proxy_set_header Host $host;

        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;

    }

    location /core/ {

        proxy_pass http://localhost:8080;

        proxy_set_header X-Real-IP $remote_addr;

        proxy_set_header Host $host;

        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;

    }

    location / {

        rewrite ^/(.*)$ /ui/$1 last;

    }

}

啟動nginx

systemctl start nginx

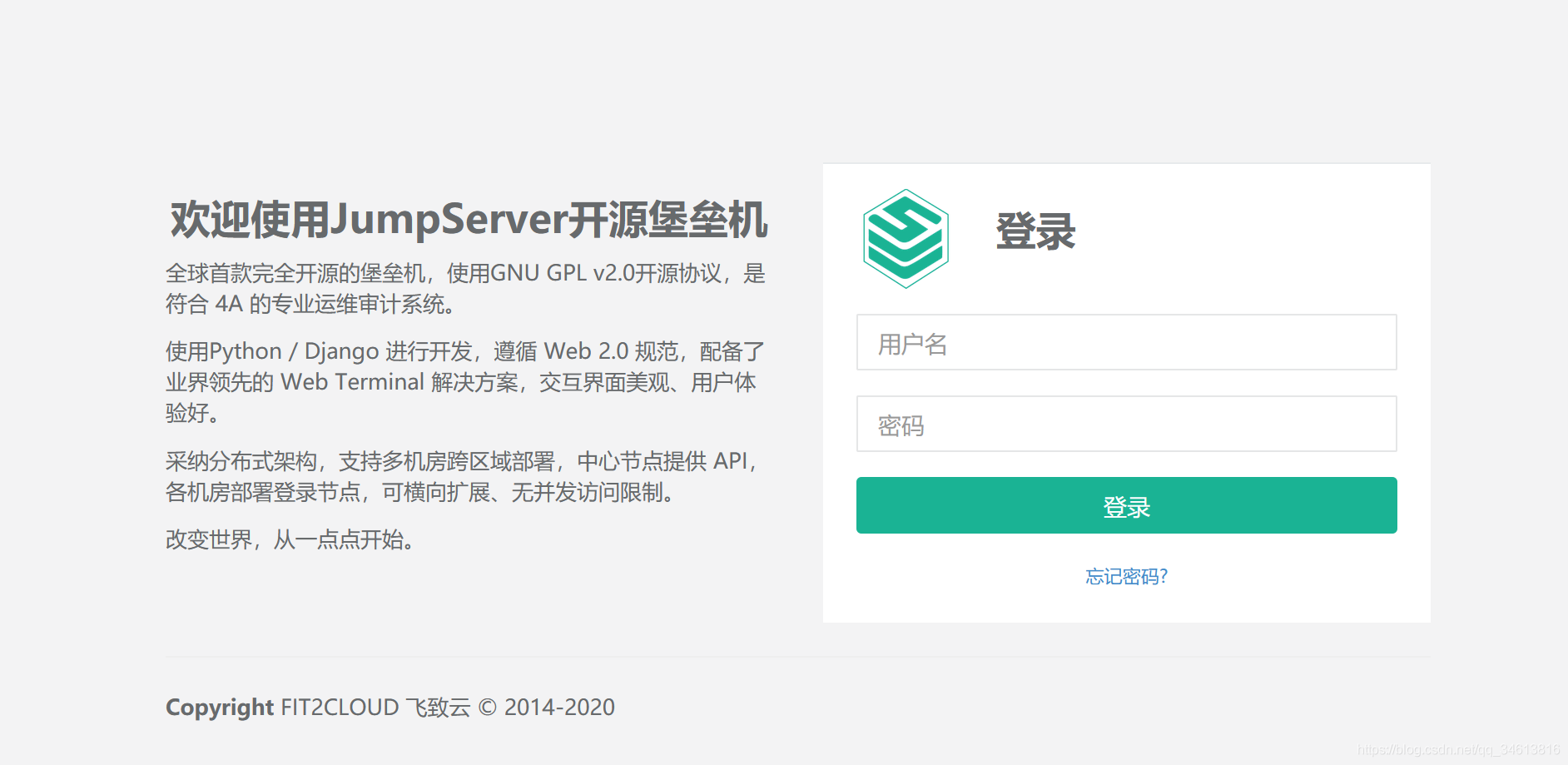

瀏覽器訪問：http://ip

服務全部啟動後, 訪問 JumpServer 伺服器 nginx 代理的 80 埠, 不要通過8080埠訪問

預設賬號: admin 密碼: admin

瀏覽器登入報錯：Server error occur, contact administrator

解決辦法： 清理redis；重啟redis，重啟jms，重新登入即可
