Longhorn，企業級雲原生容器分散式儲存 - 監控(Prometheus+AlertManager+Grafana)

內容來源於官方 Longhorn 1.1.2 英文技術手冊。

系列

設定 `Prometheus` 和 `Grafana` 來監控 `Longhorn`

概覽

Longhorn 在 REST 端點 http://LONGHORN_MANAGER_IP:PORT/metrics 上以 Prometheus 文字格式原生公開指標。

有關所有可用指標的說明，請參閱 Longhorn's metrics。

您可以使用 Prometheus, Graphite, Telegraf 等任何收集工具來抓取這些指標，然後通過 Grafana 等工具將收集到的資料視覺化。

本文件提供了一個監控 Longhorn 的示例設定。監控系統使用 Prometheus 收集資料和警報，使用 Grafana 將收集的資料視覺化/儀表板(visualizing/dashboarding)。高階概述來看，監控系統包含：

Prometheus 伺服器從 Longhorn 指標端點抓取和儲存時間序列資料。Prometheus 還負責根據配置的規則和收集的資料生成警報。Prometheus 伺服器然後將警報傳送到 Alertmanager。
AlertManager 然後管理這些警報(alerts)，包括靜默(silencing)、抑制(inhibition)、聚合(aggregation)和通過電子郵件、呼叫通知系統和聊天平臺等方法傳送通知。

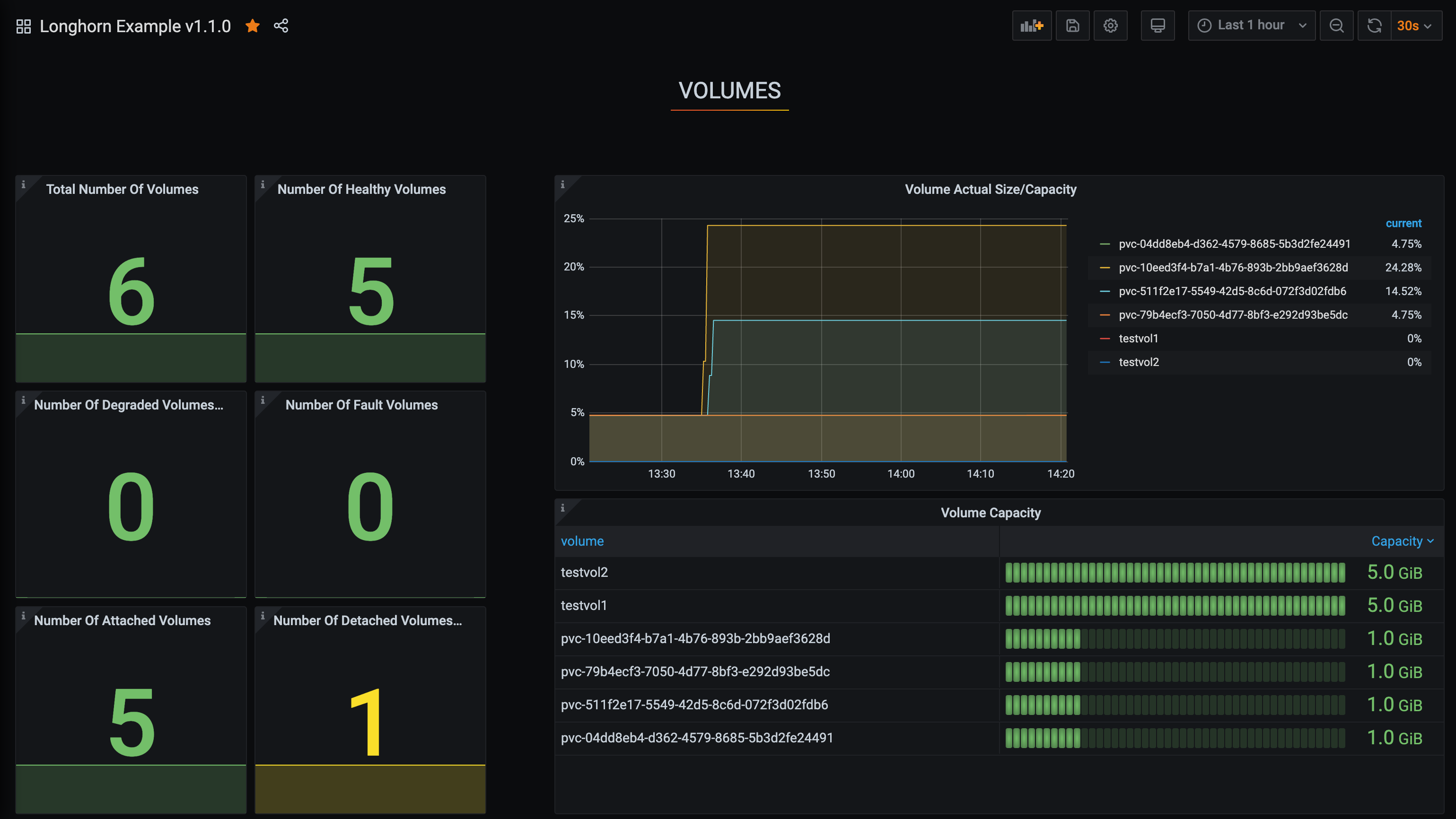

Grafana 向 Prometheus 伺服器查詢資料並繪製儀表板進行視覺化。

下圖描述了監控系統的詳細架構。

上圖中有 2 個未提及的元件：

Longhorn 後端服務是指向 Longhorn manager pods 集的服務。Longhorn 的指標在端點 http://LONGHORN_MANAGER_IP:PORT/metrics 的 Longhorn manager pods 中公開。
Prometheus operator 使在 Kubernetes 上執行 Prometheus 變得非常容易。operator 監視 3 個自定義資源：ServiceMonitor、Prometheus 和 AlertManager。當用戶建立這些自定義資源時，Prometheus Operator 會使用使用者指定的配置部署和管理 Prometheus server, AlerManager。

安裝

按照此說明將所有元件安裝到 monitoring 名稱空間中。要將它們安裝到不同的名稱空間中，請更改欄位 namespace: OTHER_NAMESPACE

建立 `monitoring` 名稱空間

apiVersion: v1

kind: Namespace

metadata:

  name: monitoring

安裝 `Prometheus Operator`

部署 Prometheus Operator 及其所需的 ClusterRole、ClusterRoleBinding 和 Service Account。

apiVersion: rbac.authorization.k8s.io/v1

kind: ClusterRoleBinding

metadata:

  labels:

    app.kubernetes.io/component: controller

    app.kubernetes.io/name: prometheus-operator

    app.kubernetes.io/version: v0.38.3

  name: prometheus-operator

  namespace: monitoring

roleRef:

  apiGroup: rbac.authorization.k8s.io

  kind: ClusterRole

  name: prometheus-operator

subjects:

- kind: ServiceAccount

  name: prometheus-operator

  namespace: monitoring

---

apiVersion: rbac.authorization.k8s.io/v1

kind: ClusterRole

metadata:

  labels:

    app.kubernetes.io/component: controller

    app.kubernetes.io/name: prometheus-operator

    app.kubernetes.io/version: v0.38.3

  name: prometheus-operator

  namespace: monitoring

rules:

- apiGroups:

  - apiextensions.k8s.io

  resources:

  - customresourcedefinitions

  verbs:

  - create

- apiGroups:

  - apiextensions.k8s.io

  resourceNames:

  - alertmanagers.monitoring.coreos.com

  - podmonitors.monitoring.coreos.com

  - prometheuses.monitoring.coreos.com

  - prometheusrules.monitoring.coreos.com

  - servicemonitors.monitoring.coreos.com

  - thanosrulers.monitoring.coreos.com

  resources:

  - customresourcedefinitions

  verbs:

  - get

  - update

- apiGroups:

  - monitoring.coreos.com

  resources:

  - alertmanagers

  - alertmanagers/finalizers

  - prometheuses

  - prometheuses/finalizers

  - thanosrulers

  - thanosrulers/finalizers

  - servicemonitors

  - podmonitors

  - prometheusrules

  verbs:

  - '*'

- apiGroups:

  - apps

  resources:

  - statefulsets

  verbs:

  - '*'

- apiGroups:

  - ""

  resources:

  - configmaps

  - secrets

  verbs:

  - '*'

- apiGroups:

  - ""

  resources:

  - pods

  verbs:

  - list

  - delete

- apiGroups:

  - ""

  resources:

  - services

  - services/finalizers

  - endpoints

  verbs:

  - get

  - create

  - update

  - delete

- apiGroups:

  - ""

  resources:

  - nodes

  verbs:

  - list

  - watch

- apiGroups:

  - ""

  resources:

  - namespaces

  verbs:

  - get

  - list

  - watch

---

apiVersion: apps/v1

kind: Deployment

metadata:

  labels:

    app.kubernetes.io/component: controller

    app.kubernetes.io/name: prometheus-operator

    app.kubernetes.io/version: v0.38.3

  name: prometheus-operator

  namespace: monitoring

spec:

  replicas: 1

  selector:

    matchLabels:

      app.kubernetes.io/component: controller

      app.kubernetes.io/name: prometheus-operator

  template:

    metadata:

      labels:

        app.kubernetes.io/component: controller

        app.kubernetes.io/name: prometheus-operator

        app.kubernetes.io/version: v0.38.3

    spec:

      containers:

      - args:

        - --kubelet-service=kube-system/kubelet

        - --logtostderr=true

        - --config-reloader-image=jimmidyson/configmap-reload:v0.3.0

        - --prometheus-config-reloader=quay.io/prometheus-operator/prometheus-config-reloader:v0.38.3

        image: quay.io/prometheus-operator/prometheus-operator:v0.38.3

        name: prometheus-operator

        ports:

        - containerPort: 8080

          name: http

        resources:

          limits:

            cpu: 200m

            memory: 200Mi

          requests:

            cpu: 100m

            memory: 100Mi

        securityContext:

          allowPrivilegeEscalation: false

      nodeSelector:

        beta.kubernetes.io/os: linux

      securityContext:

        runAsNonRoot: true

        runAsUser: 65534

      serviceAccountName: prometheus-operator

---

apiVersion: v1

kind: ServiceAccount

metadata:

  labels:

    app.kubernetes.io/component: controller

    app.kubernetes.io/name: prometheus-operator

    app.kubernetes.io/version: v0.38.3

  name: prometheus-operator

  namespace: monitoring

---

apiVersion: v1

kind: Service

metadata:

  labels:

    app.kubernetes.io/component: controller

    app.kubernetes.io/name: prometheus-operator

    app.kubernetes.io/version: v0.38.3

  name: prometheus-operator

  namespace: monitoring

spec:

  clusterIP: None

  ports:

  - name: http

    port: 8080

    targetPort: http

  selector:

    app.kubernetes.io/component: controller

    app.kubernetes.io/name: prometheus-operator

安裝 `Longhorn ServiceMonitor`

Longhorn ServiceMonitor 有一個標籤選擇器 app: longhorn-manager 來選擇 Longhorn 後端服務。

稍後，Prometheus CRD 可以包含 Longhorn ServiceMonitor，以便 Prometheus server 可以發現所有 Longhorn manager pods 及其端點。

apiVersion: monitoring.coreos.com/v1

kind: ServiceMonitor

metadata:

  name: longhorn-prometheus-servicemonitor

  namespace: monitoring

  labels:

    name: longhorn-prometheus-servicemonitor

spec:

  selector:

    matchLabels:

      app: longhorn-manager

  namespaceSelector:

    matchNames:

    - longhorn-system

  endpoints:

  - port: manager

安裝和配置 `Prometheus AlertManager`

使用 3 個例項建立一個高可用的 Alertmanager 部署：

apiVersion: monitoring.coreos.com/v1

kind: Alertmanager

metadata:

  name: longhorn

  namespace: monitoring

spec:

  replicas: 3

除非提供有效配置，否則 Alertmanager 例項將無法啟動。有關 Alertmanager 配置的更多說明，請參見此處。下面的程式碼給出了一個示例配置：

global:

  resolve_timeout: 5m

route:

  group_by: [alertname]

  receiver: email_and_slack

receivers:

- name: email_and_slack

  email_configs:

  - to: <the email address to send notifications to>

    from: <the sender address>

    smarthost: <the SMTP host through which emails are sent>

    # SMTP authentication information.

    auth_username: <the username>

    auth_identity: <the identity>

    auth_password: <the password>

    headers:

      subject: 'Longhorn-Alert'

    text: |-

      {{ range .Alerts }}

        *Alert:* {{ .Annotations.summary }} - `{{ .Labels.severity }}`

        *Description:* {{ .Annotations.description }}

        *Details:*

        {{ range .Labels.SortedPairs }} • *{{ .Name }}:* `{{ .Value }}`

        {{ end }}

      {{ end }}

  slack_configs:

  - api_url: <the Slack webhook URL>

    channel: <the channel or user to send notifications to>

    text: |-

      {{ range .Alerts }}

        *Alert:* {{ .Annotations.summary }} - `{{ .Labels.severity }}`

        *Description:* {{ .Annotations.description }}

        *Details:*

        {{ range .Labels.SortedPairs }} • *{{ .Name }}:* `{{ .Value }}`

        {{ end }}

      {{ end }}

將上述 Alertmanager 配置儲存在名為 alertmanager.yaml 的檔案中，並使用 kubectl 從中建立一個 secret。

Alertmanager 例項要求 secret 資源命名遵循 alertmanager-{ALERTMANAGER_NAME} 格式。

在上一步中，Alertmanager 的名稱是 longhorn，所以 secret 名稱必須是 alertmanager-longhorn

$ kubectl create secret generic alertmanager-longhorn --from-file=alertmanager.yaml -n monitoring

為了能夠檢視 Alertmanager 的 Web UI，請通過 Service 公開它。一個簡單的方法是使用 NodePort 型別的 Service ：
```
apiVersion: v1

kind: Service

metadata:

  name: alertmanager-longhorn

  namespace: monitoring

spec:

  type: NodePort

  ports:

  - name: web

    nodePort: 30903

    port: 9093

    protocol: TCP

    targetPort: web

  selector:

    alertmanager: longhorn
```
建立上述服務後，您可以通過節點的 IP 和埠 30903 訪問 Alertmanager 的 web UI。

使用上面的 NodePort 服務進行快速驗證，因為它不通過 TLS 連線進行通訊。您可能希望將服務型別更改為 ClusterIP，並設定一個 Ingress-controller 以通過 TLS 連線公開 Alertmanager 的 web UI。

安裝和配置 `Prometheus server`

建立定義警報條件的 PrometheusRule 自定義資源。

apiVersion: monitoring.coreos.com/v1

kind: PrometheusRule

metadata:

  labels:

    prometheus: longhorn

    role: alert-rules

  name: prometheus-longhorn-rules

  namespace: monitoring

spec:

  groups:

  - name: longhorn.rules

    rules:

    - alert: LonghornVolumeUsageCritical

      annotations:

        description: Longhorn volume {{$labels.volume}} on {{$labels.node}} is at {{$value}}% used for

          more than 5 minutes.

        summary: Longhorn volume capacity is over 90% used.

      expr: 100 * (longhorn_volume_usage_bytes / longhorn_volume_capacity_bytes) > 90

      for: 5m

      labels:

        issue: Longhorn volume {{$labels.volume}} usage on {{$labels.node}} is critical.

        severity: critical

有關如何定義警報規則的更多資訊，請參見https://prometheus.io/docs/prometheus/latest/configuration/alerting_rules/#alerting-rules

如果激活了 RBAC 授權，則為 Prometheus Pod 建立 ClusterRole 和 ClusterRoleBinding：

apiVersion: v1

kind: ServiceAccount

metadata:

  name: prometheus

  namespace: monitoring

apiVersion: rbac.authorization.k8s.io/v1beta1

kind: ClusterRole

metadata:

  name: prometheus

  namespace: monitoring

rules:

- apiGroups: [""]

  resources:

  - nodes

  - services

  - endpoints

  - pods

  verbs: ["get", "list", "watch"]

- apiGroups: [""]

  resources:

  - configmaps

  verbs: ["get"]

- nonResourceURLs: ["/metrics"]

  verbs: ["get"]

apiVersion: rbac.authorization.k8s.io/v1beta1

kind: ClusterRoleBinding

metadata:

  name: prometheus

roleRef:

  apiGroup: rbac.authorization.k8s.io

  kind: ClusterRole

  name: prometheus

subjects:

- kind: ServiceAccount

  name: prometheus

  namespace: monitoring

建立 Prometheus 自定義資源。請注意，我們在 spec 中選擇了 Longhorn 服務監視器(service monitor)和 Longhorn 規則。

apiVersion: monitoring.coreos.com/v1

kind: Prometheus

metadata:

  name: prometheus

  namespace: monitoring

spec:

  replicas: 2

  serviceAccountName: prometheus

  alerting:

    alertmanagers:

      - namespace: monitoring

        name: alertmanager-longhorn

        port: web

  serviceMonitorSelector:

    matchLabels:

      name: longhorn-prometheus-servicemonitor

  ruleSelector:

    matchLabels:

      prometheus: longhorn

      role: alert-rules

為了能夠檢視 Prometheus 伺服器的 web UI，請通過 Service 公開它。一個簡單的方法是使用 NodePort 型別的 Service：
```
apiVersion: v1

kind: Service

metadata:

  name: prometheus

  namespace: monitoring

spec:

  type: NodePort

  ports:

  - name: web

    nodePort: 30904

    port: 9090

    protocol: TCP

    targetPort: web

  selector:

    prometheus: prometheus
```
建立上述服務後，您可以通過節點的 IP 和埠 30904 訪問 Prometheus server 的 web UI。

此時，您應該能夠在 Prometheus server UI 的目標和規則部分看到所有 Longhorn manager targets 以及 Longhorn rules。

使用上述 NodePort service 進行快速驗證，因為它不通過 TLS 連線進行通訊。您可能希望將服務型別更改為 ClusterIP，並設定一個 Ingress-controller 以通過 TLS 連線公開 Prometheus server 的 web UI。

安裝 Grafana

建立 Grafana 資料來源配置：

apiVersion: v1

kind: ConfigMap

metadata:

  name: grafana-datasources

  namespace: monitoring

data:

  prometheus.yaml: |-

    {

        "apiVersion": 1,

        "datasources": [

            {

               "access":"proxy",

                "editable": true,

                "name": "prometheus",

                "orgId": 1,

                "type": "prometheus",

                "url": "http://prometheus:9090",

                "version": 1

            }

        ]

    }

建立 Grafana 部署：

apiVersion: apps/v1

kind: Deployment

metadata:

  name: grafana

  namespace: monitoring

  labels:

    app: grafana

spec:

  replicas: 1

  selector:

    matchLabels:

      app: grafana

  template:

    metadata:

      name: grafana

      labels:

        app: grafana

    spec:

      containers:

      - name: grafana

        image: grafana/grafana:7.1.5

        ports:

        - name: grafana

          containerPort: 3000

        resources:

          limits:

            memory: "500Mi"

            cpu: "300m"

          requests:

            memory: "500Mi"

            cpu: "200m"

        volumeMounts:

          - mountPath: /var/lib/grafana

            name: grafana-storage

          - mountPath: /etc/grafana/provisioning/datasources

            name: grafana-datasources

            readOnly: false

      volumes:

        - name: grafana-storage

          emptyDir: {}

        - name: grafana-datasources

          configMap:

              defaultMode: 420

              name: grafana-datasources

在 NodePort 32000 上暴露 Grafana：

apiVersion: v1

kind: Service

metadata:

  name: grafana

  namespace: monitoring

spec:

  selector:

    app: grafana

  type: NodePort

  ports:

    - port: 3000

      targetPort: 3000

      nodePort: 32000

使用上述 NodePort 服務進行快速驗證，因為它不通過 TLS 連線進行通訊。您可能希望將服務型別更改為 ClusterIP，並設定一個 Ingress-controller 以通過 TLS 連線公開 Grafana。

使用埠 32000 上的任何節點 IP 訪問 Grafana 儀表板。預設憑據為：
```
User: admin

Pass: admin
```
安裝 Longhorn dashboard

進入 Grafana 後，匯入預置的面板：https://grafana.com/grafana/dashboards/13032

有關如何匯入 Grafana dashboard 的說明，請參閱 https://grafana.com/docs/grafana/latest/reference/export_import/

成功後，您應該會看到以下 dashboard：

將 `Longhorn` 指標整合到 `Rancher` 監控系統中

關於 `Rancher` 監控系統

使用 Rancher，您可以通過與領先的開源監控解決方案 Prometheus 的整合來監控叢集節點、Kubernetes 元件和軟體部署的狀態和程序。

有關如何部署/啟用 Rancher 監控系統的說明，請參見https://rancher.com/docs/rancher/v2.x/en/monitoring-alerting/

將 `Longhorn` 指標新增到 `Rancher` 監控系統

如果您使用 Rancher 來管理您的 Kubernetes 並且已經啟用 Rancher 監控，您可以通過簡單地部署以下 ServiceMonitor 將 Longhorn 指標新增到 Rancher 監控中：

apiVersion: monitoring.coreos.com/v1

kind: ServiceMonitor

metadata:

  name: longhorn-prometheus-servicemonitor

  namespace: longhorn-system

  labels:

    name: longhorn-prometheus-servicemonitor

spec:

  selector:

    matchLabels:

      app: longhorn-manager

  namespaceSelector:

    matchNames:

    - longhorn-system

  endpoints:

  - port: manager

建立 ServiceMonitor 後，Rancher 將自動發現所有 Longhorn 指標。

然後，您可以設定 Grafana 儀表板以進行視覺化。

`Longhorn` 監控指標

Volume(卷)

指標名	說明	示例
longhorn_volume_actual_size_bytes	對應節點上卷的每個副本使用的實際空間	longhorn_volume_actual_size_bytes{node="worker-2",volume="testvol"} 1.1917312e+08
longhorn_volume_capacity_bytes	此卷的配置大小（以 byte 為單位）	longhorn_volume_capacity_bytes{node="worker-2",volume="testvol"} 6.442450944e+09
longhorn_volume_state	本卷狀態： 1=creating, 2=attached, 3=Detached, 4=Attaching, 5=Detaching, 6=Deleting	longhorn_volume_state{node="worker-2",volume="testvol"} 2
longhorn_volume_robustness	本卷的健壯性: 0=unknown, 1=healthy, 2=degraded, 3=faulted	longhorn_volume_robustness{node="worker-2",volume="testvol"} 1

Node(節點)

指標名	說明	示例
longhorn_node_status	該節點的狀態： 1=true, 0=false	longhorn_node_status{condition="ready",condition_reason="",node="worker-2"} 1
longhorn_node_count_total	Longhorn 系統中的節點總數	longhorn_node_count_total 4
longhorn_node_cpu_capacity_millicpu	此節點上的最大可分配 CPU	longhorn_node_cpu_capacity_millicpu{node="worker-2"} 2000
longhorn_node_cpu_usage_millicpu	此節點上的 CPU 使用率	longhorn_node_cpu_usage_millicpu{node="pworker-2"} 186
longhorn_node_memory_capacity_bytes	此節點上的最大可分配記憶體	longhorn_node_memory_capacity_bytes{node="worker-2"} 4.031229952e+09
longhorn_node_memory_usage_bytes	此節點上的記憶體使用情況	longhorn_node_memory_usage_bytes{node="worker-2"} 1.833582592e+09
longhorn_node_storage_capacity_bytes	本節點的儲存容量	longhorn_node_storage_capacity_bytes{node="worker-3"} 8.3987283968e+10
longhorn_node_storage_usage_bytes	該節點的已用儲存	longhorn_node_storage_usage_bytes{node="worker-3"} 9.060941824e+09
longhorn_node_storage_reservation_bytes	此節點上為其他應用程式和系統保留的儲存空間	longhorn_node_storage_reservation_bytes{node="worker-3"} 2.519618519e+10

Disk(磁碟)

指標名	說明	示例
longhorn_disk_capacity_bytes	此磁碟的儲存容量	longhorn_disk_capacity_bytes{disk="default-disk-8b28ee3134628183",node="worker-3"} 8.3987283968e+10
longhorn_disk_usage_bytes	此磁碟的已用儲存空間	longhorn_disk_usage_bytes{disk="default-disk-8b28ee3134628183",node="worker-3"} 9.060941824e+09
longhorn_disk_reservation_bytes	此磁碟上為其他應用程式和系統保留的儲存空間	longhorn_disk_reservation_bytes{disk="default-disk-8b28ee3134628183",node="worker-3"} 2.519618519e+10

Instance Manager(例項管理器)

指標名	說明	示例
longhorn_instance_manager_cpu_usage_millicpu	這個 longhorn 例項管理器的 CPU 使用率	longhorn_instance_manager_cpu_usage_millicpu{instance_manager="instance-manager-e-2189ed13",instance_manager_type="engine",node="worker-2"} 80
longhorn_instance_manager_cpu_requests_millicpu	在這個 Longhorn 例項管理器的 kubernetes 中請求的 CPU 資源	longhorn_instance_manager_cpu_requests_millicpu{instance_manager="instance-manager-e-2189ed13",instance_manager_type="engine",node="worker-2"} 250
longhorn_instance_manager_memory_usage_bytes	這個 longhorn 例項管理器的記憶體使用情況	longhorn_instance_manager_memory_usage_bytes{instance_manager="instance-manager-e-2189ed13",instance_manager_type="engine",node="worker-2"} 2.4072192e+07
longhorn_instance_manager_memory_requests_bytes	這個 longhorn 例項管理器在 Kubernetes 中請求的記憶體	longhorn_instance_manager_memory_requests_bytes{instance_manager="instance-manager-e-2189ed13",instance_manager_type="engine",node="worker-2"} 0

Manager(管理器)

指標名	說明	示例
longhorn_manager_cpu_usage_millicpu	這個 Longhorn Manager 的 CPU 使用率	longhorn_manager_cpu_usage_millicpu{manager="longhorn-manager-5rx2n",node="worker-2"} 27
longhorn_manager_memory_usage_bytes	這個 Longhorn Manager 的記憶體使用情況	longhorn_manager_memory_usage_bytes{manager="longhorn-manager-5rx2n",node="worker-2"} 2.6144768e+07

支援 `Kubelet Volume` 指標

關於 `Kubelet Volume` 指標

Kubelet 公開了以下指標：

kubelet_volume_stats_capacity_bytes
kubelet_volume_stats_available_bytes
kubelet_volume_stats_used_bytes
kubelet_volume_stats_inodes
kubelet_volume_stats_inodes_free
kubelet_volume_stats_inodes_used

這些指標衡量與 Longhorn 塊裝置內的 PVC 檔案系統相關的資訊。

它們與 longhorn_volume_* 指標不同，後者測量特定於 Longhorn 塊裝置(block device)的資訊。

您可以設定一個監控系統來抓取 Kubelet 指標端點以獲取 PVC 的狀態並設定異常事件的警報，例如 PVC 即將耗盡儲存空間。

一個流行的監控設定是 prometheus-operator/kube-prometheus-stack,，它抓取 kubelet_volume_stats_* 指標併為它們提供儀表板和警報規則。

Longhorn CSI 外掛支援

在 v1.1.0 中，Longhorn CSI 外掛根據 CSI spec 支援 NodeGetVolumeStats RPC。

這允許 kubelet 查詢 Longhorn CSI 外掛以獲取 PVC 的狀態。

然後 kubelet 在 kubelet_volume_stats_* 指標中公開該資訊。

`Longhorn` 警報規則示例

我們在下面提供了幾個示例 Longhorn 警報規則供您參考。請參閱此處獲取所有可用 Longhorn 指標的列表並構建您自己的警報規則。

apiVersion: monitoring.coreos.com/v1

kind: PrometheusRule

metadata:

  labels:

    prometheus: longhorn

    role: alert-rules

  name: prometheus-longhorn-rules

  namespace: monitoring

spec:

  groups:

  - name: longhorn.rules

    rules:

    - alert: LonghornVolumeActualSpaceUsedWarning

      annotations:

        description: The actual space used by Longhorn volume {{$labels.volume}} on {{$labels.node}} is at {{$value}}% capacity for

          more than 5 minutes.

        summary: The actual used space of Longhorn volume is over 90% of the capacity.

      expr: (longhorn_volume_actual_size_bytes / longhorn_volume_capacity_bytes) * 100 > 90

      for: 5m

      labels:

        issue: The actual used space of Longhorn volume {{$labels.volume}} on {{$labels.node}} is high.

        severity: warning

    - alert: LonghornVolumeStatusCritical

      annotations:

        description: Longhorn volume {{$labels.volume}} on {{$labels.node}} is Fault for

          more than 2 minutes.

        summary: Longhorn volume {{$labels.volume}} is Fault

      expr: longhorn_volume_robustness == 3

      for: 5m

      labels:

        issue: Longhorn volume {{$labels.volume}} is Fault.

        severity: critical

    - alert: LonghornVolumeStatusWarning

      annotations:

        description: Longhorn volume {{$labels.volume}} on {{$labels.node}} is Degraded for

          more than 5 minutes.

        summary: Longhorn volume {{$labels.volume}} is Degraded

      expr: longhorn_volume_robustness == 2

      for: 5m

      labels:

        issue: Longhorn volume {{$labels.volume}} is Degraded.

        severity: warning

    - alert: LonghornNodeStorageWarning

      annotations:

        description: The used storage of node {{$labels.node}} is at {{$value}}% capacity for

          more than 5 minutes.

        summary:  The used storage of node is over 70% of the capacity.

      expr: (longhorn_node_storage_usage_bytes / longhorn_node_storage_capacity_bytes) * 100 > 70

      for: 5m

      labels:

        issue: The used storage of node {{$labels.node}} is high.

        severity: warning

    - alert: LonghornDiskStorageWarning

      annotations:

        description: The used storage of disk {{$labels.disk}} on node {{$labels.node}} is at {{$value}}% capacity for

          more than 5 minutes.

        summary:  The used storage of disk is over 70% of the capacity.

      expr: (longhorn_disk_usage_bytes / longhorn_disk_capacity_bytes) * 100 > 70

      for: 5m

      labels:

        issue: The used storage of disk {{$labels.disk}} on node {{$labels.node}} is high.

        severity: warning

    - alert: LonghornNodeDown

      annotations:

        description: There are {{$value}} Longhorn nodes which have been offline for more than 5 minutes.

        summary: Longhorn nodes is offline

      expr: longhorn_node_total - (count(longhorn_node_status{condition="ready"}==1) OR on() vector(0))

      for: 5m

      labels:

        issue: There are {{$value}} Longhorn nodes are offline

        severity: critical

    - alert: LonghornIntanceManagerCPUUsageWarning

      annotations:

        description: Longhorn instance manager {{$labels.instance_manager}} on {{$labels.node}} has CPU Usage / CPU request is {{$value}}% for

          more than 5 minutes.

        summary: Longhorn instance manager {{$labels.instance_manager}} on {{$labels.node}} has CPU Usage / CPU request is over 300%.

      expr: (longhorn_instance_manager_cpu_usage_millicpu/longhorn_instance_manager_cpu_requests_millicpu) * 100 > 300

      for: 5m

      labels:

        issue: Longhorn instance manager {{$labels.instance_manager}} on {{$labels.node}} consumes 3 times the CPU request.

        severity: warning

    - alert: LonghornNodeCPUUsageWarning

      annotations:

        description: Longhorn node {{$labels.node}} has CPU Usage / CPU capacity is {{$value}}% for

          more than 5 minutes.

        summary: Longhorn node {{$labels.node}} experiences high CPU pressure for more than 5m.

      expr: (longhorn_node_cpu_usage_millicpu / longhorn_node_cpu_capacity_millicpu) * 100 > 90

      for: 5m

      labels:

        issue: Longhorn node {{$labels.node}} experiences high CPU pressure.

        severity: warning

在https://prometheus.io/docs/prometheus/latest/configuration/alerting_rules/#alerting-rules

檢視有關如何定義警報規則的更多資訊。

公眾號：黑客下午茶

Longhorn，企業級雲原生容器分散式儲存 - 監控(Prometheus+AlertManager+Grafana)
