WebAPI 2引數繫結方法



簡單型別引數

Example 1: Sending a simple parameter in the Url

01
02
03
04
05
06
07
08
09
10
11
[RoutePrefix("api/values")]
public class ValuesController : ApiController
{
  // http://localhost:49407/api/values/example1?id=2
  [Route("example1")]
  [HttpGet]
  public string Get(int id)
  {
     return "value";
  }
}

Example 2: Sending simple parameters in the Url

01
02
03
04
05
06
07
// http://localhost:49407/api/values/example2?id1=1&id2=2&id3=3
[Route("example2")]
[HttpGet]
public string GetWith3Parameters(int id1, long id2, double id3)
{
    return "value";
}

Example 3: Sending simple parameters using attribute routing

01
02
03
04
05
06
07
// http://localhost:49407/api/values/example3/2/3/4
[Route("example3/{id1}/{id2}/{id3}")]
[HttpGet]
public string GetWith3ParametersAttributeRouting(int id1, long id2, double id3)
{
   return "value";
}

Example 4: Sending an object in the Url

// http://localhost:49407/api/values/example4?id1=1&id2=2&id3=3

[Route("example4")]

[HttpGet]

public string GetWithUri([FromUri] ParamsObject paramsObject)

{

  return "value:" + paramsObject.Id1;

}


Example 5: Sending an object in the Request body

[Route("example5")]

[HttpPost]

public string GetWithBody([FromBody] ParamsObject paramsObject)

{

  return "value:" + paramsObject.Id1;

}

注意 [FromBody] 只能用一次，多於一次將不能正常工作

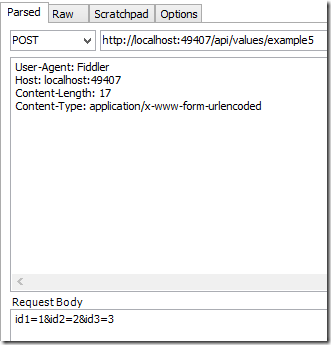

Calling the method using Urlencoded in the body:

01
02
03
04
05
06
User-Agent: Fiddler
Host: localhost:49407
Content-Length: 32
Content-Type: application/x-www-form-urlencoded

id1=1&id2=2&id3=3

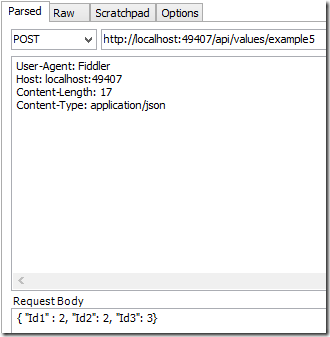

Calling the method using Json in the body

01
02
03
04
05
06
User-Agent: Fiddler
Host: localhost:49407
Content-Length: 32
Content-Type: application/json

{ "Id1" : 2, "Id2": 2, "Id3": 3}

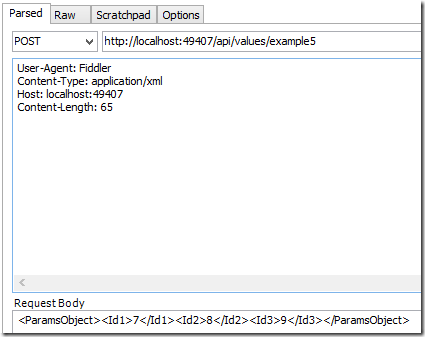

Calling the method using XML in the body

This requires extra code in the Global.asax

01
02
03
04
05
06
07
08
09
10
11
12
protected void Application_Start()
{
   var xml = GlobalConfiguration.Configuration.Formatters.XmlFormatter;
   xml.UseXmlSerializer = true;
The client request is as follows:

User-Agent: Fiddler
Content-Type: application/xml
Host: localhost:49407
Content-Length: 65

<ParamsObject><Id1>7</Id1><Id2>8</Id2><Id3>9</Id3></ParamsObject>

陣列和列表（Array,List）

Example 6: Sending a simple list in the Url

01
02
03
04
05
06
07
08
09
10
11
12
// http://localhost:49407/api/values/example6?paramsObject=2,paramsObject=4,paramsObject=9
[Route("example6")]
[HttpGet]
public string GetListFromUri([FromUri] List<int> paramsObject)
{
  if (paramsObject != null)
  {
    return "recieved a list with length:" + paramsObject.Count;
  }

  return "NOTHING RECIEVED...";
}

Example 7: Sending an object list in the Body

01
02
03
04
05
06
07
08
09
10
11
12
// http://localhost:49407/api/values/example8
[Route("example8")]
[HttpPost]
public string GetListFromBody([FromBody] List<ParamsObject> paramsList)
{
  if (paramsList != null)
  {
     return "recieved a list with length:" + paramsList.Count;
  }

  return "NOTHING RECIEVED...";
}

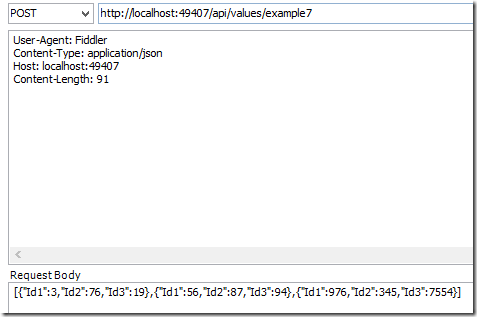

Calling with Json:

01
02
03
04
05
06
User-Agent: Fiddler
Content-Type: application/json
Host: localhost:49407
Content-Length: 91

[{"Id1":3,"Id2":76,"Id3":19},{"Id1":56,"Id2":87,"Id3":94},{"Id1":976,"Id2":345,"Id3":7554}]

Calling with XML:

01
02
03
04
05
06
07
08
09
10
User-Agent: Fiddler
Content-Type: application/xml
Host: localhost:49407
Content-Length: 258

<ArrayOfParamsObject>
<ParamsObject><Id1>3</Id1><Id2>76</Id2><Id3>19</Id3></ParamsObject>
<ParamsObject><Id1>56</Id1><Id2>87</Id2><Id3>94</Id3></ParamsObject>
<ParamsObject><Id1>976</Id1><Id2>345</Id2><Id3>7554</Id3></ParamsObject>
</ArrayOfParamsObject>

Example 8: Sending object lists in the Body

01
02
03
04
05
06
07
08
09
10
11
[Route("example8")]
[HttpPost]
public string GetListsFromBody([FromBody] List<List<ParamsObject>> paramsList)
{
  if (paramsList != null)
  {
    return "recieved a list with length:" + paramsList.Count;
  }

  return "NOTHING RECIEVED...";
}

This is a little bit different to the previous examples. The body can only send one single object to Web API. Because of this, the lists of objects are wrapped in a list or a parent object.

01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
POST http://localhost:49407/api/values/example8 HTTP/1.1
User-Agent: Fiddler
Content-Type: application/json
Host: localhost:49407
Content-Length: 185

[
 [
  {"Id1":3,"Id2":76,"Id3":19},
  {"Id1":56,"Id2":87,"Id3":94},
  {"Id1":976,"Id2":345,"Id3":7554}
 ],
 [
  {"Id1":3,"Id2":76,"Id3":19},
  {"Id1":56,"Id2":87,"Id3":94},
  {"Id1":976,"Id2":345,"Id3":7554}
 ]
]
