分散式協議學習筆記(一) Raft 選舉

 #pragma once
 #include <iostream>
 #include <fstream>
 #include <cassert>
 #include <string>
 #include <iostream>
 #include <vector>
 #include <map>
 using namespace std;
 /*
 *作 者: itdef
 *歡迎轉帖 請保持文字完整並註明出處
 *技術部落格 http://www.cnblogs.com/itdef/
 *技術交流群 群號碼：432336863
 *歡迎c c++ windows驅動愛好者 伺服器程式設計師溝通交流
 *部分老程式碼存放地點
 *http://www.oschina.net/code/list_by_user?id=614253
 */
 const string FILE_NAME = "config.txt";
 class ReadConfig {
 public:
     ReadConfig(string filename = "") {
         if (filename.empty()) {
             file_name = FILE_NAME;
         }
         else {
             file_name = filename;
         }
     }
     ~ReadConfig() {}
     map<string, string> Do() {
         tar_path.clear();
         ifstream fin;
         fin.open(file_name);
         if (false == fin.is_open()) {
             std::cerr << "open file failed!!" << std::endl;
             return tar_path;
         }
         string s;
         while (getline(fin, s))
         {
             if ('#' == s[] || ('/' == s[] && '/' == s[]))
                 continue;
             size_t pos = s.find_first_of("=");
             if (pos == std::string::npos || pos +  >= s.size())
                 continue;
             string targetName = s.substr(, pos);
             string path = s.substr(pos + );
             std::cout << targetName << " = " << path << std::endl;
             if (path[] != ' ')
                 tar_path[targetName] = path;
         }
         fin.close();
         return tar_path;
     }
 private:
     map<string, string> tar_path;
     string file_name;
 };

 #pragma once
 #pragma once
 #include <string>
 #include <mutex>
 #include <map>

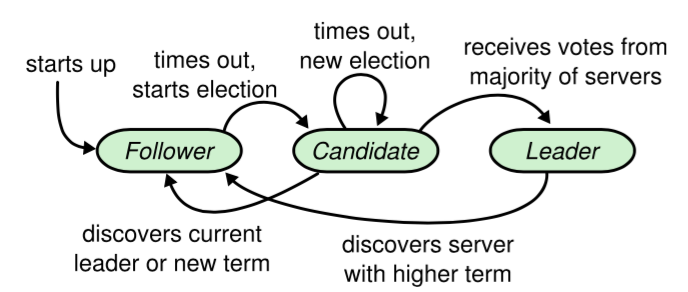

 const enum STATUS {
     LEADER_STATUS = ,
     FOLLOWER_STATUS,
     CANDIDATE_STATUS,
     PRE_VOTE_STAUS,
 };

 const enum INFOTYPE {
     DEFAULT_TYPE = ,
     HEART_BREAT_TYPE,
     VOTE_LEADER_TYPE,
     VOTE_LEADER_RESP_TYPE,

 };

 typedef struct netInfo {
     int fromID;
     int toID;
     INFOTYPE infotype;
     int    term;
     int voteId;    //選舉ID infotype為votetype才有效
 }NetInfo;

 typedef struct locaInfo {
     int    id;
     int leaderID;
     STATUS status;
     int term;
     int isVote;
     int    IsRecvHeartbeat;
     std::map<int, int> voteRecord;// id term有此記錄表示該term收到該id投取自己一票
 }LocalInfo;

 typedef struct localInfoWithLock {
     LocalInfo    locInfo;
     std::mutex m;
 }LocalInfoWithLock;

 #pragma once
 #pragma once
 #include "CommonStruct.h"
 #include "ReadConfig.h"
 #include <memory>
 #include <boost/asio.hpp>

 using boost::asio::ip::tcp;
 using namespace std;

 class RaftManager :public enable_shared_from_this<RaftManager> {
 public:
     static std::shared_ptr<RaftManager> GetInstance() {
         if (p == nullptr)
             p.reset(new RaftManager());
         //p = std::make_shared<RaftManager>();
         return p;
     }
     ~RaftManager() {
         std::cout << "enter ~RaftManager()\n";
     }
     bool Init();
     bool Go();

 private:
     boost::asio::io_service io_service;
     std::string ip; int portStart;
     int nodeID;
     int electionTimeout;
     int heartbeatTime;
     LocalInfoWithLock locInfolock;

     //===============================send
     void DiapatchByStatus(int id, int& timeoutLimit);
     void HandleLeaderSend(int id, int& timeoutLimit);
     void HandleCandidateSend(int id, int& timeoutLimit);
     void HandleFollowerSend(int id, int& timeoutLimit);
     void HandlePreVoteSend(int id, int& timeoutLimit);

     //===================recv
     void DiapatchByInfoType(const NetInfo& netinf);
     void HandleHeartbeatTypeRecv(const NetInfo& netinf);
     void HandleVoteTypeRecv(const NetInfo& netinf);
     void HandleVoteRespTypeRecv(const NetInfo& netinf);

     std::function<int()> dice;

     bool LoopCheck(int id, std::shared_ptr<tcp::socket> s);
     void Session(tcp::socket sock);
     void SendFunc(int id);

     RaftManager() {}
     RaftManager(const RaftManager&) = delete;
     RaftManager& operator=(const RaftManager&) = delete;
     static std::shared_ptr<RaftManager> p;
 };

 #include "RaftManager.h"
 #include <random>
 #include <functional>

 std::shared_ptr<RaftManager> RaftManager::p = nullptr;

 bool RaftManager::Init() {
     //可以使用json 讀取配置
     ReadConfig cfg("nodeCfg");
     map<string, string> kv = cfg.Do();

     if (kv.find("ip") == kv.end() || kv.find("portStart") == kv.end() || kv.find("nodeID") == kv.end()) {
         assert();
         return false;
     }
     ip = kv["ip"];  portStart = stoi(kv["portStart"]);  nodeID = stoi(kv["nodeID"]);
     electionTimeout = ;
     heartbeatTime = ;
     if (kv.find("heartbeatTime") != kv.end())
         heartbeatTime = stoi(kv["heartbeatTime"]);

     locInfolock.locInfo.id = nodeID; locInfolock.locInfo.leaderID = ;
     locInfolock.locInfo.IsRecvHeartbeat = ; locInfolock.locInfo.isVote = ;
     locInfolock.locInfo.status = FOLLOWER_STATUS;
     locInfolock.locInfo.voteRecord.clear();

     std::random_device rd;
     std::default_random_engine engine(rd());
     std::uniform_int_distribution<> dis(, );
     dice = std::bind(dis, engine);

     return true;
 }

 void RaftManager::HandleLeaderSend(int id, int& timeoutLimit) {
     if (timeoutLimit > ){
         timeoutLimit -= ;
     }
     if (timeoutLimit <= ) {

         timeoutLimit = dice();
     }
 }
 void RaftManager::HandleCandidateSend(int id, int& timeoutLimit) {
     if (timeoutLimit > ) {
         timeoutLimit -= ;
     }
     if (timeoutLimit <= ) {

         timeoutLimit = dice();
     }

 }

 void RaftManager::HandlePreVoteSend(int id, int& timeoutLimit) {
     if (timeoutLimit > ) {
         timeoutLimit -= ;
     }
     if (timeoutLimit <= ) {

         timeoutLimit = dice();
     }

 }

 void RaftManager::HandleFollowerSend(int id, int& timeoutLimit) {
     if (timeoutLimit > ) {
         timeoutLimit -= ;
     }
     if (timeoutLimit <= ) {
         LocalInfo localInfo;
         //加鎖獲取當前狀態 決定是否進行傳送操作
         {
             //加鎖獲取本地當前狀態
             std::lock_guard<std::mutex> lck(locInfolock.m);
             localInfo = locInfolock.locInfo;
         }
         if (localInfo.IsRecvHeartbeat == ) {
             //心跳超時  切換到選舉模式
             std::lock_guard<std::mutex> lck(locInfolock.m);
             locInfolock.locInfo.term++;
             locInfolock.locInfo.status = CANDIDATE_STATUS;
             locInfolock.locInfo.voteRecord.clear();
             locInfolock.locInfo.voteRecord[nodeID] = locInfolock.locInfo.term;
         }

         timeoutLimit = dice();
     }
 }

 //===================
 void RaftManager::HandleHeartbeatTypeRecv(const NetInfo& netinf) {
     std::lock_guard<std::mutex> lck(locInfolock.m);
     if (netinf.fromID != locInfolock.locInfo.leaderID)
         locInfolock.locInfo.leaderID = netinf.fromID;
     locInfolock.locInfo.IsRecvHeartbeat = ;

 }
 void RaftManager::HandleVoteTypeRecv(const NetInfo& netinf) {
     std::lock_guard<std::mutex> lck(locInfolock.m);
     int voteid = netinf.fromID;
     if (locInfolock.locInfo.isVote == ) {
         //回覆投票 todo

         locInfolock.locInfo.isVote = ;    //標記該term已經投票
     }
     else {
         //回覆不投票 todo
     }

 }
 void RaftManager::HandleVoteRespTypeRecv(const NetInfo& netinf) {
     std::lock_guard<std::mutex> lck(locInfolock.m);
     if (netinf.infotype == VOTE_LEADER_RESP_TYPE && netinf.toID == nodeID) {
         //更新本地map記錄
         locInfolock.locInfo.voteRecord[netinf.fromID] = netinf.term;
     }
     int count = ;
     std::map<int, int>::iterator it = locInfolock.locInfo.voteRecord.begin();
     //檢視本term的投票是否達半數以上
     while (it != locInfolock.locInfo.voteRecord.end()) {
         if (it->second == locInfolock.locInfo.term)
             count++;
         it++;
     }
     if (count >  / ) {
         //達到半數以上 轉化為leader模式 否則繼續選舉
         locInfolock.locInfo.leaderID = nodeID;
         locInfolock.locInfo.IsRecvHeartbeat = ;
         locInfolock.locInfo.status = LEADER_STATUS;
     }
 }

 //loop send
 void RaftManager::DiapatchByStatus(int id,int& timeoutLimit) {
     NetInfo netinf{ nodeID,id,DEFAULT_TYPE,, };
     LocalInfo localInfo;
     //加鎖獲取當前狀態 決定是否進行傳送操作
     {
         //加鎖獲取本地當前狀態
         std::lock_guard<std::mutex> lck(locInfolock.m);
         localInfo = locInfolock.locInfo;
     }
     switch (localInfo.status) {
     case LEADER_STATUS:
         HandleLeaderSend(id,timeoutLimit);
         break;
     case FOLLOWER_STATUS:
         HandleFollowerSend(id,timeoutLimit);
         break;
     case CANDIDATE_STATUS:
         HandleCandidateSend(id,timeoutLimit);
         break;
     case PRE_VOTE_STAUS:
         HandlePreVoteSend(id, timeoutLimit);
     default:
         std::cerr << "unknown status!!" << std::endl;
     }

 }

 //handle recv
 void RaftManager::DiapatchByInfoType(const NetInfo& netinf) {
     {
         std::lock_guard<std::mutex> lck(locInfolock.m);
         if (netinf.term < locInfolock.locInfo.term)
             return;
         if (netinf.term > locInfolock.locInfo.term) {
             locInfolock.locInfo.term = netinf.term;
             locInfolock.locInfo.status = FOLLOWER_STATUS;
             locInfolock.locInfo.isVote = ;
             locInfolock.locInfo.IsRecvHeartbeat = ;
             locInfolock.locInfo.voteRecord.clear();
         }
     }
     //========================================
     switch (netinf.infotype) {
     case HEART_BREAT_TYPE:
         HandleHeartbeatTypeRecv(netinf);
         break;
     case VOTE_LEADER_TYPE:
         HandleVoteTypeRecv(netinf);
         break;
     case VOTE_LEADER_RESP_TYPE:
         HandleVoteRespTypeRecv(netinf);
         break;
     default:
         std::cerr << "Recv Unknown info type." << std::endl;
     }

 }

 bool RaftManager::LoopCheck(int id, std::shared_ptr<tcp::socket> s) {
     int looptime = ;
     int timeoutlimit = dice();
     while () {
         DiapatchByStatus(id, timeoutlimit);
         std::this_thread::sleep_for(std::chrono::milliseconds(looptime));
     }

     return false;
 }

 void RaftManager::SendFunc(int i) {
     //todo
     //示例 間隔200ms掃描 心跳間隔5000ms  選舉超時未 1001-4000ms
     string port = "";
     port[port.size() - ] += i;
     int looptime = ;
     while () {
         std::shared_ptr<tcp::socket> s = std::make_shared<tcp::socket>((io_service));
         tcp::resolver resolver(io_service);
         try {
             boost::asio::connect(*s, resolver.resolve({ "127.0.0.1", port }));
         }
         catch (exception& e) {
             //持續嘗試連線
             continue;
         }
         LoopCheck(i, s);
         std::this_thread::sleep_for(std::chrono::milliseconds(looptime));
     }

     return;
 }

 void RaftManager::Session(tcp::socket sock) {
     BYTE data[] = {  };
     boost::system::error_code error;
     NetInfo netinf;
     while () {
         size_t length = sock.read_some(boost::asio::buffer(&netinf, sizeof(netinf)), error);
         if (error == boost::asio::error::eof)
             return; // Connection closed cleanly by peer.
         else if (error) {
             std::cerr << boost::system::system_error(error).what() << std::endl;// Some other error.
             return;
         }
         if (length != sizeof(netinf)) {
             std::cerr << __FUNCTION__ << " recv wrong lenth:" << length << std::endl;// Some other error.
             return;
         }

         DiapatchByInfoType(netinf);

     }
 }

 bool RaftManager::Go() {
     //建立網路 本來可以使用廣播  獲取和通知其他節點
     //演示版本假定 5個ID和埠分別為1 2 3 4 5 和9921 9922 9923 9924 9925
     if (ip == "" || portStart ==  || nodeID == )
         return false;
     try {
         //開啟4個與其他執行緒傳送資訊的執行緒
         for (int i = ; i <= ; i++) {
             if (i == nodeID)
                 continue;
             std::thread t = std::thread(&RaftManager::SendFunc, shared_from_this(), i);
             t.detach();
         }

         int port = portStart + nodeID;
         tcp::acceptor a(io_service, tcp::endpoint(tcp::v4(), port));
         for (;;)
         {
             for (;;)
             {
                 tcp::socket sock(io_service);
                 a.accept(sock);
                 std::thread(&RaftManager::Session, shared_from_this(), std::move(sock)).detach();
             }
         }
     }
     catch (exception& e) {
         std::cerr << __FUNCTION__ << " : " << e.what() << std::endl;
         return false;
     }

     return true;
 }

 // QueueTemplate.cpp : 此檔案包含 "main" 函式。程式執行將在此處開始並結束。
 //

 #include "pch.h"
 #include <iostream>

 #include<list>
 #include<mutex>
 #include<thread>
 #include<condition_variable>
 #include <iostream>
 using namespace std;

 template<typename T>
 class SyncQueue
 {
 public:
     SyncQueue(int maxSize) :m_maxSize(maxSize), m_needStop(false)
     {
     }

     void Put(const T&x)
     {
         Add(x);
     }

     void Put(T&&x)
     {
         Add(std::forward<T>(x));
     }

     void Take(std::list<T>& list)
     {
         std::unique_lock<std::mutex> locker(m_mutex);
         m_notEmpty.wait(locker, [this] {return m_needStop || NotEmpty(); });

         if (m_needStop)
             return;
         list = std::move(m_queue);
         m_notFull.notify_one();
     }

     void Take(T& t)
     {
         std::unique_lock<std::mutex> locker(m_mutex);
         m_notEmpty.wait(locker, [this] {return m_needStop || NotEmpty(); });

         if (m_needStop)
             return;
         t = m_queue.front();
         m_queue.pop_front();
         m_notFull.notify_one();
     }

     void Stop()
     {
         {
             std::lock_guard<std::mutex> locker(m_mutex);
             m_needStop = true;
         }
         m_notFull.notify_all();
         m_notEmpty.notify_all();
     }

     bool Empty()
     {
         std::lock_guard<std::mutex> locker(m_mutex);
         return m_queue.empty();
     }

     bool Full()
     {
         std::lock_guard<std::mutex> locker(m_mutex);
         return m_queue.size() == m_maxSize;
     }

     size_t Size()
     {
         std::lock_guard<std::mutex> locker(m_mutex);
         return m_queue.size();
     }

     int Count()
     {
         return m_queue.size();
     }
 private:
     bool NotFull() const
     {
         bool full = m_queue.size() >= m_maxSize;
         if (full)
             cout << "full, waiting，thread id: " << this_thread::get_id() << endl;
         return !full;
     }

     bool NotEmpty() const
     {
         bool empty = m_queue.empty();
         if (empty)
             cout << "empty,waiting，thread id: " << this_thread::get_id() << endl;
         return !empty;
     }

     template<typename F>
     void Add(F&&x)
     {
         std::unique_lock< std::mutex> locker(m_mutex);
         m_notFull.wait(locker, [this] {return m_needStop || NotFull(); });
         if (m_needStop)
             return;

         m_queue.push_back(std::forward<F>(x));
         m_notEmpty.notify_one();
     }

 private:
     std::list<T> m_queue; //緩衝區
     std::mutex m_mutex; //互斥量和條件變數結合起來使用
     std::condition_variable m_notEmpty;//不為空的條件變數
     std::condition_variable m_notFull; //沒有滿的條件變數
     int m_maxSize; //同步佇列最大的size

     bool m_needStop; //停止的標誌
 };

 int main()
 {
     std::cout << "Hello World!\n";

     SyncQueue<int> q();
     q.Put();

     int a = ;
     q.Take(a);

     q.Put();
     q.Take(a);

     q.Stop();

 }
