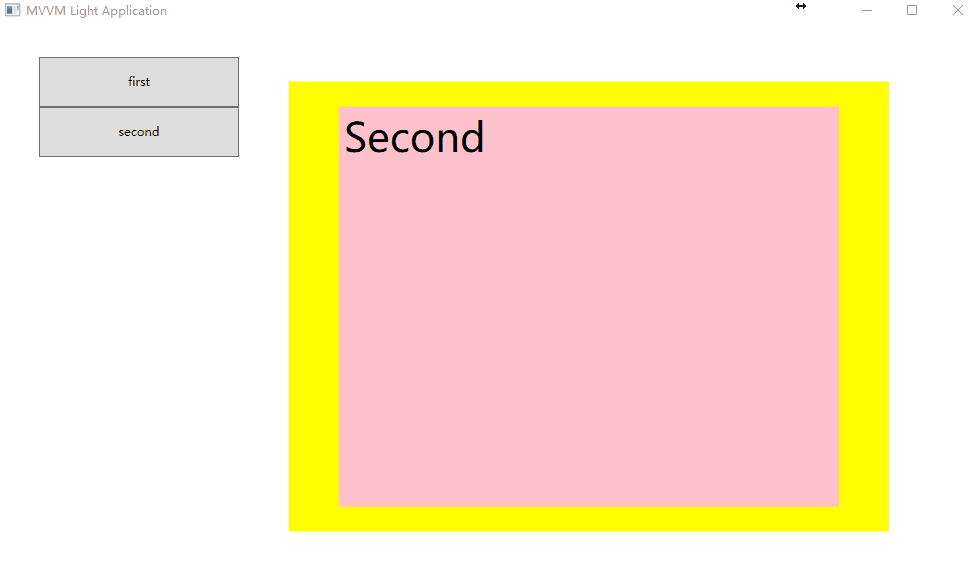

先看效果圖
##Get Start
為了專案解耦，使用mvvmlight框架。MVVM設計模式請自行了解。
###1 新建專案
新建一個MvvmLight(WPF)專案，刪除其中無關資料夾：Design+Model。
###2 新增類
新增NavigationService類，繼承ViewModelBase和INavigationService。
using GalaSoft.MvvmLight;
using GalaSoft.MvvmLight.Views;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Media;
namespace PageNavigation
{
public class NavigationService : ViewModelBase, INavigationService
{
private readonly Dictionary<string, Uri> _pagesByKey;
private string _currentPageKey;
public string CurrentPageKey
{
get
{
return _currentPageKey;
}
private set
{
Set(() => CurrentPageKey, ref _currentPageKey, value);
}
}
public NavigationService()
{
_pagesByKey = new Dictionary<string, Uri>();
}
public void GoBack()
{
throw new NotImplementedException();
}
public void NavigateTo(string pageKey)
{
NavigateTo(pageKey, "Next");
}
public void NavigateTo(string pageKey, object parameter)
{
var frame = GetDescendantFromName(Application.Current.MainWindow, "MainFrame") as Frame;
if (frame != null)
{
frame.Source = _pagesByKey[pageKey];
}
CurrentPageKey = pageKey;
}
public void Configure(string key, Uri pageType)
{
lock (_pagesByKey)
{
if (_pagesByKey.ContainsKey(key))
{
_pagesByKey[key] = pageType;
}
else
{
_pagesByKey.Add(key, pageType);
}
}
}
public Uri getUri(string key)
{
if (_pagesByKey.ContainsKey(key))
{
return _pagesByKey[key];
}
return null;
}
private static FrameworkElement GetDescendantFromName(DependencyObject parent, string name)
{
if (parent == null)
{
for (int i = 0; i < 10; i++)
{
}
}
var count = VisualTreeHelper.GetChildrenCount(parent);
if (count < 1)
{
return null;
}
for (var i = 0; i < count; i++)
{
var frameworkElement = VisualTreeHelper.GetChild(parent, i) as FrameworkElement;
if (frameworkElement != null)
{
if (frameworkElement.Name == name)
{
return frameworkElement;
}
frameworkElement = GetDescendantFromName(frameworkElement, name);
if (frameworkElement != null)
{
return frameworkElement;
}
}
}
return null;
}
}
}
新建views資料夾，在其中新增使用者控制元件
FirstPage控制元件
<UserControl x:Class="PageNavigation.views.FirstPage"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:local="clr-namespace:PageNavigation.views"
mc:Ignorable="d"
d:DesignHeight="300" d:DesignWidth="400">
<Grid Background="Green">
<Label Content="First" FontSize="40"/>
</Grid>
</UserControl>
SecondPage控制元件
<UserControl x:Class="PageNavigation.views.SecondPage"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:local="clr-namespace:PageNavigation.views"
mc:Ignorable="d"
d:DesignHeight="300" d:DesignWidth="400">
<Grid Background="Pink">
<Label Content="Second" FontSize="40"/>
</Grid>
</UserControl>
ViewModel資料夾中新增FirstViewModel類，繼承ViewModelBase
using GalaSoft.MvvmLight;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace PageNavigation.ViewModel
{
public class FirstViewModel:ViewModelBase
{
}
}
ViewModel資料夾中新增SecondViewModel類，繼承ViewModelBase
using GalaSoft.MvvmLight;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace PageNavigation.ViewModel
{
public class SecondViewModel:ViewModelBase
{
}
}
3 修改類
主介面MainWindow.xaml類
<Window x:Class="PageNavigation.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:ignore="http://www.galasoft.ch/ignore"
mc:Ignorable="d ignore"
Height="600"
Width="1000"
Title="MVVM Light Application"
DataContext="{Binding Main, Source={StaticResource Locator}}">
<Window.Resources>
<ResourceDictionary>
<ResourceDictionary.MergedDictionaries>
<ResourceDictionary Source="Skins/MainSkin.xaml" />
</ResourceDictionary.MergedDictionaries>
</ResourceDictionary>
</Window.Resources>
<Grid x:Name="LayoutRoot" Width="950" Height="550">
<DockPanel Width="900" Height="500">
<StackPanel DockPanel.Dock="Left" Width="200">
<Button Height="50" Content="first" Command="{Binding FirstPageCommand}"></Button>
<Button Height="50" Content="second" Command="{Binding SecondPageCommand}"></Button>
</StackPanel>
<Grid DockPanel.Dock="Right" Width="600" Height="450" Background="Yellow">
<Frame x:Name="MainFrame" JournalOwnership="UsesParentJournal" Background="Transparent" Width="500" Height="400"/>
</Grid>
</DockPanel>
</Grid>
</Window>
ViewModelLocator類，在其中註冊各ViewModel，初始化導航類
/*
In App.xaml:
<Application.Resources>
<vm:ViewModelLocatorTemplate xmlns:vm="clr-namespace:PageNavigation.ViewModel"
x:Key="Locator" />
</Application.Resources>
In the View:
DataContext="{Binding Source={StaticResource Locator}, Path=ViewModelName}"
*/
using CommonServiceLocator;
using GalaSoft.MvvmLight;
using GalaSoft.MvvmLight.Ioc;
using GalaSoft.MvvmLight.Views;
using System;
namespace PageNavigation.ViewModel
{
/// <summary>
/// This class contains static references to all the view models in the
/// application and provides an entry point for the bindings.
/// <para>
/// See http://www.mvvmlight.net
/// </para>
/// </summary>
public class ViewModelLocator
{
static ViewModelLocator()
{
ServiceLocator.SetLocatorProvider(() => SimpleIoc.Default);
SimpleIoc.Default.Register<MainViewModel>();
SimpleIoc.Default.Register<FirstViewModel>();
SimpleIoc.Default.Register<SecondViewModel>();
var navigationService = CreateNavigationService();
SimpleIoc.Default.Register<INavigationService>(() => navigationService);
}
private static INavigationService CreateNavigationService()
{
var nav = new NavigationService();
var navigationService = new NavigationService();
navigationService.Configure("First", new Uri("/PageNavigation;component/views/FirstPage.xaml", UriKind.Relative));
navigationService.Configure("Second", new Uri("/PageNavigation;component/views/SecondPage.xaml", UriKind.Relative));
return navigationService;
}
/// <summary>
/// Gets the Main property.
/// </summary>
[System.Diagnostics.CodeAnalysis.SuppressMessage("Microsoft.Performance",
"CA1822:MarkMembersAsStatic",
Justification = "This non-static member is needed for data binding purposes.")]
public MainViewModel Main
{
get
{
return ServiceLocator.Current.GetInstance<MainViewModel>();
}
}
public FirstViewModel First
{
get
{
return ServiceLocator.Current.GetInstance<FirstViewModel>();
}
}
public SecondViewModel Second
{
get
{
return ServiceLocator.Current.GetInstance<SecondViewModel>();
}
}
/// <summary>
/// Cleans up all the resources.
/// </summary>
public static void Cleanup()
{
}
}
}
MainViewModel類，其中定義了按鈕的點選繫結命令，與view之間用訊息通訊，即Messenger.Default......
using CommonServiceLocator;
using GalaSoft.MvvmLight;
using GalaSoft.MvvmLight.Command;
using GalaSoft.MvvmLight.Messaging;
using GalaSoft.MvvmLight.Views;
using System;
using System.Windows.Input;
namespace PageNavigation.ViewModel
{
/// <summary>
/// This class contains properties that the main View can data bind to.
/// <para>
/// See http://www.mvvmlight.net
/// </para>
/// </summary>
public class MainViewModel : ViewModelBase
{
public ICommand FirstPageCommand { get; set; }
public ICommand SecondPageCommand { get; set; }
public MainViewModel()
{
FirstPageCommand = new RelayCommand(First);
SecondPageCommand = new RelayCommand(Second);
}
private void First()
{
var navigationService = ServiceLocator.Current.GetInstance<INavigationService>();
NavigationService service = (NavigationService)navigationService;
Uri sendUri = service.getUri("First");
Messenger.Default.Send<Uri>(sendUri, "FrameSourceName");
}
private void Second()
{
var navigationService = ServiceLocator.Current.GetInstance<INavigationService>();
NavigationService service = (NavigationService)navigationService;
Uri sendUri = service.getUri("Second");
Messenger.Default.Send<Uri>(sendUri, "FrameSourceName");
}
}
}
在MainWindow.xaml.cs定義訊息接收以及訊息處理
using System.Windows;
using PageNavigation.ViewModel;
using GalaSoft.MvvmLight.Messaging;
using System;
namespace PageNavigation
{
/// <summary>
/// Interaction logic for MainWindow.xaml
/// </summary>
public partial class MainWindow : Window
{
/// <summary>
/// Initializes a new instance of the MainWindow class.
/// </summary>
public MainWindow()
{
InitializeComponent();
Messenger.Default.Register<Uri>(this, "FrameSourceName", ChangeFrameSource);
Closing += (s, e) => ViewModelLocator.Cleanup();
}
private void ChangeFrameSource(Uri uri)
{
this.MainFrame.Source = uri;
}
}
}
end
