Spring 版MediatR--中介者模式實現庫

背景

C# 版本庫 MediatR 是一箇中介者模式實現類庫，其核心是一箇中介者模式的.NET實現，其目的是訊息傳送和訊息處理的解耦。它支援單播和多播形式使用同步或非同步的模式來發布訊息，建立和幀聽事件。

java中沒有找到類似類庫，在對MediatR原始碼閱讀中，發現其主要思路是藉助IOC獲取Request與Handler對應關係並進行處理。

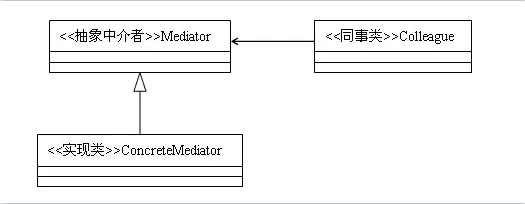

中介者模式

中介者模式：用一箇中介物件封裝一系列的物件互動，中介者使各物件不需要顯示地相互作用，從而使耦合鬆散，而且可以獨立地改變他們之間的互動。

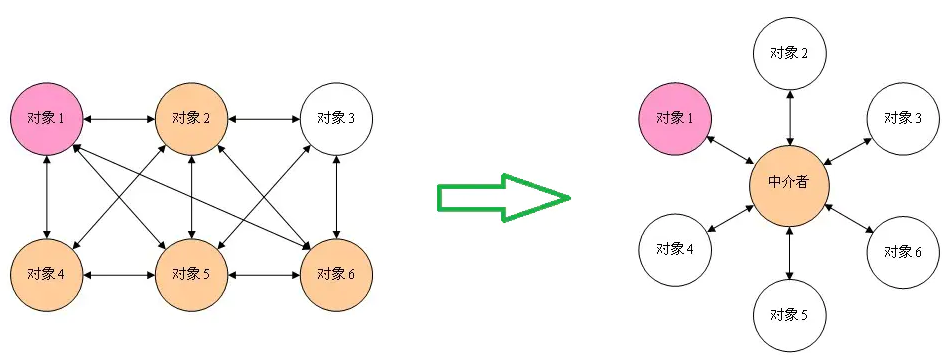

使用中介模式，物件之間的互動將封裝在中介物件中，物件不再直接互動(解耦),而是通過中介進行互動，這減少了物件之間的依賴性，從而減少了耦合。

應用

單播訊息傳輸

單播訊息傳輸，也就是一對第一的訊息傳遞，一個訊息對應一個訊息處理，通過 IReust 抽象單播訊息，使用 IRequestHandler 進行訊息處理



@ExtendWith(SpringExtension.class)

@Import(

        value = {

                Mediator.class,

                PingPongTest.PingHandler.class,

        }

)

public class PingPongTest {

    @Autowired

    IMediator mediator;

    @Test

    public void should() {

        String send = mediator.send(new Ping());

        assertThat(send).isNotNull();

        assertThat(send).isEqualTo("Pong");

    }

    public static class Ping implements IRequest<String> {

    }

    public static class PingHandler implements IRequestHandler<Ping, String> {

        @Override

        public String handle(Ping request) {

            return "Pong";

        }

    }

}

多播訊息傳輸

多播訊息傳輸，是一對多的訊息傳遞，一個訊息對應多個訊息處理，通過 INotification 抽象多播訊息，使用 INotificationHanlder 進行訊息處理



@ExtendWith(SpringExtension.class)

@Import(

        value = {

                Mediator.class,

                PingNoticeTests.Pong1.class,

                PingNoticeTests.Pong2.class,

        }

)

public class PingNoticeTests {

    @Autowired

    IMediator mediator;

    @Autowired

    Pong1 pong1;

    @Autowired

    Pong2 pong2;

    @Test

    public void should() {

        mediator.publish(new Ping());

        assertThat(pong1.getCode()).isEqualTo("Pon1");

        assertThat(pong2.getCode()).isEqualTo("Pon2");

    }

    public static class Ping implements INotification {

    }

    public static class Pong1 implements INotificationHandler<Ping> {

        private String code;

        public String getCode() {

            return code;

        }

        @Override

        public void handle(Ping notification) {

            this.code = "Pon1";

        }

    }

    public static class Pong2 implements INotificationHandler<Ping> {

        private String code;

        public String getCode() {

            return code;

        }

        @Override

        public void handle(Ping notification) {

            this.code = "Pon2";

        }

    }

}

實現

核心實現

其主要點是從Spring的ApplicationContext中獲取相關介面bean，然會執行bean方法。

核心方法有兩個：public(多播)和send(單播)。

藉助ResolvableType型別構造解析bean資訊，得到資訊後從spring中獲取物件例項。



/**

 * 中介者實現類

 * <p>

 * 依賴 ApplicationContext

 */

@Component

public class Mediator implements IMediator, ApplicationContextAware {

    private ApplicationContext context;

    /**

     * 釋出同步

     * <p>

     * 根據通知型別和INotificationHandler,從ApplicationContext獲取Handler的BeanNames,

     * 將 BeanNames 轉化為 INotificationHandler 的例項，每個例項呼叫一次handler

     *

     * @param notification    通知內容

     * @param <TNotification> 通知型別

     */

    @Override

    public <TNotification extends INotification> void publish(TNotification notification) {

        ResolvableType handlerType = ResolvableType.forClassWithGenerics(

                INotificationHandler.class, notification.getClass());

        String[] beanNamesForType = this.context.getBeanNamesForType(handlerType);

        List<INotificationHandler<TNotification>> list = new ArrayList<>();

        for (String beanBane :

                beanNamesForType) {

            list.add((INotificationHandler<TNotification>) this.context.getBean(beanBane));

        }

        list.forEach(h -> h.handle(notification));

    }

    /**

     * 傳送求取

     * <p>

     * 根據request型別，獲取到response型別，

     * 根據IRequestHandler、request型別、response型別從ApplicationContext獲取

     * IRequestHandler例項列表，取第一個例項執行handler方法。

     * <p>

     * <p>

     * 如果為找到handler例項，丟擲NoRequestHandlerException異常

     *

     * @param request     請求

     * @param <TResponse> 響應型別

     * @return 響應結果

     */

    @Override

    public <TResponse> TResponse send(IRequest<TResponse> request) {

        Type[] genericInterfaces = request.getClass().getGenericInterfaces();

        Type responseType = null;

        for (Type type : genericInterfaces) {

            if ((type instanceof ParameterizedType)) {

                ParameterizedType parameterizedType = (ParameterizedType) type;

                if (!parameterizedType.getRawType().equals(IRequest.class)) {

                    continue;

                }

                responseType = parameterizedType.getActualTypeArguments()[0];

                break;

            }

        }

        if (responseType == null) {

            // 丟擲異常

            throw new NoRequestHandlerException(request.getClass());

        }

        Class<?> requestClass = request.getClass();

        Class<?> responseClass = (Class<?>) responseType;

        ResolvableType handlerType = ResolvableType.forClassWithGenerics(

                IRequestHandler.class,

                requestClass,

                responseClass);

        String[] beanNamesForType = this.context.getBeanNamesForType(handlerType);

        List<IRequestHandler<IRequest<TResponse>, TResponse>> list = new ArrayList<>();

        for (String beanBane :

                beanNamesForType) {

            list.add((IRequestHandler<IRequest<TResponse>, TResponse>) this.context.getBean(beanBane));

        }

        if (list.isEmpty()) {

            throw new NoRequestHandlerException(request.getClass());

        }

        return list.stream()

                .findFirst()

                .map(h -> h.handle(request))

                .orElseThrow(() -> new NoRequestHandlerException(request.getClass()));

    }

    @Override

    public void setApplicationContext(ApplicationContext applicationContext) throws BeansException {

        this.context = applicationContext;

    }

}

public interface IBaseRequest {

}

多播介面

public interface INotification {

}

單播介面

public interface IRequest<TResponse> extends IBaseRequest {

}

public interface IPublisher {

    <TNotification extends INotification> void publish(TNotification notification);

}

public interface ISender {

    <TResponse> TResponse send(IRequest<TResponse> request);

}

public interface IMediator extends ISender, IPublisher {

}

多播處理介面

public interface INotificationHandler<TNotification extends INotification> {

    void handle(TNotification notification);

}

單播處理介面

public interface IRequestHandler<TRequest extends IRequest<TResponse>, TResponse> {

    TResponse handle(TRequest request);

}

public abstract class AbsRequestHandler<TRequest extends IRequest<TResponse>, TResponse>

        implements IRequestHandler<TRequest, TResponse> {

    @Override

    public abstract TResponse handle(TRequest request);

}

public abstract class AbsNotificationHandler<TNotification extends INotification>

        implements INotificationHandler<TNotification> {

    @Override

    public abstract void handle(TNotification notification);

}

public class Unit implements Comparable<Unit> {

    public static final Unit VALUE = new Unit();

    private Unit() {

    }

    @Override

    public boolean equals(Object obj) {

        return true;

    }

    @Override

    public int hashCode() {

        return 0;

    }

    @Override

    public String toString() {

        return "()";

    }

    @Override

    public int compareTo(@NotNull Unit o) {

        return 0;

    }

}

public interface IUnitRequest extends IRequest<Unit> {

}

public class MediatorException extends RuntimeException {

}

@Getter

public class NoRequestHandlerException extends MediatorException {

    private Class<?> requestClass;

    public NoRequestHandlerException(

            Class<?> requestClass

    ) {

        this.requestClass = requestClass;

    }

}

應用場景

mediatr 是一種程序內訊息傳遞機制，使用泛型支援訊息的只能排程，其核心是 訊息解耦 ，基於MediatR可以實現CQRS/EventBus等。

解除建構函式的依賴注入

public class DashboardController(

                ICustomerRepository customerRepository,

                IOrderService orderService,

                ICustomerHistoryRepository historyRepository,

                IOrderRepository orderRepository,

                IProductRespoitory productRespoitory,

                IRelatedProductsRepository relatedProductsRepository,

                ISupportService supportService,

                ILog logge

        ) {

        }

藉助 Mediator，僅需構造注入ImediatR即可

public class DashboardController(

                IMediator

                ) {

        }

service 迴圈依賴，使用mediatr 進行依賴解耦，並使用mediatr進行訊息傳遞

兩個service類和介面如下



    public static interface IDemoAService {

        String hello();

        String helloWithB();

    }

    public static interface IDemoBService {

        String hello();

        String helloWithA();

    }

    public static class DemoAService implements IDemoAService {

        private final IDemoBService bService;

        public DemoAService(IDemoBService aService) {

            this.bService = aService;

        }

        @Override

        public String hello() {

            return this.bService.helloWithA();

        }

        @Override

        public String helloWithB() {

            return "call A in B";

        }

    }

    public static class DemoBService implements IDemoBService {

        private final IDemoAService aService;

        public DemoBService(IDemoAService aService) {

            this.aService = aService;

        }

        @Override

        public String hello() {

            return this.aService.helloWithB();

        }

        @Override

        public String helloWithA() {

            return "call B in A";

        }

    }

此時，如果通過建構函式或屬性注入(@Autowird)，程式在執行時會報一下錯誤, 提示檢測是否包括迴圈引用

使用 mediatr 解耦迴圈依賴

使用mediatr的service如下，在service建構函式注 IMediator ，並實現 IRequestHandler 介面



    public static class DemoAService implements IDemoAService, IRequestHandler<RequestAService, String> {

        //private final IDemoBService bService;

        private final IMediator mediator;

        public DemoAService(IMediator mediator) {

            this.mediator = mediator;

        }

        @Override

        public String hello() {

            return this.mediator.send(new RequestBService());

        }

        @Override

        public String helloWithB() {

            return "call A in B";

        }

        @Override

        public String handle(RequestAService request) {

            return this.helloWithB();

        }

    }

    public static class DemoBService implements IDemoBService, IRequestHandler<RequestBService, String> {

        //private final IDemoAService aService;

        private final IMediator mediator;

        public DemoBService(IMediator mediator) {

            this.mediator = mediator;

        }

        @Override

        public String hello() {

            return this.mediator.send(new RequestAService());

        }

        @Override

        public String helloWithA() {

            return "call B in A";

        }

        @Override

        public String handle(RequestBService request) {

            return this.helloWithA();

        }

    }

    public static class RequestAService implements IRequest<String> {

    }

    public static class RequestBService implements IRequest<String> {

    }

測試程式碼如下



@ExtendWith(SpringExtension.class)

@Import(

        value = {

                Mediator.class,

                ServiceCycTests.DemoAService.class,

                ServiceCycTests.DemoBService.class,

        }

)

public class ServiceCycTests {

    @Autowired

    IDemoAService aService;

    @Autowired

    IDemoBService bService;

    @Test

    public void should() {

        String a = aService.hello();

        assertThat(a).isEqualTo("call B in A");

        String b = bService.hello();

        assertThat(b).isEqualTo("call A in B");

    }

}

測試結果
