wp7之換膚原理簡單分析
糾結很久。。。感覺勉強過得去啦。還望各位大牛指點江山
百度找到這篇參考文章http://www.cnblogs.com/sonyye/archive/2012/03/12/2392679.html#2329255
還有這篇：http://www.cnblogs.com/xumingxiang/archive/2012/03/23/2413342.html
進入正文吧
1 UI程式碼很簡單，一個listbox 和一個標題textblock，一個button按鈕
<phone:PhoneApplicationPage
x:Class="ChangeSkin.MainPage"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" mc:Ignorable="d" d:DesignWidth="480" d:DesignHeight="768"
FontFamily="{StaticResource PhoneFontFamilyNormal}"
FontSize="{StaticResource PhoneFontSizeNormal}"
Foreground="{StaticResource PhoneForegroundBrush}"
SupportedOrientations="Portrait" Orientation="Portrait"
shell:SystemTray.IsVisible="True">
<!--LayoutRoot 是包含所有頁面內容的根網格-->
<Grid x:Name="LayoutRoot" >
<Grid.RowDefinitions>
<RowDefinition Height="Auto"/>
<RowDefinition Height="*"/>
</Grid.RowDefinitions>
<!--TitlePanel 包含應用程式的名稱和頁標題-->
<StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
<TextBlock x:Name="ApplicationTitle" Text="我的應用程式" />
<TextBlock x:Name="PageTitle" Text="頁面名稱" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
</StackPanel>
<!--ContentPanel - 在此處放置其他內容-->
<Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
<ListBox Name="lb">
<ListBox.ItemTemplate>
<DataTemplate>
<TextBlock Text="{Binding}" Name="lbText"></TextBlock>
</DataTemplate>
</ListBox.ItemTemplate>
</ListBox>
<Button Content="換面板" HorizontalAlignment="Left" Margin="157,471,0,0" VerticalAlignment="Top" Click="Button_Click_1" /> </Grid>
</Grid>
</phone:PhoneApplicationPage>

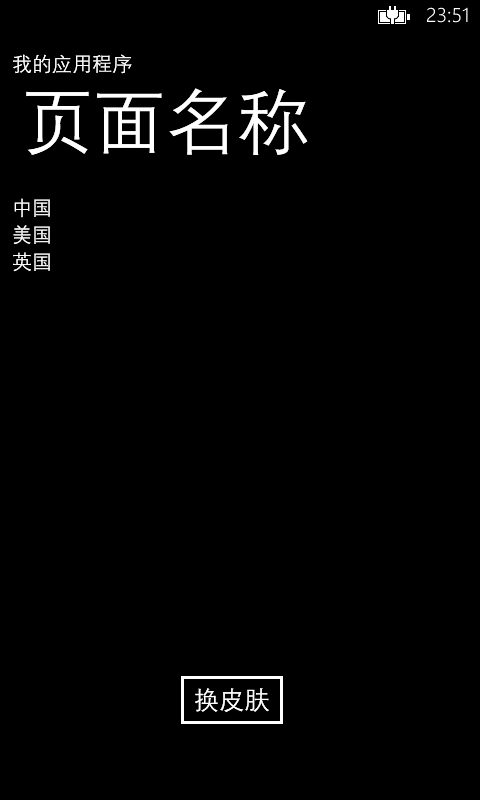

截圖如下：
2 新建一個面板資原始檔，
(ps:這裡比較繁瑣：新建一個頁面檔案，刪除cs檔案，然後找一下這個路徑資原始檔來參考 C:\Program Files (x86)\Microsoft SDKs\Windows Phone\v7.1\Design\DarkBlue\System.Windows.xaml ，為啥微軟不直接提供一個新建面板檔案？？？？？)

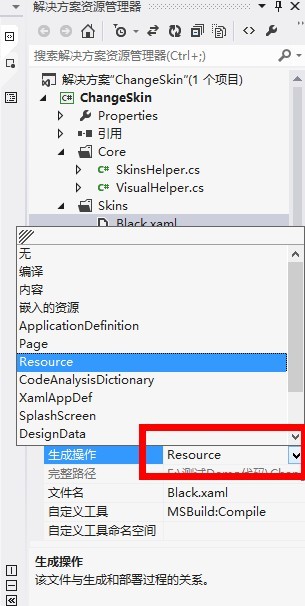

設定Resource，非常重要啊,看下圖
面板裡面檔案程式碼：
<ResourceDictionary
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:System="clr-namespace:System;assembly=mscorlib">
<Style TargetType="TextBlock" x:Key="tbox">
<Setter Property="Foreground" Value="White"></Setter>
</Style>
</ResourceDictionary>
3、後臺程式碼
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Windows;
namespace ChangeSkin
{
public class SkinsHelper
{
/// <summary>
/// 得到面板資原始檔
/// </summary>
/// <param name="Light"></param>
/// <returns></returns>
public static ResourceDictionary GetSkinResource(SkinsType Light = SkinsType.Green)
{
ResourceDictionary resourceDictionary = new ResourceDictionary();
string uri = "/ChangeSkin;component/Skins/";
//這裡一定要設定Black.xaml生成操作為Resource
switch (Light)
{
case SkinsType.Green: uri += "Green.xaml"; break;
case SkinsType.Black: uri += "Black.xaml"; break;
default: uri += "Green.xaml"; break;
}
Application.LoadComponent(resourceDictionary, new Uri(uri, UriKind.Relative));
Application.Current.Resources.MergedDictionaries.Add(resourceDictionary);
return resourceDictionary;
}
}
public enum SkinsType
{
Green = 0,
Black = 1
}
}
4 工具類
using System;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Ink;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using System.Collections.Generic;
namespace JM.Common
{
public class VisualHelper
{
//獲取子型別
public static T FindChildOfType<T>(DependencyObject root) where T : class
{
var queue = new Queue<DependencyObject>();
queue.Enqueue(root);
while (queue.Count > 0)
{
DependencyObject current = queue.Dequeue();
for (int i = VisualTreeHelper.GetChildrenCount(current) - 1; 0 <= i; i--)
{
var child = VisualTreeHelper.GetChild(current, i);
var typedChild = child as T;
if (typedChild != null)
{
return typedChild;
}
queue.Enqueue(child);
}
}
return null;
}
public static List<T> GetVisualChildCollection<T>(object parent) where T : UIElement
{
List<T> visualCollection = new List<T>();
GetVisualChildCollection(parent as DependencyObject, visualCollection);
return visualCollection;
}
private static void GetVisualChildCollection<T>(DependencyObject parent, List<T> visualCollection) where T : UIElement
{
int count = VisualTreeHelper.GetChildrenCount(parent);
for (int i = 0; i < count; i++)
{
DependencyObject child = VisualTreeHelper.GetChild(parent, i);
if (child is T)
{
visualCollection.Add(child as T);
}
else if (child != null)
{
GetVisualChildCollection(child, visualCollection);
}
}
}
}
}
5 呼叫方法
private void SetSkins(SkinsType skin = SkinsType.Black)
{
SkinsHelper.GetSkinResource(skin);
this.ApplicationTitle.SetValue(TextBlock.StyleProperty, Application.Current.Resources["tbox"]);
//listbox文字顏色樣式改變
List<TextBlock> tbList= VisualHelper.GetVisualChildCollection<TextBlock>(lb);
foreach (TextBlock textBlock in tbList)
{
textBlock.SetValue(TextBlock.StyleProperty, Application.Current.Resources["tbox"]);
}
}

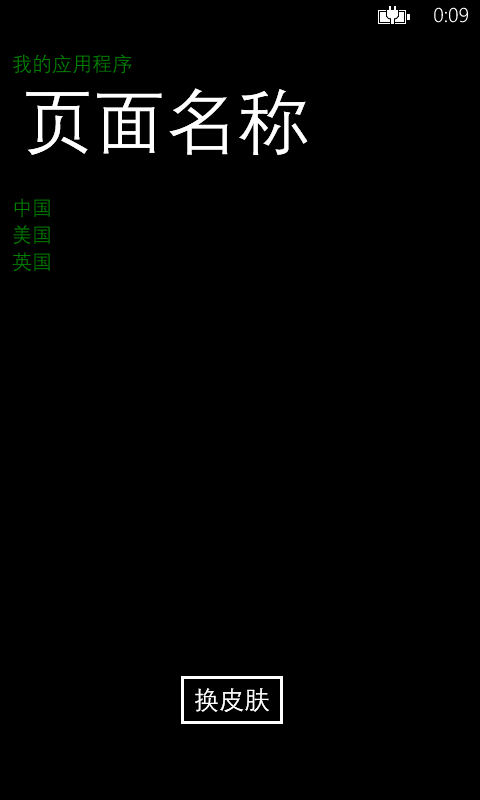

測試結果：
測試結果：
測試結果：文字改變綠色
後記，如果想切換背景，新增更多效果，請增加樣式，再寫上對應呼叫樣式程式碼
