深度優先與廣度優先遍歷二叉樹
阿新 • • 發佈:2018-11-25
對於一顆二叉樹,深度優先搜尋(Depth First Search)是沿著樹的深度遍歷樹的節點,儘可能深的搜尋樹的分支。以上面二叉樹為例,深度優先搜尋的順序為:ABDECFG。怎麼實現這個順序呢 ?深度優先搜尋二叉樹是先訪問根結點,然後遍歷左子樹接著是遍歷右子樹,因此我們可以利用堆疊的先進後出的特點,
先將右子樹壓棧,再將左子樹壓棧,這樣左子樹就位於棧頂,可以保證結點的左子樹先與右子樹被遍歷。
廣度優先搜尋(Breadth First Search),又叫寬度優先搜尋或橫向優先搜尋,是從根結點開始沿著樹的寬度搜索遍歷,上面二叉樹的遍歷順序為:ABCDEFG。可以利用佇列實現廣度優先搜尋。
深度優先廣度優先遍歷二叉樹程式碼
// // dfsbfstree.hpp // dfs bfs // // Created by zhan_even on 2018/11/24. // Copyright © 2018年 zhan_even. All rights reserved. // #ifndef dfsbfstree_hpp #define dfsbfstree_hpp #include <iostream> #include <stack> #include <queue> using namespace std; int trindex = 0; typedef struct Node { char data; struct Node *lchild; struct Node *rchild; } *Tree; //二叉樹構造器,按先序遍歷順序構造二叉樹 //無左子樹或右子樹用'#'表示 void treeNodeConstructor(Tree &root, char data[]){ char e = data[trindex++]; if(e == '#'){ root = NULL; } else{ root = (Node *)malloc(sizeof(Node)); root -> data = e; treeNodeConstructor(root->lchild, data); //遞迴構建左子樹 treeNodeConstructor(root->rchild, data); //遞迴構建右子樹 } } //深度優先 棧先進後出 void dfs(Tree root){ stack<Node *> nodeStack; nodeStack.push(root); Node *node; while (!nodeStack.empty()) { node = nodeStack.top(); //根結點 printf("%c", node -> data); nodeStack.pop(); if (node -> rchild) { nodeStack.push(node -> rchild); //先將右子樹壓棧 } if (node -> lchild) { nodeStack.push(node -> lchild); //再將左子樹壓棧 } } } //廣度優先,佇列先進先出 void bfs(Tree root){ queue<Node *> nodeQueue; nodeQueue.push(root); Node *node; while (!nodeQueue.empty()) { node = nodeQueue.front(); nodeQueue.pop(); printf("%c", node->data); if(node->lchild){ nodeQueue.push(node->lchild); //先將左子樹入隊 } if(node->rchild){ nodeQueue.push(node->rchild); //再將右子樹入隊 } } } #endif /* dfsbfstree_hpp */
呼叫:
// // dfsTree.cpp // dfs bfs // // Created by zhan_even on 2018/11/24. // Copyright © 2018年 zhan_even. All rights reserved. // #include "dfsbfstree.hpp" int main(){ //上圖所示的二叉樹先序遍歷序列,其中用'#'表示結點無左子樹或無右子樹 char data[15] = {'A', 'B', 'D', '#', '#', 'E', '#', '#', 'C', 'F','#', '#', 'G', '#', '#'}; Tree tree; treeNodeConstructor(tree, data); printf("深度優先遍歷二叉樹結果: \n"); dfs(tree); cout << endl; printf("廣度優先遍歷二叉樹結果: \n"); bfs(tree); cout << endl; return 0; }

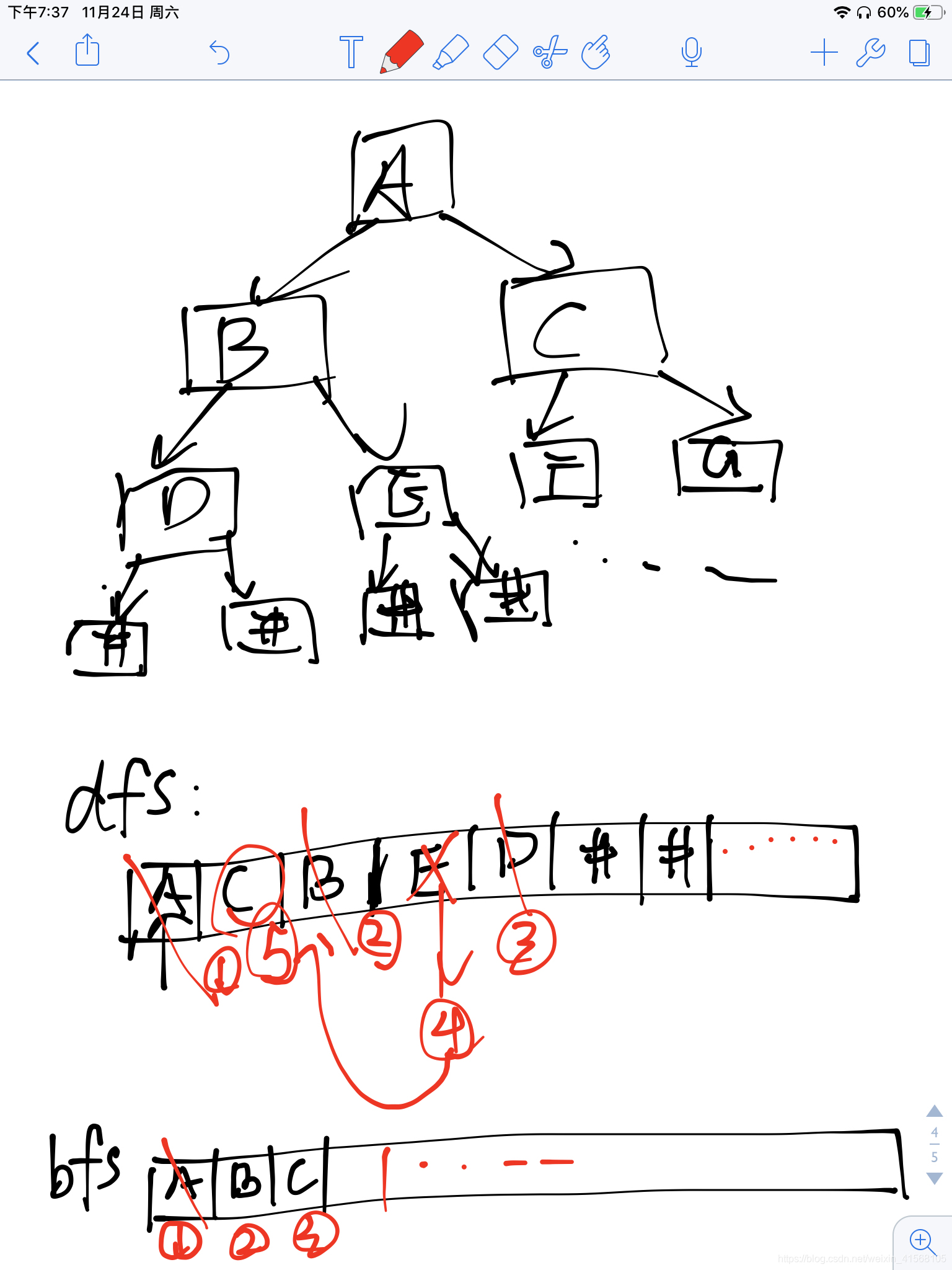

過程見圖
