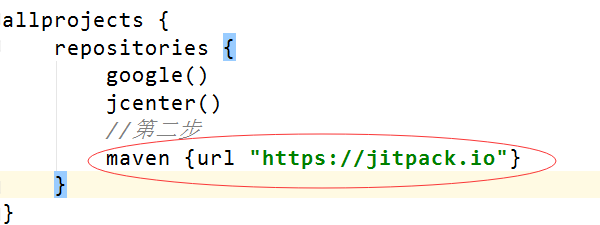

先給專案的build.gradle進行適配：

maven {url “https://jitpack.io”}

對建立的Module中的build.gradle匯入依賴：

 implementation 'com.github.andyoom:draggrid:v1.1.4'

先給fragment進行佈局：

<android.support.constraint.ConstraintLayout xmlns:android=“http://schemas.android.com/apk/res/android

**<Button**
    android:id="@+id/to_cm"
    android:layout_width="40dp"
    android:layout_height="wrap_content"
    app:layout_constraintTop_toTopOf="@id/top"
    app:layout_constraintBottom_toBottomOf="@id/top"
    app:layout_constraintRight_toRightOf="parent"/>

<android.support.**design.widget.TabLayout**
    android:id="@+id/top"
    android:layout_width="0dp"
    android:layout_height="wrap_content"
    app:layout_constraintTop_toTopOf="parent"
    app:layout_constraintLeft_toLeftOf="parent"
    app:layout_constraintRight_toLeftOf="@id/to_cm" />

<android.support**.v4.view.ViewPager**
    android:id="@+id/pager"
    android:layout_width="0dp"
    android:layout_height="0dp"
    app:layout_constraintBottom_toBottomOf="parent"
    app:layout_constraintLeft_toLeftOf="parent"
    app:layout_constraintRight_toRightOf="parent"
    app:layout_constraintTop_toBottomOf="@id/top" />


</android.support.constraint.ConstraintLayout>

Fragment:

package com.example.rikao_18.pindao;

import android.content.Intent;
import android.os.Bundle;
import android.support.annotation.NonNull;
import android.support.annotation.Nullable;
import android.support.design.widget.TabLayout;
import android.support.v4.app.Fragment;
import android.support.v4.view.ViewPager;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;

import com.andy.library.ChannelActivity;
import com.andy.library.ChannelBean;
import com.example.rikao_18.R;
import com.google.gson.Gson;
import com.google.gson.reflect.TypeToken;

import java.util.ArrayList;
import java.util.List;

import static com.andy.library.ChannelActivity.REQUEST_CODE;
import static com.andy.library.ChannelActivity.RESULT_CODE;
import static com.andy.library.ChannelActivity.RESULT_JSON_KEY;
public class VedioFragment extends Fragment {
//定義變數
private TabLayout tab;
private ViewPager viewpager;
private List datas;
private VedioAdapter adapter;
@Nullable
@Override
public View onCreateView(@NonNull LayoutInflater inflater, @Nullable ViewGroup container, @Nullable Bundle savedInstanceState) {
View view=inflater.inflate(R.layout.videofragment,container,false);
//獲取資源ID
tab=view.findViewById(R.id.top);
viewpager=view.findViewById(R.id.pager);
//介面卡
adapter=new VedioAdapter(getChildFragmentManager());
viewpager.setAdapter(adapter);
//tab和viewpager關聯
tab.setupWithViewPager(viewpager);
return view;
}

@Override
public void onViewCreated(@NonNull View view, @Nullable Bundle savedInstanceState) {
    super.onViewCreated(view, savedInstanceState);

    //例項化datas
    datas=new ArrayList <>();
    //新增頻道
    datas.add(new ChannelBean("體育", true));
    datas.add(new ChannelBean("關注", true));
    datas.add(new ChannelBean("推薦", true));
    datas.add(new ChannelBean("國際", true));
    datas.add(new ChannelBean("熱點", true));
    datas.add(new ChannelBean("軍事", true));
    datas.add(new ChannelBean("八卦", true));
    datas.add(new ChannelBean("遊戲", false));
    datas.add(new ChannelBean("寵物", false));
    datas.add(new ChannelBean("汽車", false));
    datas.add(new ChannelBean("熱賣", false));
    datas.add(new ChannelBean("外賣", false));
    datas.add(new ChannelBean("地圖", false));
    datas.add(new ChannelBean("視訊", false));
    datas.add(new ChannelBean("圖片", false));
    datas.add(new ChannelBean("音樂", false));
    datas.add(new ChannelBean("家居", false));
    datas.add(new ChannelBean("網路", false));
    datas.add(new ChannelBean("購物", false));
    datas.add(new ChannelBean("其他", false));
        //將選出來是true的頻道放入到集合中
    adapter.setMjihe(getSelectedResult(datas));
    //按鈕的點選事件
    view.findViewById(R.id.to_cm).setOnClickListener(new View.OnClickListener() {
        @Override
        public void onClick(View v) {
            Gson gson = new Gson();
            //  將集合轉換成gson型別
            String jsonArray = gson.toJson(datas);
            Intent it=new Intent(getActivity(),ChannelActivity.class);
            it.putExtra(RESULT_JSON_KEY,jsonArray);
            startActivityForResult(it,REQUEST_CODE);
        }
    });
}

@Override
public void onActivityResult(int requestCode, int resultCode, Intent data) {
    if (requestCode==REQUEST_CODE){
        String json = data.getStringExtra("json");
        datas=new Gson().fromJson(json,new TypeToken<ArrayList<ChannelBean>>(){}.getType());
        adapter.setMjihe(getSelectedResult(datas));
        return;
    }
    super.onActivityResult(requestCode, resultCode, data);
}

//將頻道是isSelect的選出來
private List<ChannelBean> getSelectedResult(List<ChannelBean> datas) {
    List<ChannelBean> result=new ArrayList <>();
    for (ChannelBean bean:datas) {
        if (bean.isSelect()){
            result.add(bean);
        }
    }
    return result;
}

}

ViewPager的介面卡：

package com.example.rikao_18.pindao;

import android.support.annotation.Nullable;
import android.support.v4.app.Fragment;
import android.support.v4.app.FragmentManager;
import android.support.v4.app.FragmentPagerAdapter;

import com.andy.library.ChannelBean;

import java.util.ArrayList;
import java.util.List;

public class VedioAdapter extends FragmentPagerAdapter {

private List<ChannelBean> mjihe;

public VedioAdapter(FragmentManager fm) {
    super(fm);
    //例項化集合
    mjihe=new ArrayList <>();
}

//更新
public void setMjihe(List <ChannelBean> mjihe) {
    this.mjihe = mjihe;
    notifyDataSetChanged();
}

@Override
public Fragment getItem(int i) {
		//返回 簡單的Fragment
    return new AFragment();
}

@Override
public int getCount() {
    return mjihe.size();
}

//和tab關聯---返回集合的name到tab
@Nullable
@Override
public CharSequence getPageTitle(int position) {
    return mjihe.get(position).getName();
}

}

介面卡中的getItem()返回的fragment：

package com.example.rikao_18.pindao;

import android.annotation.SuppressLint;
import android.os.Bundle;
import android.support.annotation.NonNull;
import android.support.annotation.Nullable;
import android.support.v4.app.Fragment;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.TextView;

@SuppressLint(“ValidFragment”)
public class AFragment extends Fragment {
@Nullable
@Override
public View onCreateView(@NonNull LayoutInflater inflater, @Nullable ViewGroup container, @Nullable Bundle savedInstanceState) {
TextView textView = new TextView(getActivity());
textView.setText(“頁面”);
return textView;
}
}

*!!!注意：

    若是有image-loader,
    要在清單檔案註冊name:android:name=".App"
    此時image-loader的App要繼承AppApplication

## 清單檔案 :

App繼承：
