在eclipse上部署springcloud小例子--第二篇:服務消費者(rest+ribbon)
在上一篇文章,講了服務的註冊和發現。在微服務架構中,業務都會被拆分成一個獨立的服務,服務與服務的通訊是基於http restful的。Spring cloud有兩種服務呼叫方式,一種是ribbon+restTemplate,另一種是feign。在這一篇文章首先講解下基於ribbon+rest。
一、ribbon簡介
Ribbon is a client side load balancer which gives you a lot of control over the behaviour of HTTP and TCP clients. Feign already uses Ribbon, so if you are using @FeignClient then this section also applies.
-----摘自官網
ribbon是一個負載均衡客戶端,可以很好的控制htt和tcp的一些行為。Feign預設集成了ribbon。
ribbon 已經預設實現了這些配置bean:
IClientConfig ribbonClientConfig: DefaultClientConfigImpl
IRule ribbonRule: ZoneAvoidanceRule
IPing ribbonPing: NoOpPing
ServerList ribbonServerList: ConfigurationBasedServerList
ServerListFilter ribbonServerListFilter: ZonePreferenceServerListFilter
ILoadBalancer ribbonLoadBalancer: ZoneAwareLoadBalancer
二、準備工作

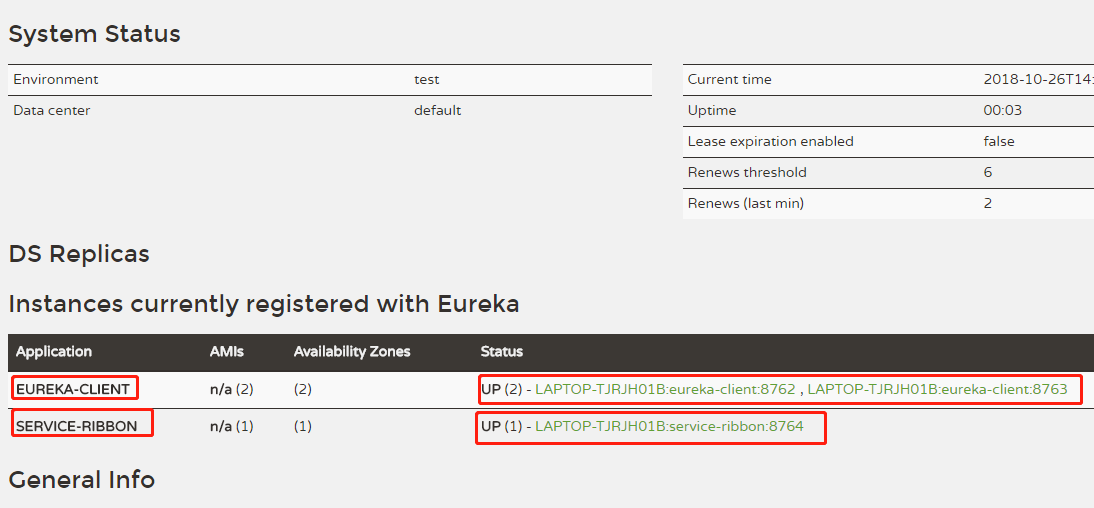

這一篇文章基於上一篇文章的工程,啟動eureka-server 工程;啟動eureka-client工程,它的埠為8762;將eureka-client的配置檔案的埠改為8763,並啟動,這時你會發現:eureka-client在eureka-server註冊了2個例項,這就相當於一個小的叢集。
三、建一個服務消費者

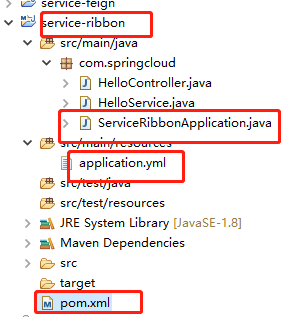

重新新建一個spring-boot工程,取名為:service-ribbon;
在它的pom.xml繼承了父pom檔案,並引入了以下依賴:
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <parent> <groupId>com.springcloud</groupId> <artifactId>demo-parent</artifactId> <version>0.0.1-SNAPSHOT</version> </parent> <artifactId>service-ribbon</artifactId> <properties> <maven-jar-plugin.version>2.6</maven-jar-plugin.version> </properties> <name>service-ribbon</name> <description>Demo project for Spring Boot</description> <dependencies> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-ribbon</artifactId> </dependency> </dependencies> </project>
在工程的配置檔案指定服務的註冊中心地址為http://localhost:8761/eureka/,程式名稱為 service-ribbon,程式埠為8764。配置檔案application.yml如下:
eureka:
client:
serviceUrl:
defaultZone: http://localhost:8761/eureka/
server:
port: 8764
spring:
application:
name: service-ribbon
在工程的啟動類中,通過@EnableDiscoveryClient向服務中心註冊;並且向程式的ioc注入一個bean: restTemplate;並通過@LoadBalanced註解表明這個restRemplate開啟負載均衡的功能。
package com.springcloud;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.client.loadbalancer.LoadBalanced;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.context.annotation.Bean;
import org.springframework.web.client.RestTemplate;
/**
* 在工程的啟動類中,通過@EnableDiscoveryClient向服務中心註冊;
* 並且向程式的ioc注入一個bean: restTemplate;
* 並通過@LoadBalanced註解表明這個restRemplate開啟負載均衡的功能。
* @author fengjinzhu
*
*/
@SpringBootApplication
@EnableEurekaClient
@EnableDiscoveryClient
public class ServiceRibbonApplication {
public static void main(String[] args) {
SpringApplication.run(ServiceRibbonApplication.class, args);
}
@Bean
@LoadBalanced
RestTemplate restTemplate(){
return new RestTemplate();
}
}
寫一個測試類HelloService,通過之前注入ioc容器的restTemplate來消費eureka-client服務的“/hi”介面,在這裡我們直接用的程式名替代了具體的url地址,在ribbon中它會根據服務名來選擇具體的服務例項,根據服務例項在請求的時候會用具體的url替換掉服務名,程式碼如下:
package com.springcloud;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.web.client.RestTemplate;
/**
* 寫一個測試類HelloService,
* 通過之前注入ioc容器的restTemplate來消費eureka-client服務的“/hi”介面,
* 在這裡我們直接用的程式名替代了具體的url地址,
* 在ribbon中它會根據服務名來選擇具體的服務例項,
* 根據服務例項在請求的時候會用具體的url替換掉服務名
* @author fengjinzhu
*
*/
@Service
public class HelloService {
@Autowired
RestTemplate restTemplate;
public String hiService(String name){
//return restTemplate.getForObject("http://Eureka-Client/hi?name="+name, String.class);
return restTemplate.getForObject("http://eureka-client/hi?name="+name, String.class);
}
}
寫一個controller,在controller中用呼叫HelloService 的方法,程式碼如下:
package com.springcloud;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
@RestController
public class HelloController {
@Autowired
private HelloService helloService;
@GetMapping(value="/hi")
public String hi(@RequestParam String name){
return helloService.hiService(name);
}
}
在瀏覽器上多次訪問http://localhost:8764/hi?name=springcloud,瀏覽器交替顯示:
hi ! springcloud,i am from port:8762
hi ! springcloud,i am from port:8763
這說明當我們通過呼叫restTemplate.getForObject(“http://eureka-client/hi?name=”+name,String.class)方法時,已經做了負載均衡,訪問了不同的埠的服務例項。
