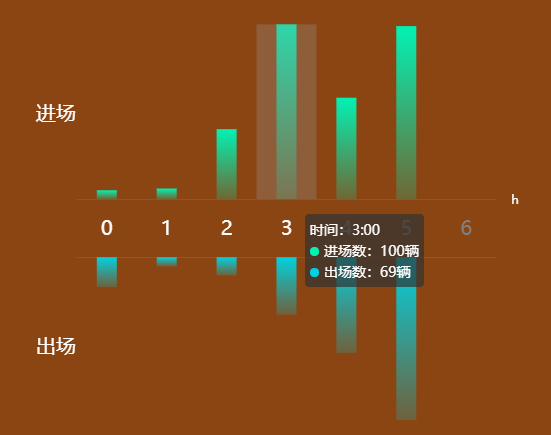

bar-上下漸變色柱形圖,提示資訊自定義顯示
阿新 • • 發佈:2018-12-07
var x_data1 = ['0', '1', '2', '3', '4', '5', '6']; // 橫座標 var jstr = [5, 6, 40, 100, 58, 99]; //進場資料 var cstr = [36, 11, 22, 69, 115, 196]; //出場資料 var option = { backgroundColor: '#8B4513', tooltip: { trigger: 'axis', axisPointer: { // 座標軸指示器,座標軸觸發有效 type: 'shadow' // 預設為直線,可選為:'line' | 'shadow' }, formatter: function(params) { // 重定義marker值 var marker1 = "<span style='display:inline-block;margin-right:5px;border-radius:10px;width:9px;height:9px;background-color:rgba(2,242,180,1);'></span>"; var marker2 = "<span style='display:inline-block;margin-right:5px;border-radius:10px;width:9px;height:9px;background-color:rgba(2,209,223,1);'></span>"; var res = "時間:" + params[0].name + ":00<br/>"; var index = x_data1.indexOf(params[0].name); //定位到懸浮的名稱在橫座標的位置 for (var i = 0; i < params.length; i++) { //只有一個系列 res += marker1 + "進場數:" + jstr[index] + "輛<br/>"; res += marker2 + "出場數:" + cstr[index] + "輛<br/>"; } return res; }, }, grid: [ // 0 進場數 { top: '20%', left: '15%', right: '15%', height: '30%', }, // 1 出場數 { top: '60%', left: '15%', right: '15%', height: '30%', } ], calculable: true, xAxis: [{ name: 'h', nameLocation: 'end', nameTextStyle: { color: '#fff', fontSize: 12, }, gridIndex: 0, // 對應前面grid的索引位置(第一個)進場 type: 'category', axisLabel: { show: true, textStyle: { color: function(value) { // x軸顏色的設定 return value >= 4 ? 'gray' : 'white'; // 橫座標預警值 }, fontSize: 20, }, margin: 18, }, axisTick: { show: false, alignWithLabel: true }, axisLine: { lineStyle: { color: '#2B70A6' // x軸顏色 } }, data: x_data1, splitLine: { show: false, lineStyle: { color: "rgba(52,135,200,.4)", width: 1, type: "solid" } }, }, { gridIndex: 1, // 對應前面grid的索引位置(第二個)出場 position: 'top', type: 'category', axisTick: { show: false, alignWithLabel: true }, axisLabel: { show: false, }, axisLine: { lineStyle: { color: '#2B70A6' // x軸顏色 } }, data: x_data1, splitLine: { show: false, lineStyle: { color: "rgba(52,135,200,.4)", width: 1, type: "solid" } }, }], yAxis: [{ // show : false,//隱藏了y軸 type: 'value', gridIndex: 0, name: '進場', nameLocation: 'center', nameTextStyle: { color: '#fff', fontSize: 20, }, nameGap: 1, nameRotate: 0, axisTick: { show: false, // alignWithLabel: true }, axisLabel: { show: false, }, axisLine: { show: false, }, splitLine: { show: false, lineStyle: { color: "rgba(52,135,200,.4)", width: 1, type: "solid" } }, }, { // show : false,//隱藏了y軸 type: 'value', gridIndex: 1, name: '出場', nameLocation: 'center', nameTextStyle: { color: '#fff', fontSize: 20, }, nameGap: 1, nameRotate: 0, inverse: true, axisLine: { // y軸 show: false }, axisLabel: { show: false, }, axisTick: { // y軸刻度線 show: false, alignWithLabel: false }, splitLine: { show: false, lineStyle: { color: "rgba(52,135,200,.4)", width: 1, type: "solid" } }, }], series: [{ name: '進場數', type: 'bar', barWidth: 20, xAxisIndex: 0, // 對應前面x的索引位置(第一個) yAxisIndex: 0, // 對應前面y的索引位置(第一個) itemStyle: { normal: { color: new echarts.graphic.LinearGradient( 0, 0, 0, 1, [{ offset: 0, color: 'rgba(2,242,180,1)' }, { offset: 1, color: 'rgba(2,242,180,.2)' } ] ) }, }, data: jstr }, { name: '出場數', type: 'bar', barWidth: 20, xAxisIndex: 1, // 對應前面x的索引位置(第二個) yAxisIndex: 1, // 對應前面y的索引位置(第二個) itemStyle: { normal: { color: new echarts.graphic.LinearGradient( 0, 0, 0, 1, [{ offset: 0, color: 'rgba(2,209,223,1)' }, { offset: 1, color: 'rgba(2,209,223,.2)' } ] ) }, }, data: cstr }] };
