BootStrap-CSS樣式_佈局元件_字型圖示(Glyphicons)

什麼是字型圖示?

字型圖示是在 Web 專案中使用的圖示字型。雖然,Glyphicons Halflings 需要商業許可,但 是您可以通過基於專案的 Bootstrap 來免費使用這些圖示。

獲取字型圖示

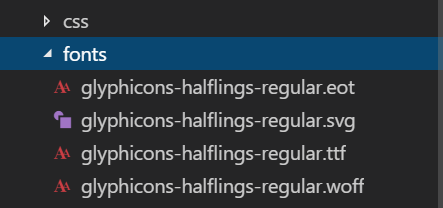

我們下載了 Bootstrap 3.x 版本,並理解了它的目錄結構。在 fonts 資料夾內可以找到字型圖示, 它包含了下列這些檔案:

1.glyphicons-halflings-regular.eot

2. glyphicons-halflings-regular.svg

3. glyphicons-halflings-regular.ttf

4. glyphicons-halflings-regular.woff

相關的 CSS 規則寫在 dist 資料夾內的 css 資料夾內的 bootstrap.css 和 bootstrap-min.css 檔案上。
 字型圖示列表

類似於下:

更多請檢視:http://www.w3cschool.cc/try/demo_source/bootstrap3-glyph-icons.htm



線上定製自己的圖示:http://www.w3cschool.cc/try/demo_source/bootstrap-glyph-customization.htm

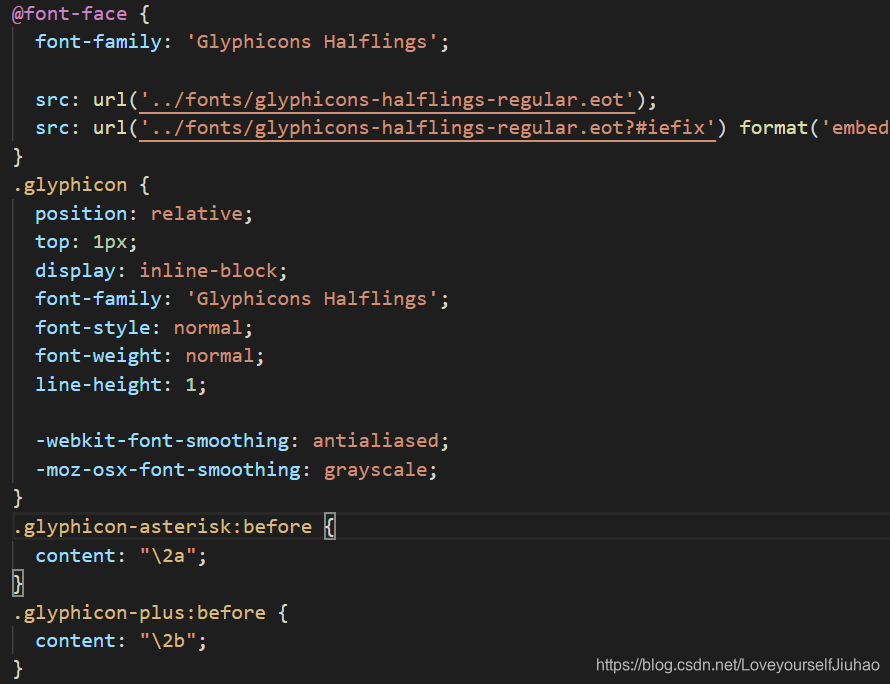

CSS 規則解釋
下面的 CSS 規則構成 glyphicon class。


所以 font-face 規則實際上是在找到 glyphicons 地方宣告 font-family 和位置。
.glyphicon class 宣告一個從頂部偏移 1px 的相對位置,呈現為 inline-block,宣告字型,規定 font-style 和 font-weight 為 normal,設定行高為 1。除此之外,使用 -webkit-font-smoothing: antialiased 和 -moz-osx-font-smoothing: grayscale; 獲得跨瀏覽器的一致性。

這裡有 200 個 class,每個 class 針對一個圖示。這些 class 的常見格式如下:

 比如,使用的 user 圖示,它的 class 如下:

 用法
如需使用圖示,只需要簡單地使用下面的程式碼即可。請在圖示和文字之間保留適當的空間。

<span class="glyphicon glyphicon-user"></span>

程式碼例項

<!DOCTYPE html>
<html lang="zh-cn">
<head>
    <meta charset="utf-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <title>字型圖示</title>
    <!-- Bootstrap -->
    <link rel="stylesheet" href="../css/bootstrap.min.css">
</head>
<body style="padding:50px;">

    <!--1. 按鈕應用字型圖示-->
     <p>
        <button type="button" class="btn btn-default">
            <span class="glyphicon glyphicon-sort-by-attributes"></span>
        </button>
        <button type="button" class="btn btn-default">
            <span class="glyphicon glyphicon-sort-by-attributes-alt"></span>
        </button>
        <button type="button" class="btn btn-default">
            <span class="glyphicon glyphicon-sort-by-order"></span>
        </button>
        <button type="button" class="btn btn-default">
            <span class="glyphicon glyphicon-sort-by-order-alt"></span>
        </button>
        <button type="button" class="btn btn-default">
            <span class="glyphicon glyphicon-circle-arrow-left"></span>
        </button>
        <button type="button" class="btn btn-default">
            <span class="glyphicon glyphicon-circle-arrow-right"></span>
        </button>
    </p>

    <p>
        <button type="button" class="btn btn-default btn-lg">
            <span class="glyphicon glyphicon-user"></span> User
        </button>
        <button type="button" class="btn btn-default btn-sm">
            <span class="glyphicon glyphicon-user"></span> User
        </button>
        <button type="button" class="btn btn-default btn-xs">
            <span class="glyphicon glyphicon-user"></span> User
        </button>
    </p>

    <!--2. 為導航欄應用字型圖示-->
   <div class="navbar  navbar-fixed-top  navbar-inverse" role="navigation">
        <div class="container">
            <div class="navbar-header">
                <button type="button" class="navbar-toggle" data-toggle="collapse" data-target=".navbar-collapse">
                    <span class="sr-only">Toggle navigation(導航)</span>
                    <span class="icon-bar"></span>
                    <span class="icon-bar"></span>
                    <span class="icon-bar"></span>
                </button>
                <a class="navbar-brand" href="#">Project name</a>
            </div>
            <div class="collapse navbar-collapse">
                <ul class="nav navbar-nav">
                    <li class="active"><a href="#"><span class="glyphicon glyphicon-home"></span> Home</a>
                    </li>
                    <li><a href="#shop"><span class="glyphicon glyphicon-shopping-cart"></span> Shop</a>
                    </li>
                    <li><a href="#support"><span class="glyphicon glyphicon-headphones"></span> Support</a>
                    </li>
                </ul>
            </div>
        </div>
    </div>

    <!--3. 定製字型圖示-->
    <button type="button" class="btn btn-primary btn-lg" style="font-size:50px">
            <span class="glyphicon glyphicon-user"></span> User
     </button>

        <button type="button" class="btn btn-primary btn-lg" style="color: rgb(212, 106, 64);">
            <span class="glyphicon glyphicon-user"></span> User
     </button>

       <button type="button" class="btn btn-primary btn-lg" style="text-shadow: black 5px 3px 3px;">
            <span class="glyphicon glyphicon-user"></span> User
     </button>

    <script src="../js/jquery-1.11.1.min.js"></script>
    <script src="../js/bootstrap.min.js"></script>
</body>
</html>

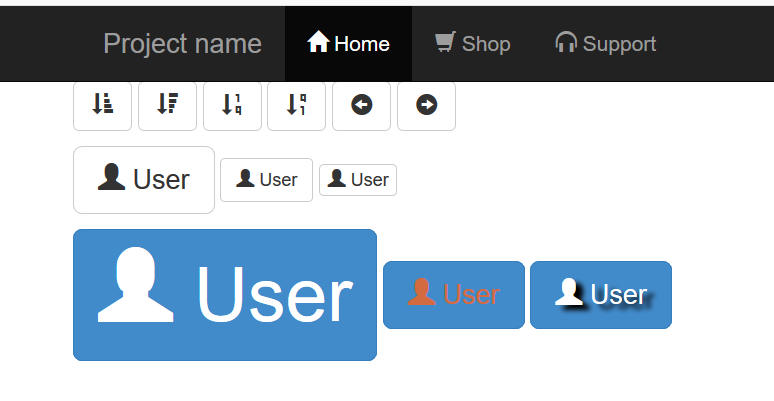

顯示效果:
