OpenLayers官方示例詳解十六之偽造點(Synthetic Points)
阿新 • • 發佈:2019-01-04
目錄
一、示例簡介

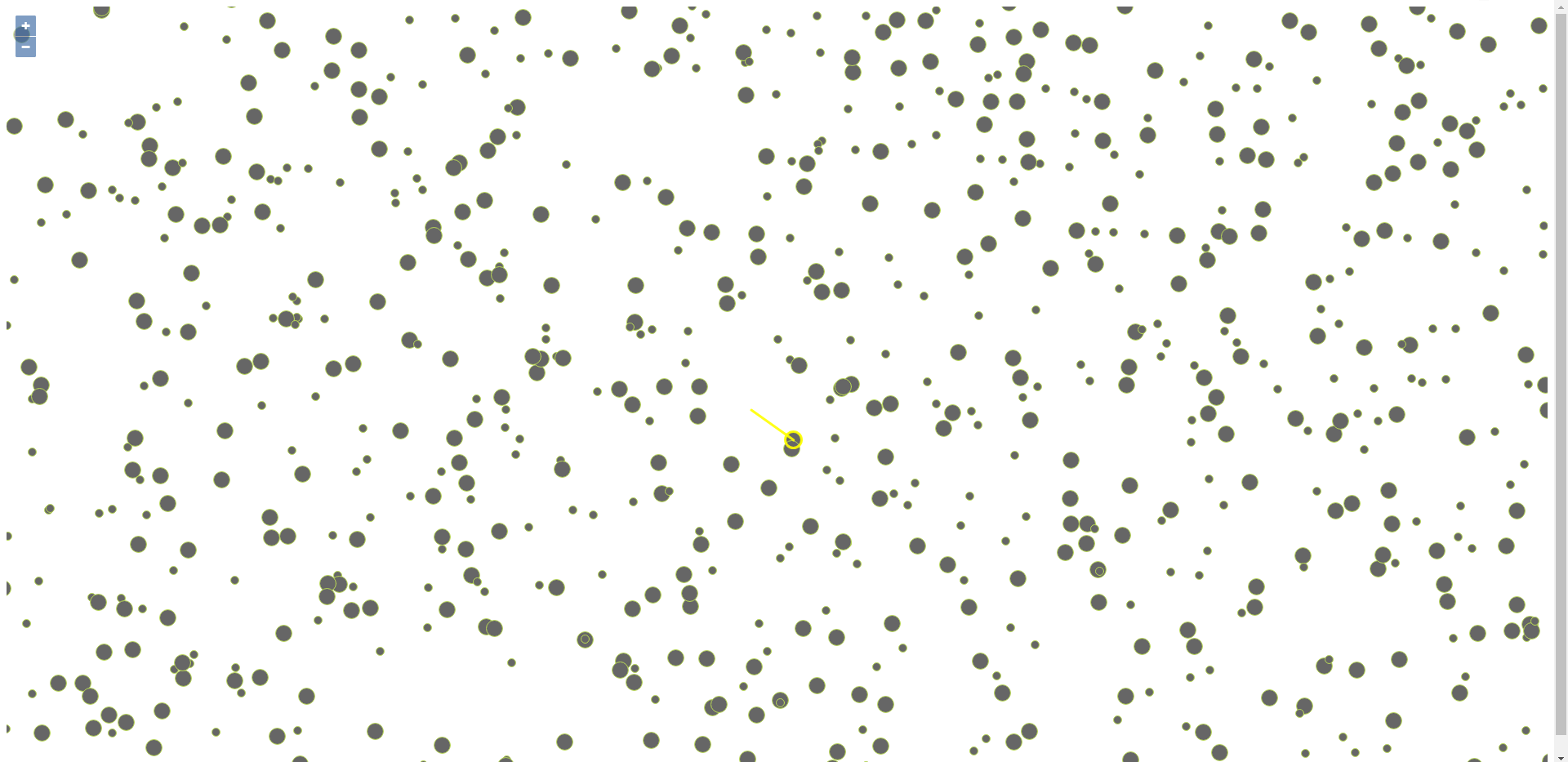

本示例首先隨機生成20000個點資料,並加入到地圖中,然後實現了將離滑鼠最近的點高亮顯示的功能。
二、程式碼詳解
<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8"> <meta name="viewport" content="width=device-width, initial-scale=1.0"> <meta http-equiv="X-UA-Compatible" content="ie=edge"> <title>Synthetic Points</title> <link href="ol_v5.0.0/css/ol.css" rel="stylesheet" type="text/css" /> <script src="ol_v5.0.0/build/ol.js" type="text/javascript"></script> </head> <body> <div id="map"></div> <script> var count = 20000; var features = new Array(count); var e = 18000000; // 隨機生成20000個點要素 for(var i = 0; i < count; i++){ features[i] = new ol.Feature({ 'geometry': new ol.geom.Point( [2 * e * Math.random() - e, 2 * e * Math.random() - e] ), 'i': i, // 標記主碼 'size': i % 2 ? 10 : 20 // 用於對應樣式的標記 }); } // 點樣式的名稱空間 var styles = { '10': new ol.style.Style({ image: new ol.style.Circle({ radius: 5, fill: new ol.style.Fill({ color: '#666' }), stroke: new ol.style.Stroke({ color: '#bada55', width: 1 }) }) }), '20': new ol.style.Style({ image: new ol.style.Circle({ radius: 10, fill: new ol.style.Fill({ color: '#666' }), stroke: new ol.style.Stroke({ color: '#bada55', width: 1 }) }) }) }; var vectorSource = new ol.source.Vector({ features: features, wrapX: false }); var vector = new ol.layer.Vector({ source: vectorSource, style: function(feature){ // 對不同大小的要素賦予不同的樣式 return styles[feature.get('size')]; } }); var map = new ol.Map({ target: 'map', layers: [ vector ], view: new ol.View({ center: [0, 0], zoom: 2 }) }); var point = null; var line = null; // 尋找離滑鼠游標最近的點要素,並使用一條線要素連線兩者 var displaySnap = function(coordinate){ var closestFeature = vectorSource.getClosestFeatureToCoordinate(coordinate); // 獲取與傳入的座標點最接近的要素 if(closestFeature === null){ point = null; line = null; }else{ var geometry = closestFeature.getGeometry(); var closestPoint = geometry.getClosestPoint(coordinate); // 獲取與傳入座標最接近的點座標 if(point === null){ point = new ol.geom.Point(closestPoint); // 初始化點幾何圖形 }else{ point.setCoordinates(closestPoint); // 重新設定點圖形的座標 } if(line === null){ line = new ol.geom.LineString([coordinate, closestPoint]); // 初始化線幾何圖形 }else{ line.setCoordinates([coordinate, closestPoint]); // 重新設定線圖形的座標 } } map.render(); } map.on('pointermove', function(evt){ if(evt.dragging){ // 如果滑鼠拖拽地圖,則不進行其餘操作 return; } var coordinate = map.getEventCoordinate(evt.originalEvent); // 返回當前滑鼠的座標 displaySnap(coordinate); // 顯示捕捉 var pixel = map.getEventPixel(evt.originalEvent); var hit = map.hasFeatureAtPixel(pixel); // 判斷是否有要素點與滑鼠相交 // 如果滑鼠游標與要素點相交,則改變滑鼠游標的樣式 if(hit){ map.getTargetElement().style.cursor = 'pointer'; }else{ map.getTargetElement().style.cursor = ''; } }); map.on('click', function(evt){ displaySnap(evt.coordinate); }); var stroke = new ol.style.Stroke({ color: 'rgba(255, 255, 0, 0.9)', width: 3 }); var style = new ol.style.Style({ stroke: stroke, image: new ol.style.Circle({ radius: 10, stroke: stroke }) }); map.on('postcompose', function(evt){ var vectorContext = evt.vectorContext; // 獲取canvas 2d繪圖上下文 vectorContext.setStyle(style); // 為繪圖上下文設定樣式 if(point !== null){ vectorContext.drawGeometry(point); // 使用canvas繪製離滑鼠最近的點 } if(line !== null){ vectorContext.drawGeometry(line); // 使用canvas繪製滑鼠與離滑鼠最近點之間的線 } }); </script> </body> </html>
