Softmax層的作用是將輸入的預測向量轉化為概率值，也就是每個元素介於0和1之間，其和為1。而Softmax loss是基於Softmax的輸出，使用多元交叉熵損失函式得到的loss。下面我們來討論一下他們其中的正向和反向導數推導，以及caffe中的原始碼實現。為了更好地將推導和程式碼相結合，以加深理解，本文將會在每個推導部分直接緊跟其程式碼實現。

1. Softmax

1.1 前向計算

1.1.1 公式推導

假設有K個類別，前面已得出每個類別的分值為zizi，則Softmax通過下式計算出相應的概率值：
Softmax_(zi)=exp^(zj) / ∑_jexp^(zj)

, _{i=0,1,2,…,K−1}

這樣就將z_i對映到了[0,1]，且和為1，即為輸入被預測到每個類別的概率。
前向過程比較簡單，下面我們來看一下具體實現。

1.1.2 原始碼實現

我們主要分析Softmax層的Forward_cpu函式，該函式的實現位於caffe的src/caffe/layers/softmax_layer.cpp中。需要說明的是，在caffe的實現中，輸入值zizi首先減去了最大值，這樣避免了後續的exp()計算中可能出現的因數值過大而造成的溢位問題。
首先來解釋一下下面程式碼裡幾個不太好理解的變數：
scale_data： 是個中間變數，用來存放計算的中間結果。
inner_num_：

在softmax_layer.hpp的宣告中為inner_num_ = bottom[0]->count(softmax_axis_ + 1);也就是所有表示概率值的維度的畫素點總數。
outer_num_：在softmax_layer.hpp的宣告中為outer_num_ = bottom[0]->count(0, softmax_axis_);可以理解為樣本的個數。

template <typename Dtype>
void SoftmaxLayer<Dtype>::Forward_cpu(const vector<Blob<Dtype>*>& bottom,
    const vector<Blob<Dtype>*>& top) {
  const Dtype* bottom_data = bottom[0]->cpu_data();
  Dtype* top_data = top[0]->mutable_cpu_data();
  Dtype* scale_data = scale_.mutable_cpu_data();    // scale_data 是個中間變數，用來存放計算的中間結果
  int channels = bottom[0]->shape(softmax_axis_);
  int dim = bottom[0]->count() / outer_num_;
  // 輸出資料初始化為輸入資料
  caffe_copy(bottom[0]->count(), bottom_data, top_data);

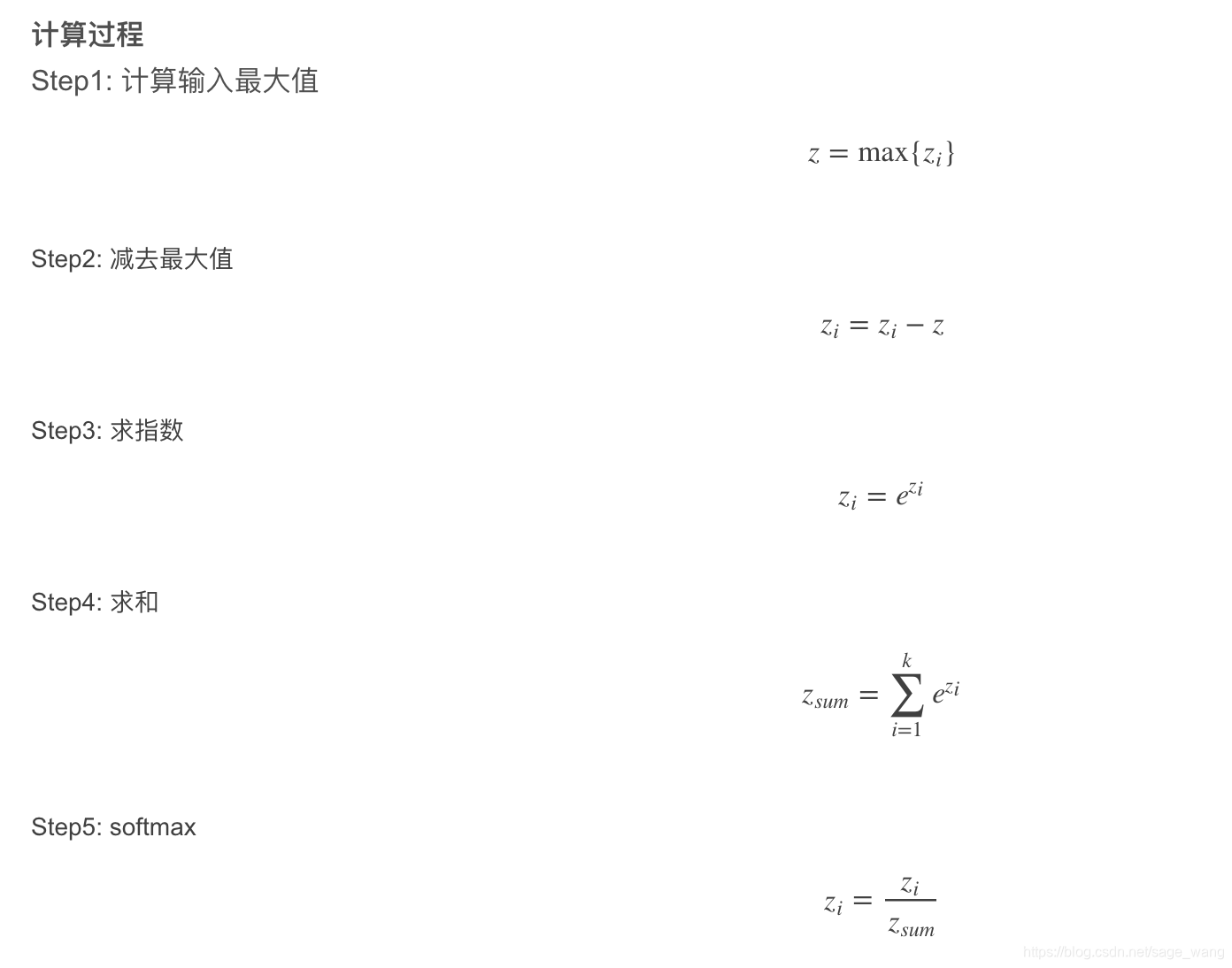

  // 我們需要減去最大值，計算exp，然後歸一化。
  for (int i = 0; i < outer_num_; ++i) {
    // 將中間變數scale_data初始化為輸入值的第一個樣本平面
    caffe_copy(inner_num_, bottom_data + i * dim, scale_data);
    // 找出每個樣本在每個類別的輸入分值的最大值，放入scale_data中
    for (int j = 0; j < channels; j++) {
      for (int k = 0; k < inner_num_; k++) {
        scale_data[k] = std::max(scale_data[k],
            bottom_data[i * dim + j * inner_num_ + k]);
      }
    }
    // 減去最大值
    caffe_cpu_gemm<Dtype>(CblasNoTrans, CblasNoTrans, channels, inner_num_,
        1, -1., sum_multiplier_.cpu_data(), scale_data, 1., top_data);
    // 計算exp()
    caffe_exp<Dtype>(dim, top_data, top_data);
    // 求和
    caffe_cpu_gemv<Dtype>(CblasTrans, channels, inner_num_, 1.,
        top_data, sum_multiplier_.cpu_data(), 0., scale_data);
    // 除以前面求到的和
    for (int j = 0; j < channels; j++) {
      caffe_div(inner_num_, top_data, scale_data, top_data);
      top_data += inner_num_;    // 指標後移
    }
  }
}


1.2 反向傳播

1.2.1 公式推導

如前，設Softmax的輸入為z_i，輸出為a_i，那麼由鏈式法則，損失loss對其輸入z_i的偏導可以如下計算：

$∂~loss~\over{∂~z~}$ = $∂~loss~\over{∂a}$⋅ $∂~a~\over{∂~z~}$

其中 $∂~loss~\over{∂a}$是上面的層傳回來的梯度，對本層來說是已知的，所以我們只需計算 $∂~a~\over{∂~z~}$。
由a_i=
$\frac{e~zj~}{∑~j~e ~zj~}$

當i=j，

這裡∗表示標量算數乘法。
當i≠j， 等式的右邊為 -a_i * a_j

所以，

這裡的 ⋅⋅ 表示向量點乘。
上式寫成向量形式，即為：

即為 ( top_diff - top_diff ⋅ top_data) ⋅ top_data。

1.2.2 原始碼實現

下面我們主要分析Softmax層的Backward_cpu函式，該函式的實現位於caffe的src/caffe/layers/softmax_layer.cpp中。

template <typename Dtype>
void SoftmaxLayer<Dtype>::Backward_cpu(const vector<Blob<Dtype>*>& top,
    const vector<bool>& propagate_down,
    const vector<Blob<Dtype>*>& bottom) {
  const Dtype* top_diff = top[0]->cpu_diff();
  const Dtype* top_data = top[0]->cpu_data();
  Dtype* bottom_diff = bottom[0]->mutable_cpu_diff();
  Dtype* scale_data = scale_.mutable_cpu_data();
  int channels = top[0]->shape(softmax_axis_);
  int dim = top[0]->count() / outer_num_;
  caffe_copy(top[0]->count(), top_diff, bottom_diff);    // 將bottom_diff初始化為top_diff的值
  for (int i = 0; i < outer_num_; ++i) {
    // 計算開始
    for (int k = 0; k < inner_num_; ++k) {
    // 計算dot(top_diff, top_data)
      scale_data[k] = caffe_cpu_strided_dot<Dtype>(channels,
          bottom_diff + i * dim + k, inner_num_,
          top_data + i * dim + k, inner_num_);
    }
    // 相減
    caffe_cpu_gemm<Dtype>(CblasNoTrans, CblasNoTrans, channels, inner_num_, 1,
        -1., sum_multiplier_.cpu_data(), scale_data, 1., bottom_diff + i * dim);
  }
  // 對應元素相乘
  caffe_mul(top[0]->count(), bottom_diff, top_data, bottom_diff);
}

2. Softmax Loss

Softmax Loss就是用Softmax的輸出概率作為預測概率值，與真實label做交叉熵損失，在caffe中也是呼叫了Softmax layer來實現前向傳播。

SoftmaxWithLoss = Multinomial Logistic Loss Layer + Softmax Layer

2.1 前向計算

2.1.1 公式推導

其核心公式為：

其中，其中y^為標籤值，k為輸入影象標籤所對應的的神經元。m為輸出的最大值，主要是考慮數值穩定性。

2.2 反向計算

2.2.1 公式推導

其核心公式為：

需要注意的一點是，在反向傳導時SoftmaxWithLossLayer層並沒有向正向傳導時借用SoftmaxLayer層實現一部分，而是一手全部包辦了。因此SoftmaxLayer::Backward_cpu()函式也就被閒置了。

如果網路在訓練期間發散了，則最終計算結果accuracy ≈ 0.1（說明機器完全沒有預測精度，純靠蒙）, loss ≈-log(0.1) = 2.3026。如果大家看見loss為2.3左右，就應該瞭解當前網路沒有收斂，需要調節引數配置。至於怎麼調節嘛，這往往就依賴經驗了……

2.3 使用

2.3.1 在caffe中使用

layer {
  name: "loss"
  type: "SoftmaxWithLoss"
  bottom: "fc8"
  bottom: "label"
  top: "loss"
 }

caffe中softmaxloss 層的引數如下：

// Message that stores parameters shared by loss layers
message LossParameter {
  // If specified, ignore instances with the given label.
  //忽略那些label
  optional int32 ignore_label = 1;
  // How to normalize the loss for loss layers that aggregate across batches,
  // spatial dimensions, or other dimensions.  Currently only implemented in
  // SoftmaxWithLoss and SigmoidCrossEntropyLoss layers.
  enum NormalizationMode {
    // Divide by the number of examples in the batch times spatial dimensions.
    // Outputs that receive the ignore label will NOT be ignored in computing
    // the normalization factor.
    //一次前向計算的loss除以所有的label數
    FULL = 0;
    // Divide by the total number of output locations that do not take the
    // ignore_label.  If ignore_label is not set, this behaves like FULL.
    //一次前向計算的loss除以所有的可用的label數
    VALID = 1;
    // Divide by the batch size.
    //除以batchsize大小，預設為batchsize大小。
    BATCH_SIZE = 2;
    // Do not normalize the loss.
    NONE = 3;
  }
  // For historical reasons, the default normalization for
  // SigmoidCrossEntropyLoss is BATCH_SIZE and *not* VALID.
  optional NormalizationMode normalization = 3 [default = VALID];
  // Deprecated.  Ignored if normalization is specified.  If normalization
  // is not specified, then setting this to false will be equivalent to
  // normalization = BATCH_SIZE to be consistent with previous behavior.
  //如果normalize==false，則normalization=BATCH_SIZE
  //如果normalize==true,則normalization=Valid
  optional bool normalize = 2;
}

首先來看一下softmaxwithloss的標頭檔案：

#ifndef CAFFE_SOFTMAX_WITH_LOSS_LAYER_HPP_
#define CAFFE_SOFTMAX_WITH_LOSS_LAYER_HPP_

#include <vector>

#include "caffe/blob.hpp"
#include "caffe/layer.hpp"
#include "caffe/proto/caffe.pb.h"

#include "caffe/layers/loss_layer.hpp"
#include "caffe/layers/softmax_layer.hpp"

namespace caffe {

/**
 * @brief Computes the multinomial logistic loss for a one-of-many
 *        classification task, passing real-valued predictions through a
 *        softmax to get a probability distribution over classes.
 *
 * This layer should be preferred over separate
 * SoftmaxLayer + MultinomialLogisticLossLayer
 * as its gradient computation is more numerically stable.
 * At test time, this layer can be replaced simply by a SoftmaxLayer.
 *
 * @param bottom input Blob vector (length 2)
 *   -# @f$ (N \times C \times H \times W) @f$
 *      the predictions @f$ x @f$, a Blob with values in
 *      @f$ [-\infty, +\infty] @f$ indicating the predicted score for each of
 *      the @f$ K = CHW @f$ classes. This layer maps these scores to a
 *      probability distribution over classes using the softmax function
 *      @f$ \hat{p}_{nk} = \exp(x_{nk}) /
 *      \left[\sum_{k'} \exp(x_{nk'})\right] @f$ (see SoftmaxLayer).
 *   -# @f$ (N \times 1 \times 1 \times 1) @f$
 *      the labels @f$ l @f$, an integer-valued Blob with values
 *      @f$ l_n \in [0, 1, 2, ..., K - 1] @f$
 *      indicating the correct class label among the @f$ K @f$ classes
 * @param top output Blob vector (length 1)
 *   -# @f$ (1 \times 1 \times 1 \times 1) @f$
 *      the computed cross-entropy classification loss: @f$ E =
 *        \frac{-1}{N} \sum\limits_{n=1}^N \log(\hat{p}_{n,l_n})
 *      @f$, for softmax output class probabilites @f$ \hat{p} @f$
 */
template <typename Dtype>
class SoftmaxWithLossLayer : public LossLayer<Dtype> {
 public:
   /**
    * @param param provides LossParameter loss_param, with options:
    *  - ignore_label (optional)
    *    Specify a label value that should be ignored when computing the loss.
    *  - normalize (optional, default true)
    *    If true, the loss is normalized by the number of (nonignored) labels
    *    present; otherwise the loss is simply summed over spatial locations.
    */
  explicit SoftmaxWithLossLayer(const LayerParameter& param)
      : LossLayer<Dtype>(param) {}
  virtual void LayerSetUp(const vector<Blob<Dtype>*>& bottom,
      const vector<Blob<Dtype>*>& top);
  virtual void Reshape(const vector<Blob<Dtype>*>& bottom,
      const vector<Blob<Dtype>*>& top);

  virtual inline const char* type() const { return "SoftmaxWithLoss"; }
  virtual inline int ExactNumBottomBlobs() const { return -1; }
  virtual inline int MinBottomBlobs() const { return 2; }
  virtual inline int MaxBottomBlobs() const { return 3; }
  virtual inline int ExactNumTopBlobs() const { return -1; }
  virtual inline int MinTopBlobs() const { return 1; }
  virtual inline int MaxTopBlobs() const { return 2; }

 protected:
  virtual void Forward_cpu(const vector<Blob<Dtype>*>& bottom,
      const vector<Blob<Dtype>*>& top);
  virtual void Forward_gpu(const vector<Blob<Dtype>*>& bottom,
      const vector<Blob<Dtype>*>& top);
  /**
   * @brief Computes the softmax loss error gradient w.r.t. the predictions.
   *
   * Gradients cannot be computed with respect to the label inputs (bottom[1]),
   * so this method ignores bottom[1] and requires !propagate_down[1], crashing
   * if propagate_down[1] is set.
   *
   * @param top output Blob vector (length 1), providing the error gradient with
   *      respect to the outputs
   *   -# @f$ (1 \times 1 \times 1 \times 1) @f$
   *      This Blob's diff will simply contain the loss_weight* @f$ \lambda @f$,
   *      as @f$ \lambda @f$ is the coefficient of this layer's output
   *      @f$\[email protected]$ in the overall Net loss
   *      @f$ E = \lambda_i \ell_i + \mbox{other loss terms}@f$; hence
   *      @f$ \frac{\partial E}{\partial \ell_i} = \lambda_i @f$.
   *      (*Assuming that this top Blob is not used as a bottom (input) by any
   *      other layer of the Net.)
   * @param propagate_down see Layer::Backward.
   *      propagate_down[1] must be false as we can't compute gradients with
   *      respect to the labels.
   * @param bottom input Blob vector (length 2)
   *   -# @f$ (N \times C \times H \times W) @f$
   *      the predictions @f$ x @f$; Backward computes diff
   *      @f$ \frac{\partial E}{\partial x} @f$
   *   -# @f$ (N \times 1 \times 1 \times 1) @f$
   *      the labels -- ignored as we can't compute their error gradients
   */
  virtual void Backward_cpu(const vector<Blob<Dtype>*>& top,
      const vector<bool>& propagate_down, const vector<Blob<Dtype>*>& bottom);
  virtual void Backward_gpu(const vector<Blob<Dtype>*>& top,
      const vector<bool>& propagate_down, const vector<Blob<Dtype>*>& bottom);

  /// Read the normalization mode parameter and compute the normalizer based
  /// on the blob size.  If normalization_mode is VALID, the count of valid
  /// outputs will be read from valid_count, unless it is -1 in which case
  /// all outputs are assumed to be valid.
  virtual Dtype get_normalizer(
      LossParameter_NormalizationMode normalization_mode, Dtype valid_count);

  /// The internal SoftmaxLayer used to map predictions to a distribution.
  //宣告softmax layer
  shared_ptr<Layer<Dtype> > softmax_layer_;
  /// prob stores the output probability predictions from the SoftmaxLayer.
  //儲存經過softmax layer輸出的概率
  Blob<Dtype> prob_;
  /// bottom vector holder used in call to the underlying
 //softmax層前向函式的bottom
 SoftmaxLayer::Forward
  vector<Blob<Dtype>*> softmax_bottom_vec_;
  /// top vector holder used in call to the underlying SoftmaxLayer::Forward
  //softmax層前向函式的top
  vector<Blob<Dtype>*> softmax_top_vec_;
  // Whether to ignore instances with a certain label.
  //是否需要忽略掉label
  bool has_ignore_label_;
  /// The label indicating that an instance should be ignored.
  int ignore_label_;
  bool has_hard_ratio_;
  float hard_ratio_;
  bool has_hard_mining_label_;
  int hard_mining_label_;
  bool has_class_weight_;
  Blob<Dtype> class_weight_;
  Blob<Dtype> counts_;
  Blob<Dtype> loss_;
  /// How to normalize the output loss.
  //歸一化loss型別
  LossParameter_NormalizationMode normalization_;
  bool has_cutting_point_;
  Dtype cutting_point_;
  std::string normalize_type_;

  int softmax_axis_, outer_num_, inner_num_;
};

}  // namespace caffe

具體函式實現

#include <algorithm>
#include <cfloat>
#include <vector>

#include "caffe/layers/softmax_loss_layer.hpp"
#include "caffe/util/math_functions.hpp"

namespace caffe {

template <typename Dtype>
void SoftmaxWithLossLayer<Dtype>::LayerSetUp(
    const vector<Blob<Dtype>*>& bottom, const vector<Blob<Dtype>*>& top) {
  LossLayer<Dtype>::LayerSetUp(bottom, top);
  normalize_type_ =
    this->layer_param_.softmax_param().normalize_type();
    //歸一化為softmax
  if (normalize_type_ == "Softmax") {
    LayerParameter softmax_param(this->layer_param_);
    softmax_param.set_type("Softmax");
    softmax_layer_ = LayerRegistry<Dtype>::CreateLayer(softmax_param);
    softmax_bottom_vec_.clear();
    softmax_bottom_vec_.push_back(bottom[0]);
    softmax_top_vec_.clear();
    softmax_top_vec_.push_back(&prob_);
    softmax_layer_->SetUp(softmax_bottom_vec_, softmax_top_vec_);
  }
  else if(normalize_type_ == "L2" || normalize_type_ == "L1") {
    LayerParameter normalize_param(this->layer_param_);
    normalize_param.set_type("Normalize");
    softmax_layer_ = LayerRegistry<Dtype>::CreateLayer(normalize_param);
    softmax_bottom_vec_.clear();
    softmax_bottom_vec_.push_back(bottom[0]);
    softmax_top_vec_.clear();
    softmax_top_vec_.push_back(&prob_);
    softmax_layer_->SetUp(softmax_bottom_vec_, softmax_top_vec_);
  }
  else {
    NOT_IMPLEMENTED;
  }

  has_ignore_label_ =
    this->layer_param_.loss_param().has_ignore_label();
  if (has_ignore_label_) {
    ignore_label_ = this->layer_param_.loss_param().ignore_label();
  }
  has_hard_ratio_ =
    this->layer_param_.softmax_param().has_hard_ratio();
  if (has_hard_ratio_) {
    hard_ratio_ = this->layer_param_.softmax_param().hard_ratio();
    CHECK_GE(hard_ratio_, 0);
    CHECK_LE(hard_ratio_, 1);
  }
  has_cutting_point_ =
    this->layer_param_.softmax_param().has_cutting_point();
  if (has_cutting_point_) {
    cutting_point_ = this->layer_param_.softmax_param().cutting_point();
    CHECK_GE(cutting_point_, 0);
    CHECK_LE(cutting_point_, 1);
  }
  has_hard_mining_label_ = this->layer_param_.softmax_param().has_hard_mining_label();
  if (has_hard_mining_label_) {
    hard_mining_label_ = this->layer_param_.softmax_param().hard_mining_label();
  }
  has_class_weight_ = (this->layer_param_.softmax_param().class_weight_size() != 0);
  softmax_axis_ =
    bottom[0]->CanonicalAxisIndex(this->layer_param_.softmax_param().axis());
  if (has_class_weight_) {
    class_weight_.Reshape({ bottom[0]->shape(softmax_axis_) });
    CHECK_EQ(this->layer_param_.softmax_param().class_weight().size(), bottom[0]->shape(softmax_axis_));
    for (int i = 0; i < bottom[0]->shape(softmax_axis_); i++) {
      class_weight_.mutable_cpu_data()[i] = (Dtype)this->layer_param_.softmax_param().class_weight(i);
    }
  }
  else {
    if (bottom.size() == 3) {
      class_weight_.Reshape({ bottom[0]->shape(softmax_axis_) });
      for (int i = 0; i < bottom[0]->shape(softmax_axis_); i++) {
        class_weight_.mutable_cpu_data()[i] = (Dtype)1.0;
      }
    }
  }
  if (!this->layer_param_.loss_param().has_normalization() &&
      this->layer_param_.loss_param().has_normalize()) {
    normalization_ = this->layer_param_.loss_param().normalize() ?
                     LossParameter_NormalizationMode_VALID :
                     LossParameter_NormalizationMode_BATCH_SIZE;
  } else {
    normalization_ = this->layer_param_.loss_param().normalization();
  }
}

template <typename Dtype>
void SoftmaxWithLossLayer<Dtype>::Reshape(
    const vector<Blob<Dtype>*>& bottom, const vector<Blob<Dtype>*>& top) {
  LossLayer<Dtype>::Reshape(bottom, top);
  softmax_layer_->Reshape(softmax_bottom_vec_, softmax_top_vec_);
  softmax_axis_ =
      bottom[0]->CanonicalAxisIndex(this->layer_param_.softmax_param().axis());
  outer_num_ = bottom[0]->count(0, softmax_axis_);
  inner_num_ = bottom[0]->count(softmax_axis_ + 1);
  counts_.Reshape({ outer_num_, inner_num_ });
  loss_.Reshape({ outer_num_, inner_num_ });
  CHECK_EQ(outer_num_ * inner_num_, bottom[1]->count())
      << "Number of labels must match number of predictions; "
      << "e.g., if softmax axis == 1 and prediction shape is (N, C, H, W), "
      << "label count (number of labels) must be N*H*W, "
      << "with integer values in {0, 1, ..., C-1}.";
  if (bottom.size() == 3) {
    CHECK_EQ(outer_num_ * inner_num_, bottom[2]->count())
      << "Number of loss weights must match number of label.";
  }
  if (top.size() >= 2) {
    // softmax output
    top[1]->ReshapeLike(*bottom[0]);
  }
  if (has_class_weight_) {
    CHECK_EQ(class_weight_.count(), bottom[0]->shape(1));
  }
}

template <typename Dtype>
Dtype SoftmaxWithLossLayer<Dtype>::get_normalizer(
    LossParameter_NormalizationMode normalization_mode, Dtype valid_count) {
  Dtype normalizer;
  switch (normalization_mode) {
    case LossParameter_NormalizationMode_FULL:
      normalizer = Dtype(outer_num_ * inner_num_);
      break;
    case LossParameter_NormalizationMode_VALID:
      if (valid_count == -1) {
        normalizer = Dtype(outer_num_ * inner_num_);
      } else {
        normalizer = valid_count;
      }
      break;
    case LossParameter_NormalizationMode_BATCH_SIZE:
      normalizer = Dtype(outer_num_);
      break;
    case LossParameter_NormalizationMode_NONE:
      normalizer = Dtype(1);
      break;
    default:
      LOG(FATAL) << "Unknown normalization mode: "
          << LossParameter_NormalizationMode_Name(normalization_mode);
  }
  // Some users will have no labels for some examples in order to 'turn off' a
  // particular loss in a multi-task setup. The max prevents NaNs in that case.
  return std::max(Dtype(1.0), normalizer);
}
//前向中主要利用softmax層輸出每一個樣本的對應的所有類別概率。如輸入一隻狗，則輸出狗的概率，貓的概率，猴的概率。[0.8,0.1,0.1]
template <typename Dtype>
void SoftmaxWithLossLayer<Dtype>::Forward_cpu(
    const vector<Blob<Dtype>*>& bottom, const vector<Blob<Dtype>*>& top) {
  // The forward pass computes the softmax prob values.
  softmax_layer_->Forward(softmax_bottom_vec_, softmax_top_vec_);
  const Dtype* prob_data = prob_.cpu_data();
  const Dtype* label = bottom[1]->cpu_data();
  int dim = prob_.count() / outer_num_;
  Dtype count = 0;
  Dtype loss = 0;
  if (bottom.size() == 2) {
    for (int i = 0; i < outer_num_; ++i) {
      for (int j = 0; j < inner_num_; j++) {
        const int label_value = static_cast<int>(label[i * inner_num_ + j]);
        if (has_ignore_label_ && label_value == ignore_label_) {
          continue;
        }
        DCHECK_GE(label_value, 0);
        DCHECK_LT(label_value, prob_.shape(softmax_axis_));
        loss -= log(std::max(prob_data[i * dim + label_value * inner_num_ + j],
          Dtype(FLT_MIN)));
        count += 1;
      }
    }
  }
  else if(bottom.size() == 3) {
    const Dtype* weights = bottom[2]->cpu_data();
    for (int i = 0; i < outer_num_; ++i) {
      for (int j = 0; j < inner_num_; j++) {
        const int label_value = static_cast<int>(label[i * inner_num_ + j]);
        const Dtype weight_value = weights[i * inner_num_ + j] * (has_class_weight_? class_weight_.cpu_data()[label_value] : 1.0);
        if (weight_value == 0) continue;
        if (has_ignore_label_ && label_value == ignore_label_) {
          continue;
        }
        DCHECK_GE(label_value, 0);
        DCHECK_LT(label_value, prob_.shape(softmax_axis_));
        loss -= weight_value * log(std::max(prob_data[i * dim + label_value * inner_num_ + j],
          Dtype(FLT_MIN)));
        count += weight_value;
      }
    }
  }
  top[0]->mutable_cpu_data()[0] = loss / get_normalizer(normalization_, count);
  if (top.size() == 2) {
    top[1]->ShareData(prob_);
  }
}

template <typename Dtype>
void SoftmaxWithLossLayer<Dtype>::Backward_cpu(const vector<Blob<Dtype>*>& top,
    const vector<bool>& propagate_down, const vector<Blob<Dtype>*>& bottom) {
  if (propagate_down[1]) {
    LOG(FATAL) << this->type()
               << " Layer cannot backpropagate to label inputs.";
  }
  if (propagate_down[0]) {
    Dtype* bottom_diff = bottom[0]->mutable_cpu_diff();
    const Dtype* prob_data = prob_.cpu_data();
    caffe_copy(prob_.count(), prob_data, bottom_diff);
    const Dtype* label = bottom[1]->cpu_data();
    int dim = prob_.count() / outer_num_;
    Dtype count = 0;
    if (bottom.size() == 2) {
      for (int i = 0; i < outer_num_; ++i) {
        for (int j = 0; j < inner_num_; ++j) {
          const int label_value = static_cast<int>(label[i * inner_num_ + j]);
          if (has_ignore_label_ && label_value == ignore_label_) {
            for (int c = 0; c < bottom[0]->shape(softmax_axis_); ++c) {
              bottom_diff[i * dim + c * inner_num_ + j] = 0;
            }
          }
          else {
          //反向求導的公式的實現
            bottom_diff[i * dim + label_value * inner_num_ + j] -= 1;
            count += 1;
          }
        }
      }
    }
    else if (bottom.size() == 3) {
      const Dtype* weights = bottom[2]->cpu_data();
      for (int i = 0; i < outer_num_; ++i) {
        for (int j = 0; j < inner_num_; ++j) {
          const int label_value = static_cast<int>(label[i * inner_num_ + j]);
          const Dtype weight_value = weights[i * inner_num_ + j];
          if (has_ignore_label_ && label_value == ignore_label_) {
            for (int c = 0; c < bottom[0]->shape(softmax_axis_); ++c) {
              bottom_diff[i * dim + c * inner_num_ + j] = 0;
            }
          }
          else {
            bottom_diff[i * dim + label_value * inner_num_ + j] -= 1;
            for (int c = 0; c < bottom[0]->shape(softmax_axis_); ++c) {
              bottom_diff[i * dim + c * inner_num_ + j] *= weight_value * (has_class_weight_ ? class_weight_.cpu_data()[label_value] : 1.0);
            }
            if(weight_value != 0) count += weight_value;
          }
        }
      }
    }
    // Scale gradient
    //由歸一化手段決定梯度的放縮
    Dtype loss_weight = top[0]->cpu_diff()[0] /
                        get_normalizer(normalization_, count);
    caffe_scal(prob_.count(), loss_weight, bottom_diff);
  }
}

#ifdef CPU_ONLY
STUB_GPU(SoftmaxWithLossLayer);
#endif

INSTANTIATE_CLASS(SoftmaxWithLossLayer);
REGISTER_LAYER_CLASS(SoftmaxWithLoss);

}
