The first time I attempted to study recurrent neural networks, I made the mistake of trying to learn the theory behind things like LSTMs and GRUs first. After several frustrating days looking at linear algebra equations, I happened on the following passage in

In summary, you don’t need to understand everything about the specific architecture of an LSTM cell; as a human, it shouldn’t be your job to understand it. Just keep in mind what the LSTM cell is meant to do: allow past information to be reinjected at a later time.

This was the author of the library Keras (Francois Chollet), an expert in deep learning, telling me I didn’t need to understand everything at the foundational level! I realized that my mistake had been starting at the bottom, with the theory, instead of just trying to build a recurrent neural network.

Shortly thereafter, I switched tactics and decided to try the most effective way of learning a data science technique: find a problem and solve it!

This top-down approach means learning how to implement a method beforegoing back and covering the theory. This way, I’m able to figure out what I need to know along the way, and when I return to study the concepts, I have a framework into which I can fit each idea. In this mindset, I decided to stop worrying about the details and complete a recurrent neural network project.

This article walks through how to build and use a recurrent neural network in Keras to write patent abstracts. The article is light on the theory, but as you work through the project, you’ll find you pick up what you need to know along the way. The end result is you can build a useful application and figure out how a deep learning method for natural language processing works.

The full code is available as a series of Jupyter Notebooks on GitHub. I’ve also provided all the pre-trained models so you don’t have to train them for several hours yourself! To get started as quickly as possible and investigate the models, see the Quick Start to Recurrent Neural Networks, and for in-depth explanations, refer to Deep Dive into Recurrent Neural Networks.

Recurrent Neural Network

It’s helpful to understand at least some of the basics before getting to the implementation. At a high level, a recurrent neural network (RNN) processes sequences — whether daily stock prices, sentences, or sensor measurements — one element at a time while retaining a memory (called a state) of what has come previously in the sequence.

Recurrent means the output at the current time step becomes the input to the next time step. At each element of the sequence, the model considers not just the current input, but what it remembers about the preceding elements.

This memory allows the network to learn long-term dependencies in a sequence which means it can take the entire context into account when making a prediction, whether that be the next word in a sentence, a sentiment classification, or the next temperature measurement. A RNN is designed to mimic the human way of processing sequences: we consider the entire sentence when forming a response instead of words by themselves. For example, consider the following sentence:

“The concert was boring for the first 15 minutes while the band warmed up but then was terribly exciting.”

A machine learning model that considers the words in isolation — such as a bag of words model — would probably conclude this sentence is negative. An RNN by contrast should be able to see the words “but” and “terribly exciting” and realize that the sentence turns from negative to positive because it has looked at the entire sequence. Reading a whole sequence gives us a context for processing its meaning, a concept encoded in recurrent neural networks.

At the heart of an RNN is a layer made of memory cells. The most popular cell at the moment is the Long Short-Term Memory (LSTM) which maintains a cell state as well as a carry for ensuring that the signal (information in the form of a gradient) is not lost as the sequence is processed. At each time step the LSTM considers the current word, the carry, and the cell state.

The LSTM has 3 different gates and weight vectors: there is a “forget” gate for discarding irrelevant information; an “input” gate for handling the current input, and an “output” gate for producing predictions at each time step. However, as Chollet points out, it is fruitless trying to assign specific meanings to each of the elements in the cell.

The function of each cell element is ultimately decided by the parameters (weights) which are learned during training. Feel free to label each cell part, but it’s not necessary for effective use! Recall, the benefit of a Recurrent Neural Network for sequence learning is it maintains a memory of the entire sequence preventing prior information from being lost.

Problem Formulation

There are several ways we can formulate the task of training an RNN to write text, in this case patent abstracts. However, we will choose to train it as a many-to-one sequence mapper. That is, we input a sequence of words and train the model to predict the very next word. The words will be mapped to integers and then to vectors using an embedding matrix (either pre-trained or trainable) before being passed into an LSTM layer.

When we go to write a new patent, we pass in a starting sequence of words, make a prediction for the next word, update the input sequence, make another prediction, add the word to the sequence and continue for however many words we want to generate.

The steps of the approach are outlined below:

1. Convert abstracts from list of strings into list of lists of integers (sequences)
2. Create feature and labels from sequences
3. Build LSTM model with Embedding, LSTM, and Dense layers
4. Load in pre-trained embeddings
5. Train model to predict next work in sequence
6. Make predictions by passing in starting sequence

Keep in mind this is only one formulation of the problem: we could also use a character level model or make predictions for each word in the sequence. As with many concepts in machine learning, there is no one correct answer, but this approach works well in practice.

Data Preparation

Even with a neural network’s powerful representation ability, getting a quality, clean dataset is paramount. The raw data for this project comes from USPTO PatentsView, where you can search for information on any patent applied for in the United States. I searched for the term “neural network” and downloaded the resulting patent abstracts — 3500 in all. I found it best to train on a narrow subject, but feel free to try with a different set of patents.

We’ll start out with the patent abstracts as a list of strings. The main data preparation steps for our model are:

1. Remove punctuation and split strings into lists of individual words
2. Convert the individual words into integers

These two steps can both be done using the Keras Tokenizer class. By default, this removes all punctuation, lowercases words, and then converts words to sequences of integers. A Tokenizer is first fit on a list of strings and then converts this list into a list of lists of integers. This is demonstrated below:

The output of the first cell shows the original abstract and the output of the second the tokenized sequence. Each abstract is now represented as integers.

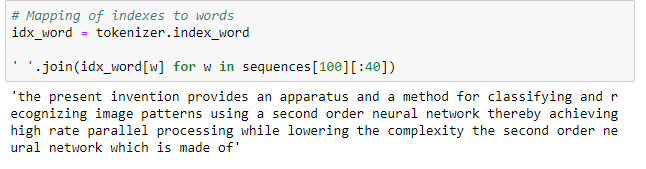

We can use the idx_word attribute of the trained tokenizer to figure out what each of these integers means:

If you look closely, you’ll notice that the Tokenizer has removed all punctuation and lowercased all the words. If we use these settings, then the neural network will not learn proper English! We can adjust this by changing the filters to the Tokenizer to not remove punctuation.

# Don't remove punctuation or uppercase
tokenizer = Tokenizer(num_words=None,
                     filters='#$%&()*+-<=>@[\\]^_`{|}~\t\n',
                     lower = False, split = ' ')

See the notebooks for different implementations, but, when we use pre-trained embeddings, we’ll have to remove the uppercase because there are no lowercase letters in the embeddings. When training our own embeddings, we don’t have to worry about this because the model will learn different representations for lower and upper case.

Features and Labels

The previous step converts all the abstracts to sequences of integers. The next step is to create a supervised machine learning problem with which to train the network. There are numerous ways you can set up a recurrent neural network task for text generation, but we’ll use the following:

Give the network a sequence of words and train it to predict the next word.

The number of words is left as a parameter; we’ll use 50 for the examples shown here which means we give our network 50 words and train it to predict the 51st. Other ways of training the network would be to have it predict the next word at each point in the sequence — make a prediction for each input word rather than once for the entire sequence — or train the model using individual characters. The implementation used here is not necessarily optimal — there is no accepted best solution — but it works well!

Creating the features and labels is relatively simple and for each abstract (represented as integers) we create multiple sets of features and labels. We use the first 50 words as features with the 51st as the label, then use words 2–51 as features and predict the 52nd and so on. This gives us significantly more training data which is beneficial because the performance of the network is proportional to the amount of data that it sees during training.

The implementation of creating features and labels is below:

features = []
labels = []

training_length = 50

# Iterate through the sequences of tokens
for seq in sequences:

    # Create multiple training examples from each sequence
    for i in range(training_length, len(seq)):

        # Extract the features and label
        extract = seq[i - training_length:i + 1]

        # Set the features and label
        features.append(extract[:-1])
        labels.append(extract[-1])

features = np.array(features)

The features end up with shape (296866, 50) which means we have almost 300,000 sequences each with 50 tokens. In the language of recurrent neural networks, each sequence has 50 timesteps each with 1 feature.

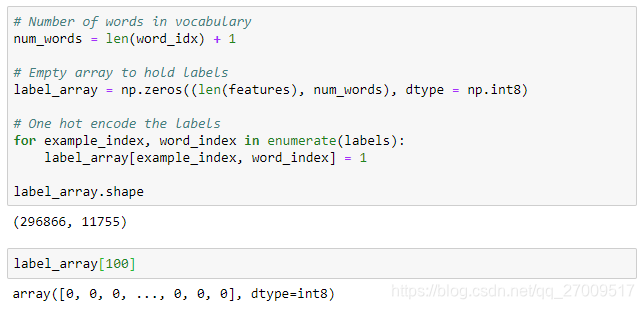

We could leave the labels as integers, but a neural network is able to train most effectively when the labels are one-hot encoded. We can one-hot encode the labels with numpy very quickly using the following:

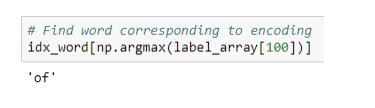

To find the word corresponding to a row in label_array , we use:

After getting all of our features and labels properly formatted, we want to split them into a training and validation set (see notebook for details). One important point here is to shuffle the features and labels simultaneously so the same abstracts do not all end up in one set.

Building a Recurrent Neural Network

Keras is an incredible library: it allows us to build state-of-the-art models in a few lines of understandable Python code. Although other neural network libraries may be faster or allow more flexibility, nothing can beat Keras for development time and ease-of-use.

The code for a simple LSTM is below with an explanation following:

from keras.models import Sequential
from keras.layers import LSTM, Dense, Dropout, Masking, Embedding

model = Sequential()

# Embedding layer
model.add(
    Embedding(input_dim=num_words,
              input_length = training_length,
              output_dim=100,
              weights=[embedding_matrix],
              trainable=False,
              mask_zero=True))

# Masking layer for pre-trained embeddings
model.add(Masking(mask_value=0.0))

# Recurrent layer
model.add(LSTM(64, return_sequences=False,
               dropout=0.1, recurrent_dropout=0.1))

# Fully connected layer
model.add(Dense(64, activation='relu'))

# Dropout for regularization
model.add(Dropout(0.5))

# Output layer
model.add(Dense(num_words, activation='softmax'))

# Compile the model
model.compile(
    optimizer='adam', loss='categorical_crossentropy', metrics=['accuracy'])

We are using the Keras Sequential API which means we build the network up one layer at a time. The layers are as follows:

• An Embedding which maps each input word to a 100-dimensional vector. The embedding can use pre-trained weights (more in a second) which we supply in the weights parameter. trainable can be set False if we don’t want to update the embeddings.
• A Masking layer to mask any words that do not have a pre-trained embedding which will be represented as all zeros. This layer should not be used when training the embeddings.
• The heart of the network: a layer of LSTM cells with dropout to prevent overfitting. Since we are only using one LSTM layer, it does not return the sequences, for using two or more layers, make sure to return sequences.
• A fully-connected Dense layer with relu activation. This adds additional representational capacity to the network.
• A Dropout layer to prevent overfitting to the training data.
• A Dense fully-connected output layer. This produces a probability for every word in the vocab using softmax activation.

The model is compiled with the Adam optimizer (a variant on Stochastic Gradient Descent) and trained using the categorical_crossentropy loss. During training, the network will try to minimize the log loss by adjusting the trainable parameters (weights). As always, the gradients of the parameters are calculated using back-propagation and updated with the optimizer. Since we are using Keras, we don’t have to worry about how this happens behind the scenes, only about setting up the network correctly.

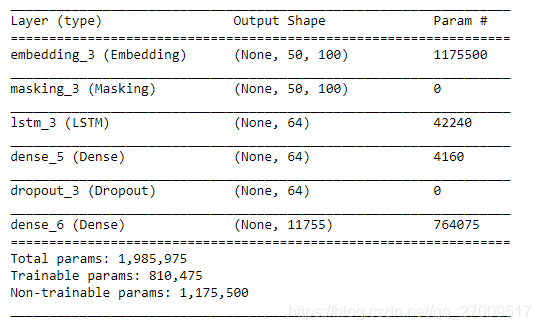

Without updating the embeddings, there are many fewer parameters to train in the network. The input to the LSTM layer is (None, 50, 100) which means that for each batch (the first dimension), each sequence has 50 timesteps (words), each of which has 100 features after embedding. Input to an LSTM layer always has the (batch_size, timesteps, features) shape.

There are many ways to structure this network and there are several others covered in the notebook. For example, we can use two LSTM layers stacked on each other, a Bidirectional LSTM layer that processes sequences from both directions, or more Dense layers. I found the set-up above to work well.

Pre-Trained Embeddings

Once the network is built, we still have to supply it with the pre-trained word embeddings. There are numerous embeddings you can find online trained on different corpuses (large bodies of text). The ones we’ll use are available from Stanford and come in 100, 200, or 300 dimensions (we’ll stick to 100). These embeddings are from the GloVe (Global Vectors for Word Representation)algorithm and were trained on Wikipedia.

Even though the pre-trained embeddings contain 400,000 words, there are some words in our vocab that are included. When we represent these words with embeddings, they will have 100-d vectors of all zeros. This problem can be overcome by training our own embeddings or by setting the Embeddinglayer's trainable parameter to True (and removing the Masking layer).

We can quickly load in the pre-trained embeddings from disk and make an embedding matrix with the following code:
