使用已訓練模型對貓狗圖片進行測試，以及視覺化模型訓練過程。

示例程式碼：

# # 視覺化卷積神經網路
#
#  人們常說，深度學習模型是“黑盒子”，學習表示難以提取並以人類可讀的形式呈現。
# 雖然對於某些型別的深度學習模型來說這是部分正確的，但對於小行星來說絕對不是這樣。
# 由convnets學習的表示非常適合視覺化，這在很大程度上是因為它們是視覺概念的代表_。

# *視覺化中間訊號輸出（“中間啟用”）。 這有助於理解連續的convnet層如何轉換其輸入，並首先了解各個convnet過濾器的含義。
# *視覺化convnets過濾器。 這有助於準確理解convnet中每個過濾器可以接受的視覺模式或概念。


# ## 視覺化中間啟用
#
# 視覺化中間啟用包括在給定特定輸入的情況下顯示由網路中的各種卷積和池化層輸出的特徵圖
# （層的輸出通常稱為“啟用”，啟用函式的輸出）。 這給出瞭如何將輸入分解為網路學習的不
# 同過濾器的檢視。 我們想要視覺化的這些要素圖有3個維度：寬度，高度和深度（通道）。
# 每個通道編碼相對獨立的特徵，因此視覺化這些特徵圖的正確方法是通過獨立地繪製每個通道的內容，作為2D影象。

from keras.models import load_model

# 使用前面訓練得到的模型
model = load_model('cats_and_dogs_small_2.h5')
print(model.summary())

img_path = './cats_and_dogs_small/test/cats/cat.1700.jpg'

# 將影象預處理成4D張量
from keras.preprocessing import image
import numpy as np

img = image.load_img(img_path, target_size=(150, 150))
img_tensor = image.img_to_array(img)
img_tensor = np.expand_dims(img_tensor, axis=0)

img_tensor /= 255.

# shape (1, 150, 150, 3)
print(img_tensor.shape)

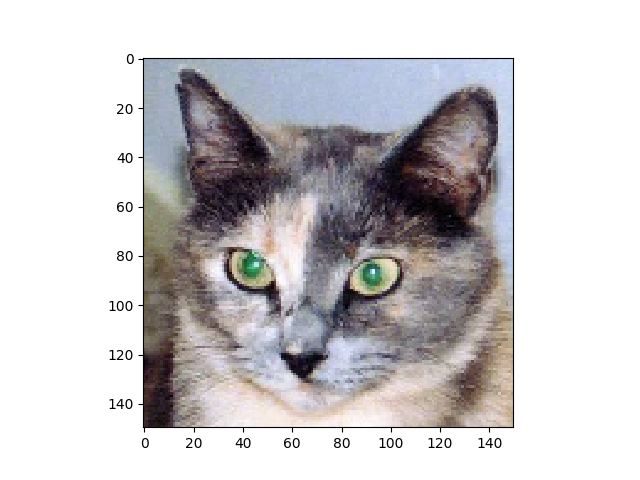

import matplotlib.pyplot as plt

plt.imshow(img_tensor[0])
plt.show()

# 為了提取我們想要檢視的特徵圖，我們將建立一個Keras模型，該模型將批量影象作為輸入，
# 並輸出所有卷積和池化層的啟用。 為此，我們將使用Keras類`Model`。 使用兩個引數
# 來例項化“模型”：輸入張量（或輸入張量列表）和輸出張量（或輸出張量列表）。 生成的類
# 是Keras模型，就像您熟悉的`Sequential`模型一樣，將指定的輸入對映到指定的輸出。

from keras import models

# 提取前8層的輸出
layer_outputs = [layer.output for layer in model.layers[:8]]
# 在給定模型輸入的情況下，建立將返回這些輸出的模型
activation_model = models.Model(inputs=model.input, outputs=layer_outputs)

# 當輸入影象輸入時，此模型返回原始模型中圖層啟用的值。 這是您第一次在本書中遇到多輸出模型：
# 到目前為止，您所看到的模型只有一個輸入和一個輸出。 在一般情況下，模型可以具有任意數量的輸入和輸出。
#  這個有一個輸入和8個輸出，每層啟用一個輸出。

# 這將返回5個Numpy陣列的列表：
# 每層啟用一個數組
activations = activation_model.predict(img_tensor)

# 這是我們貓影象輸入的第一個卷積層的啟用
first_layer_activation = activations[0]
print(first_layer_activation.shape)

# 這是一個包含32個頻道的148x148功能圖。 讓我們嘗試視覺化第三個頻道：
import matplotlib.pyplot as plt

plt.matshow(first_layer_activation[0, :, :, 3], cmap='viridis')
plt.show()

# This channel appears to encode a diagonal edge detector. Let's try the 30th channel -- but note that your own channels may vary, since the
# specific filters learned by convolution layers are not deterministic.

# In[9]:


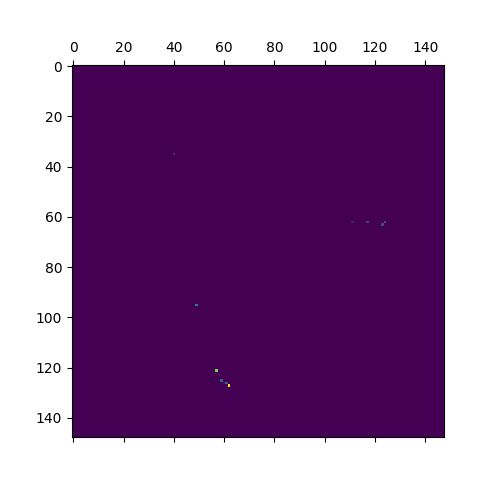

plt.matshow(first_layer_activation[0, :, :, 30], cmap='viridis')
plt.show()

# This one looks like a "bright green dot" detector, useful to encode cat eyes. At this point, let's go and plot a complete visualization of
# all the activations in the network. We'll extract and plot every channel in each of our 8 activation maps, and we will stack the results in
# one big image tensor, with channels stacked side by side.

# In[10]:


import keras

# These are the names of the layers, so can have them as part of our plot
layer_names = []
for layer in model.layers[:8]:
    layer_names.append(layer.name)

images_per_row = 16

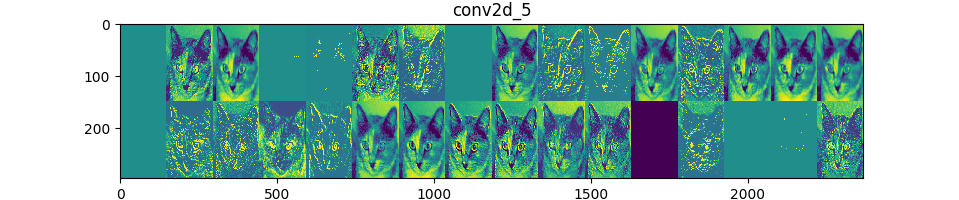

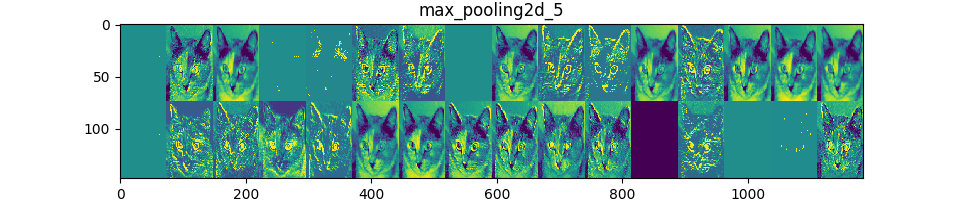

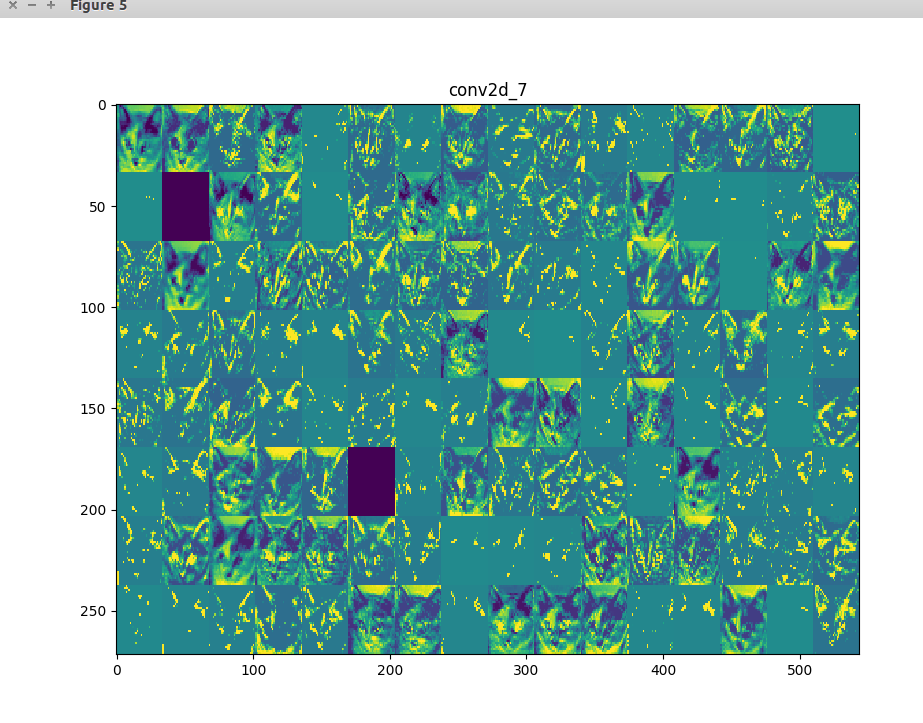

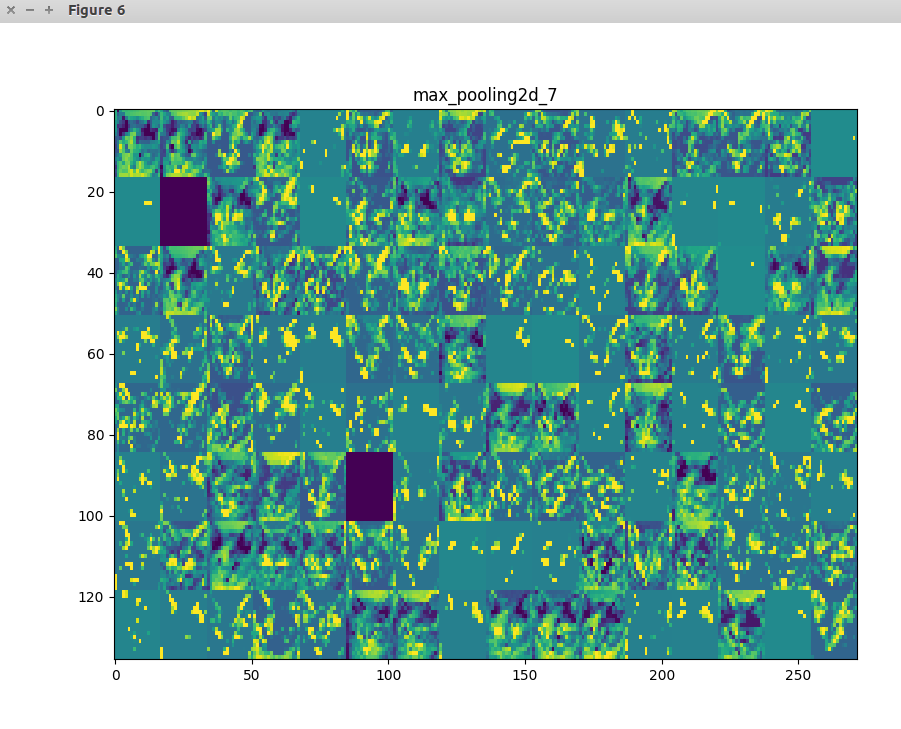

# Now let's display our feature maps
for layer_name, layer_activation in zip(layer_names, activations):
    # This is the number of features in the feature map
    n_features = layer_activation.shape[-1]

    # The feature map has shape (1, size, size, n_features)
    size = layer_activation.shape[1]

    # We will tile the activation channels in this matrix
    n_cols = n_features // images_per_row
    display_grid = np.zeros((size * n_cols, images_per_row * size))

    # We'll tile each filter into this big horizontal grid
    for col in range(n_cols):
        for row in range(images_per_row):
            channel_image = layer_activation[0,
                            :, :,
                            col * images_per_row + row]
            # Post-process the feature to make it visually palatable
            channel_image -= channel_image.mean()
            channel_image /= channel_image.std()
            channel_image *= 64
            channel_image += 128
            channel_image = np.clip(channel_image, 0, 255).astype('uint8')
            display_grid[col * size: (col + 1) * size,
            row * size: (row + 1) * size] = channel_image

    # Display the grid
    scale = 1. / size
    plt.figure(figsize=(scale * display_grid.shape[1],
                        scale * display_grid.shape[0]))
    plt.title(layer_name)
    plt.grid(False)
    plt.imshow(display_grid, aspect='auto', cmap='viridis')

plt.show()

# A few remarkable things to note here:
#
# * The first layer acts as a collection of various edge detectors. At that stage, the activations are still retaining almost all of the
# information present in the initial picture.
# * As we go higher-up, the activations become increasingly abstract and less visually interpretable. They start encoding higher-level
# concepts such as "cat ear" or "cat eye". Higher-up presentations carry increasingly less information about the visual contents of the
# image, and increasingly more information related to the class of the image.
# * The sparsity of the activations is increasing with the depth of the layer: in the first layer, all filters are activated by the input
# image, but in the following layers more and more filters are blank. This means that the pattern encoded by the filter isn't found in the
# input image.

#
# We have just evidenced a very important universal characteristic of the representations learned by deep neural networks: the features
# extracted by a layer get increasingly abstract with the depth of the layer. The activations of layers higher-up carry less and less
# information about the specific input being seen, and more and more information about the target (in our case, the class of the image: cat
# or dog). A deep neural network effectively acts as an __information distillation pipeline__, with raw data going in (in our case, RBG
# pictures), and getting repeatedly transformed so that irrelevant information gets filtered out (e.g. the specific visual appearance of the
# image) while useful information get magnified and refined (e.g. the class of the image).
#
# This is analogous to the way humans and animals perceive the world: after observing a scene for a few seconds, a human can remember which
# abstract objects were present in it (e.g. bicycle, tree) but could not remember the specific appearance of these objects. In fact, if you
# tried to draw a generic bicycle from mind right now, chances are you could not get it even remotely right, even though you have seen
# thousands of bicycles in your lifetime. Try it right now: this effect is absolutely real. You brain has learned to completely abstract its
# visual input, to transform it into high-level visual concepts while completely filtering out irrelevant visual details, making it
# tremendously difficult to remember how things around us actually look.

# ## Visualizing convnet filters
#
#
# Another easy thing to do to inspect the filters learned by convnets is to display the visual pattern that each filter is meant to respond
# to. This can be done with __gradient ascent in input space__: applying __gradient descent__ to the value of the input image of a convnet so
# as to maximize the response of a specific filter, starting from a blank input image. The resulting input image would be one that the chosen
# filter is maximally responsive to.
#
# The process is simple: we will build a loss function that maximizes the value of a given filter in a given convolution layer, then we
# will use stochastic gradient descent to adjust the values of the input image so as to maximize this activation value. For instance, here's
# a loss for the activation of filter 0 in the layer "block3_conv1" of the VGG16 network, pre-trained on ImageNet:

# In[12]:


from keras.applications import VGG16
from keras import backend as K

model = VGG16(weights='imagenet',
              include_top=False)

layer_name = 'block3_conv1'
filter_index = 0

layer_output = model.get_layer(layer_name).output
loss = K.mean(layer_output[:, :, :, filter_index])

# To implement gradient descent, we will need the gradient of this loss with respect to the model's input. To do this, we will use the
# `gradients` function packaged with the `backend` module of Keras:

# In[13]:


# The call to `gradients` returns a list of tensors (of size 1 in this case)
# hence we only keep the first element -- which is a tensor.
grads = K.gradients(loss, model.input)[0]

# A non-obvious trick to use for the gradient descent process to go smoothly is to normalize the gradient tensor, by dividing it by its L2
# norm (the square root of the average of the square of the values in the tensor). This ensures that the magnitude of the updates done to the
# input image is always within a same range.

# In[14]:


# We add 1e-5 before dividing so as to avoid accidentally dividing by 0.
grads /= (K.sqrt(K.mean(K.square(grads))) + 1e-5)

# Now we need a way to compute the value of the loss tensor and the gradient tensor, given an input image. We can define a Keras backend
# function to do this: `iterate` is a function that takes a Numpy tensor (as a list of tensors of size 1) and returns a list of two Numpy
# tensors: the loss value and the gradient value.

# In[15]:


iterate = K.function([model.input], [loss, grads])

# Let's test it:
import numpy as np

loss_value, grads_value = iterate([np.zeros((1, 150, 150, 3))])

# At this point we can define a Python loop to do stochastic gradient descent:

# In[16]:


# We start from a gray image with some noise
input_img_data = np.random.random((1, 150, 150, 3)) * 20 + 128.

# Run gradient ascent for 40 steps
step = 1.  # this is the magnitude of each gradient update
for i in range(40):
    # Compute the loss value and gradient value
    loss_value, grads_value = iterate([input_img_data])
    # Here we adjust the input image in the direction that maximizes the loss
    input_img_data += grads_value * step


# The resulting image tensor will be a floating point tensor of shape `(1, 150, 150, 3)`, with values that may not be integer within `[0,
# 255]`. Hence we would need to post-process this tensor to turn it into a displayable image. We do it with the following straightforward
# utility function:

# In[17]:


def deprocess_image(x):
    # normalize tensor: center on 0., ensure std is 0.1
    x -= x.mean()
    x /= (x.std() + 1e-5)
    x *= 0.1

    # clip to [0, 1]
    x += 0.5
    x = np.clip(x, 0, 1)

    # convert to RGB array
    x *= 255
    x = np.clip(x, 0, 255).astype('uint8')
    return x


# Now we have all the pieces, let's put them together into a Python function that takes as input a layer name and a filter index, and that
# returns a valid image tensor representing the pattern that maximizes the activation the specified filter:

# In[18]:


def generate_pattern(layer_name, filter_index, size=150):
    # Build a loss function that maximizes the activation
    # of the nth filter of the layer considered.
    layer_output = model.get_layer(layer_name).output
    loss = K.mean(layer_output[:, :, :, filter_index])

    # Compute the gradient of the input picture wrt this loss
    grads = K.gradients(loss, model.input)[0]

    # Normalization trick: we normalize the gradient
    grads /= (K.sqrt(K.mean(K.square(grads))) + 1e-5)

    # This function returns the loss and grads given the input picture
    iterate = K.function([model.input], [loss, grads])

    # We start from a gray image with some noise
    input_img_data = np.random.random((1, size, size, 3)) * 20 + 128.

    # Run gradient ascent for 40 steps
    step = 1.
    for i in range(40):
        loss_value, grads_value = iterate([input_img_data])
        input_img_data += grads_value * step

    img = input_img_data[0]
    return deprocess_image(img)


# Let's try this:

# In[19]:


plt.imshow(generate_pattern('block3_conv1', 0))
plt.show()

# It seems that filter 0 in layer `block3_conv1` is responsive to a polka dot pattern.
#
# Now the fun part: we can start visualising every single filter in every layer. For simplicity, we will only look at the first 64 filters in
# each layer, and will only look at the first layer of each convolution block (block1_conv1, block2_conv1, block3_conv1, block4_conv1,
# block5_conv1). We will arrange the outputs on a 8x8 grid of 64x64 filter patterns, with some black margins between each filter pattern.

# In[22]:


for layer_name in ['block1_conv1', 'block2_conv1', 'block3_conv1', 'block4_conv1']:
    size = 64
    margin = 5

    # This a empty (black) image where we will store our results.
    results = np.zeros((8 * size + 7 * margin, 8 * size + 7 * margin, 3))

    for i in range(8):  # iterate over the rows of our results grid
        for j in range(8):  # iterate over the columns of our results grid
            # Generate the pattern for filter `i + (j * 8)` in `layer_name`
            filter_img = generate_pattern(layer_name, i + (j * 8), size=size)

            # Put the result in the square `(i, j)` of the results grid
            horizontal_start = i * size + i * margin
            horizontal_end = horizontal_start + size
            vertical_start = j * size + j * margin
            vertical_end = vertical_start + size
            results[horizontal_start: horizontal_end, vertical_start: vertical_end, :] = filter_img

    # Display the results grid
    plt.figure(figsize=(20, 20))
    plt.imshow(results)
    plt.show()

# These filter visualizations tell us a lot about how convnet layers see the world: each layer in a convnet simply learns a collection of
# filters such that their inputs can be expressed as a combination of the filters. This is similar to how the Fourier transform decomposes
# signals onto a bank of cosine functions. The filters in these convnet filter banks get increasingly complex and refined as we go higher-up
# in the model:
#
# * The filters from the first layer in the model (`block1_conv1`) encode simple directional edges and colors (or colored edges in some
# cases).
# * The filters from `block2_conv1` encode simple textures made from combinations of edges and colors.
# * The filters in higher-up layers start resembling textures found in natural images: feathers, eyes, leaves, etc.

# ## Visualizing heatmaps of class activation
#
# We will introduce one more visualization technique, one that is useful for understanding which parts of a given image led a convnet to its
# final classification decision. This is helpful for "debugging" the decision process of a convnet, in particular in case of a classification
# mistake. It also allows you to locate specific objects in an image.
#
# This general category of techniques is called "Class Activation Map" (CAM) visualization, and consists in producing heatmaps of "class
# activation" over input images. A "class activation" heatmap is a 2D grid of scores associated with an specific output class, computed for
# every location in any input image, indicating how important each location is with respect to the class considered. For instance, given a
# image fed into one of our "cat vs. dog" convnet, Class Activation Map visualization allows us to generate a heatmap for the class "cat",
# indicating how cat-like different parts of the image are, and likewise for the class "dog", indicating how dog-like differents parts of the
# image are.
#
# The specific implementation we will use is the one described in [Grad-CAM: Why did you say that? Visual Explanations from Deep Networks via
# Gradient-based Localization](https://arxiv.org/abs/1610.02391). It is very simple: it consists in taking the output feature map of a
# convolution layer given an input image, and weighing every channel in that feature map by the gradient of the class with respect to the
# channel. Intuitively, one way to understand this trick is that we are weighting a spatial map of "how intensely the input image activates
# different channels" by "how important each channel is with regard to the class", resulting in a spatial map of "how intensely the input
# image activates the class".
#
# We will demonstrate this technique using the pre-trained VGG16 network again:

# In[24]:


from keras.applications.vgg16 import VGG16

K.clear_session()

# Note that we are including the densely-connected classifier on top;
# all previous times, we were discarding it.
model = VGG16(weights='imagenet')

# Let's consider the following image of two African elephants, possible a mother and its cub, strolling in the savanna (under a Creative
# Commons license):
#
# ![elephants](https://s3.amazonaws.com/book.keras.io/img/ch5/creative_commons_elephant.jpg)

# Let's convert this image into something the VGG16 model can read: the model was trained on images of size 224x244, preprocessed according
# to a few rules that are packaged in the utility function `keras.applications.vgg16.preprocess_input`. So we need to load the image, resize
# it to 224x224, convert it to a Numpy float32 tensor, and apply these pre-processing rules.

# In[27]:


from keras.preprocessing import image
from keras.applications.vgg16 import preprocess_input, decode_predictions
import numpy as np

# The local path to our target image
img_path = '/Users/fchollet/Downloads/creative_commons_elephant.jpg'

# `img` is a PIL image of size 224x224
img = image.load_img(img_path, target_size=(224, 224))

# `x` is a float32 Numpy array of shape (224, 224, 3)
x = image.img_to_array(img)

# We add a dimension to transform our array into a "batch"
# of size (1, 224, 224, 3)
x = np.expand_dims(x, axis=0)

# Finally we preprocess the batch
# (this does channel-wise color normalization)
x = preprocess_input(x)

# In[29]:


preds = model.predict(x)
print('Predicted:', decode_predictions(preds, top=3)[0])

#
# The top-3 classes predicted for this image are:
#
# * African elephant (with 92.5% probability)
# * Tusker (with 7% probability)
# * Indian elephant (with 0.4% probability)
#
# Thus our network has recognized our image as containing an undetermined quantity of African elephants. The entry in the prediction vector
# that was maximally activated is the one corresponding to the "African elephant" class, at index 386:

# In[30]:


np.argmax(preds[0])

# To visualize which parts of our image were the most "African elephant"-like, let's set up the Grad-CAM process:

# In[31]:


# This is the "african elephant" entry in the prediction vector
african_elephant_output = model.output[:, 386]

# The is the output feature map of the `block5_conv3` layer,
# the last convolutional layer in VGG16
last_conv_layer = model.get_layer('block5_conv3')

# This is the gradient of the "african elephant" class with regard to
# the output feature map of `block5_conv3`
grads = K.gradients(african_elephant_output, last_conv_layer.output)[0]

# This is a vector of shape (512,), where each entry
# is the mean intensity of the gradient over a specific feature map channel
pooled_grads = K.mean(grads, axis=(0, 1, 2))

# This function allows us to access the values of the quantities we just defined:
# `pooled_grads` and the output feature map of `block5_conv3`,
# given a sample image
iterate = K.function([model.input], [pooled_grads, last_conv_layer.output[0]])

# These are the values of these two quantities, as Numpy arrays,
# given our sample image of two elephants
pooled_grads_value, conv_layer_output_value = iterate([x])

# We multiply each channel in the feature map array
# by "how important this channel is" with regard to the elephant class
for i in range(512):
    conv_layer_output_value[:, :, i] *= pooled_grads_value[i]

# The channel-wise mean of the resulting feature map
# is our heatmap of class activation
heatmap = np.mean(conv_layer_output_value, axis=-1)

# For visualization purpose, we will also normalize the heatmap between 0 and 1:

# In[32]:


heatmap = np.maximum(heatmap, 0)
heatmap /= np.max(heatmap)
plt.matshow(heatmap)
plt.show()

# Finally, we will use OpenCV to generate an image that superimposes the original image with the heatmap we just obtained:

# In[ ]:


import cv2

# We use cv2 to load the original image
img = cv2.imread(img_path)

# We resize the heatmap to have the same size as the original image
heatmap = cv2.resize(heatmap, (img.shape[1], img.shape[0]))

# We convert the heatmap to RGB
heatmap = np.uint8(255 * heatmap)

# We apply the heatmap to the original image
heatmap = cv2.applyColorMap(heatmap, cv2.COLORMAP_JET)

# 0.4 here is a heatmap intensity factor
superimposed_img = heatmap * 0.4 + img

# Save the image to disk
cv2.imwrite('/Users/fchollet/Downloads/elephant_cam.jpg', superimposed_img)


測試圖片：

結果：
