一、實驗目的及要求
1、掌握行為型模式的概念。
2、掌握備忘錄模式、觀察者模式、狀態模式、策略模式、模板模式、訪問者模式的構造方式及使用情景。
二、實驗裝置(環境)
1、 軟體需求: Dev-Cpp5.4, Rational Rose / Microsoft Visio
2、 硬體需求: Pentium III 450以上的CPU處理器,1G以上的記憶體,2G的自由硬碟空間
三、實驗內容
1、某系統提供了一個用於對陣列資料進行操作的類,該類封裝了對陣列的常見操作,如查詢陣列元素、對陣列元素進行排序等。現以排序操作為例,使用策略模式設計該陣列操作類,使得客戶端可以動態地更換排序演算法,可以根據需要選擇氣泡排序或選擇排序或插入排序,也能夠靈活地增加新的排序演算法。
四、實驗步驟與結果
練習一

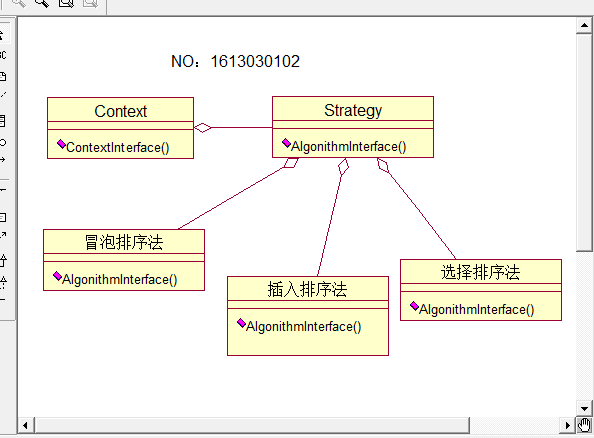

1.策略模式設計結構圖UML圖:

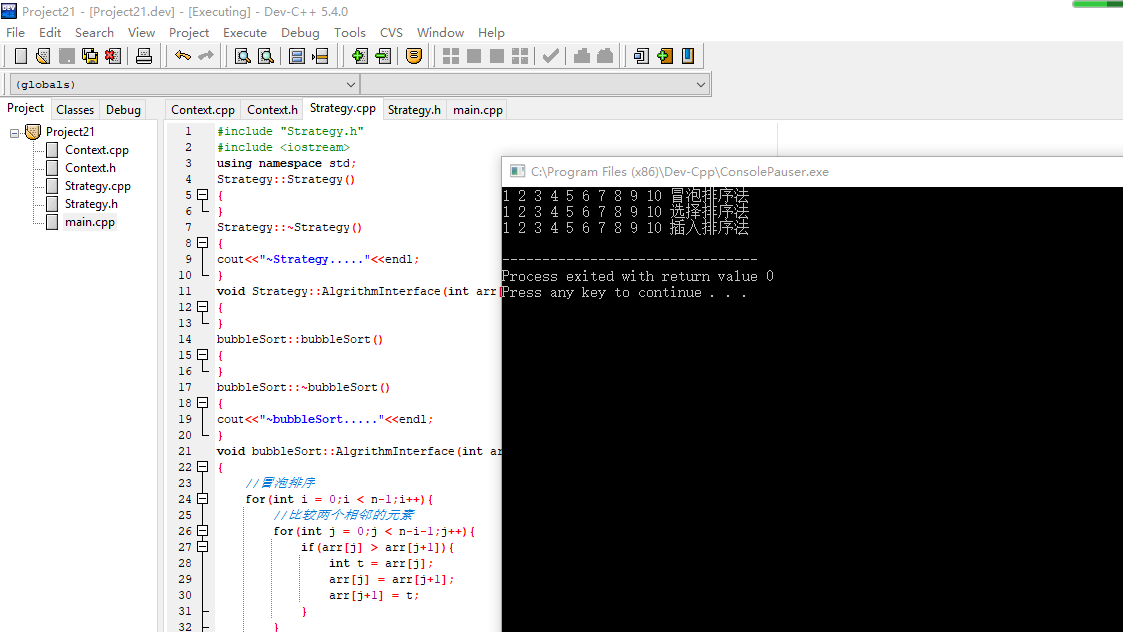

2.實驗結果截圖:
3.程式碼分析
Context.h
#ifndef _CONTEXT_H_ #define _CONTEXT_H_ class Strategy; /** *這個類是Strategy模式的關鍵,也是Strategy模式和Template模式的根本區別所在。 *Strategy通過“組合”(委託)方式實現演算法(實現)的異構,而Template模式則採取的是繼承的方式 *這兩個模式的區別也是繼承和組合兩種實現介面重用的方式的區別 */ class Context { public: Context(Strategy* stg); ~Context(); void DoAction(int arr[],int n); protected: private: Strategy* _stg; }; #endif //~_CONTEXT_H_
Context.cpp
#include "Context.h"
#include "Strategy.h"
#include <iostream>
using namespace std;
Context::Context(Strategy* stg)
{
_stg = stg;
}
Context::~Context()
{
if (!_stg)
delete _stg;
}
void Context::DoAction(int arr[],int n)
{
_stg->AlgrithmInterface(arr,n);
}
Strategy.h
#ifndef _STRATEGY_H_ #define _STRATEGY_H_ class Strategy { public: Strategy(); virtual ~Strategy(); virtual void AlgrithmInterface(int arr[], int n) = 0; protected: private: }; class bubbleSort:public Strategy { public: bubbleSort(); virtual ~bubbleSort(); void AlgrithmInterface(int arr[], int n); protected: private: }; class choiceSort:public Strategy { public: choiceSort(); virtual ~choiceSort(); void AlgrithmInterface(int arr[], int n); protected: private: }; class insertSort:public Strategy { public: insertSort(); virtual ~insertSort(); void AlgrithmInterface(int arr[], int n); protected: private: }; #endif //~_STRATEGY_H_
Strategy.cpp
#include "Strategy.h"
#include <iostream>
using namespace std;
Strategy::Strategy()
{
}
Strategy::~Strategy()
{
cout<<"~Strategy....."<<endl;
}
void Strategy::AlgrithmInterface(int arr[], int n)
{
}
bubbleSort::bubbleSort()
{
}
bubbleSort::~bubbleSort()
{
cout<<"~bubbleSort....."<<endl;
}
void bubbleSort::AlgrithmInterface(int arr[], int n)
{
//氣泡排序
for(int i = 0;i < n-1;i++){
//比較兩個相鄰的元素
for(int j = 0;j < n-i-1;j++){
if(arr[j] > arr[j+1]){
int t = arr[j];
arr[j] = arr[j+1];
arr[j+1] = t;
}
}
}
for(int i=0;i<n;i++)
{
cout<<arr[i]<<' ';
}
cout<<"氣泡排序法"<<endl;
}
choiceSort::choiceSort()
{
}
choiceSort::~choiceSort()
{
cout<<"~choiceSort....."<<endl;
}
void choiceSort::AlgrithmInterface(int arr[], int n)
{
//選擇排序
for(int i = 0;i < n-1; i++){
int m = i;
for(int j = i + 1;j < n;j++){
//如果第j個元素比第m個元素小,將j賦值給m
if(arr[j] < arr[m]){
m = j;
}
}
//交換m和i兩個元素的位置
if(i != m){
int t = arr[i];
arr[i] = arr[m];
arr[m] = t;
}
}
for(int i=0;i<n;i++)
{
cout<<arr[i]<<' ';
}
cout<<"選擇排序法"<<endl;
}
insertSort::insertSort()
{
}
insertSort::~insertSort()
{
cout<<"~insertSort....."<<endl;
}
void insertSort::AlgrithmInterface(int arr[], int n)
{
//插入排序
for(int i = 1;i < n-1;i++){
int temp = arr[i];
int j = i - 1;
while(temp < arr[j]){
arr[j+1] = arr[j];
j--;
if(j == -1){
break;
}
}
arr[j+1] = temp;
}
for(int i=0;i<n;i++)
{
cout<<arr[i]<<' ';
}
cout<<"插入排序法"<<endl;
}
main.cpp
#include "Context.h"
#include "Strategy.h"
#include <iostream>
using namespace std;
int main(int argc,char* argv[])
{
int i;
int a[] = {9, 8, 7, 6, 5, 4, 3, 2, 1, 10};
Strategy* psA;
psA = new bubbleSort();
Context* pcA = new Context(psA);
pcA->DoAction(a,10);
if (NULL != pcA)
delete pcA;
Strategy* psB;
psB = new choiceSort();
Context* pcB = new Context(psB);
pcB->DoAction(a,10);
if (NULL != pcB)
delete pcB;
Strategy* psC;
psC = new insertSort();
Context* pcC = new Context(psC);
pcC->DoAction(a,10);
if (NULL != pcC)
delete pcC;
return 0;
}
