介紹

本文演示了使用簡單線性模型瞭解TensorFlow的基本工作流程。 資料集：MNIST資料集 工具：TensorFlow 1.9.0 + Python 3.6.3 方法：簡單線性模型

1、import

import matplotlib.pyplot as plt
import tensorflow as tf
import numpy as np
from sklearn.metrics import confusion_matrix

# Tensorflow's version
tf.__version__

2、Load Data

# The MNIST data-set is about 12 MB


# and will be downloaded automatically if it is not located in the given path.
from tensorflow.examples.tutorial
s.mnist import input_data
data = input_data.read_data_sets("data/MNIST/", one_hot=True)

MNIST資料集現在已經載入並由70個影象和相關聯的標籤（即影象的分類）組成。資料集被分成3個互斥子集。在本文中，我們只使用訓練和測試集。

print("Size of:")
print("- Training-set:\t\t{}"

.format(len(data.train.labels)))
print("- Test-set:\t\t{}".format(len(data.test.labels)))
print("- Validation-set:\t{}".format(len(data.validation.labels)))

輸出結果如下： Size of: – Training-set: 55000 – Test-set: 10000 – Validation-set: 5000

3、One-Hot Encoding

資料集已被載入為一個熱編碼。這意味著標籤已經從一個單一的數字轉換為一個向量，其長度等於類的數量。向量的所有元素都是零，除了第 "i"個元素是 "1"並且意味著類是 “i”。例如，測試集中前5個影象的一個熱編碼標籤是：

data.test.labels[0:5, :]

輸出結果如下：

array([[ 0., 0., 0., 0., 0., 0., 0., 1., 0., 0.], [ 0., 0., 1., 0., 0., 0., 0., 0., 0., 0.], [ 0., 1., 0., 0., 0., 0., 0., 0., 0., 0.], [ 1., 0., 0., 0., 0., 0., 0., 0., 0., 0.], [ 0., 0., 0., 0., 1., 0., 0., 0., 0., 0.]])

為了進行各種比較和效能度量，我們還需要將類作為單個數字，因此我們採用最高元素的索引將One-Hot編碼向量轉換為單個數字。注意，“類”一詞是Python中使用的關鍵字，因此我們需要使用“CLS”的名稱。

data.test.cls = np.array([label.argmax() for label in data.test.labels])

現在我們可以看到測試集前五個影象的類。將它們與上面的一個熱編碼向量進行比較。例如，第一影象的類是7，它對應於一個熱編碼向量，其中所有元素都是零，除了具有索引7的元素。

data.test.cls[0:5]

輸出結果如下：

array([7, 2, 1, 0, 4], dtype=int64)

4、Data dimensions

資料維度在下面的程式碼中的多個地方使用。在計算機程式設計中，通常最好使用變數和常量，而不是每次使用該數字時都要編碼特定的數字。這意味著數字只需要在一個地方改變。

# We know that MNIST images are 28 pixels in each dimension.
img_size = 28

# Images are stored in one-dimensional arrays of this length.
img_size_flat = img_size * img_size

# Tuple with height and width of images used to reshape arrays.
img_shape = (img_size, img_size)

# Number of classes, one class for each of 10 digits.
num_classes = 10

5、Helper-function for plotting images

函式用於在3x3網格中繪製9幅影象，並在每個影象下寫入真實和預測的類。

def plot_images(images, cls_true, cls_pred=None):
    assert len(images) == len(cls_true) == 9

    # Create figure with 3x3 sub-plots.
    fig, axes = plt.subplots(3, 3)
    fig.subplots_adjust(hspace=0.3, wspace=0.3)

    for i, ax in enumerate(axes.flat):
        # Plot image.
        ax.imshow(images[i].reshape(img_shape), cmap='binary')

        # Show true and predicted classes.
        if cls_pred is None:
            xlabel = "True: {0}".format(cls_true[i])
        else:
            xlabel = "True: {0}, Pred: {1}".format(cls_true[i], cls_pred[i])

        ax.set_xlabel(xlabel)

        # Remove ticks from the plot.
        ax.set_xticks([])
        ax.set_yticks([])

    # Ensure the plot is shown correctly with multiple plots
    # in a single Notebook cell.
    plt.show()

載入少量資料檢視上述函式是否正確

# Get the first images from the test-set.
images = data.test.images[0:9]

# Get the true classes for those images.
cls_true = data.test.cls[0:9]

# Plot the images and labels using our helper-function above.
plot_images(images=images, cls_true=cls_true)

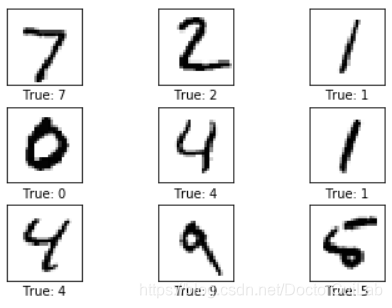

輸出結果如下：

6、Placeholder variables

佔位符變數作為圖表的輸入，我們可以在每次執行圖表時改變。

# Define the placeholder variable for the input images.
# None means that the tensor may hold an arbitrary number of images
# with each image being a vector of length img_size_flat.
x = tf.placeholder(tf.float32, [None, img_size_flat])

# Define the placeholder variable for the true labels.
y_true = tf.placeholder(tf.float32, [None, num_classes])

# Define the placeholder variable for the true class.
y_true_cls = tf.placeholder(tf.int64, [None])

7、Variables to be optimized

# The first variable that must be optimized is called weights
# and is defined here as a TensorFlow variable that must be initialized with zeros
# and whose shape is [img_size_flat, num_classes],
# so it is a 2-dimensional tensor (or matrix)
# with img_size_flat rows and num_classes columns.
weights = tf.Variable(tf.zeros([img_size_flat, num_classes]))

# The second variable that must be optimized is called biases
# and is defined as a 1-dimensional tensor (or vector) of length num_classes.
biases = tf.Variable(tf.zeros([num_classes]))

8、Model

# This simple mathematical model multiplies the images
# in the placeholder variable x with the weights and then adds the biases.
logits = tf.matmul(x, weights) + biases

y_pred = tf.nn.softmax(logits)

y_pred_cls = tf.argmax(y_pred, axis=1)

9、Cost-function to be optimized

cross_entropy = tf.nn.softmax_cross_entropy_with_logits(logits=logits,
                                                        labels=y_true)
cost = tf.reduce_mean(cross_entropy)

10、Optimization method

optimizer = tf.train.GradientDescentOptimizer(learning_rate=0.5).minimize(cost)

11、Performance measures

correct_prediction = tf.equal(y_pred_cls, y_true_cls)

accuracy = tf.reduce_mean(tf.cast(correct_prediction, tf.float32))

12、TensorFlow Run

session = tf.Session()

session.run(tf.global_variables_initializer())

batch_size = 100

def optimize(num_iterations):
    for i in range(num_iterations):
        # Get a batch of training examples.
        # x_batch now holds a batch of images and
        # y_true_batch are the true labels for those images.
        x_batch, y_true_batch = data.train.next_batch(batch_size)

        # Put the batch into a dict with the proper names
        # for placeholder variables in the TensorFlow graph.
        # Note that the placeholder for y_true_cls is not set
        # because it is not used during training.
        feed_dict_train = {x: x_batch,
                           y_true: y_true_batch}

        # Run the optimizer using this batch of training data.
        # TensorFlow assigns the variables in feed_dict_train
        # to the placeholder variables and then runs the optimizer.
        session.run(optimizer, feed_dict=feed_dict_train)

13、Helper-functions to show performance

feed_dict_test = {x: data.test.images,
                  y_true: data.test.labels,
                  y_true_cls: data.test.cls}

def print_accuracy():
    # Use TensorFlow to compute the accuracy.
    acc = session.run(accuracy, feed_dict=feed_dict_test)

    # Print the accuracy.
    print("Accuracy on test-set: {0:.1%}".format(acc))

def print_confusion_matrix():
    # Get the true classifications for the test-set.
    cls_true = data.test.cls

    # Get the predicted classifications for the test-set.
    cls_pred = session.run(y_pred_cls, feed_dict=feed_dict_test)

    # Get the confusion matrix using sklearn.
    cm = confusion_matrix(y_true=cls_true,
                          y_pred=cls_pred)

    # Print the confusion matrix as text.
    print(cm)

    # Plot the confusion matrix as an image.
    plt.imshow(cm, interpolation='nearest', cmap=plt.cm.Blues)

    # Make various adjustments to the plot.
    plt.tight_layout()
    plt.colorbar()
    tick_marks = np.arange(num_classes)
    plt.xticks(tick_marks, range(num_classes))
    plt.yticks(tick_marks, range(num_classes))
    plt.xlabel('Predicted')
    plt.ylabel('True')

    # Ensure the plot is shown correctly with multiple plots
    # in a single Notebook cell.
    plt.show()

def plot_example_errors():
    # Use TensorFlow to get a list of boolean values
    # whether each test-image has been correctly classified,
    # and a list for the predicted class of each image.
    correct, cls_pred = session.run([correct_prediction, y_pred_cls],
                                    feed_dict=feed_dict_test)

    # Negate the boolean array.
    incorrect = (correct == False)

    # Get the images from the test-set that have been
    # incorrectly classified.
    images = data.test.images[incorrect]

    # Get the predicted classes for those images.
    cls_pred = cls_pred[incorrect]

    # Get the true classes for those images.
    cls_true = data.test.cls[incorrect]

    # Plot the first 9 images.
    plot_images(images=images[0:9],
                cls_true=cls_true[0:9],
                cls_pred=cls_pred[0:9])

def plot_weights():
    # Get the values for the weights from the TensorFlow variable.
    w = session.run(weights)

    # Get the lowest and highest values for the weights.
    # This is used to correct the colour intensity across
    # the images so they can be compared with each other.
    w_min = np.min(w)
    w_max = np.max(w)

    # Create figure with 3x4 sub-plots,
    # where the last 2 sub-plots are unused.
    fig, axes = plt.subplots(3, 4)
    fig.subplots_adjust(hspace=0.3, wspace=0.3)

    for i, ax in enumerate(axes.flat):
        # Only use the weights for the first 10 sub-plots.
        if i<10:
            # Get the weights for the i'th digit and reshape it.
            # Note that w.shape == (img_size_flat, 10)
            image = w[:, i].reshape(img_shape)

            # Set the label for the sub-plot.
            ax.set_xlabel("Weights: {0}".format(i))

            # Plot the image.
            ax.imshow(image, vmin=w_min, vmax=w_max, cmap='seismic')

        # Remove ticks from each sub-plot.
        ax.set_xticks([])
        ax.set_yticks([])

    # Ensure the plot is shown correctly with multiple plots
    # in a single Notebook cell.
    plt.show()

14、Performance before any optimization

print_accuracy()

plot_example_errors()

15、Performance after 1 optimization iteration

optimize(num_iterations=1)

print_accuracy()

plot_example_errors()

plot_weights()

16、Performance after 10 optimization iterations

# We have already performed 1 iteration.
optimize(num_iterations=9)

print_accuracy()

plot_example_errors()

plot_weights()

17、Performance after 1000 optimization iterations

# We have already performed 10 iterations.
optimize(num_iterations=990)

print_accuracy()

plot_example_errors()

plot_weights()

print_confusion_matrix()
