Springboot2（24）整合netty實現http服務（類似SpingMvc的contoller層實現）

Springboot2（25）整合netty實現檔案傳輸

Springboot2（26）整合netty實現websocket通訊

Springboot2（27）整合netty實現反向代理（內網穿透）

實現websocket通訊，和廣播訊息

新增依賴

<dependency>
    <groupId>io.netty</groupId>
    <artifactId>netty-all</artifactId>
    <version>4.1.1.Final</version>
</dependency>
<dependency>
    <groupId>commons-lang</groupId>
    <artifactId>commons-lang</artifactId>
    <version>${commons.lang.version}</version>
</dependency>


排除tomcat的依賴

Netty Http服務端編寫

handler 處理類

@Component
@Slf4j
@ChannelHandler.Sharable //@Sharable 註解用來說明ChannelHandler是否可以在多個channel直接共享使用
@ConditionalOnProperty(  //配置檔案屬性是否為true
		value = {"netty.ws.enabled"},
		matchIfMissing = false
)
public class WsServerHandler extends ChannelInboundHandlerAdapter

 {

	@Autowired
	NettyWsProperties nettyWsProperties;

	public static ChannelGroup channels = new DefaultChannelGroup(GlobalEventExecutor.INSTANCE);
	private WebSocketServerHandshaker handshaker;
	//websocket握手升級繫結頁面
	String wsFactoryUri = "";

	@Value("${netty.ws.endPoint:/ws}")
	private String wsUri;


	//static Set<Channel> channelSet = new HashSet<>();

	/*
	 * 握手建立
	 */
	@Override
	public void handlerAdded(ChannelHandlerContext ctx) throws Exception {
		Channel incoming = ctx.channel();
		channels.add(incoming);
	}

	/*
	 * 握手取消
	 */
	@Override
	public void handlerRemoved(ChannelHandlerContext ctx) throws Exception {
		Channel incoming = ctx.channel();
		channels.remove(incoming);
	}

	@Override
	public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
		if (msg instanceof FullHttpRequest) {
			handleHttpRequest(ctx, (FullHttpRequest) msg);
		} else if (msg instanceof WebSocketFrame) {
			handlerWebSocketFrame(ctx, (WebSocketFrame) msg);
		}
	}
	//websocket訊息處理（只支援文字）
	public void handlerWebSocketFrame(ChannelHandlerContext ctx, WebSocketFrame frame) throws Exception {

		// 關閉請求
		if (frame instanceof CloseWebSocketFrame) {
			handshaker.close(ctx.channel(), (CloseWebSocketFrame) frame.retain());
			return;
		}
		// ping請求
		if (frame instanceof PingWebSocketFrame) {
			ctx.channel().write(new PongWebSocketFrame(frame.content().retain()));
			return;
		}
		// 只支援文字格式，不支援二進位制訊息
		if (frame instanceof TextWebSocketFrame) {
			//接收到的訊息
			String requestmsg = ((TextWebSocketFrame) frame).text();
			TextWebSocketFrame tws = new TextWebSocketFrame(requestmsg);
			channels.writeAndFlush(tws);
		}

	}

	// 第一次請求是http請求，請求頭包括ws的資訊
	public void handleHttpRequest(ChannelHandlerContext ctx, FullHttpRequest request)
			throws Exception {
		// 如果HTTP解碼失敗，返回HTTP異常
		if (request instanceof HttpRequest) {
			HttpMethod method = request.getMethod();
			// 如果是websocket請求就握手升級
			if (wsUri.equalsIgnoreCase(request.getUri())) {
				System.out.println(" req instanceof HttpRequest");
				WebSocketServerHandshakerFactory wsFactory = new WebSocketServerHandshakerFactory(
						wsFactoryUri, null, false);
				handshaker = wsFactory.newHandshaker(request);
				if (handshaker == null) {
					WebSocketServerHandshakerFactory.sendUnsupportedVersionResponse(ctx.channel());
				} else {
				}
				handshaker.handshake(ctx.channel(), request);
			}
		}
	}

	// 異常處理，netty預設是關閉channel
	@Override
	public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
		cause.printStackTrace();
		ctx.close();
	}

	@Override
	public void userEventTriggered(ChannelHandlerContext ctx, Object evt) throws Exception {
		if (evt instanceof IdleStateEvent) {

			IdleStateEvent event = (IdleStateEvent) evt;
			if (event.state() == IdleState.READER_IDLE) {
				// 讀資料超時
			} else if (event.state() == IdleState.WRITER_IDLE) {
				// 寫資料超時
			} else if (event.state() == IdleState.ALL_IDLE) {
				// 通道長時間沒有讀寫，服務端主動斷開連結
				ctx.close();
			}
		} else {
			super.userEventTriggered(ctx, evt);
		}
	}
}

ChannelPipeline 實現

@Component
@ConditionalOnProperty(  //配置檔案屬性是否為true
		value = {"netty.ws.enabled"},
		matchIfMissing = false
)
public class WsPipeline  extends ChannelInitializer<SocketChannel>{

	@Autowired
	WsServerHandler wsServerHandler;

	private static final int READ_IDEL_TIME_OUT = 3; // 讀超時
	private static final int WRITE_IDEL_TIME_OUT = 4;// 寫超時
	private static final int ALL_IDEL_TIME_OUT = 5; // 所有超時

	@Override
	protected void initChannel(SocketChannel ch) throws Exception {

		ChannelPipeline p = ch.pipeline();
		p.addLast(new IdleStateHandler(READ_IDEL_TIME_OUT,WRITE_IDEL_TIME_OUT, ALL_IDEL_TIME_OUT, TimeUnit.MINUTES));
    	p.addLast("http-codec", new HttpServerCodec());
    	p.addLast("aggregator", new HttpObjectAggregator(65536));
    	p.addLast("http-chunked", new ChunkedWriteHandler());
    	p.addLast("handler",wsServerHandler);
	}

}

服務實現

@Configuration
@EnableConfigurationProperties({NettyWsProperties.class})
@ConditionalOnProperty(  //配置檔案屬性是否為true
		value = {"netty.ws.enabled"},
		matchIfMissing = false
)
@Slf4j
public class WsServer {

	    @Autowired
	    WsPipeline wsPipeline;

	    @Autowired
	    NettyWsProperties nettyWsProperties;

	    @Bean("starWsServer")
	    public String start() {
	        // 準備配置
	        // HttpConfiguration.me().setContextPath(contextPath).setWebDir(webDir).config();
	        // 啟動伺服器
	       Thread thread =  new Thread(() -> {
	    	    NioEventLoopGroup bossGroup = new NioEventLoopGroup(nettyWsProperties.getBossThreads());
		        NioEventLoopGroup workerGroup = new NioEventLoopGroup(nettyWsProperties.getWorkThreads());
	            try {
	            	log.info("start netty [WebSocket] server ,port: " + nettyWsProperties.getPort());
	                ServerBootstrap boot = new ServerBootstrap();
	                options(boot).group(bossGroup, workerGroup)
	                        .channel(NioServerSocketChannel.class)
	                        .handler(new LoggingHandler(LogLevel.INFO))
	                        .childHandler(wsPipeline);
	                Channel ch = null;
	                //是否繫結IP
	                if(StringUtils.isNotEmpty(nettyWsProperties.getBindIp())){
	                	ch = boot.bind(nettyWsProperties.getBindIp(),nettyWsProperties.getPort()).sync().channel();
	                }else{
	                	ch = boot.bind(nettyWsProperties.getPort()).sync().channel();
	                }
	                ch.closeFuture().sync();
	            } catch (InterruptedException e) {
	                log.error("啟動NettyServer錯誤", e);
	            } finally {
	                bossGroup.shutdownGracefully();
	                workerGroup.shutdownGracefully();
	            }
	        });
	        thread.setName("Ws_Server");
	        thread.start();
	        return "ws start";
	    }


	    private ServerBootstrap options(ServerBootstrap boot) {
	    	boot.option(ChannelOption.SO_BACKLOG, 1024)
			    .option(ChannelOption.TCP_NODELAY, true)
			    .option(ChannelOption.ALLOCATOR, PooledByteBufAllocator.DEFAULT);
	        return boot;
	    }

}

啟動配置

---application.yml
spring.profiles.active: ws

---application-ws.yml
netty:
   ws:
     enabled: true
     port: 9988
     endPoint: /ws

測試

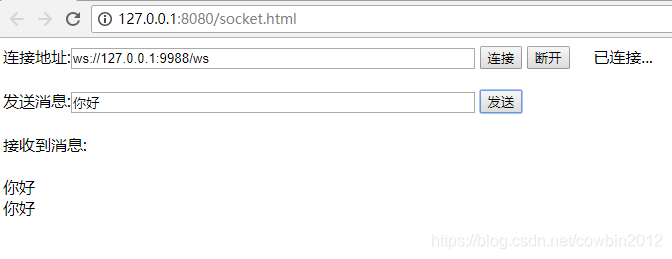

在瀏覽器開啟多個http://127.0.0.1:8080/socket.html
