資料結構篇:校園最短路徑導航(三:地圖影象顯示以及完整程式)
阿新 • • 發佈:2018-12-21
首先是地圖的顯示,因為控制檯限制,只能通過外部程式來顯示圖片
如果你使用的是VC6.0或者Dev C++將準備好的圖片放在工程根目錄,命名為SchoolMap.png
如果有小夥伴和我一樣使用的是CLion的話,就把圖片放到cmake-build-debug下面
)
在main函式裡呼叫以下語句即可顯示圖片
system("mspaint SchoolMap.png");
可是問題來了,如果呼叫這一個語句,程式會暫停,不把圖片關閉程式就不會繼續執行,還好控制檯會快取我們的輸入。也就有了挽救的可能。
while(1){ cout<<"請按照圖片選擇你想去的地方,輸入起始點和目的地的序號,以空格間隔。"<<endl; cout<<"標準格式 :0 1回車"<<endl; cout<<"若輸入已完成,請按回車鍵,並關閉圖片。即可顯示路徑。"<<endl; system("mspaint SchoolMap.png"); cin>>originPos>>endPos; adjacencyList.ShowShortestResult(originPos,endPos); }
真的有點麻煩,我哭了,你們呢。

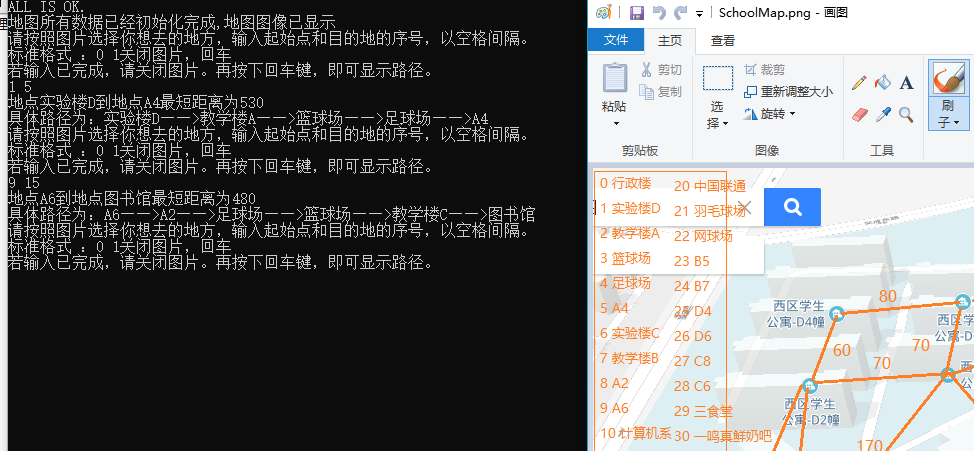

執行截圖
Gif版
完整程式
#include <iostream> #include <string.h> #include <stdlib.h> using namespace std; //儲存最短路徑值 int ShortestPathvalue[32][32] = {0}; //儲存具體路徑 int ShortestPathmatrix[32][32] = {0}; //地點資訊 char _mapName[32][50] = {"行政樓", "實驗樓D", "教學樓A", "籃球場", "足球場", "A4", "實驗樓C", "教學樓B", "A2", "A6", "計算機系", "蘇果超市", "果曼優品", "實驗樓A", "教學樓C", "圖書館", "一食堂", "D2", "D8", "C4", "中國聯通", "羽毛球場", "網球場", "B5", "B7", "D4", "D6", "C8", "C6", "三食堂", "一鳴真鮮奶吧", "B11"}; //距離資訊,_distance[0][1] = 50;代表從下標為0到下表為1地點距離為50 int _distance[32][32] = {0}; //邊表結點 typedef struct EdgeNode { //頂點對應的下標 int adjvex; //權值 int weight; //指向下一個鄰接點 struct EdgeNode *next; } edgeNode; //頂點表結點 typedef struct VertexNode { //頂點資料 char data[50]; //邊表頭指標 edgeNode *firstedge; } VertexNode, AdjList[100]; //集合 typedef struct { AdjList adjList; //頂點數和邊數 int numVertexes, numEdges; } GraphAdjList; class AdjacencyList { public: void ShowALGraph(GraphAdjList *G); void Test(); //初始化地圖 void InitMap(GraphAdjList *G); //建立地圖 void CreateALGraph(GraphAdjList *G); //計算各個頂點之間最短路徑 void ShortestPath_Floyd(GraphAdjList *G, int P[32][32], int D[32][32]); //輸出路徑長度和具體路徑 void ShowShortestResult(int originPos,int endPos); }; //建立地圖 void AdjacencyList::CreateALGraph(GraphAdjList *G) { edgeNode *e; //讀入頂點資訊,建立頂點表 for (int i = 0; i < G->numVertexes; i++) { //讀入頂點資訊 strcpy(G->adjList[i].data, _mapName[i]); //將邊表置為空表 G->adjList[i].firstedge = NULL; } //建立邊表(頭插法) for (int i = 0; i < G->numVertexes; i++) { for (int j = 0; j < i; j++) { int temp; if (_distance[i][j] != 0 || _distance[j][i] != 0) { if (_distance[i][j] != 0) { temp = _distance[i][j]; _distance[j][i] = _distance[i][j]; } else { temp = _distance[j][i]; _distance[i][j] = _distance[j][i]; } e = new EdgeNode; e->adjvex = j; e->next = G->adjList[i].firstedge; e->weight = temp; G->adjList[i].firstedge = e; e = new EdgeNode; e->adjvex = i; e->next = G->adjList[j].firstedge; e->weight = temp; G->adjList[j].firstedge = e; } } } } void AdjacencyList::Test() { cout << "ALL IS OK." << endl; } void AdjacencyList::ShowALGraph(GraphAdjList *G) { for (int i = 0; i < G->numVertexes; i++) { cout << "頂點" << i << ": " << G->adjList[i].data << "--firstedge--"; edgeNode *p = new edgeNode; p = G->adjList[i].firstedge; while (p) { cout << p->adjvex << "--Weight: " << p->weight << "--Next--"; p = p->next; } cout << "--NULL" << endl; } } //初始化地圖基本資料 void AdjacencyList::InitMap(GraphAdjList *G) { //輸入頂點數和邊數 G->numVertexes = 32; G->numEdges = 59; _distance[0][2] = 60; _distance[1][2] = 190; _distance[1][7] = 210; _distance[1][6] = 70; _distance[2][7] = 80; _distance[2][16] = 320; _distance[2][3] = 120; _distance[3][7] = 100; _distance[3][14] = 170; _distance[3][4] = 80; _distance[4][11] = 180; _distance[4][8] = 90; _distance[4][5] = 140; _distance[5][9] = 70; _distance[6][7] = 220; _distance[6][10] = 50; _distance[7][10] = 210; _distance[7][14] = 90; _distance[7][16] = 260; _distance[8][11] = 110; _distance[8][9] = 60; _distance[9][11] = 110; _distance[10][17] = 190; _distance[10][13] = 50; _distance[11][16] = 80; _distance[11][12] = 90; _distance[12][16] = 100; _distance[13][17] = 160; _distance[13][18] = 170; _distance[13][15] = 120; _distance[13][14] = 190; _distance[14][15] = 80; _distance[14][16] = 210; _distance[15][18] = 140; _distance[15][20] = 200; _distance[15][21] = 170; _distance[16][21] = 200; _distance[16][23] = 80; _distance[17][25] = 60; _distance[17][18] = 70; _distance[18][26] = 70; _distance[18][19] = 120; _distance[19][20] = 60; _distance[20][21] = 100; _distance[20][22] = 110; _distance[20][27] = 130; _distance[20][28] = 120; _distance[21][22] = 90; _distance[22][29] = 120; _distance[22][30] = 110; _distance[22][24] = 110; _distance[23][24] = 80; _distance[24][30] = 40; _distance[25][26] = 80; _distance[26][27] = 80; _distance[28][29] = 80; _distance[29][31] = 180; _distance[29][30] = 100; _distance[30][31] = 100; } void AdjacencyList::ShortestPath_Floyd(GraphAdjList *G, int P[32][32], int D[32][32]) { //初始化D與P for (int v = 0; v < G->numVertexes; ++v) { for (int w = 0; w < G->numVertexes; ++w) { if(_distance[v][w]==0&&v!=w){ _distance[v][w] = 10000; } D[v][w] = _distance[v][w]; P[v][w] = w; } } for (int k = 0; k < G->numVertexes; ++k) { for (int v = 0; v < G->numVertexes; ++v) { for (int w = 0; w < G->numVertexes; ++w) { if (D[v][w] > D[v][k] + D[k][w]) { D[v][w] = D[v][k] + D[k][w]; P[v][w] = P[v][k]; } } } } } void AdjacencyList::ShowShortestResult(int originPos,int endPos) { int temp; cout << "地點" << _mapName[originPos] << "到地點" << _mapName[endPos] << "最短距離為" << ShortestPathvalue[originPos][endPos] << endl; temp = ShortestPathmatrix[originPos][endPos]; cout<<"具體路徑為:"<<_mapName[originPos]<<"——>"; while (temp!=endPos){ cout<<_mapName[temp]<<"——>"; temp = ShortestPathmatrix[temp][endPos]; } cout<<_mapName[endPos]<<endl; } int main() { AdjacencyList adjacencyList; int originPos,endPos; GraphAdjList *GA = new GraphAdjList; adjacencyList.Test(); adjacencyList.InitMap(GA); adjacencyList.CreateALGraph(GA); adjacencyList.ShortestPath_Floyd(GA,ShortestPathmatrix,ShortestPathvalue); cout<<"地圖所有資料已經初始化完成,地圖影象已顯示"<<endl; while(1){ cout<<"請按照圖片選擇你想去的地方,輸入起始點和目的地的序號,以空格間隔。"<<endl; cout<<"標準格式 :0 1關閉圖片,回車"<<endl; cout<<"若輸入已完成,請關閉圖片。再按下回車鍵,即可顯示路徑。"<<endl; system("mspaint SchoolMap.png"); cin>>originPos>>endPos; adjacencyList.ShowShortestResult(originPos,endPos); } return 0; }
