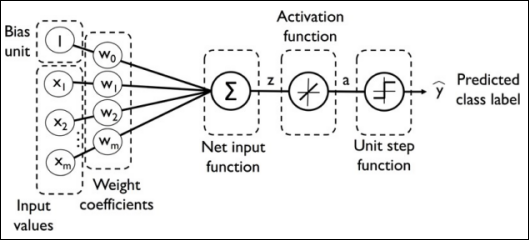

1.單層神經網路

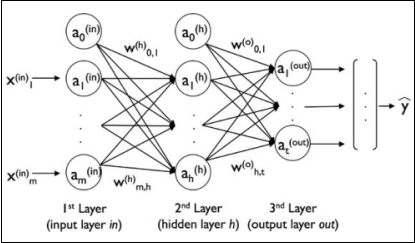

2.多層神經網路

3.MLP的3個步驟

MLP learning procedure in three simple steps:

1. Starting at the input layer, we forward propagate the patterns of the training data through the network to generate an output.
2. Based on the network's output, we calculate the error that we want to minimize using a cost function that we will describe later.
3. We backpropagate the error, find its derivative with respect to each weight inthe network, and update the model.

前向演算法

隱藏層中的每個單元連結所有輸入層，計算隱藏層的啟用單元

輸出也是同樣的方法

4.Obtaining the MNIST dataset

獲取60000個訓練集和10000個測試集，將原始的資料轉換成784（28*28）畫素的資料。

# -*- coding: utf-8 -*-
"""
Created on Sat Nov 10 14:30:38 2018

@author:YRP
"""
import os
import struct
import numpy as np

#Load_mnist返回兩個值樣品和特徵
def load_mnist(path, kind='train'):
    """Load MNIST data from `path`"""
    labels_path = os.path.join(path,
                               '%s-labels.idx1-ubyte' % kind)
    images_path = os.path.join(path,
                               '%s-images.idx3-ubyte' % kind)

    with open(labels_path, 'rb') as lbpath:
        magic, n = struct.unpack('>II',
                                 lbpath.read(8))
        labels = np.fromfile(lbpath,
                             dtype=np.uint8)

    with open(images_path, 'rb') as imgpath:
        magic, num, rows, cols = struct.unpack(">IIII",
                                               imgpath.read(16))
        images = np.fromfile(imgpath,
                             dtype=np.uint8).reshape(
                             len(labels), 784)
        images = ((images / 255.) - .5) * 2

    return images, labels
#讀取60000個訓練集和10000個測試集
X_train, y_train = load_mnist('', kind='train')
print('Rows: %d, columns: %d'
      % (X_train.shape[0], X_train.shape[1]))
X_test, y_test = load_mnist('', kind='t10k')
print('Rows: %d, columns: %d'
      % (X_test.shape[0], X_test.shape[1]))
#顯示影象中的1到9
import matplotlib.pyplot as plt
fig, ax = plt.subplots(nrows=2, ncols=5,
                       sharex=True, sharey=True)
ax = ax.flatten()
for i in range(10):
    img = X_train[y_train == i][0].reshape(28, 28)
    ax[i].imshow(img, cmap='Greys')
ax[0].set_xticks([])
ax[0].set_yticks([])
plt.tight_layout()
plt.show()
#儲存訓練和測試集到檔案中
np.savez_compressed('mnist_scaled.npz',
	X_train=X_train,
	y_train=y_train,
	X_test=X_test,
	y_test=y_test)

#將檔案讀取
mnist = np.load('mnist_scaled.npz')






影象顯示結果

5.區分手寫資料 Classifying handwritten digits

    實現MLP包括一層輸入、一層隱藏、一層輸出，來對MNIST的資料集進行識別

    對55000個數據進行訓練，留下5000個數據進行驗證

在NeuralNetMLP中設定引數

• • • l2: This is the l parameter for L2 regularization to decrease the degree of overfitting.
    • epochs: This is the number of passes over the training set.
    • eta: This is the learning rate h .
    • shuffle: This is for shuffling the training set prior to every epoch to prevent that the algorithm gets stuck in circles.
    • seed: This is a random seed for shuffling and weight initialization.
    • minibatch_size: This is the number of training samples in each mini-batch when splitting of the training data in each epoch for stochastic gradient descent. The gradient is computed for each mini-batch separately instead of the entire training data for faster learning.

通過得到200個epochs的cost，繪製出如下圖表

得到200Epochs的驗證和訓練精度

最後通過分析驗證集和訓練集的精度評估模型的泛化能力

Test accuracy: 97.54%

觀察一個5*5的子圖矩陣，其中副標題中的第一個數字表示圖索引，第二個數字表示真正的類標籤(t)，第三個數字表示預測的類標籤(p):

import os
import mlp
import numpy as np
import matplotlib.pyplot as plt

mnist = np.load('./mnist/mnist_scaled.npz')
X_train, y_train, X_test, y_test = [mnist[f] for f in mnist.files]

n_epochs = 200


if 'TRAVIS' in os.environ:
    n_epochs = 20

nn = mlp.NeuralNetMLP(n_hidden=100,
                  l2=0.01,
                  epochs=n_epochs,
                  eta=0.0005,
                  minibatch_size=100,
                  shuffle=True,
                  seed=1)

nn.fit(X_train=X_train[:55000],
       y_train=y_train[:55000],
       X_valid=X_train[55000:],
       y_valid=y_train[55000:])

plt.plot(range(nn.epochs), nn.eval_['cost'])
plt.ylabel('Cost')
plt.xlabel('Epochs')
plt.savefig('images/costEpochs.png', dpi=300)
plt.show()

plt.plot(range(nn.epochs), nn.eval_['train_acc'], label='training')
plt.plot(range(nn.epochs), nn.eval_['valid_acc'], label='validation', linestyle='--')
plt.ylabel('Accuracy')
plt.xlabel('Epochs')
plt.legend()
plt.savefig('images/accuracyEpochs.png', dpi=300)
plt.show()

y_test_pred = nn.predict(X_test)
acc = (np.sum(y_test == y_test_pred)
       .astype(np.float) / X_test.shape[0])

print('Test accuracy: %.2f%%' % (acc * 100))

miscl_img = X_test[y_test != y_test_pred][:25]
correct_lab = y_test[y_test != y_test_pred][:25]
miscl_lab = y_test_pred[y_test != y_test_pred][:25]

fig, ax = plt.subplots(nrows=5, ncols=5, sharex=True, sharey=True,)
ax = ax.flatten()
for i in range(25):
    img = miscl_img[i].reshape(28, 28)
    ax[i].imshow(img, cmap='Greys', interpolation='nearest')
    ax[i].set_title('%d) t: %d p: %d' % (i+1, correct_lab[i], miscl_lab[i]))

ax[0].set_xticks([])
ax[0].set_yticks([])
plt.tight_layout()
plt.savefig('images/misclassifying.png', dpi=300)
plt.show()

參考資料：《Python Machine Learning（2th）》
